On May 22-23, 2008, a favorable pattern for
severe thunderstorms developed across the high plains, front range and
eastern slopes of the Rockies. Slow moving meridional troughs
have historically provided some of the more notable severe
weather events for this region. Examples include
April 23
1960 and
June
14-17 1965.
Several tornadic storms occurred on
May 22,
and a few of these produced large, long-lived tornadoes. The most
damaging and long-lived storm initiated near the Denver International
Airport (DIA) around 1630 UTC (1030 am MDT) and became severe southwest
of Hudson, CO around 1705 UTC. The storm continued moving
north-northwest along the front range of Colorado through 1830 UTC.
Between 1830 and 1845 UTC the storm climbed the high terrain of
northern Larimer county and lost some intensity. The storm still may
have been marginally severe but very few people live in this area. The
storm intensified
after 1845 UTC and produced tornadoes from
just east of the tri-county border of Larimer, Laramie and Albany
counties to Laramie Wyoming and beyond. This Wyoming tornado was accompanied by quarter to
golfball sized hail (and apparently much
larger at the

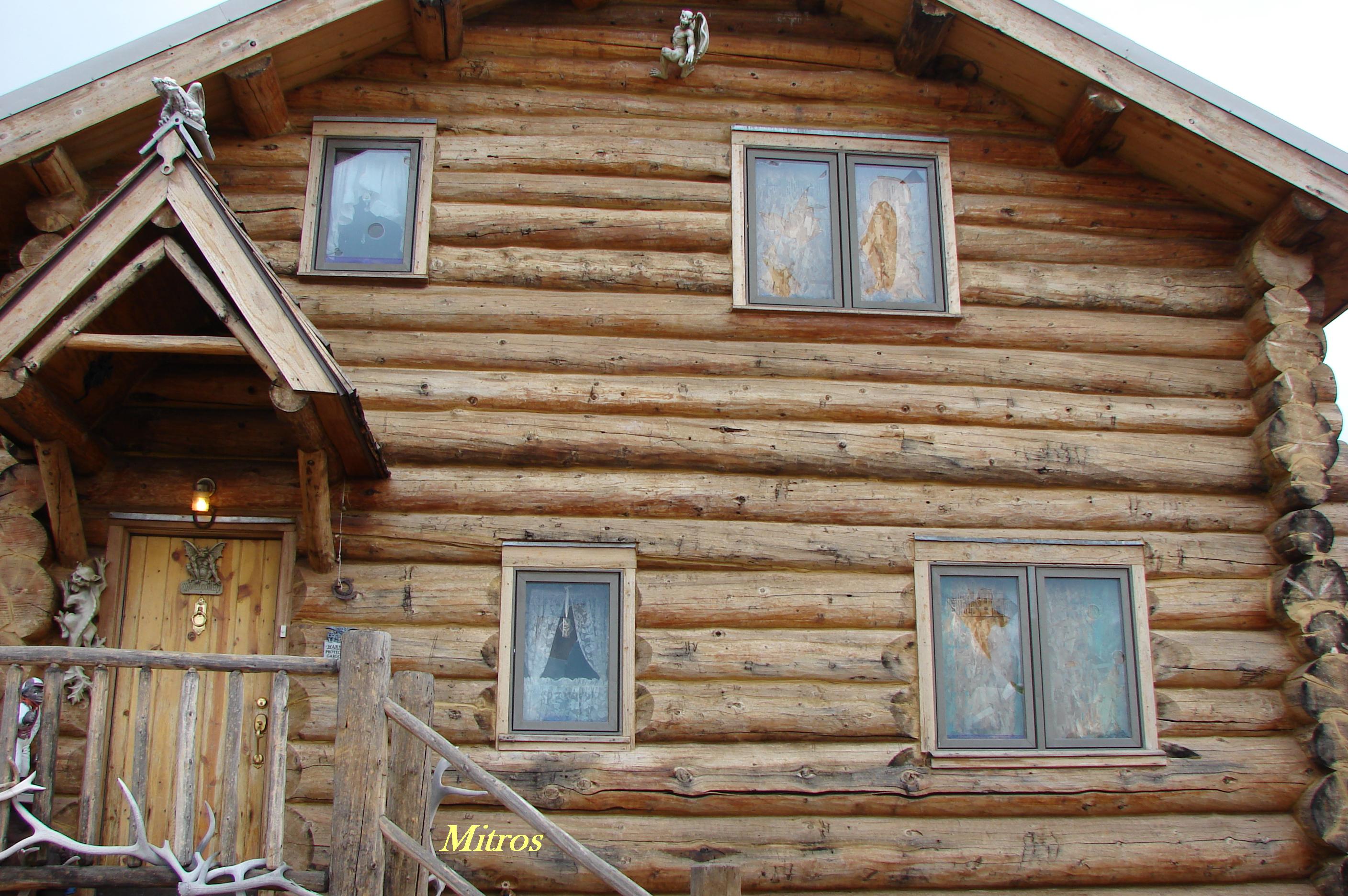

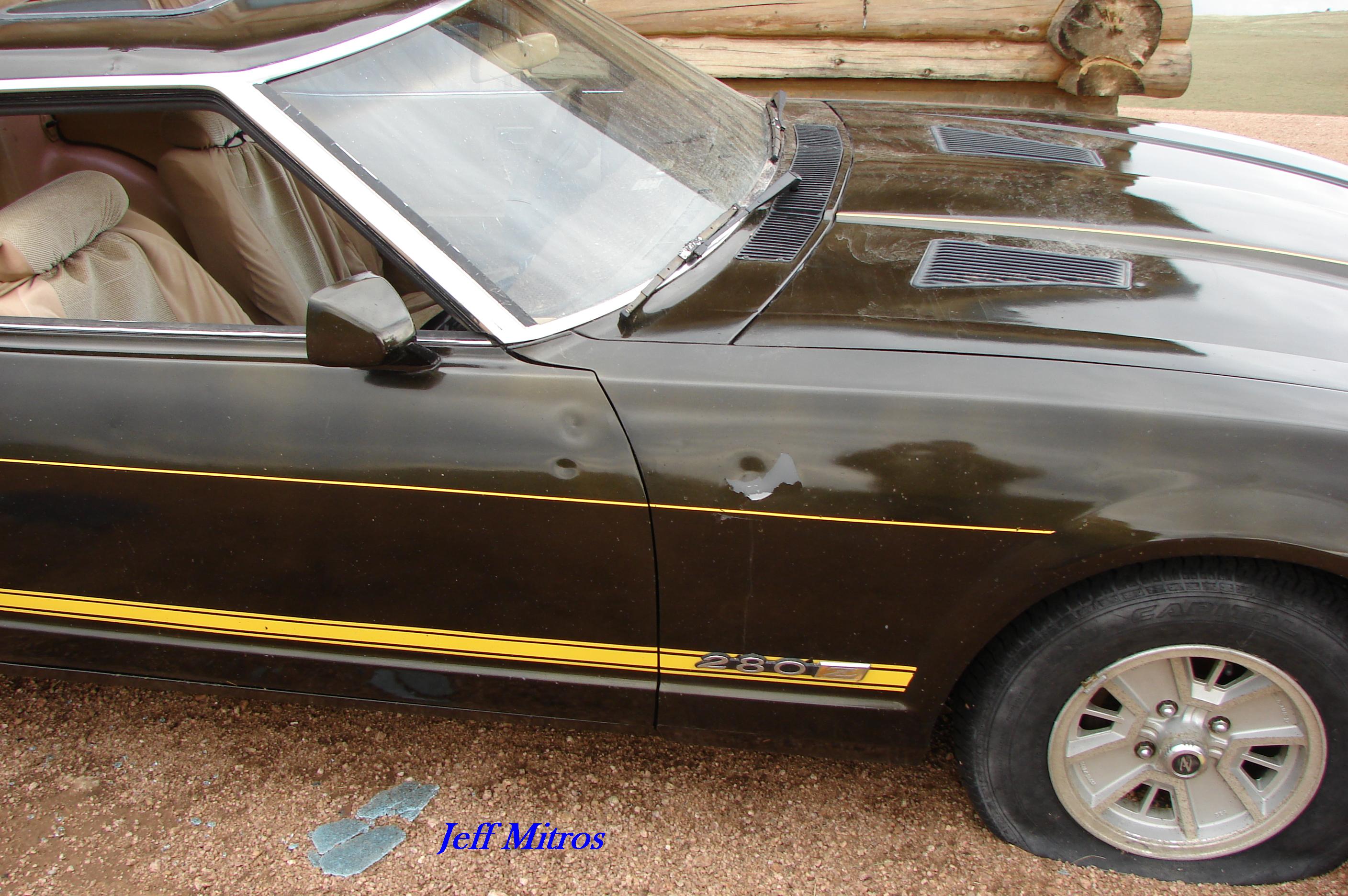

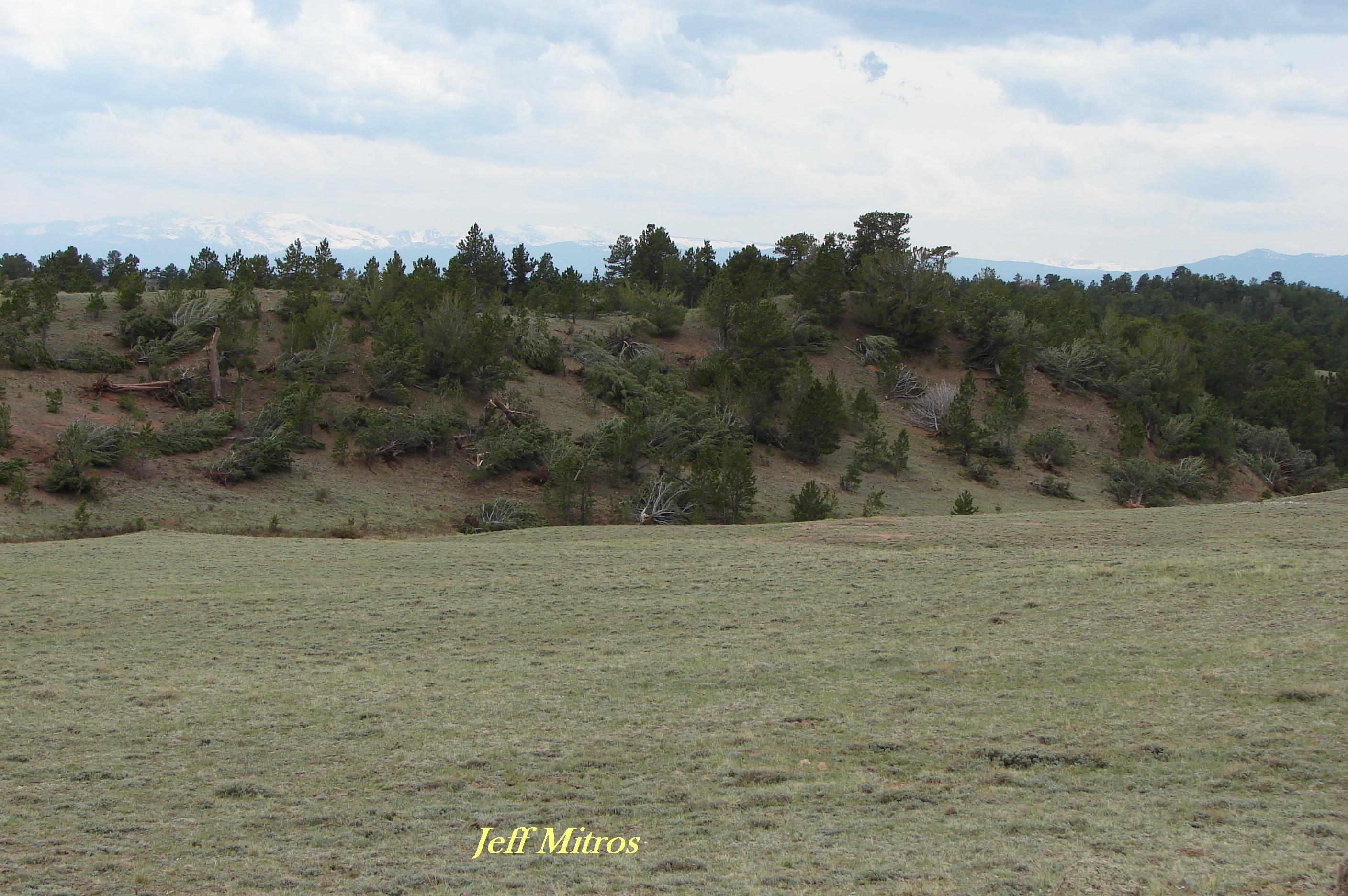

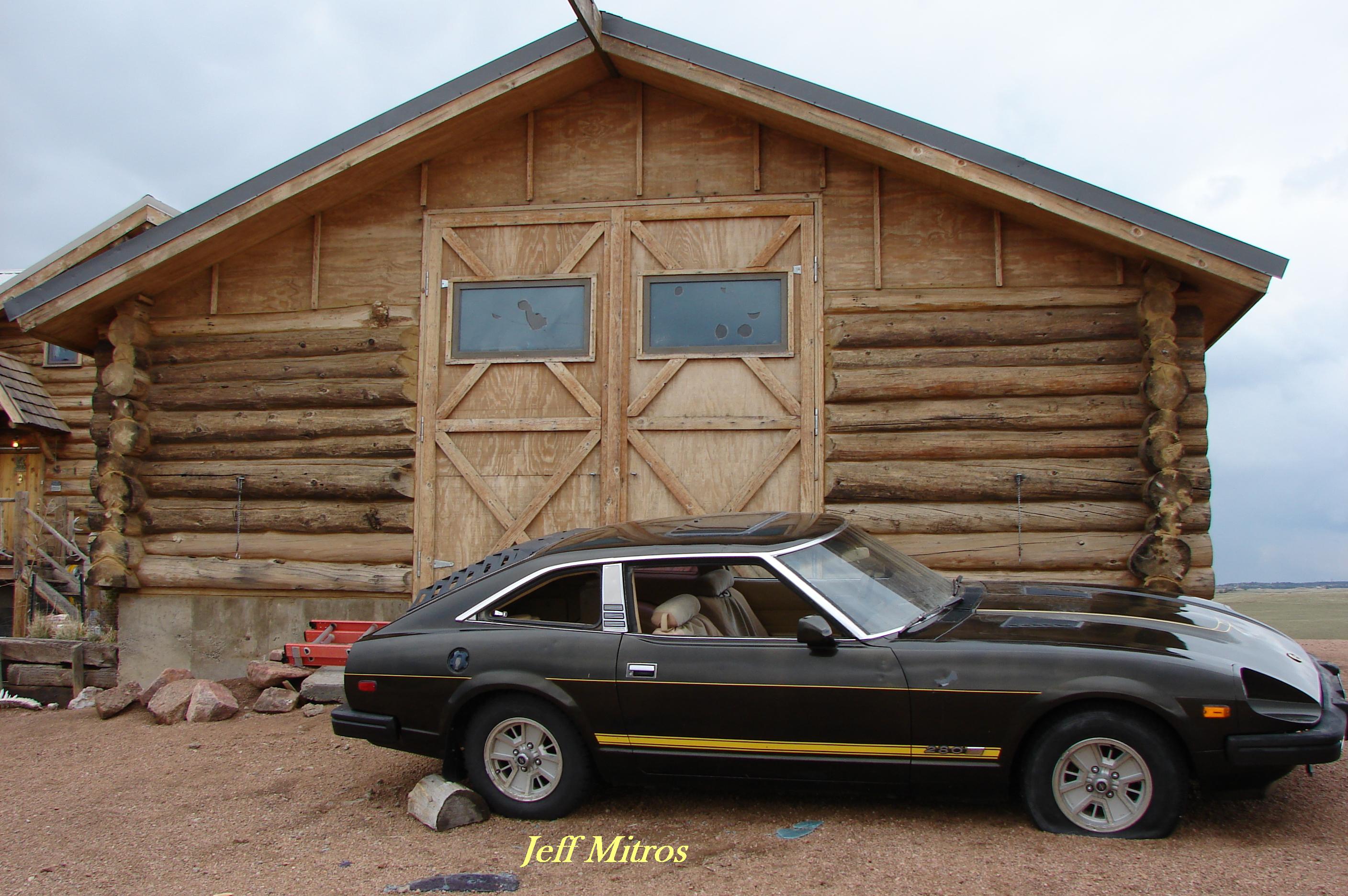

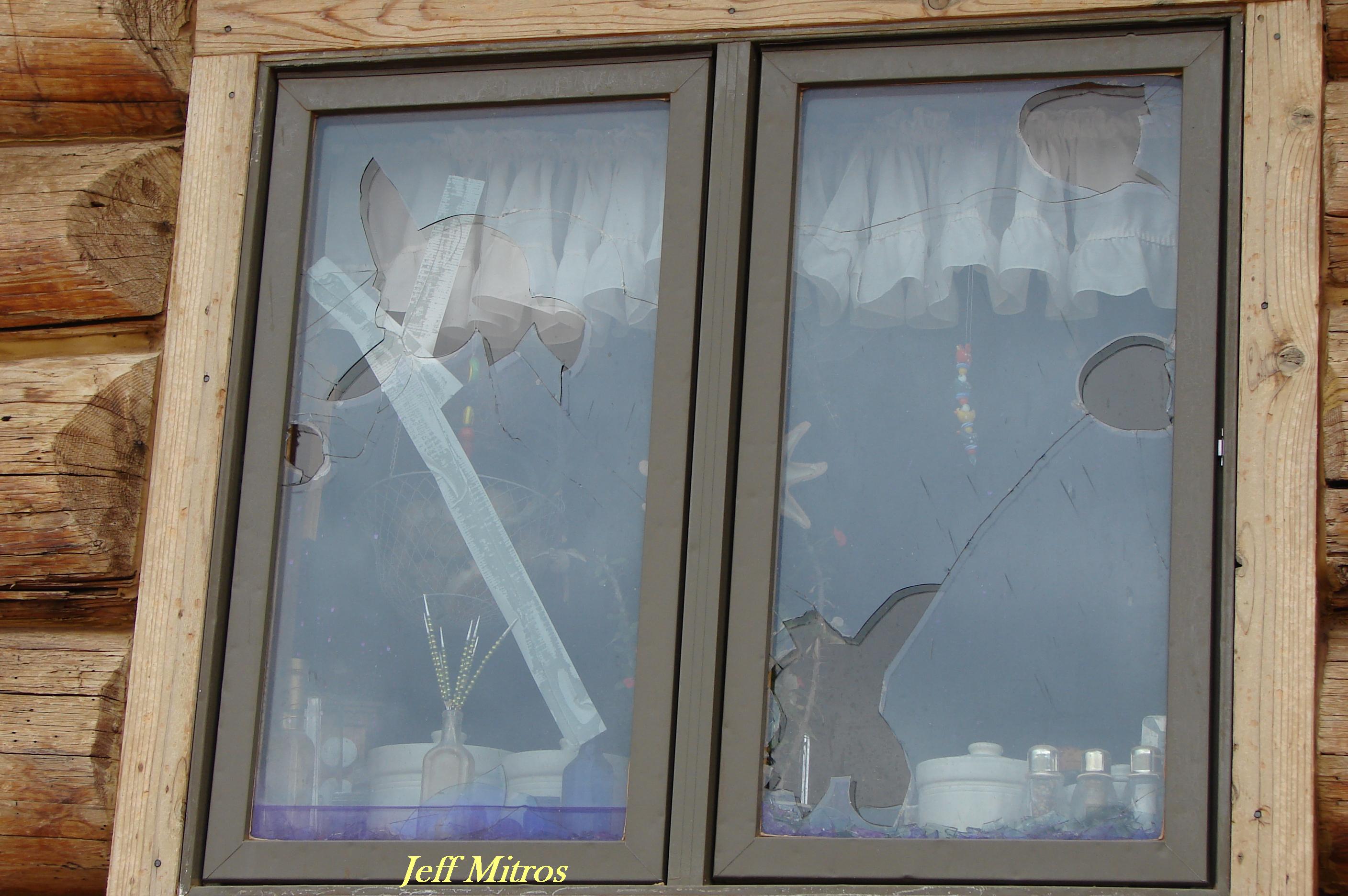

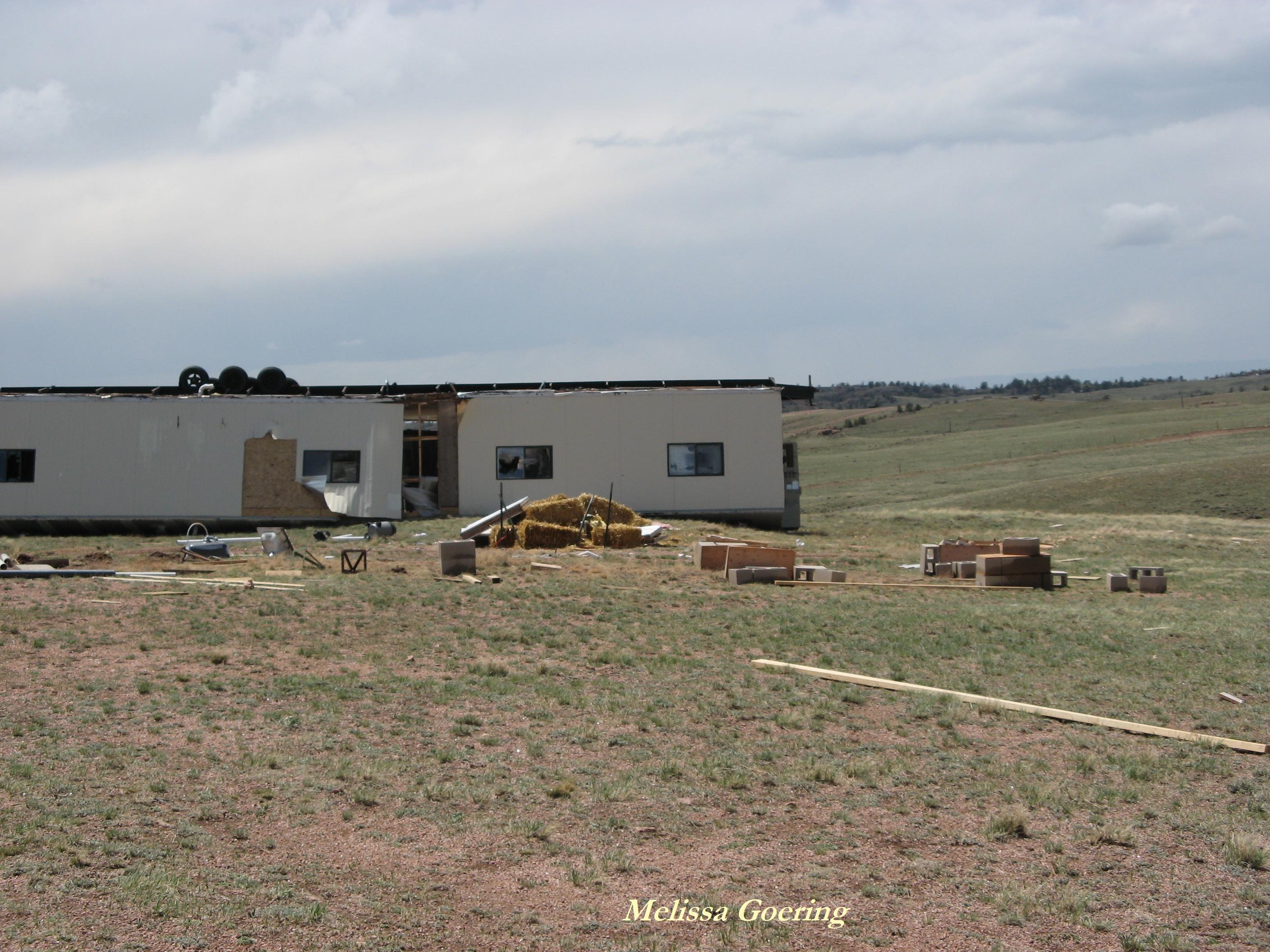

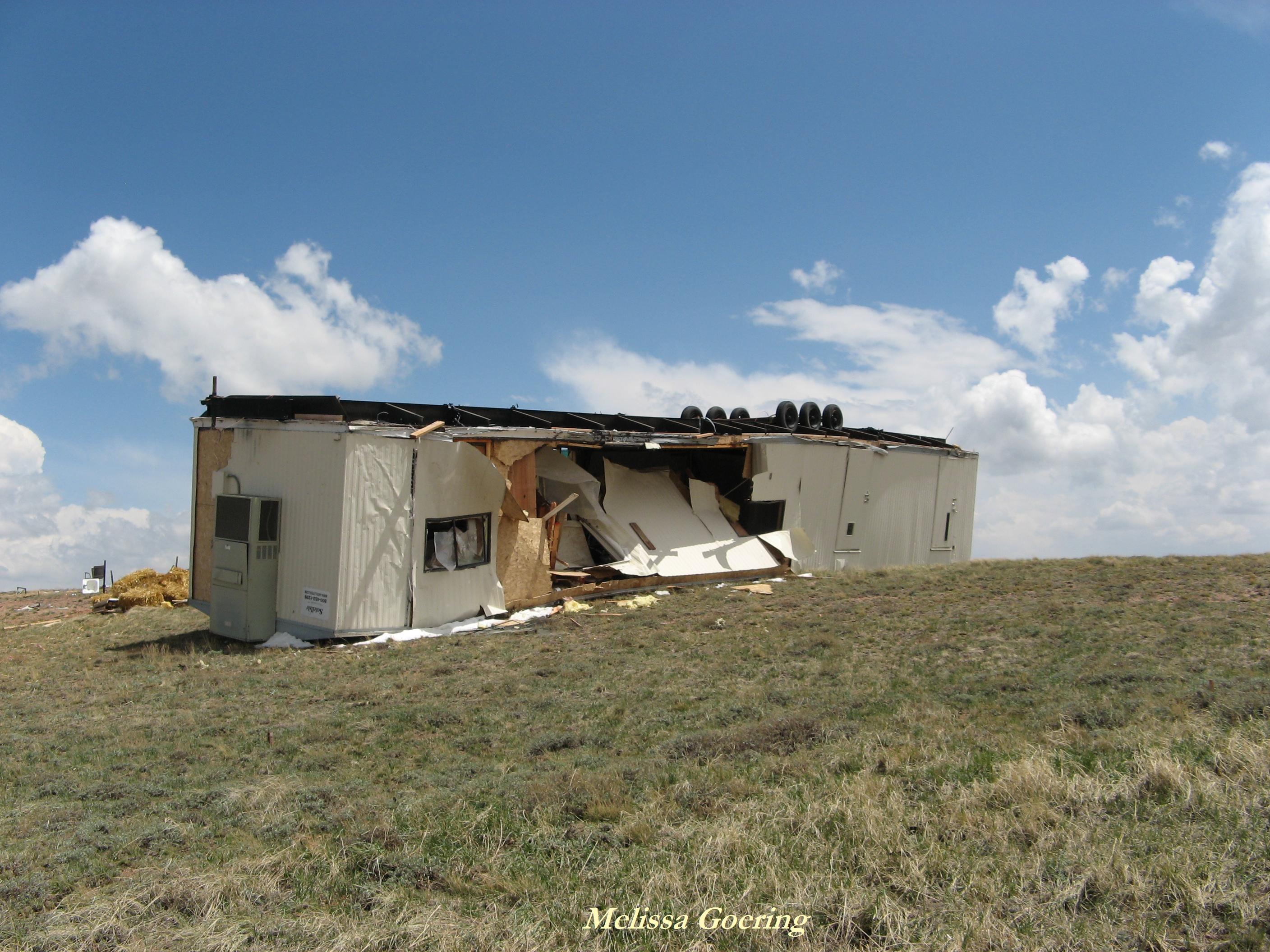

Mitros residence). These pictures were taken by Jeff Mitros. After a brief weakening, the
storm
intensified northwest of Bosler, WY and likely produced large hail and another tornado
from north of Cooper Lake to 7 miles north of Harper to north of Rock River between 2005 and 2028 UTC. Although severe
weather and even tornadoes have occurred on the higher terrain of the
Laramie Range, it is very rare for an individual storm to initiate
along the urban corridor of Colorado and then move to the northwest
over the Laramie Range, through Laramie, and into northwest Albany
county, producing high-end severe weather for 3.5
hours along a 140 mile path. This storm moved over highly varying
terrain (elevations from 4700 ft to 8700 ft) and even moved into
dense fog over the Laramie Range. In fact, golfball to baseball sized
hail and larger, along with damaging tornadoes, occurred in the
dense fog at elevations from 7500 to 8700 ft. A few hours after the
tornado and hail occurred in the Vedauwoo area, thundersnow occurred
with 3 to 6" accumulations. The focus of this
web site is on this
rare and particularly damaging storm.

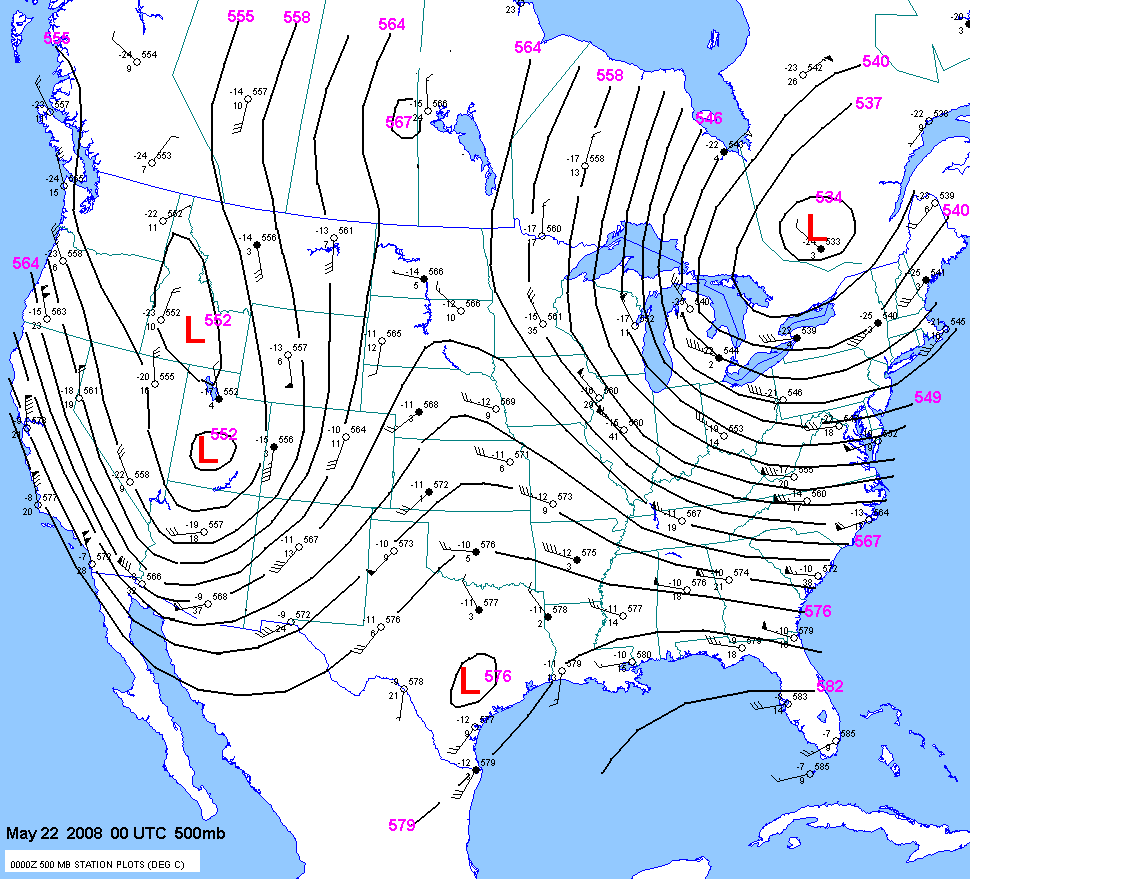

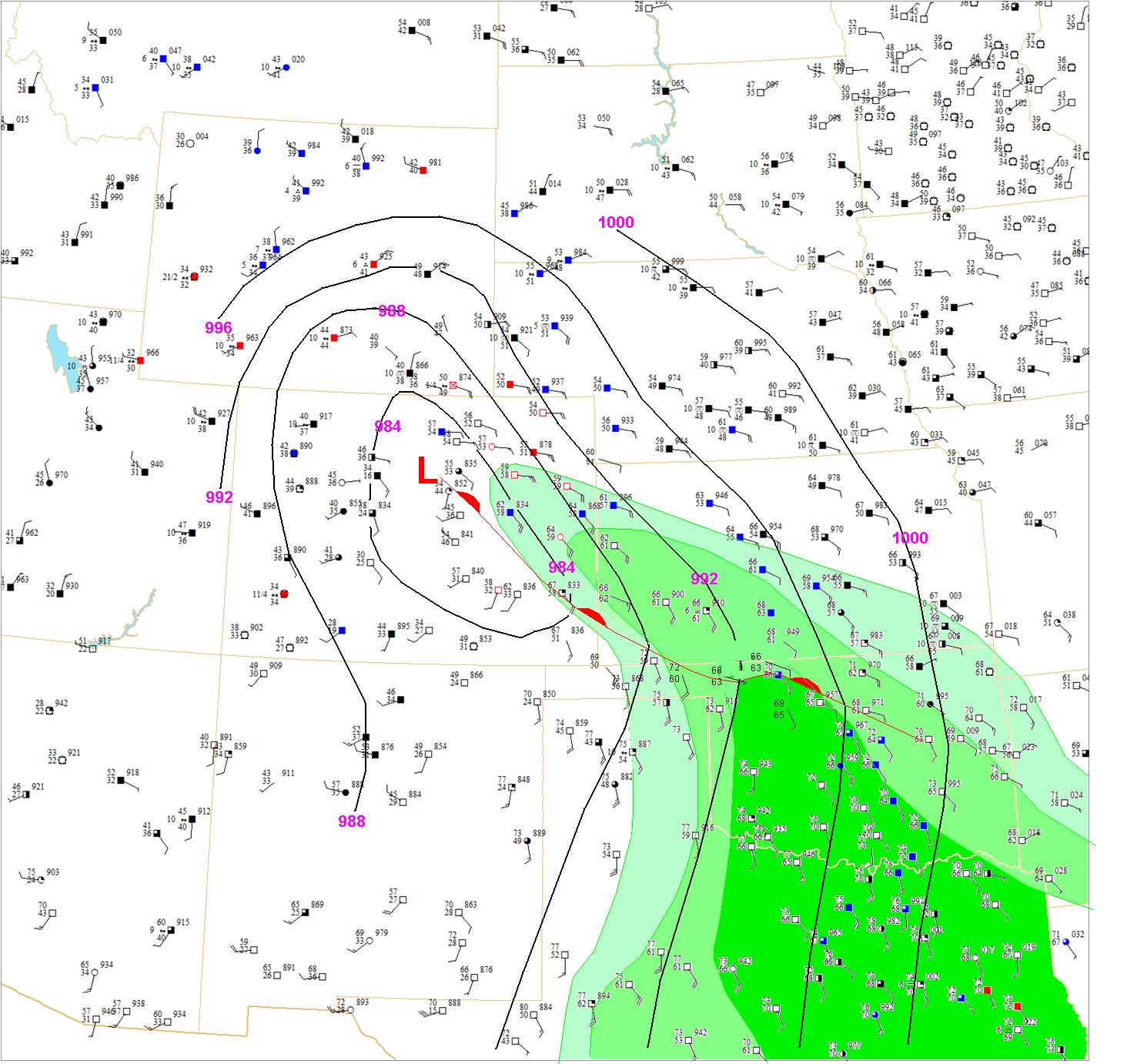

The severe weather episode was well
forecasted by the ECMWF model. This model indicated that a deep,
slow moving, meridional trough would approach the high plains on May
22-23. It also predicted a deep trough over New England, with an associated
surface front behind this system through the lower midwest into northeast
Kansas, southwest Nebraska and eastern Wyoming. The ECMWF did an excellent
job with these features well in advance. The 144 hr ECMWF showed a
stationary front through northern Kansas and southern Nebraska, with strong
upslope flow across western Nebraska and eastern Wyoming. On May 17, I
expressed my
thoughts
about the
severe
weather pattern. This web page will focus on the
Colorado and
Wyoming
part of the tornado outbreak. Large, wedge tornadoes are uncommon so
close to the front range of Colorado. Damaging tornadoes are very rare

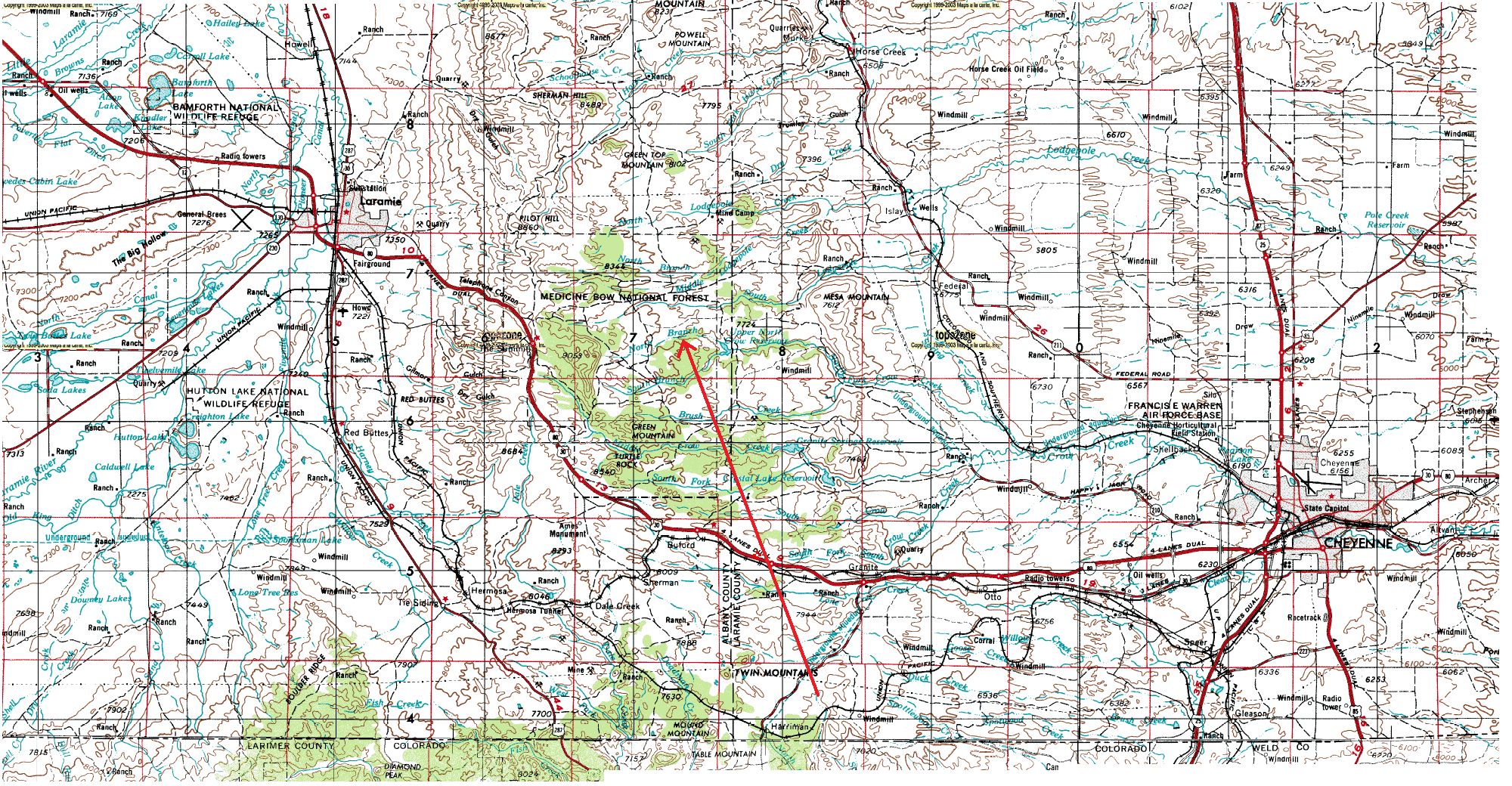

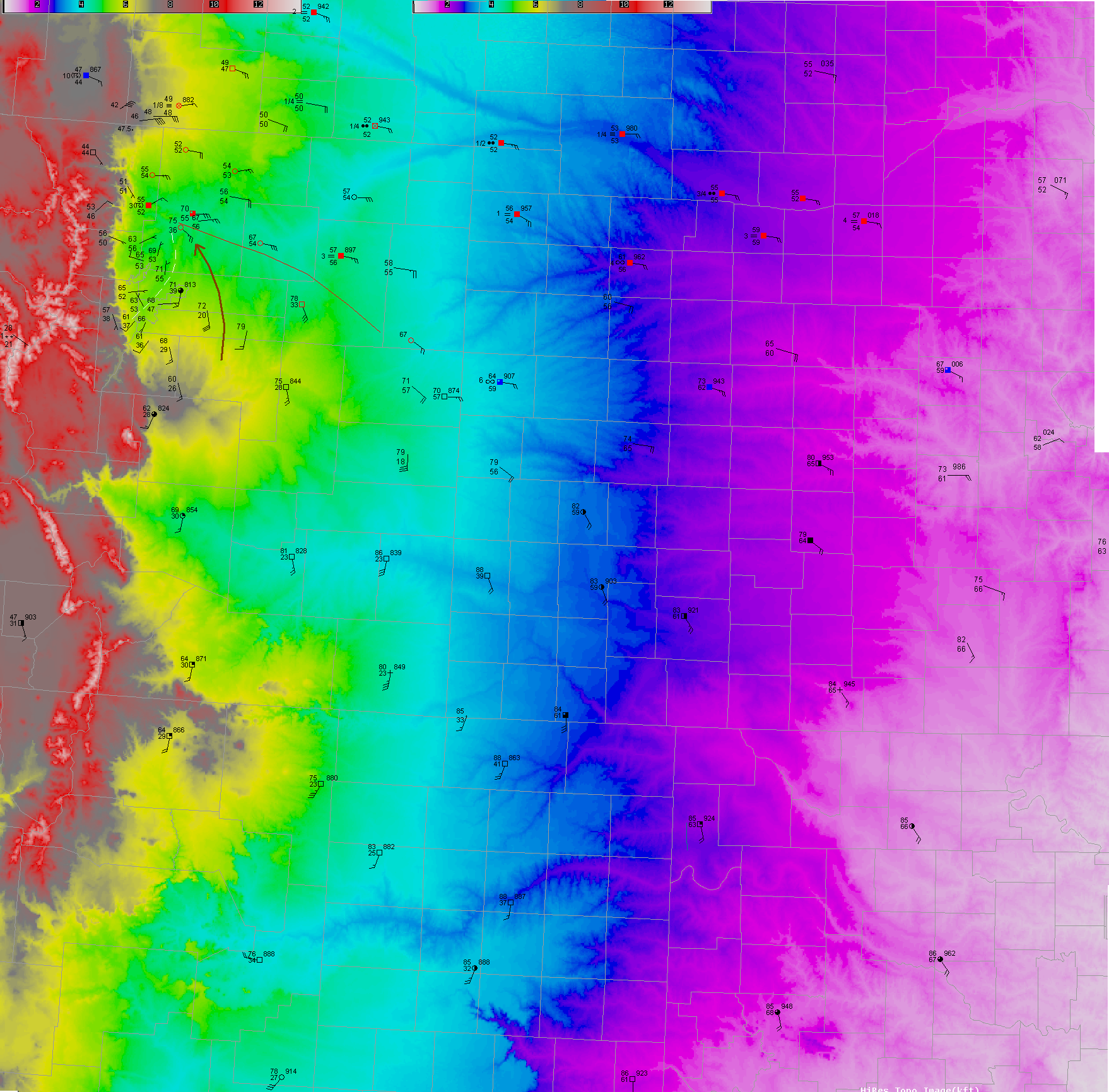

at 7500 to 8700 ft in southeast Wyoming. An updated map showing the path of tornadoes associated with the main
tornadic storm (relative to the topographic features) is
here.
In lieu of the clickable imagemap, I have opted to post the path and photos in
"Google Maps". This information is readily
accessible.
A map showing the center of the
Harriman-Laramie tornado path and hail swath as well as the Hecla
tornado path can be found
here.
A tornado
watch was
issued by the
Storm Prediction Center at 1725 UTC (1125 am MDT) for much of
northeast Colorado and part of southeast Wyoming.
Storm Initiation near Denver
It is well known that thunderstorms tend to
develop along the front range earlier than on the low plains. This is because
capping tends to be weaker due to elevated heating, and lower moisture content
of the air allows for a rapid warmup to the convective temperature by
local noon. Also, the front range of Colorado is above the traditional capping level. But
convection began even before local noon on this day.

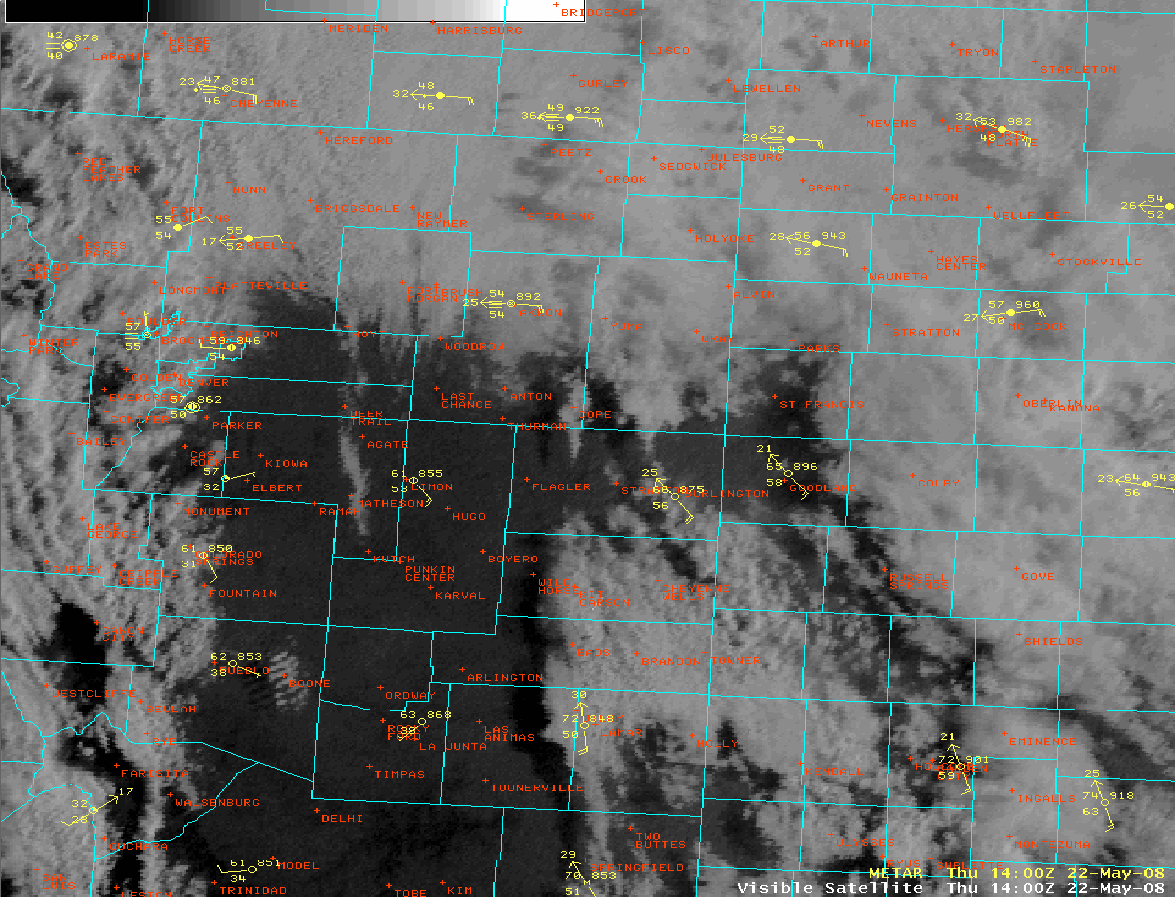

Towering cumulus clouds developed southeast

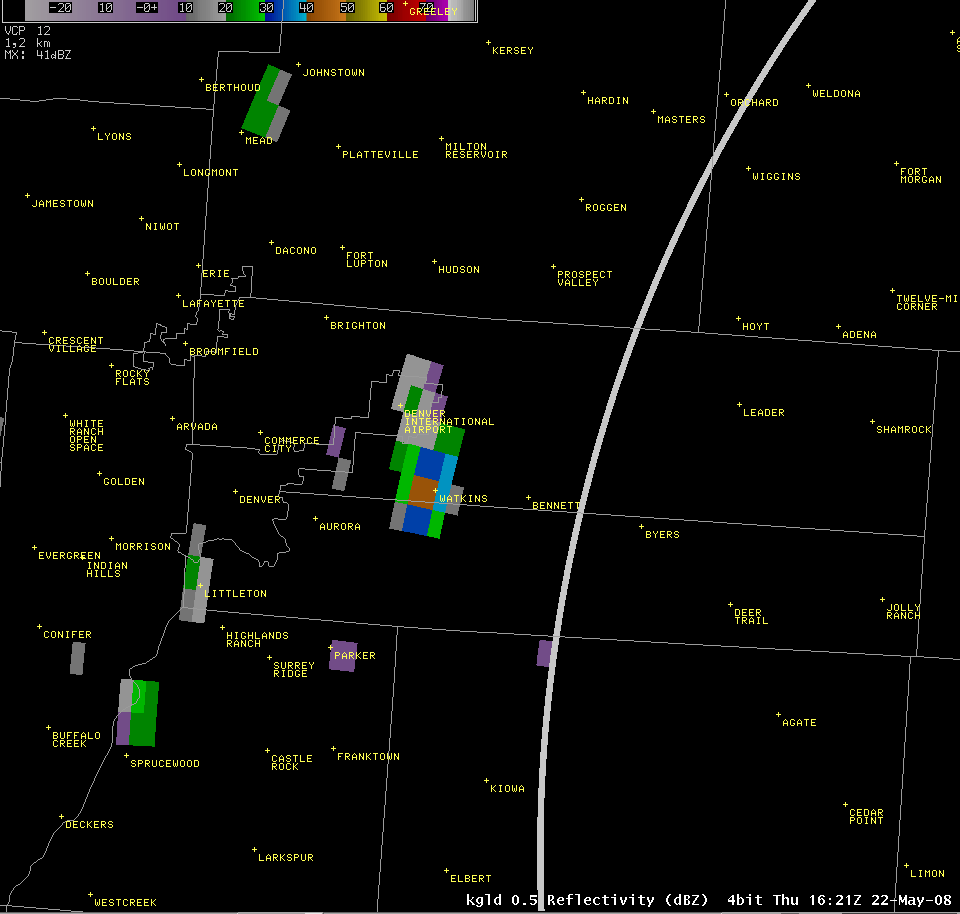

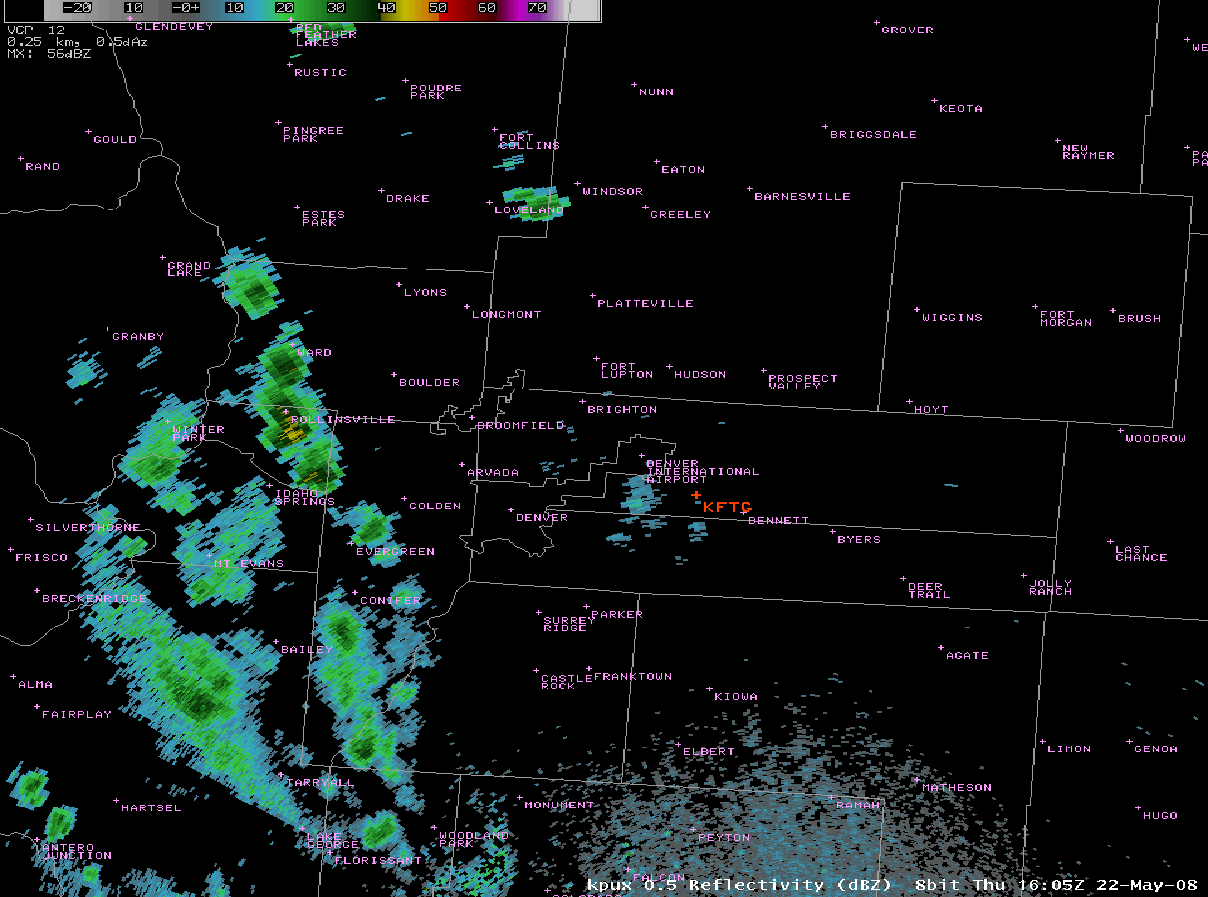

of DIA around 16 UTC on May 22. The first elevated radar echoes appeared around
1612 UTC near Watkins or just southeast of DIA. These initial echoes were stronger by
1621 UTC. By 1635 UTC, 45
dbz echoes were noted at 23,000 ft about 3 miles northeast of the airport.
By
1657 UTC, a 61 dbz echo was located 14 miles north of Denver at

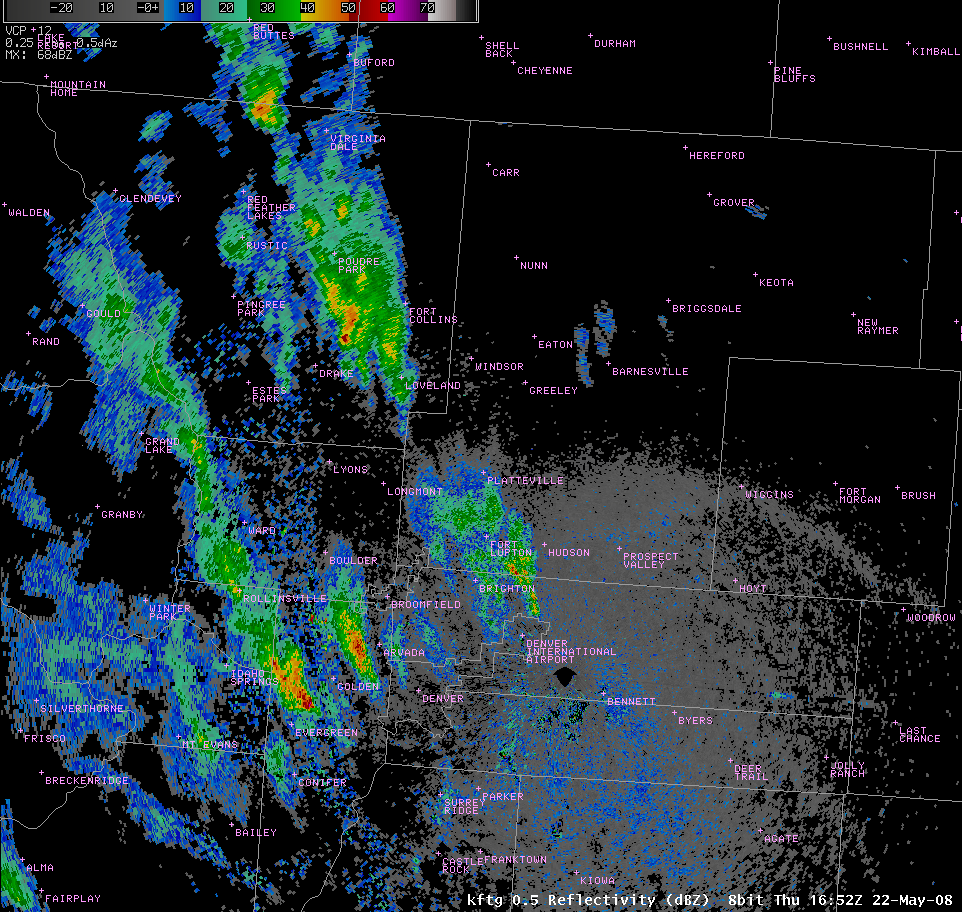

21,000ft. The first echo approaching 50 dbz (48 dbz) on the lowest slice occurred at 1648 UTC. The first
60 dbz echo on the lowest slice was noted 5 miles west-southwest of Hudson at
1652 UTC. By
1701 UTC there was a 62 dbz echo up to 26,000ft and 47
dbz echo up to 32,000ft. The storm was severe at this point. At

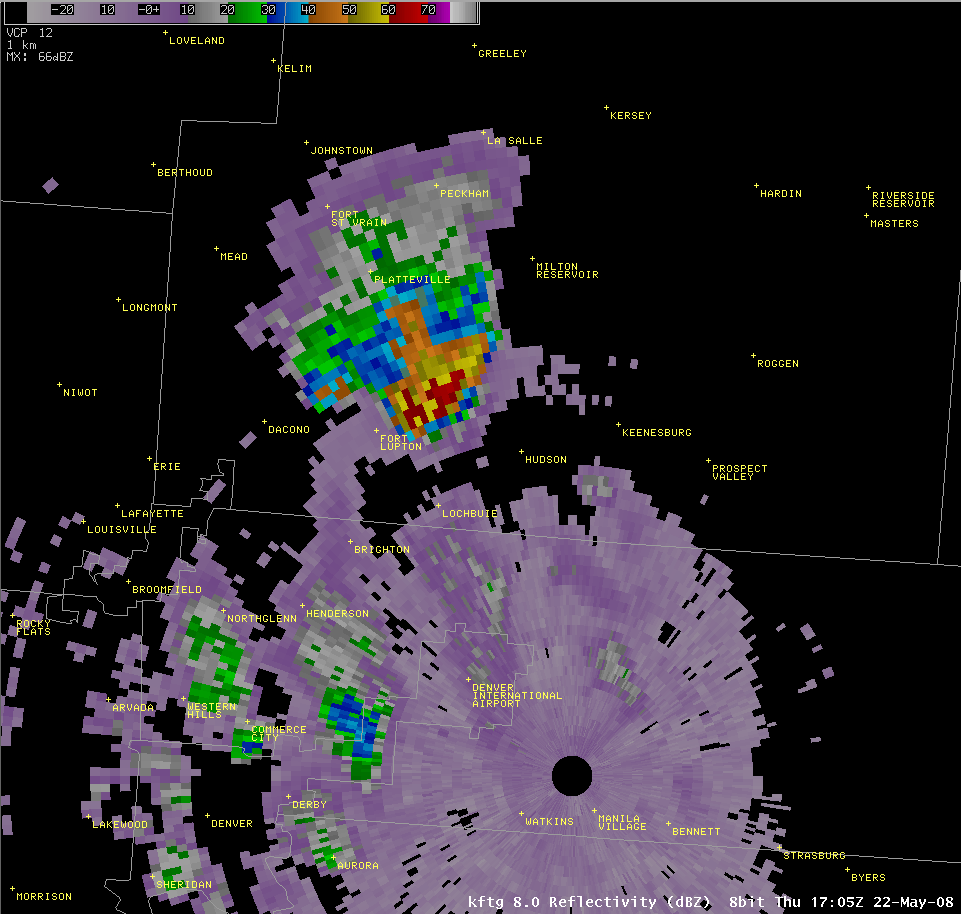

1705
UTC, the storm had 63-66 dbz echoes northwest and west of
Hudson at the lowest slice. A few calls were made to find out when the
storm became severe. I received a report of dime sized hail 4 miles
north of Lochbuie or about 7 miles north of DIA. Based on radar, this
occurred around 1705 UTC. The hail got larger as the storm moved
north-northwest. Large hail left marks on houses 4.5 miles
north-northeast of Fort Lupton or 2.5 miles northeast of Ione around
1714 UTC. The first official report of large hail was quarter size
at 1719 UTC 3 miles north-northeast of Platteville. This is actually
close to where the tornado first touched down only a few minutes later.

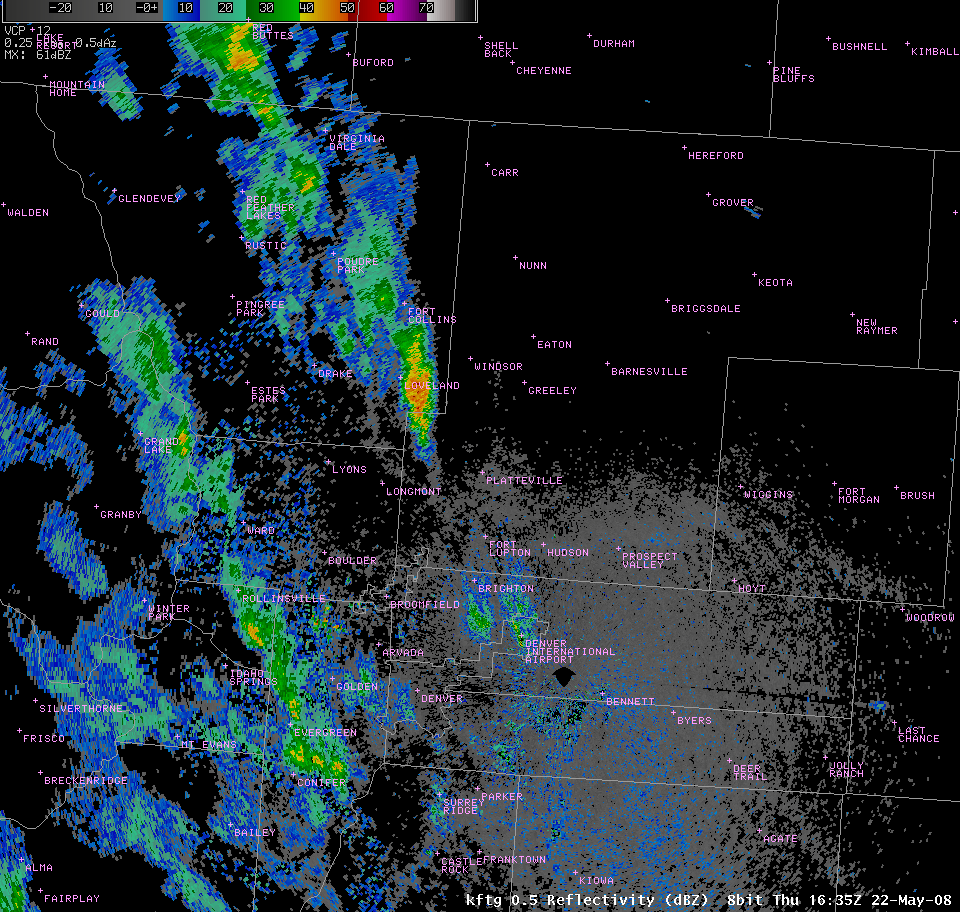

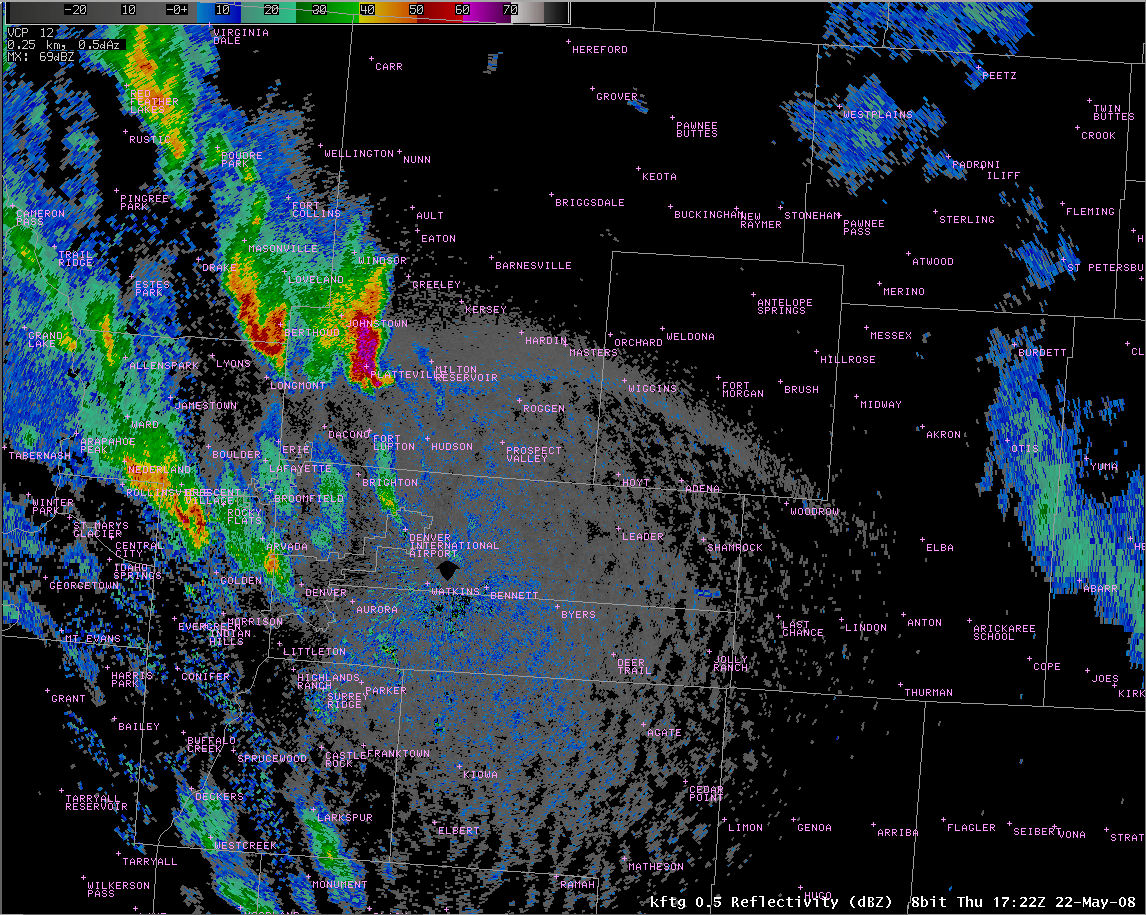

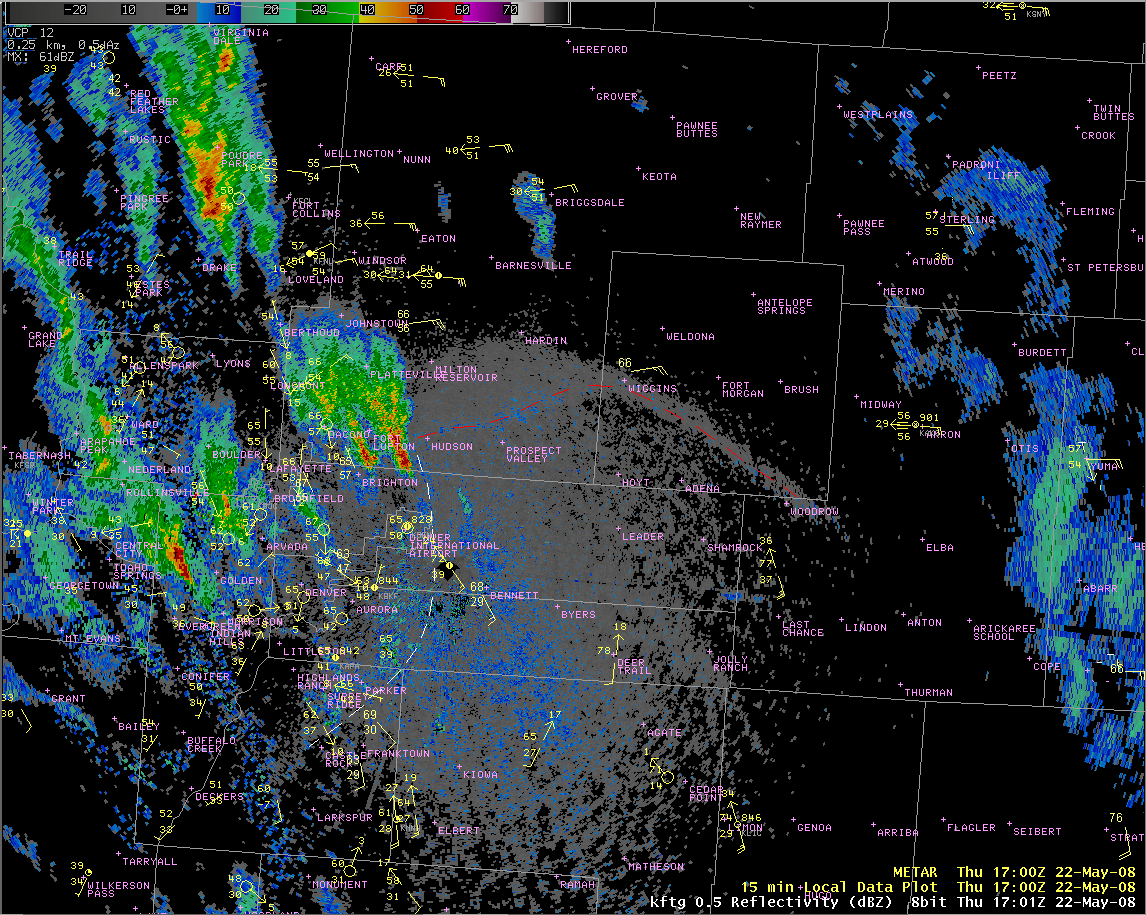

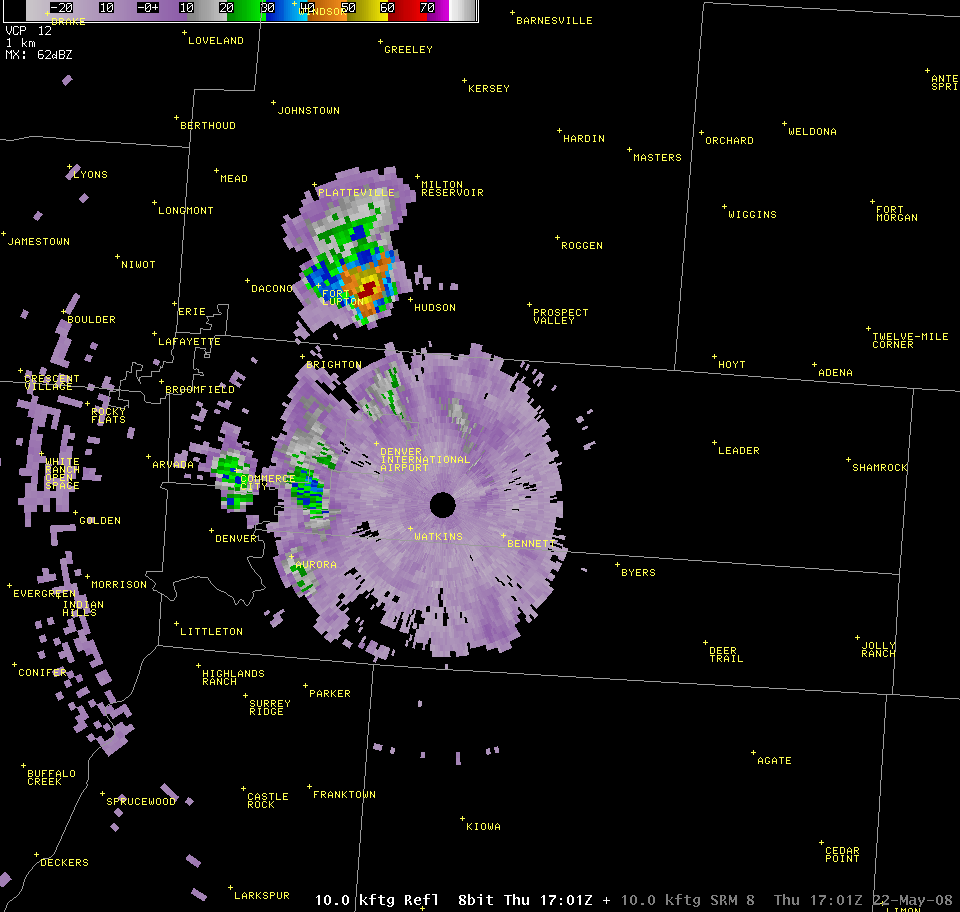

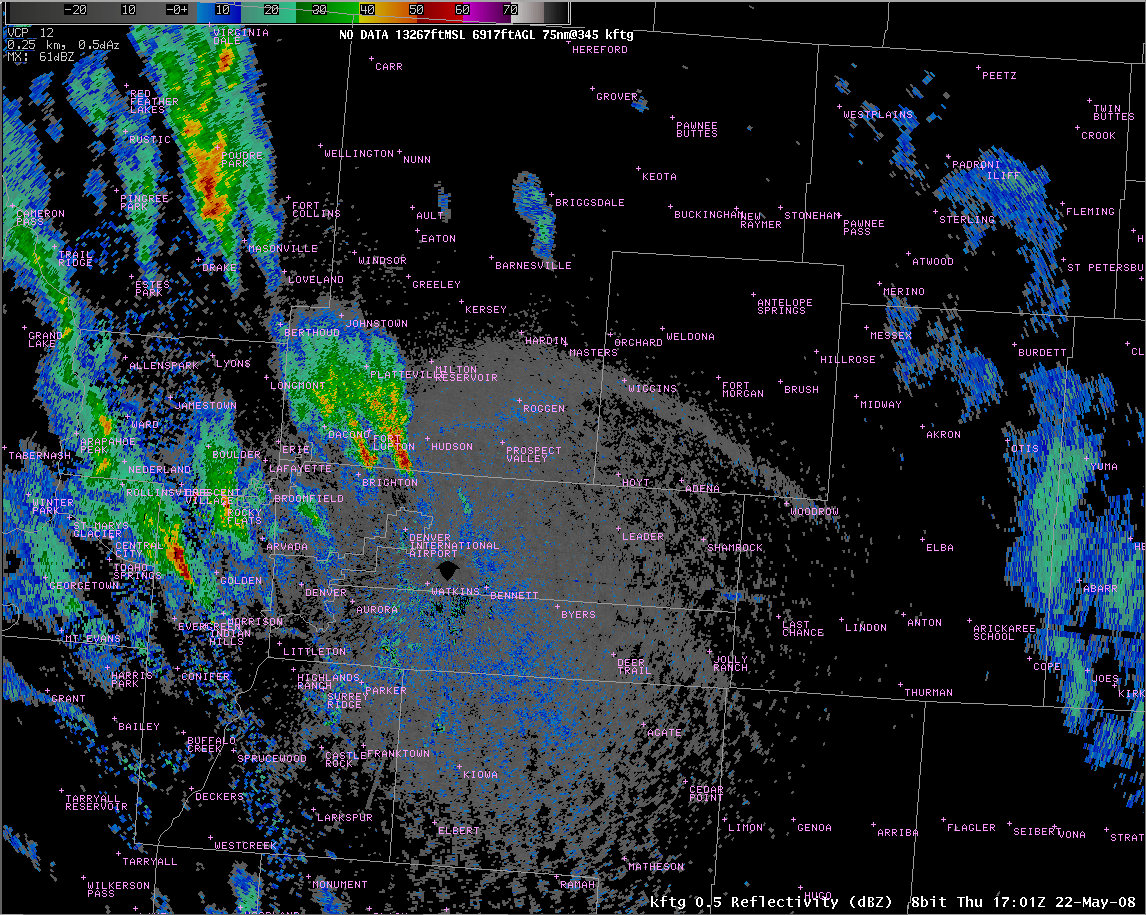

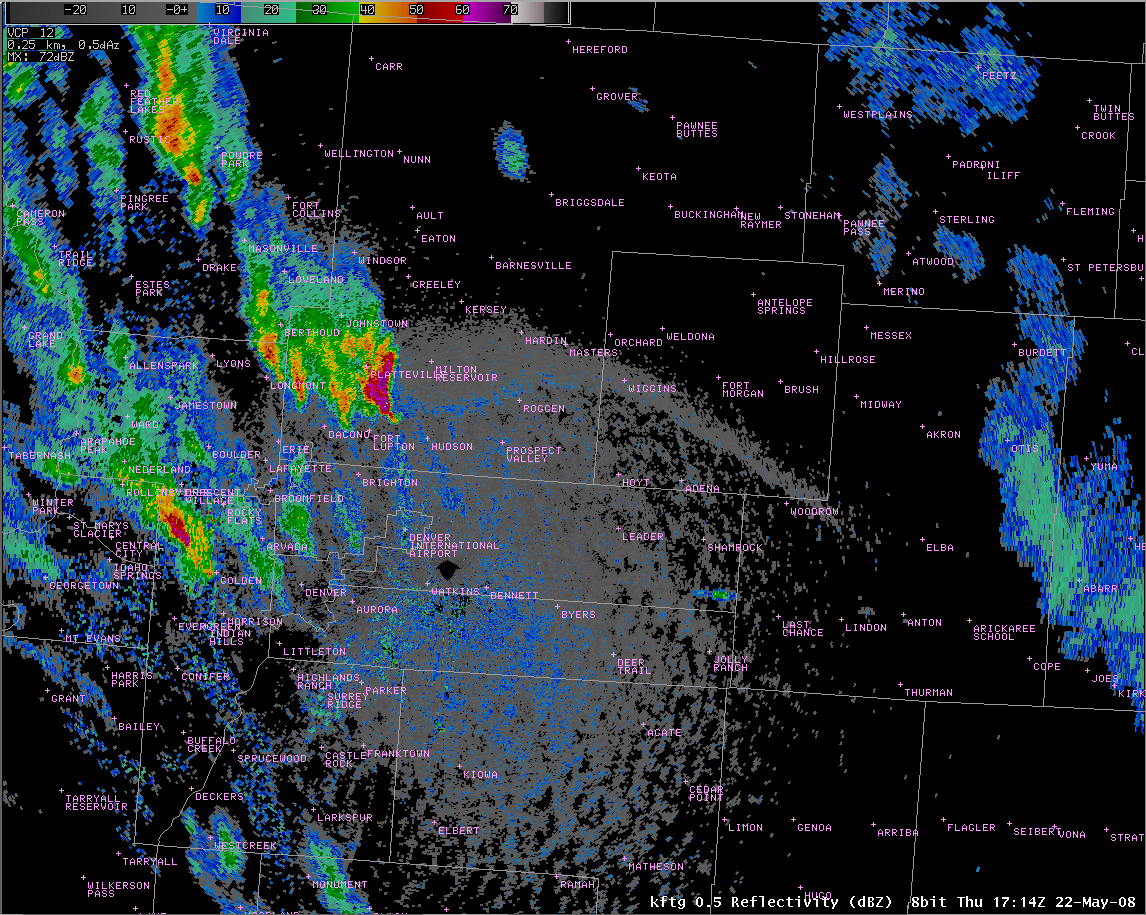

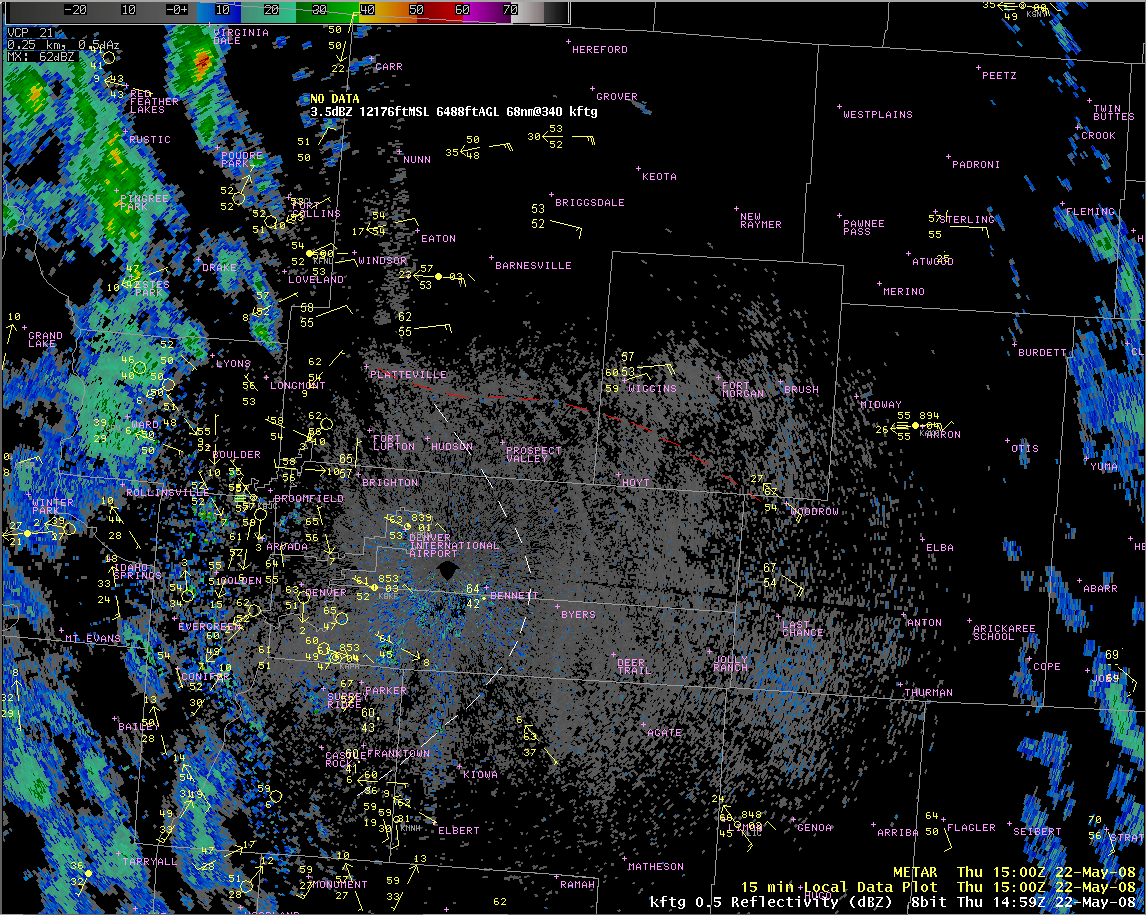

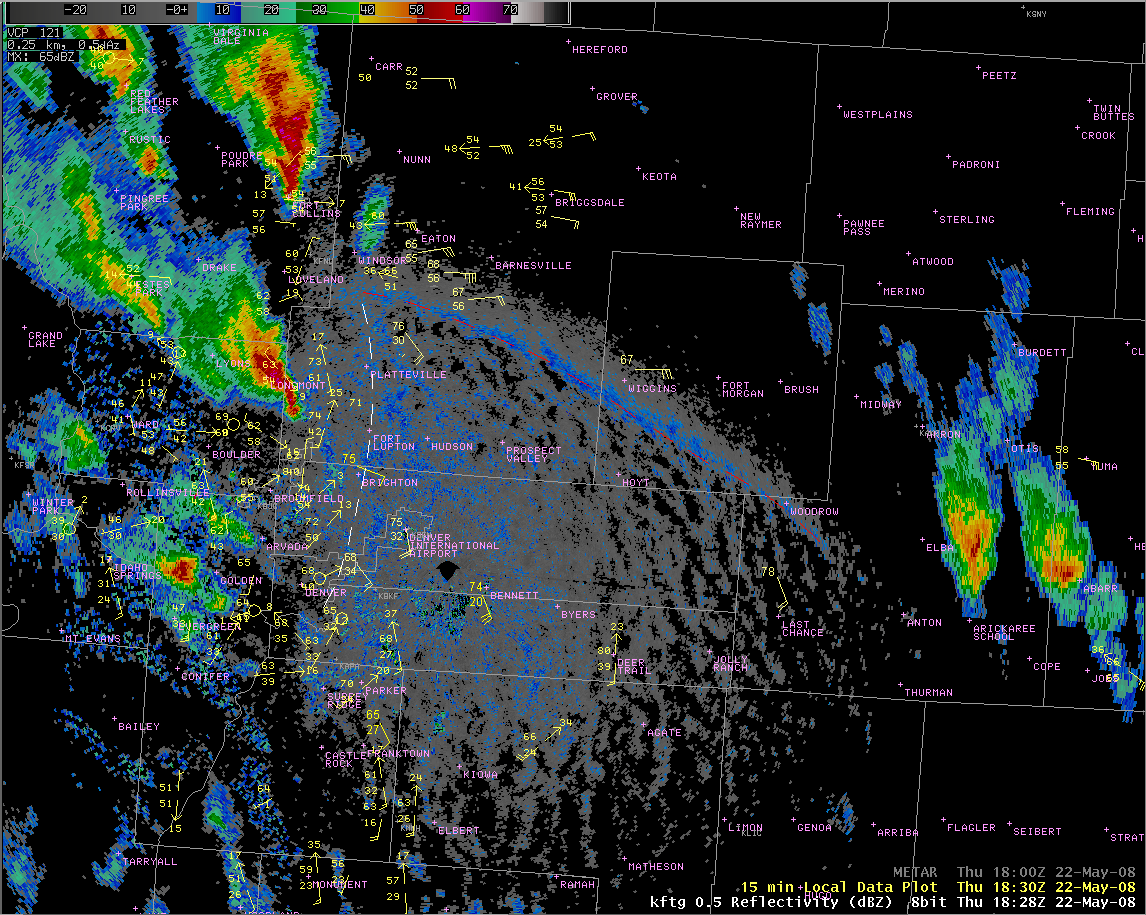

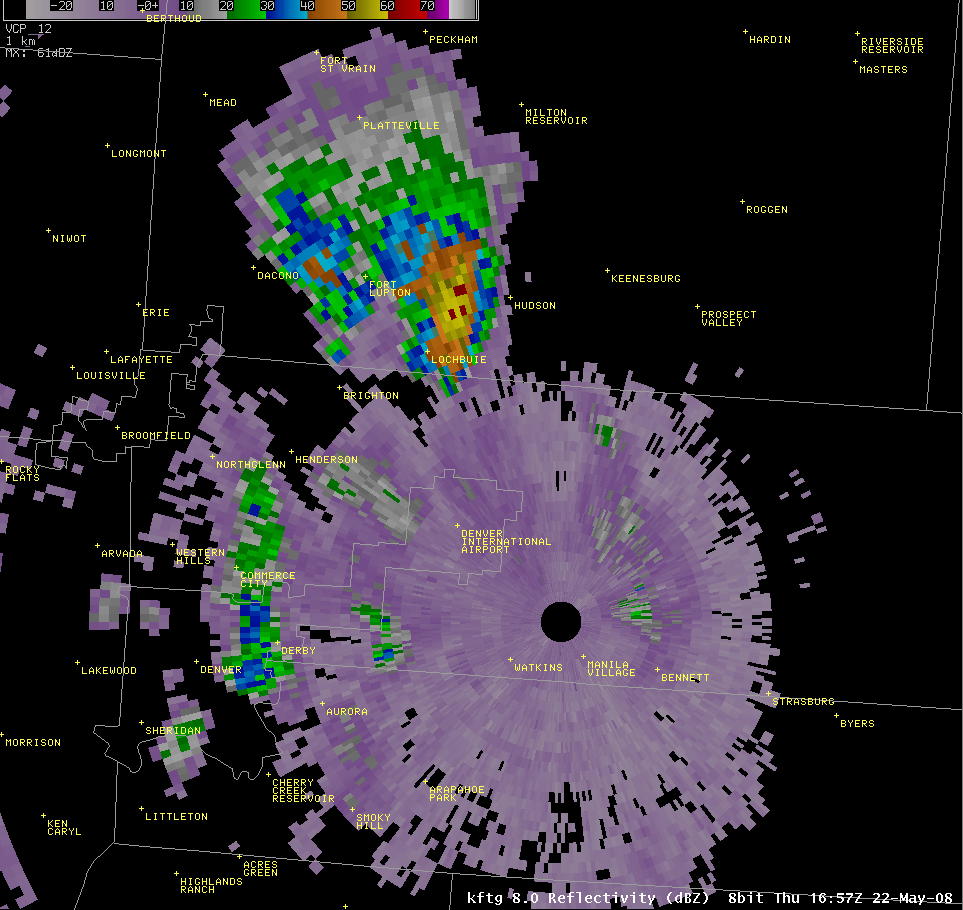

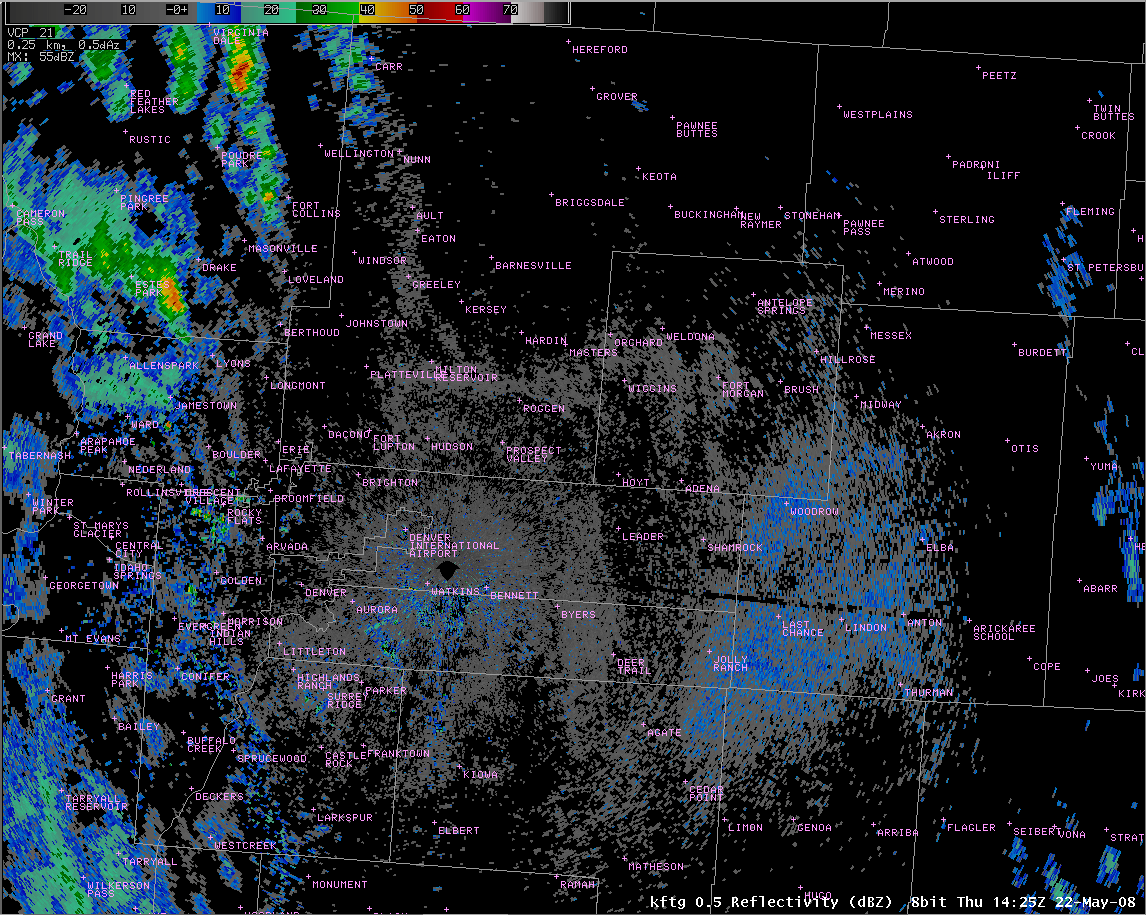

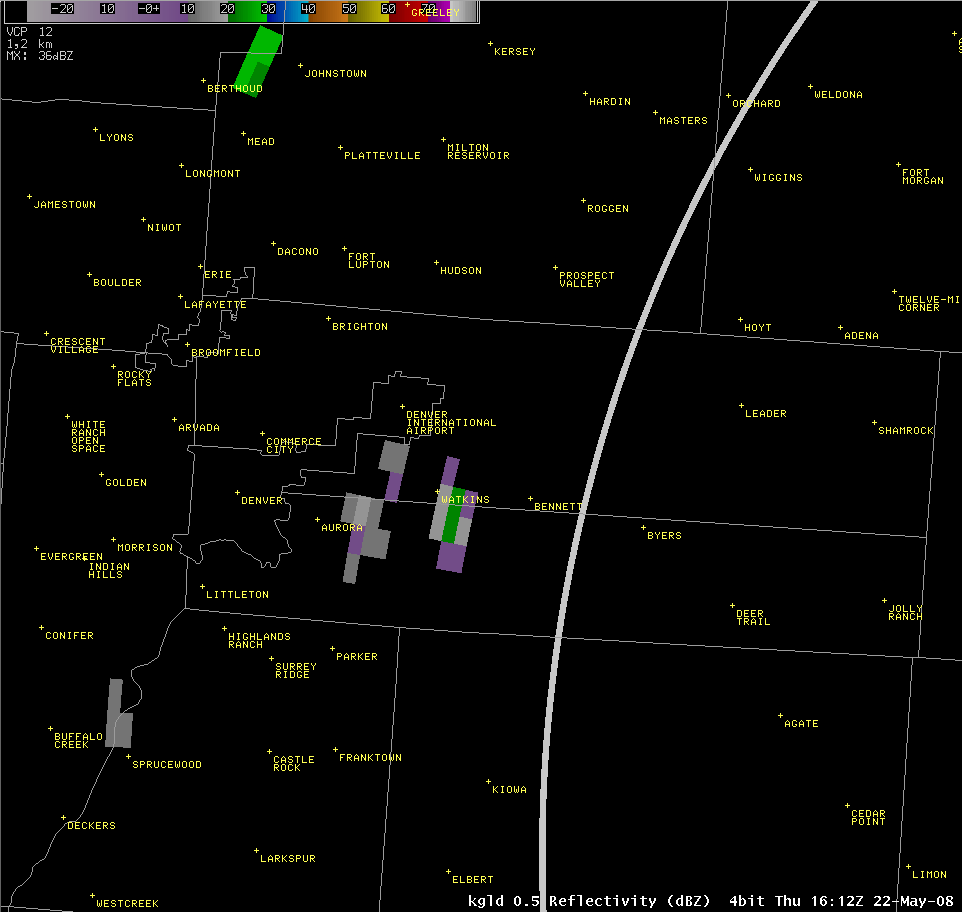

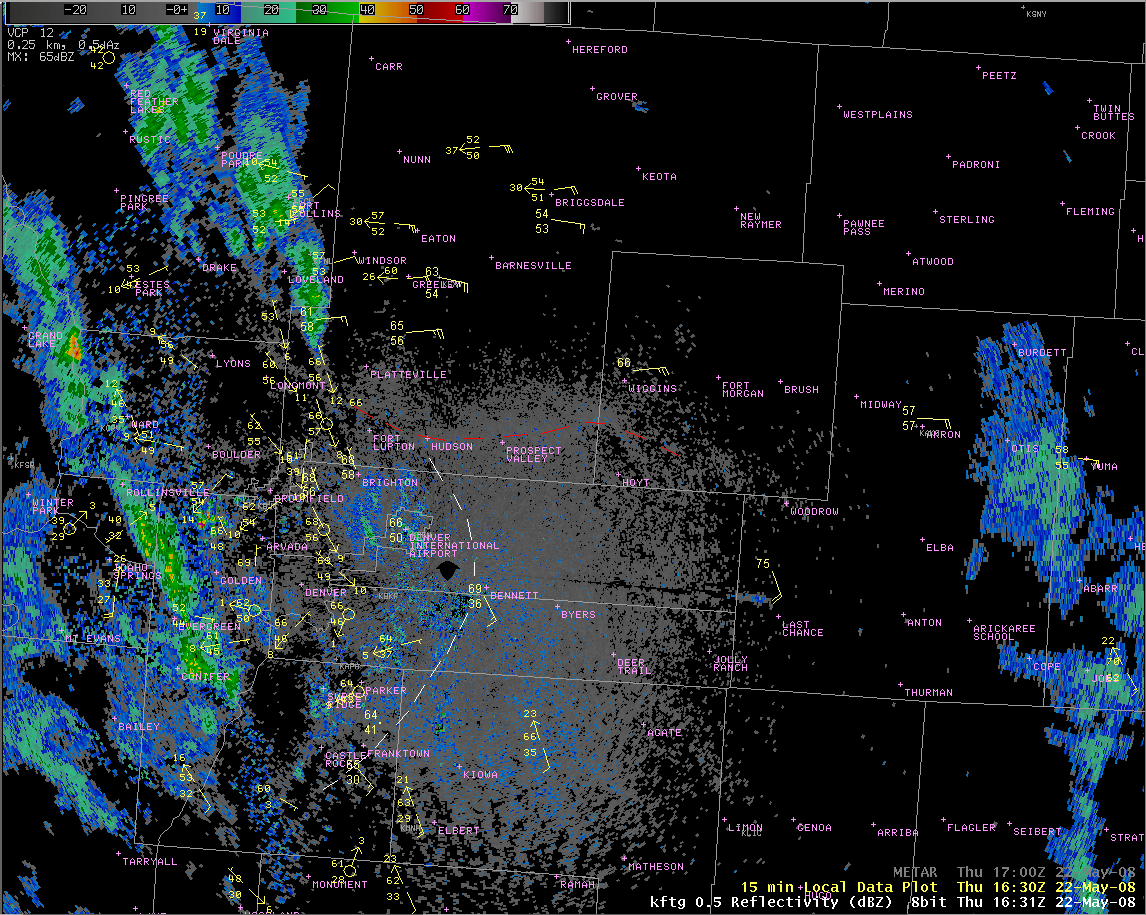

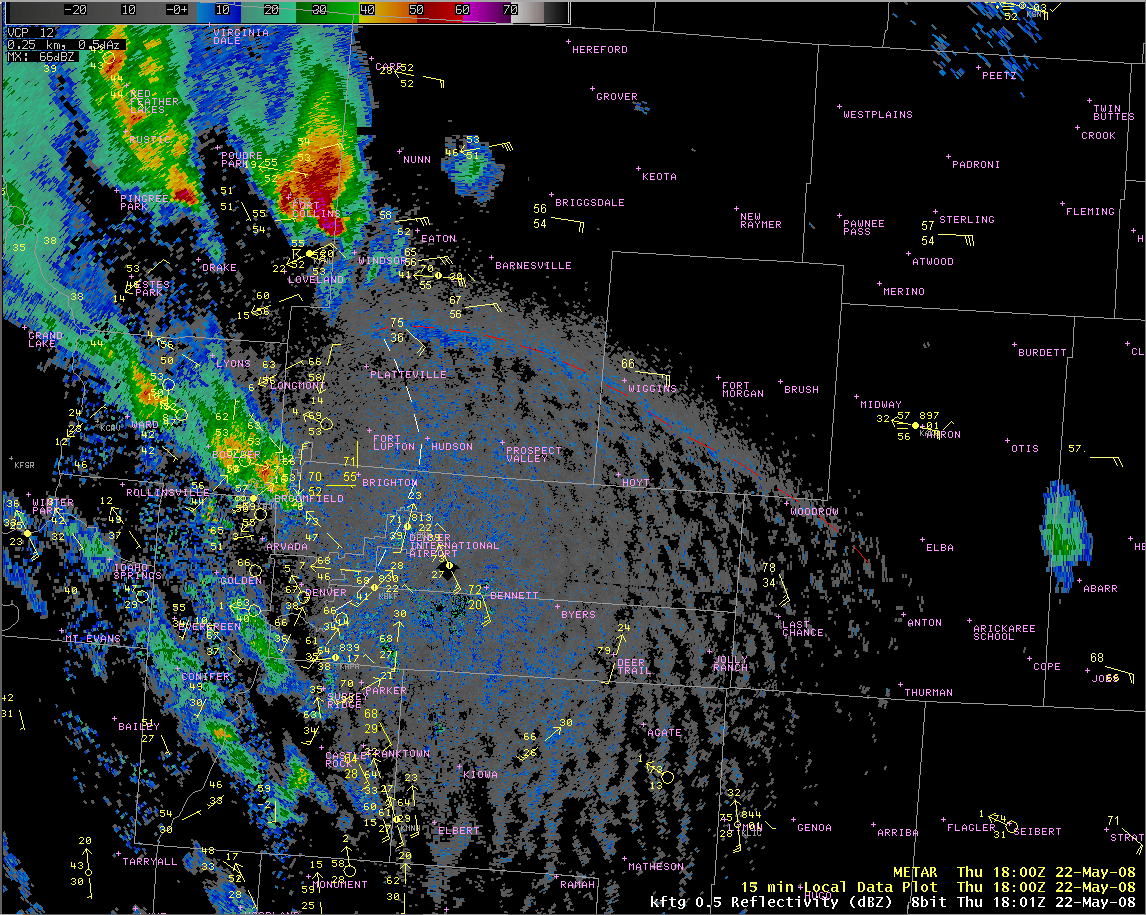

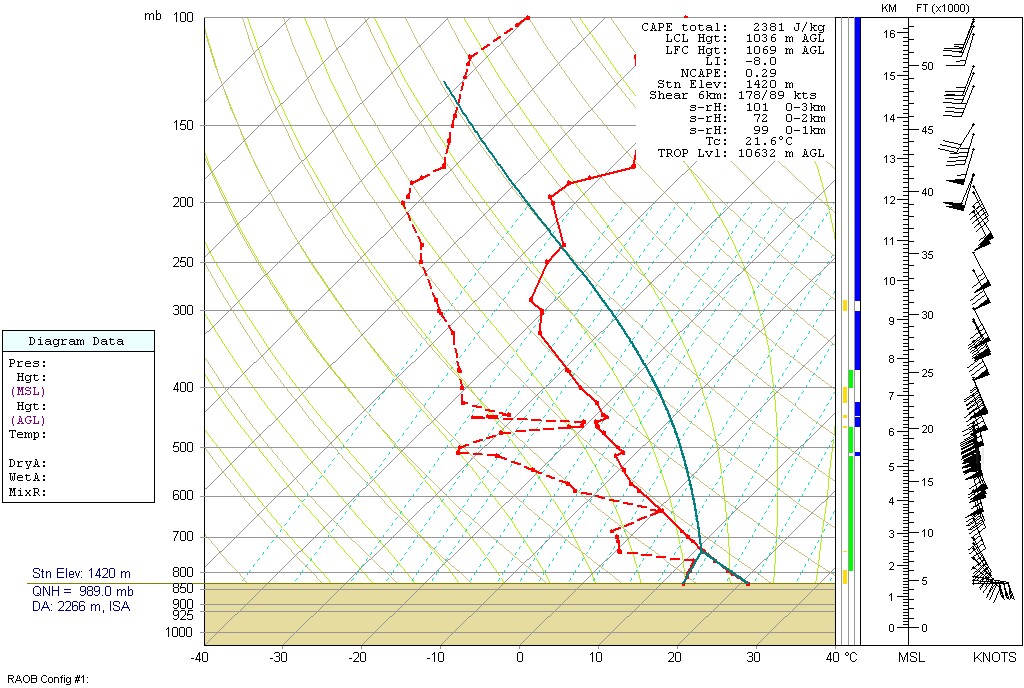

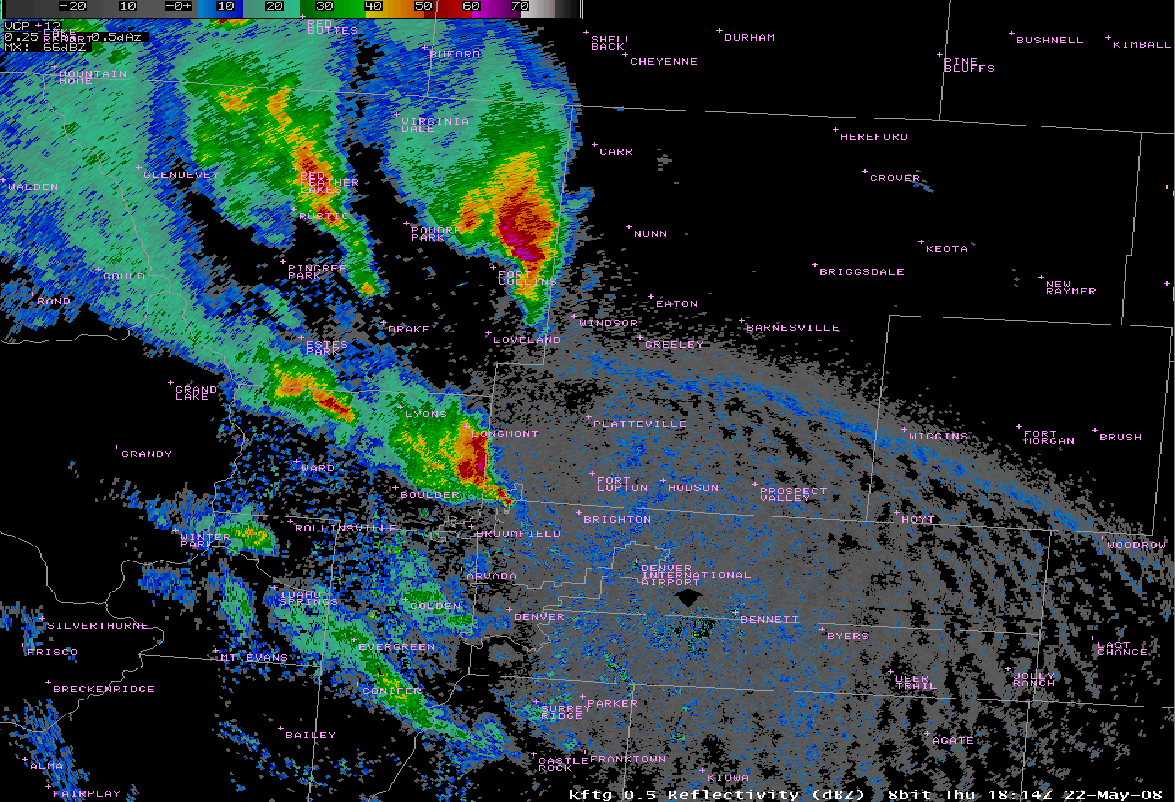

The Front Range (FTG) WSR-88d radar loops are storm below:
reflectivity loop (1430 to 1827 UTC) faster version
reflectivity loop (1430 to 1827 UTC) slower version
The Pueblo radar actually showed the initial development better since the Denver radar was too close.

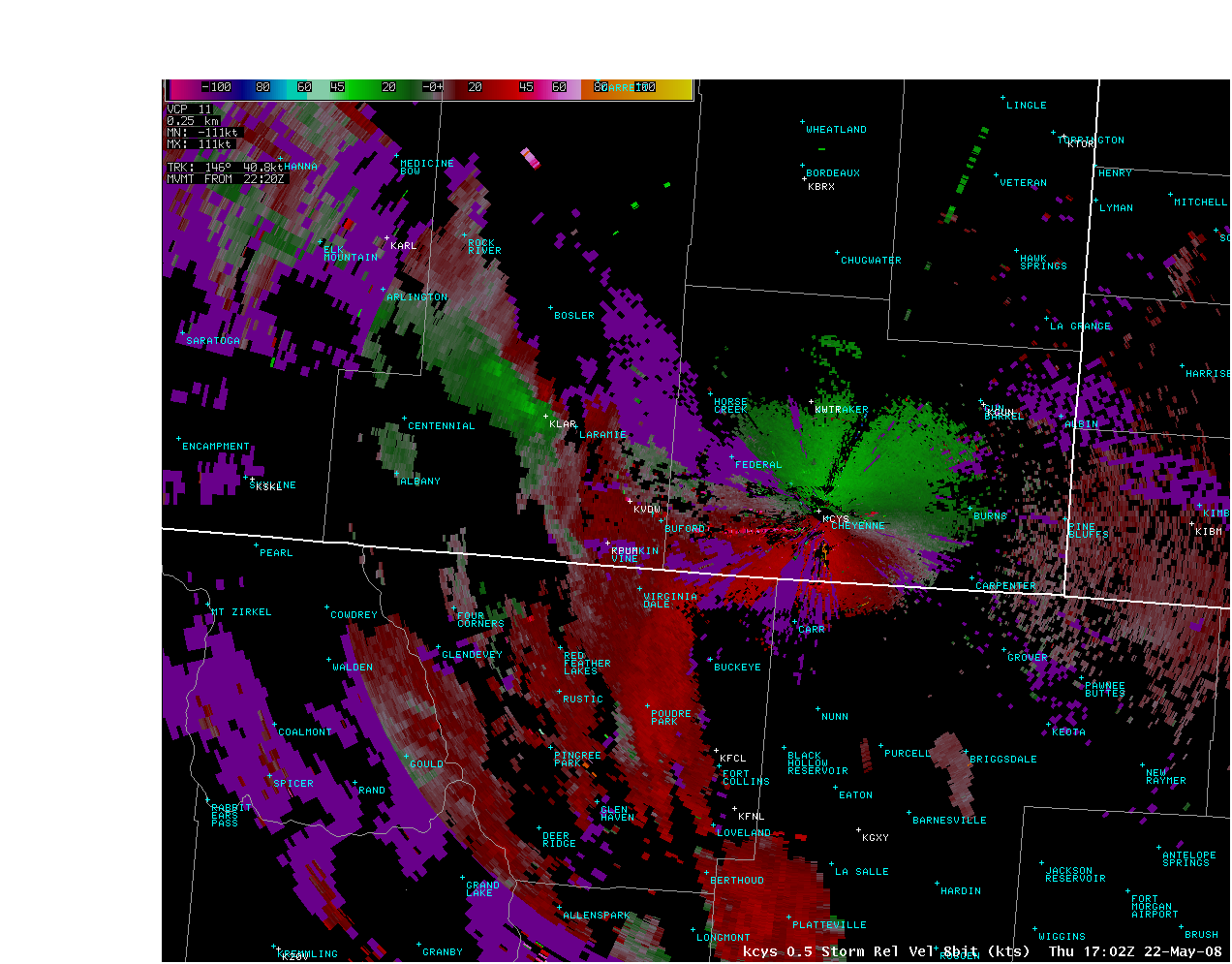

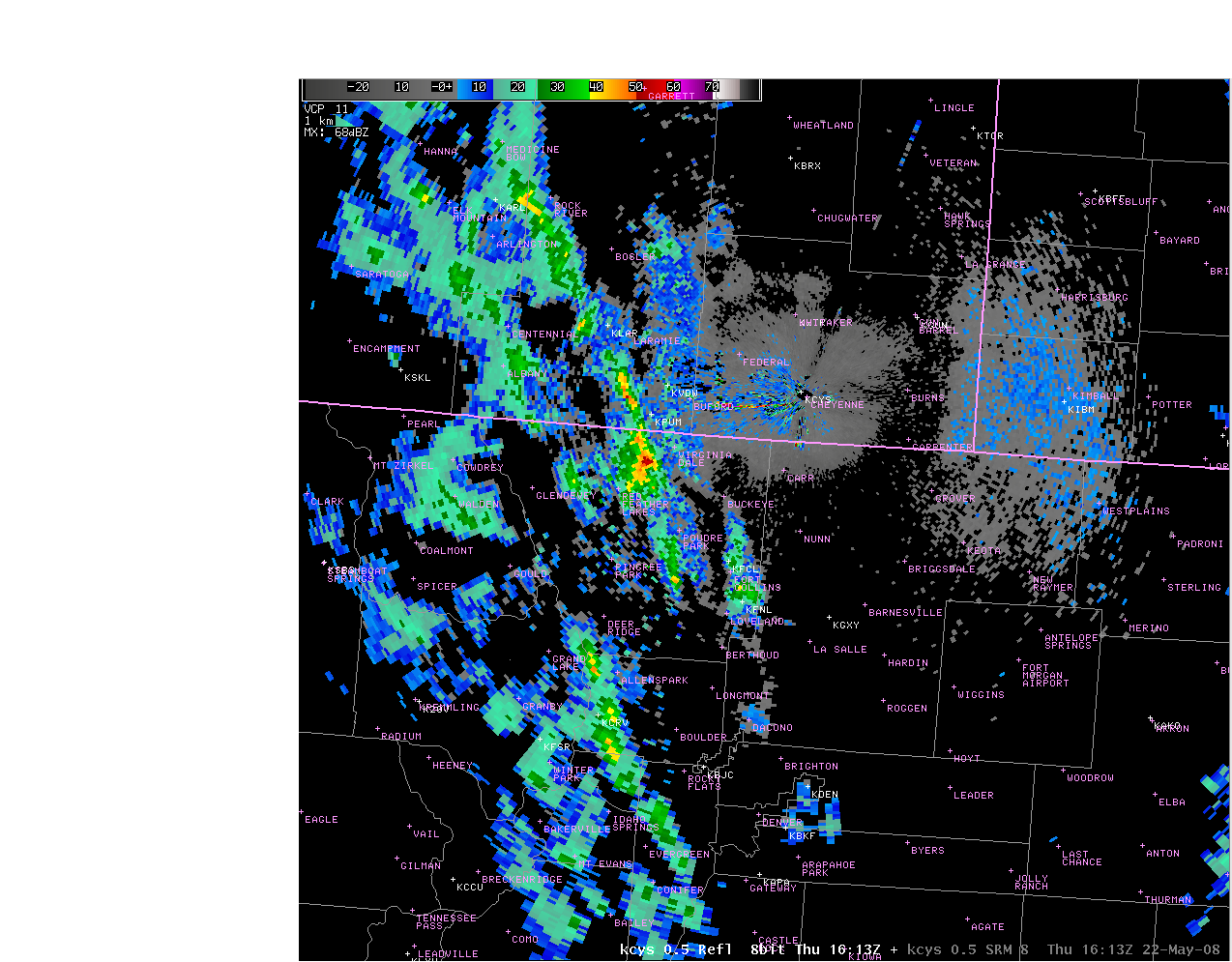

The Cheyenne radar shows the entire life of the storm from 1612 to 2042 UTC:
reflectivity
storm relative velocity
The Platteville-Windsor-Wellington Tornado
The first tornado

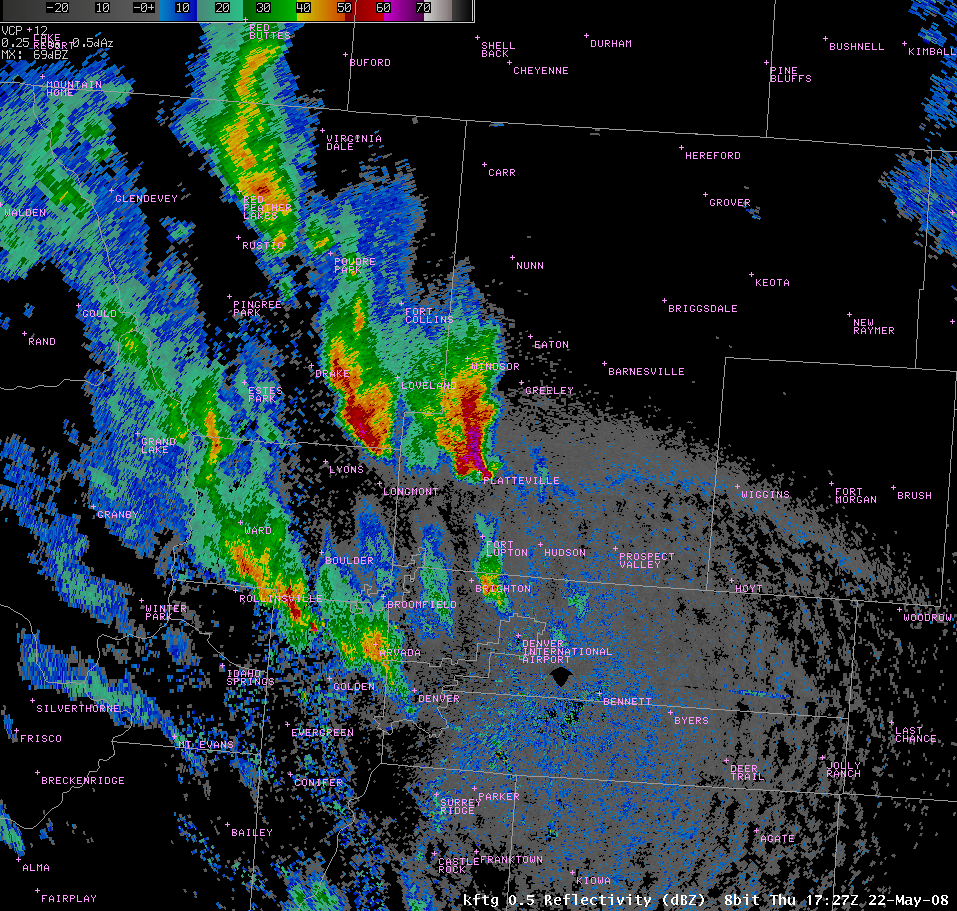

report was east of Platteville at 1726 UTC. The tornado was already doing
damage by 1726 UTC and was reported to be 1/2 mile wide at 1727 UTC. This
tornado was
very
large (published by the
Denver Post) and
damaging and
continued for
37 miles to northwest of Wellington through 1825 UTC. The most
damaging part of the tornado path ended northwest of Windsor. Very
large hail up to baseball size or larger occurred along and
west of the tornado path. The tornado moved generally to the
north-northwest at 35 to 40 mph. The elapsed time between the first 50
dbz echo on the .5 deg slice from the Denver radar and initial tornado

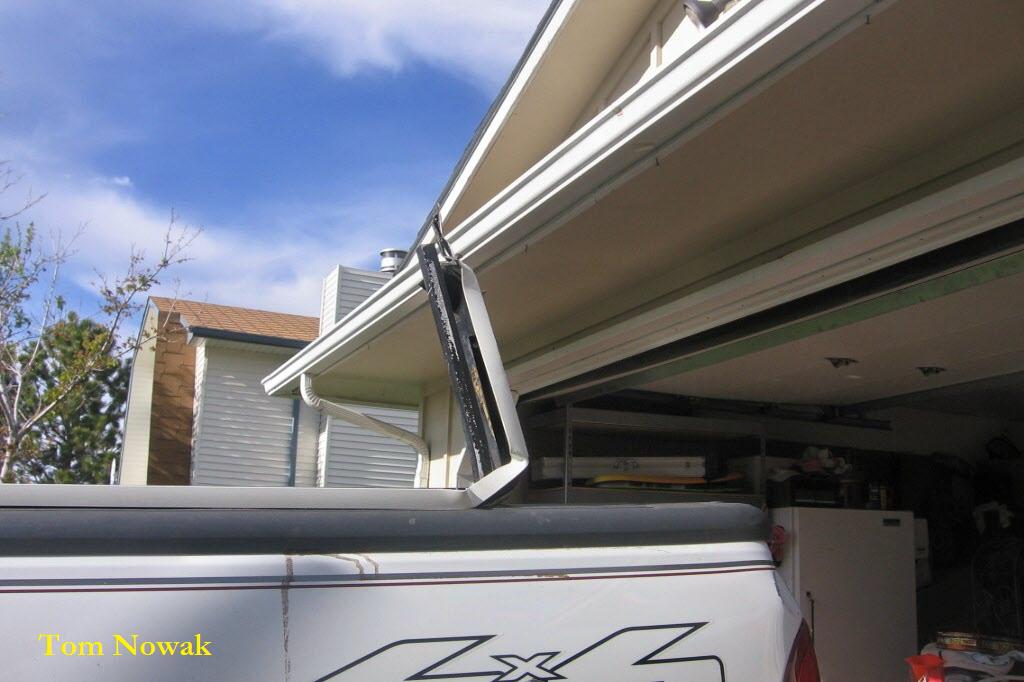

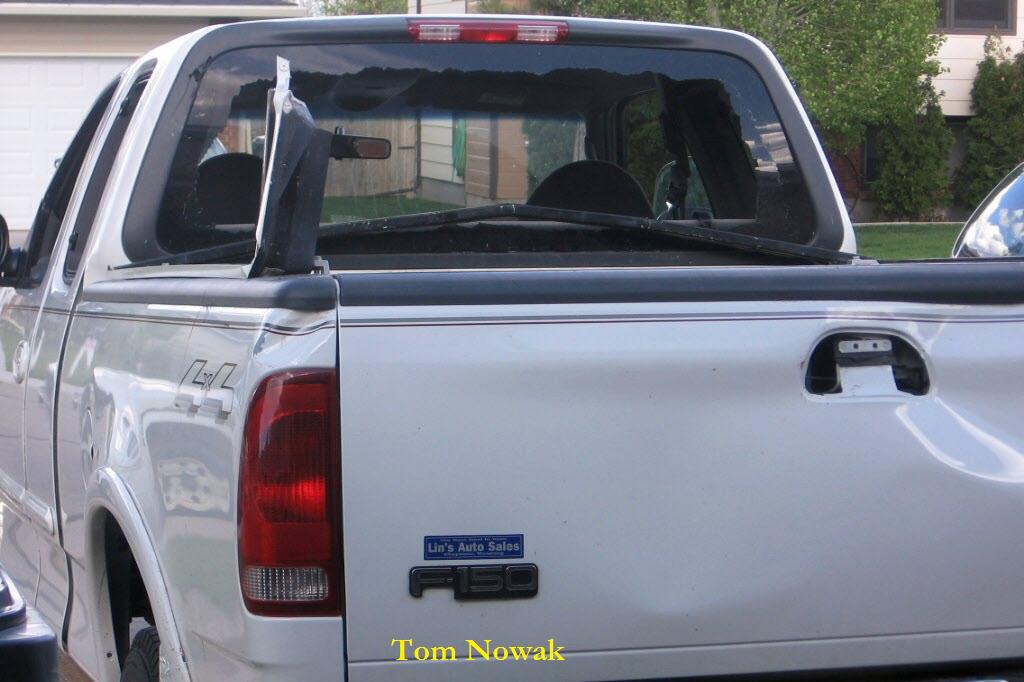

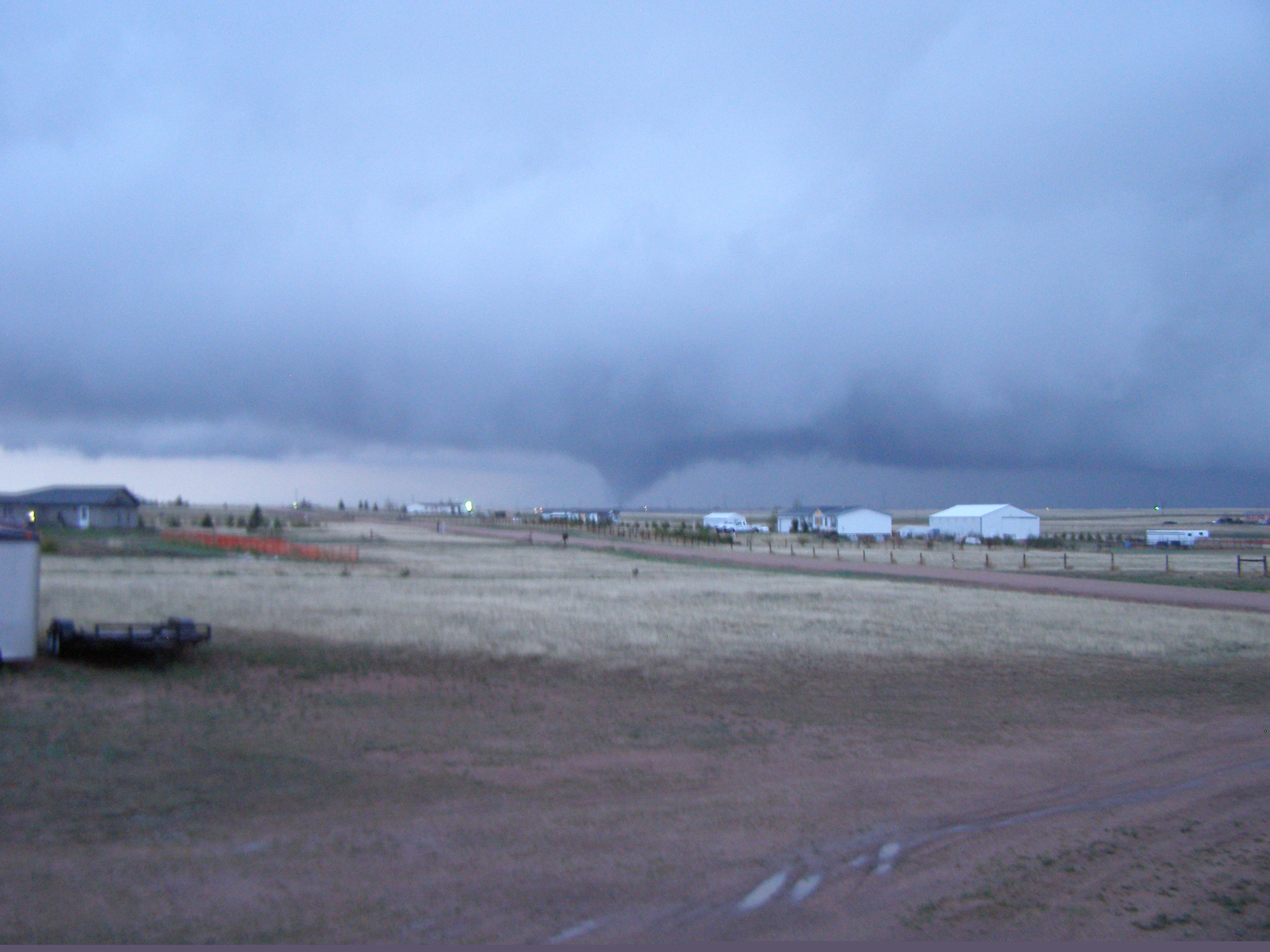

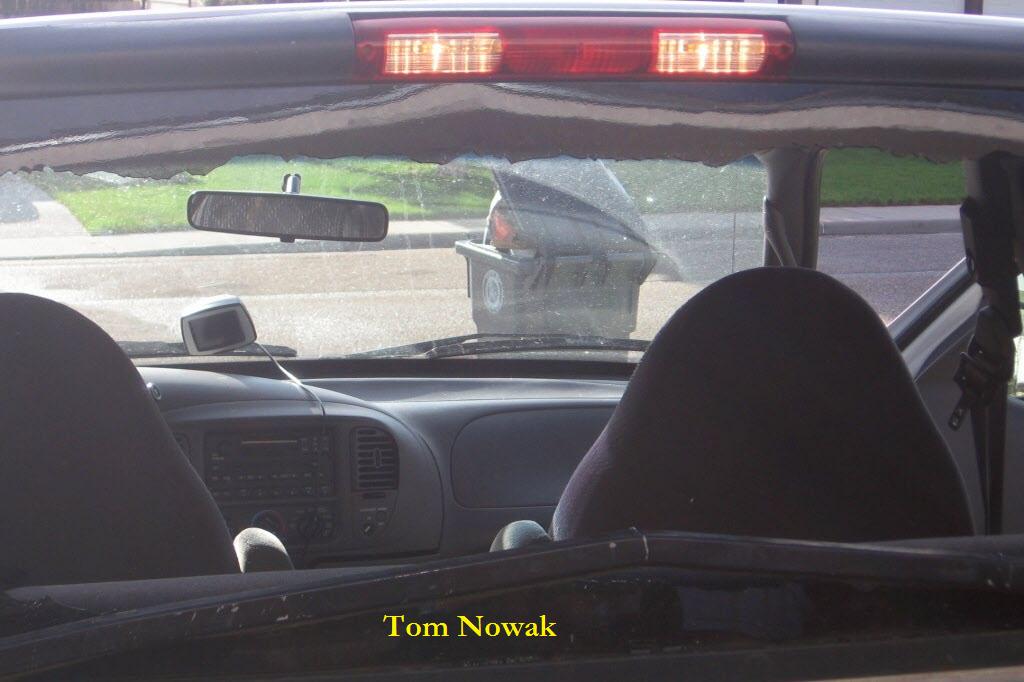

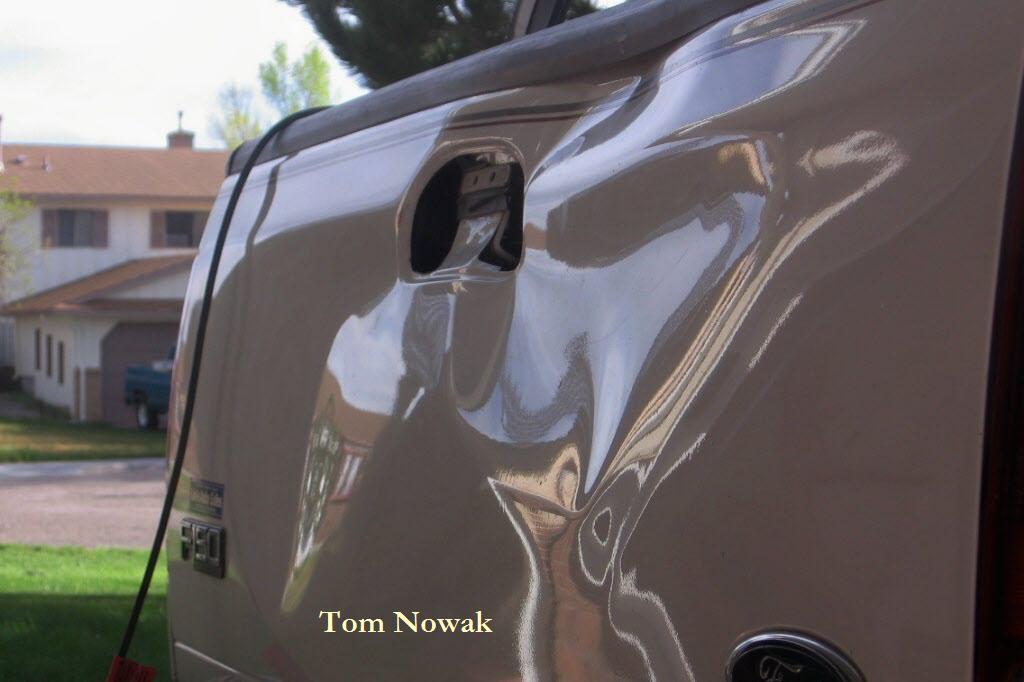

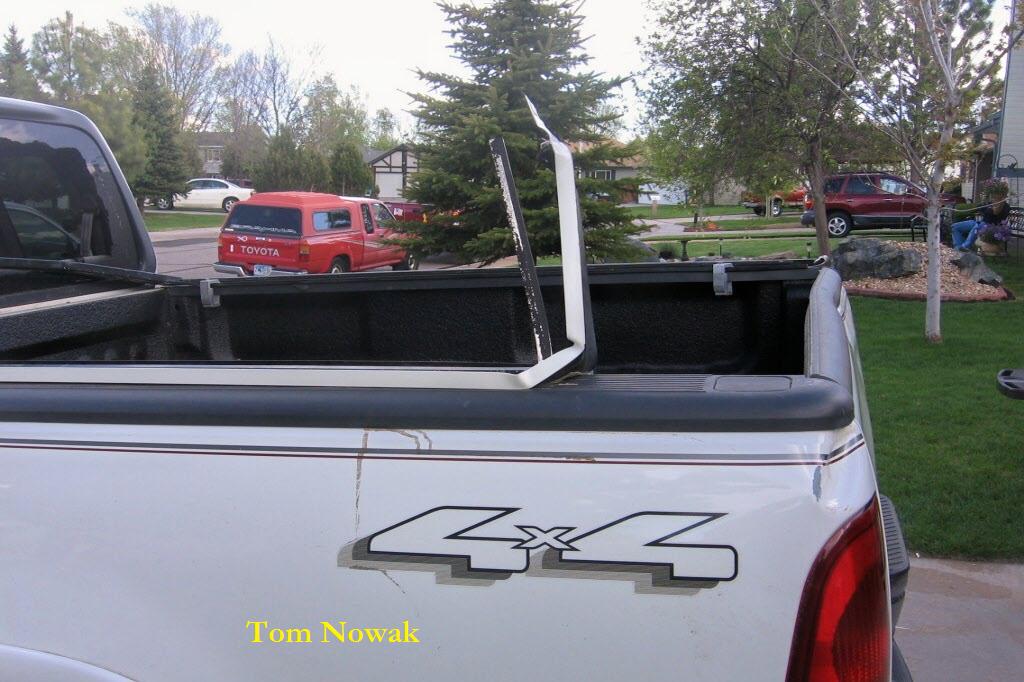

damage was 37 minutes!! Here are some pictures of the tornado from "The
Denver Channel", KOAA news, channel 9 news and Ted Ullmann. Pictures 7a and 7b were taken in Windsor, CO by Ted Ullmann.
pic1 pic2 pic3 pic4 pic5 pic6 pic7a pic7b pic8 pic9 pic10 pic11 pic12 pic13 pic14
An updated map showing the path of the primary Colorado tornado is
here.
Apparently, several tornadoes caused damage near the end of the path to
the west and northwest of Wellington. Actually a waterspout was seen
over Douglas Lake and this tornado caused significant damage along
county road 17. This information is still being compiled. The large
tornado near Windsor apparently evolved into 2 or more smaller
tornadoes north of Fort Collins. These smaller tornadoes continued to
about 4 miles west-northwest of Wellington. However, to keep things
simple, we will refer to this as 1 tornado.
The storm weakened briefly as it
moved into northern Larimer county, but then strengthened and
accelerated as it passed east of Virginia Dale.
The Harriman-Vedauwoo-Laramie Tornado
Brief Overview
This storm
produced a 2nd
tornado from 1858 UTC to 1923 UTC. There may have
been a break in the damage northwest of Howe Lane Rd. between 1923 and
1927 UTC before another (or the same) tornado touched down just
southeast of Laramie. There may have also been a break in the path between 1900 and 1901 UTC. I received this
picture from the Laramie Fire Department/EMA that was supposedly the Laramie tornado. They
said that this picture was taken at the Walmart, but they had no
details and couldn't vouch for its authenticity. Large
hail as large of
baseballs accompanied the storm

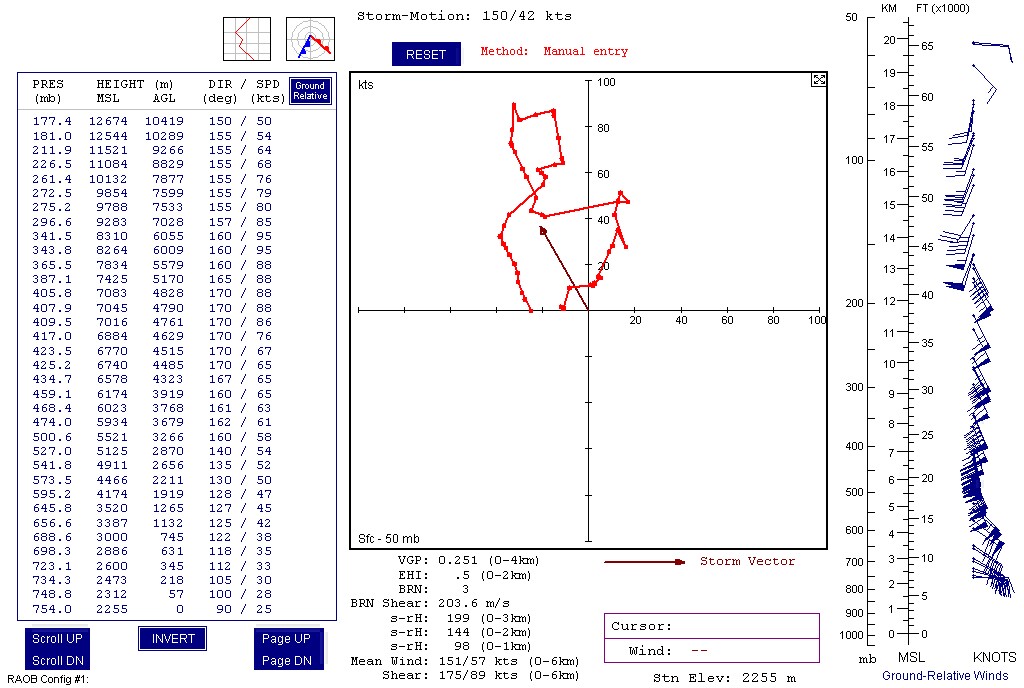

The Harriman-Laramie tornado moved to the north-northwest at an average
speed of 47 to 50 mph. The heading of the tornado was
320° at the beginning of the path and 330° toward the end.
This was
an exceptionally fast moving tornado by Wyoming standards.
Typically the mid- level (600-300 mb) flow over
southeast Wyoming is fairly weak in tornadic situations, hence
strong right-movement and slow storm motion (10 to 30 mph). The fast
storm motion on May 22 is more typical of the southeastern United
States in winter or early spring. The storm accelerated as
it climbed closer to the stronger mid level flow. Basically, the
storm was closer to the stronger, higher level winds after it climbed
to
7500 ft. As previously mentioned, the tornadoes on this day moved to
the
northwest and north-northwest. This is unusual, but certainly not
unprecedented. The Wyoming tornado on April 23, 1960 moved to the
north-northwest. The tornado
climbed the higher terrain of the Laramie Ridge/Range.
Here is a map showing the center of the Harriman-Laramie tornado path and hail swath.
Storm Documentation
Since I have a strong interest in
high elevation severe weather, and since this was a particularly rare
and exceptional tornado and large hail event on the high terrain, I decided to
thoroughly document the Wyoming part of the tornado outbreak. But when
I first started this task, I had no names to work with. So I
ordered a phone book for Cheyenne, WY called the "Country Cowboy". I
started with the H's and searched for specific roads that I knew
were close to the tornado path, and after about 5 minutes I found the
name Paul Hanselmann on
Ramshorn Rd.
So I called Paul Hanselmann and found that his house was hit by the
tornado. He gave me 2 other names and those people referred me to
others. So information piled up quickly. I made extensive use of the
reverse address search feature in the
Dexknows online white pages along with
Google Maps
to find obscure residences in remote areas such as Pumpkin Vine Rd. and
Monument Rd. I was actually about to give up on finding people on
Pumpkin Vine Rd. I finally made an effort to search Pumpkin Vine Rd. in
Tie Siding, WY and stumbled
across the Levinger's residence. Their residence is actually quite a
distance from Tie Siding. After considerable effort trying to find
residences on Hermosa Rd., I was finally successful. There is
actually a National Weather Service cooperative observer there by the
name of Francis Magrath. The Magrath's referred me to George Obssuth
who also lives on Hermosa Rd. I also had considerable difficulty
finding residences on Harriman Rd. I realized after prolonged digging
that the name of the road was County Road 102 and not Harriman Rd.
Also, the Laramie Fire Department referred me to Jeff Mitros and Jeff
was a great source of information.
I want to thank all
those
who took the time to share information over the phone about the storms, or who provided weather data.
The 1st and strongest Albany county
tornado touched down about 0.4 miles east of the intersection of
Albany, Larimer and Laramie counties, or about 3/4 mile west of
Harriman Rd. along the state line (elevation 7480 ft) at 1858 UTC (1258
pm MDT). The latitude and longitude were about (41.00, 105.27). I

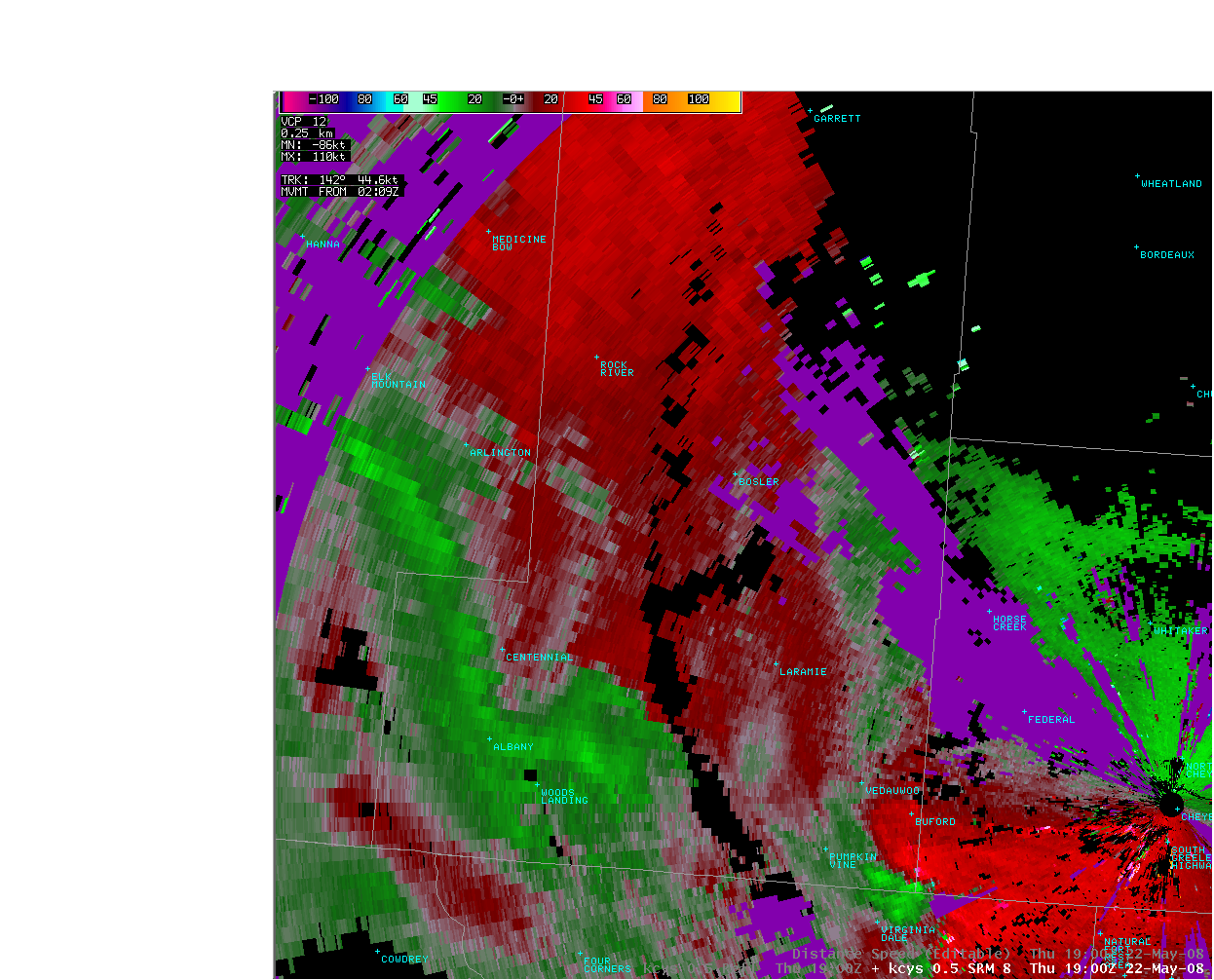

used radar to determine the exact times as this is usually
the most accurate method. The land along the path of the tornado is
barren in most places except for some trees along the creekbeds and
near the isolated houses. Therefore, only a few houses were affected by
the tornado. Prior to the tornado, dense fog shrouded
the eastern slopes of the Laramie mountains, with
visibilities almost zero at the residence of Wylie D. Walno II Lt.
Col. near the
tri-county border. Wylie Walno arrived home just
before the storm hit the area. He said that the visibility
suddenly jumped from near zero to unlimited as
the storm passed to his north. He could see low-hanging
clouds pass by. Golfball sized hail also occurred at the Walno
residence.
The first signs of tornado damage was at the residence
of Richard Miller about 700 ft north of the Colorado-Wyoming border.
Two trees on his property were downed and his garage
door was bent. Half-dollar sized hail also occurred there. Immediately
to the northwest, 20 Ponderosa pines were downed at the
Claire Hoover residence (1200 ft north of the state border) as
the tornado passed between
the house and a
barn around 1859 UTC. Then the tornado toppled 4 trees on Belinda
Scott's
property. A few trees were downed on Wylie Walno's property. So the
initial tornado touchdown as along the Colorado-Wyoming border about
1858 UTC. After the tornado left the Hoover residence, trees were
downed south of the old Union-Pacific railroad tracks according to
Claire Hoover. He will be surveying this area soon.

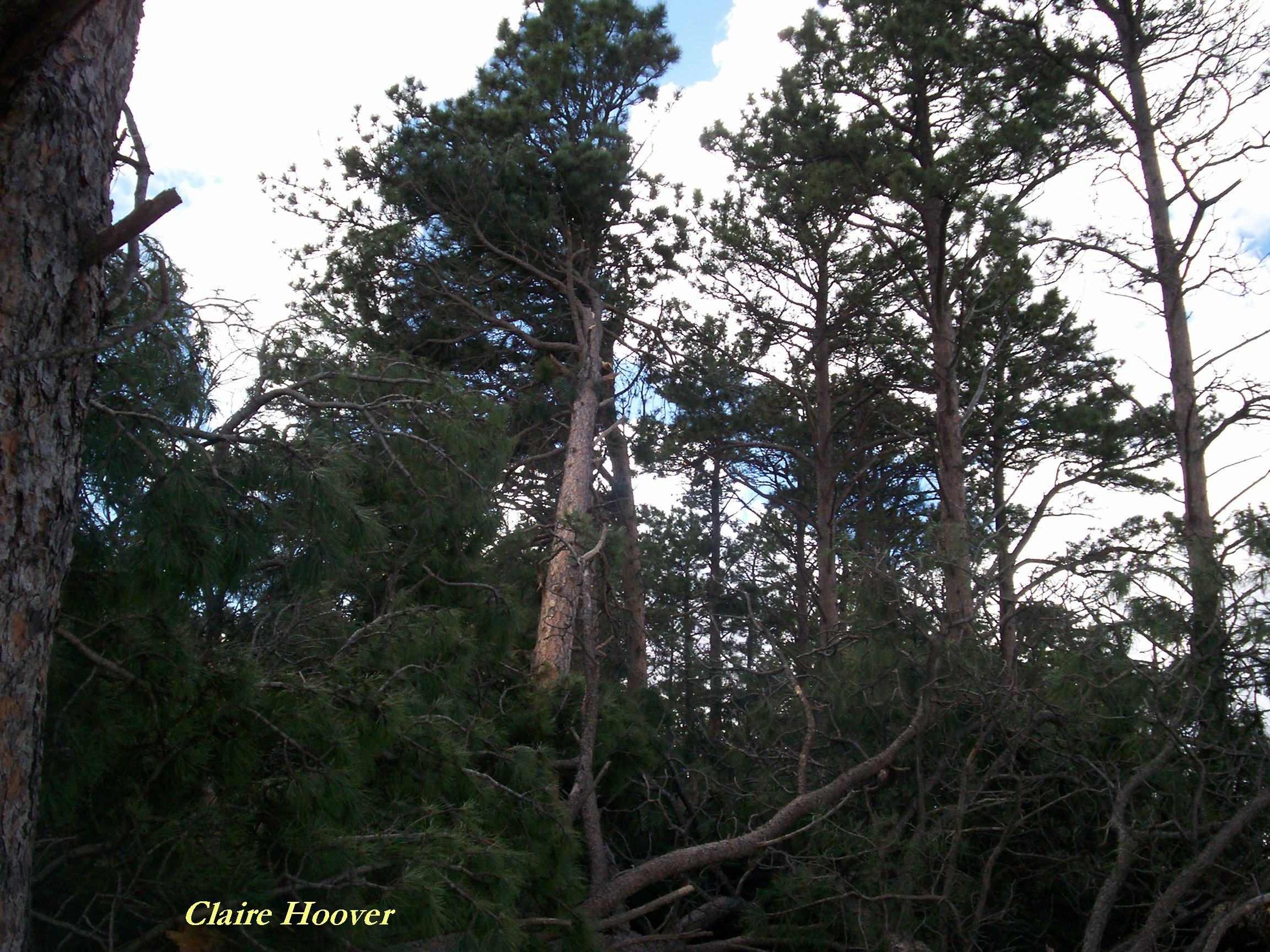

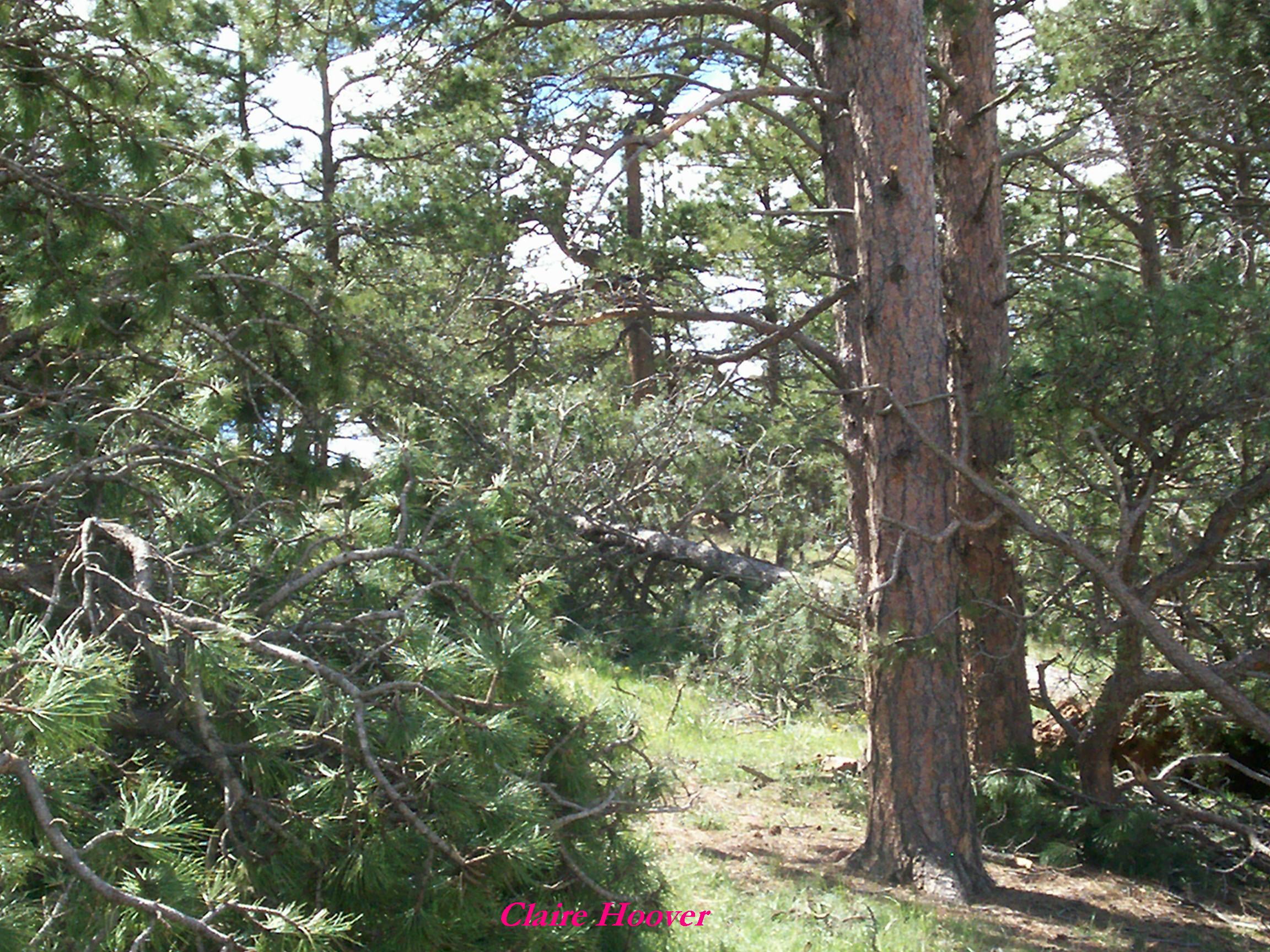

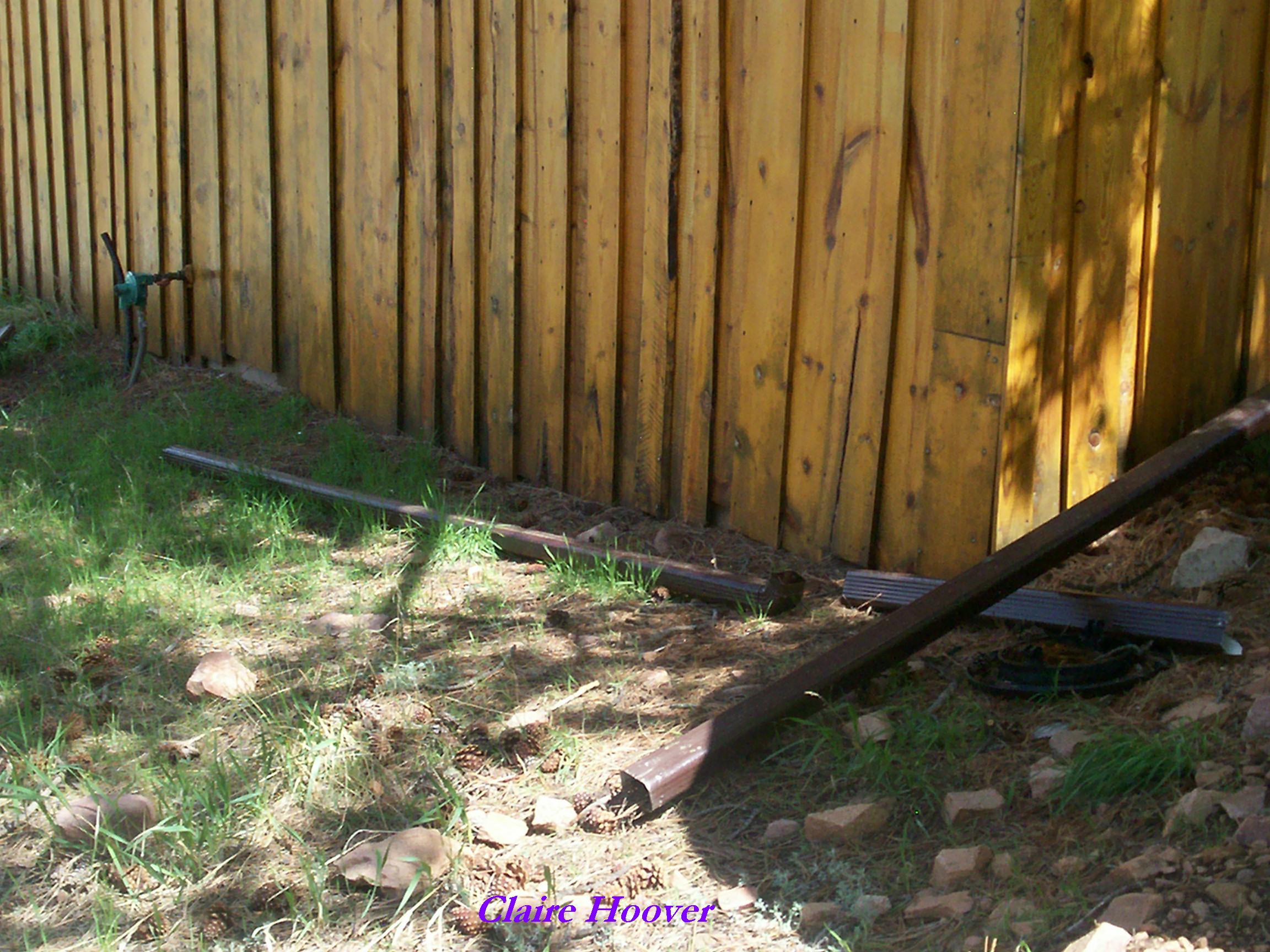

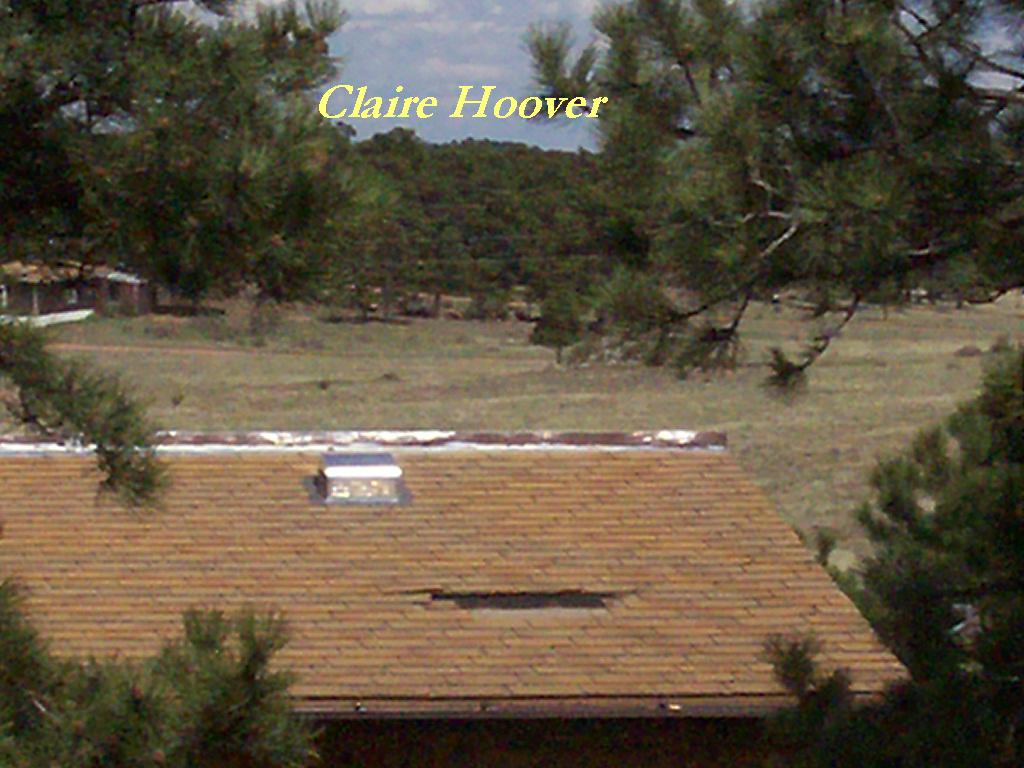

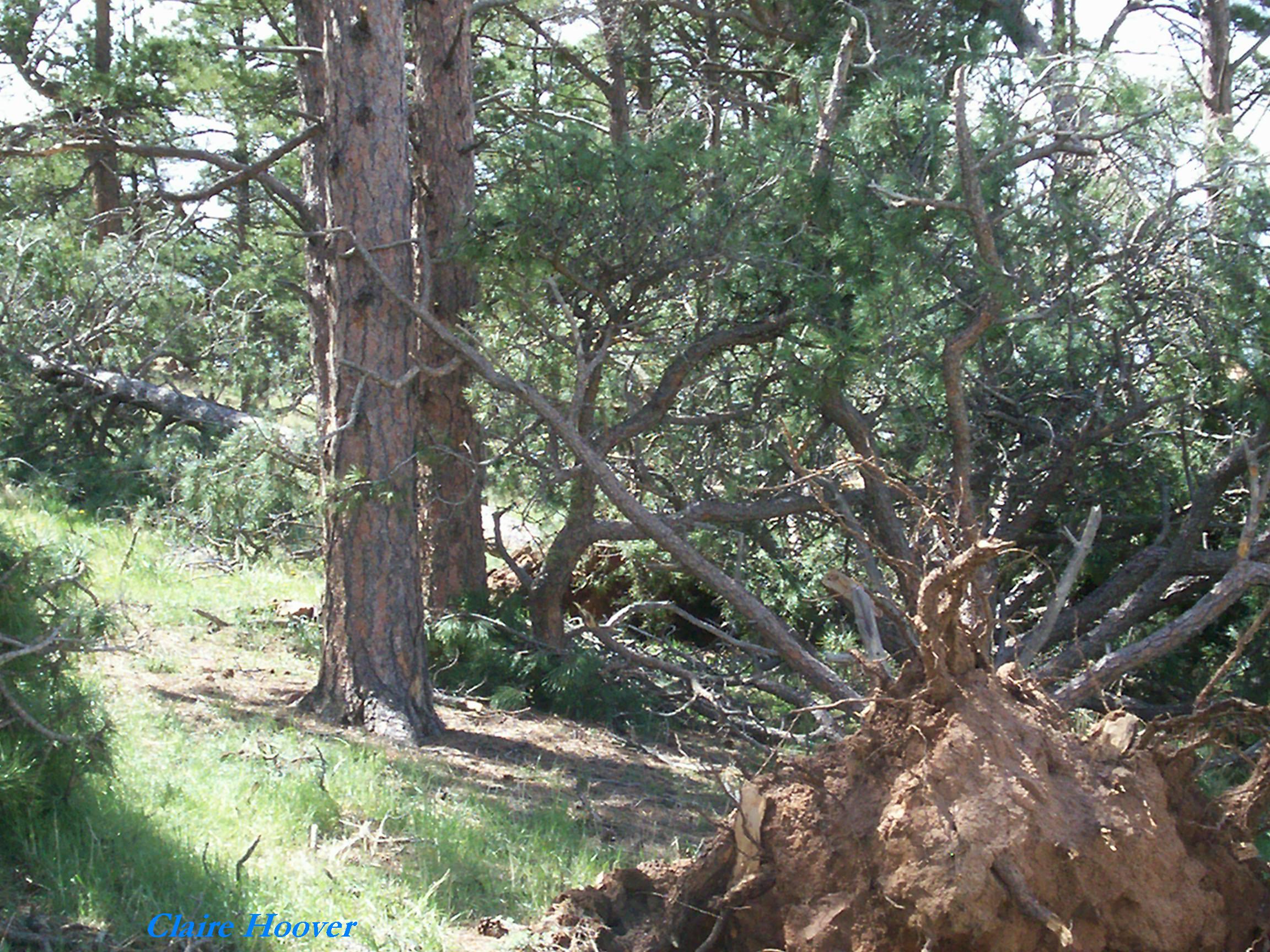

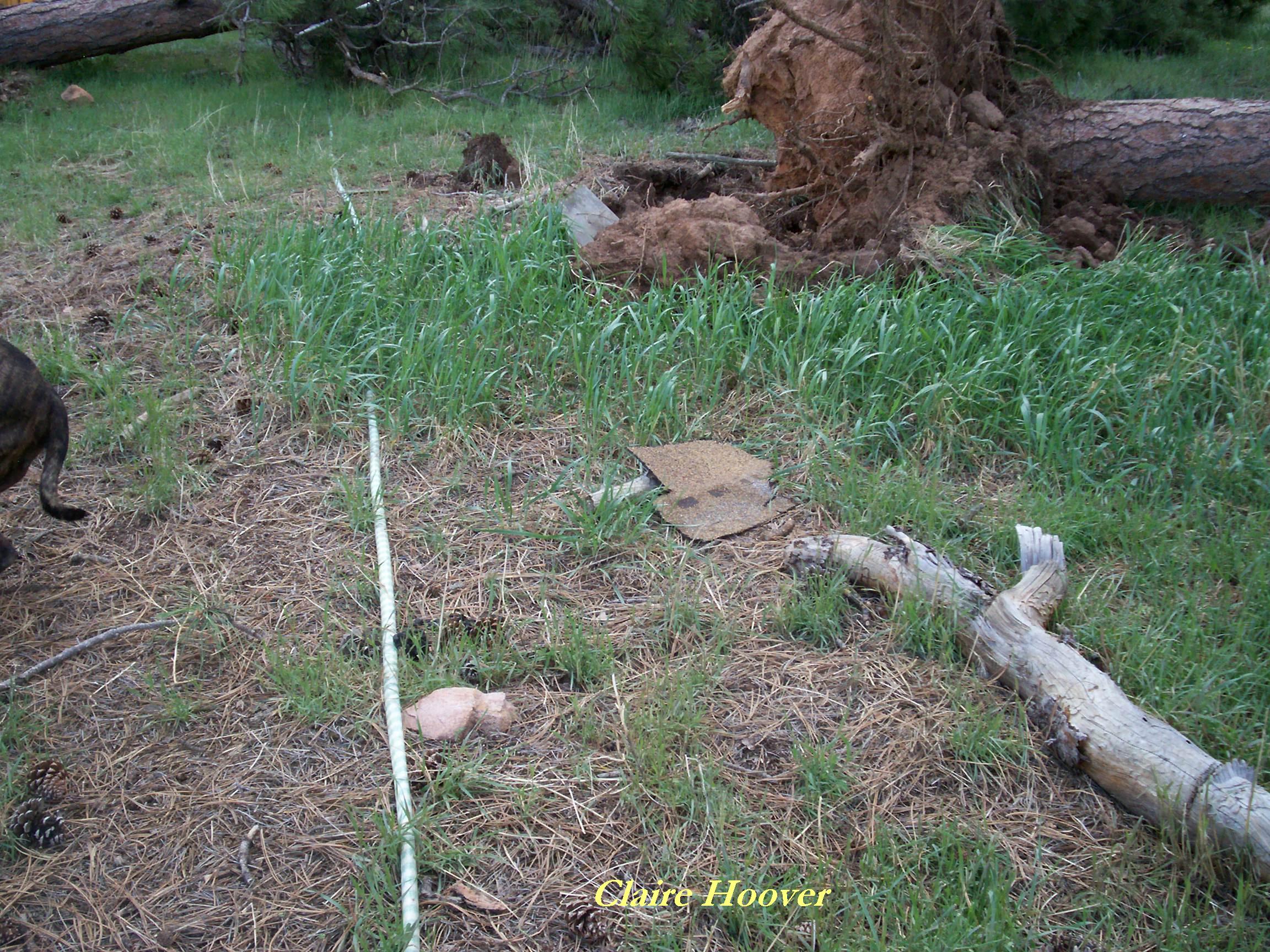

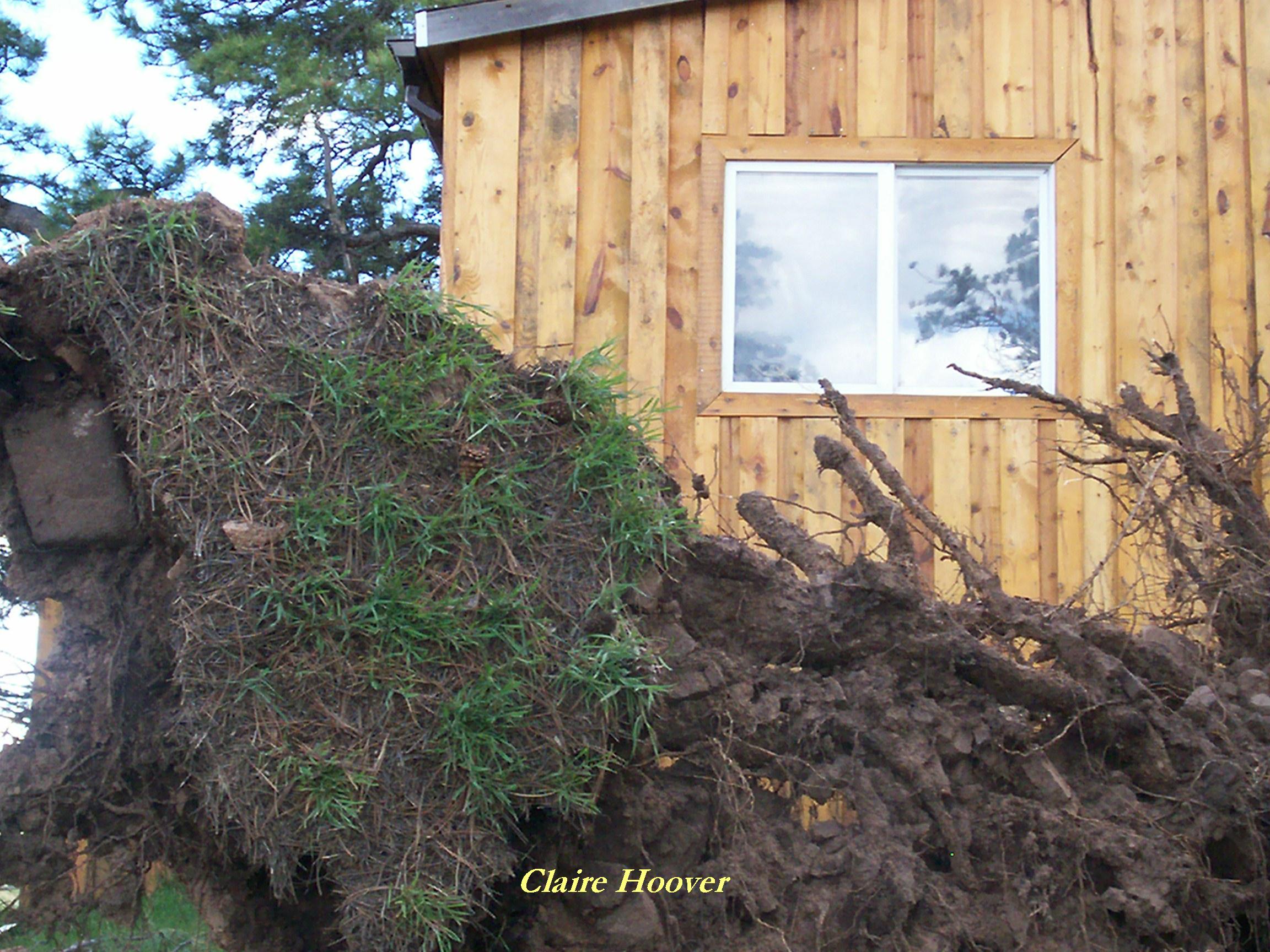

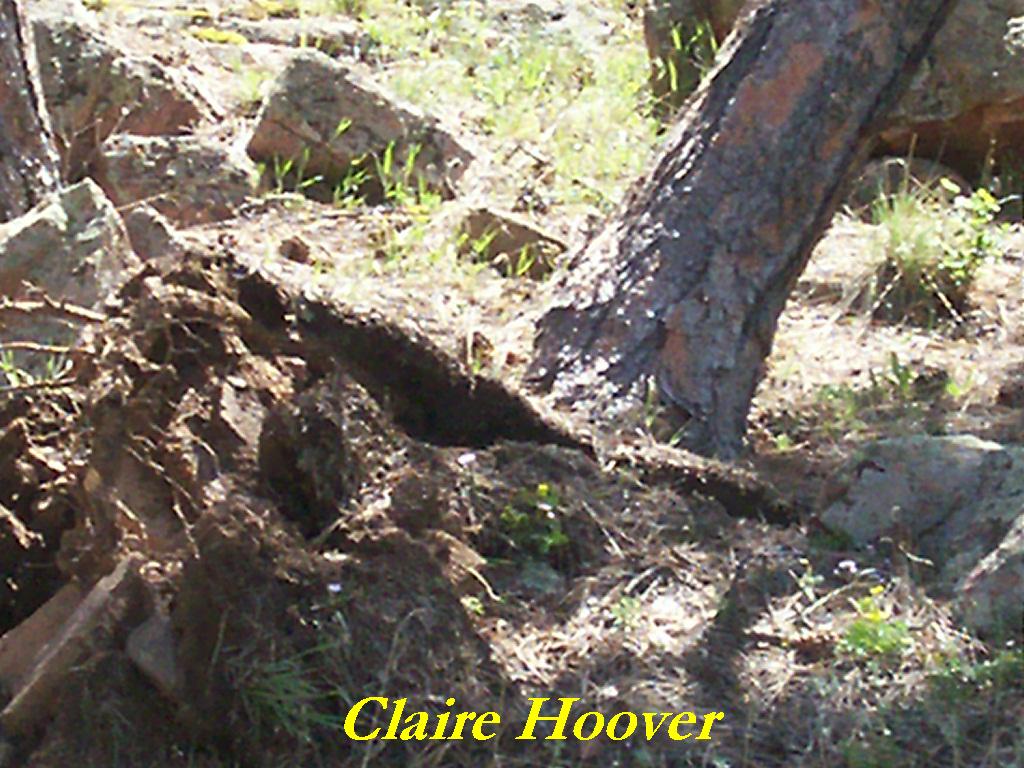

Here are a few pictures that Claire Hoover took around his property showing tree damage and minor house damage.
trees trees trees trees trees trees trees trees
house house
There may have been a brief
break
in the tornado path from 1900 to 1901 UTC starting near the old Union
Pacific Railroad tracks. No storm documentation was received during
this time.

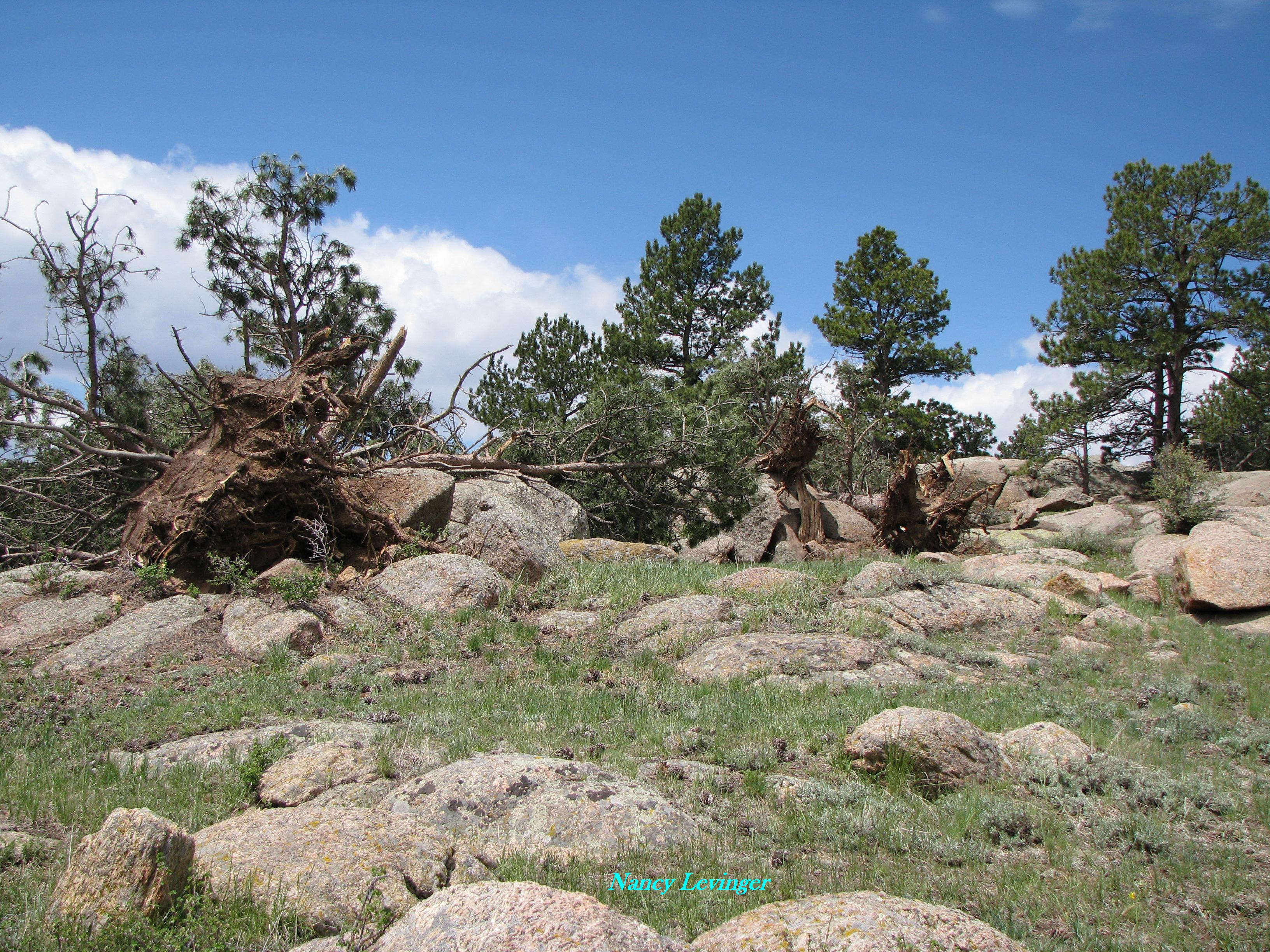

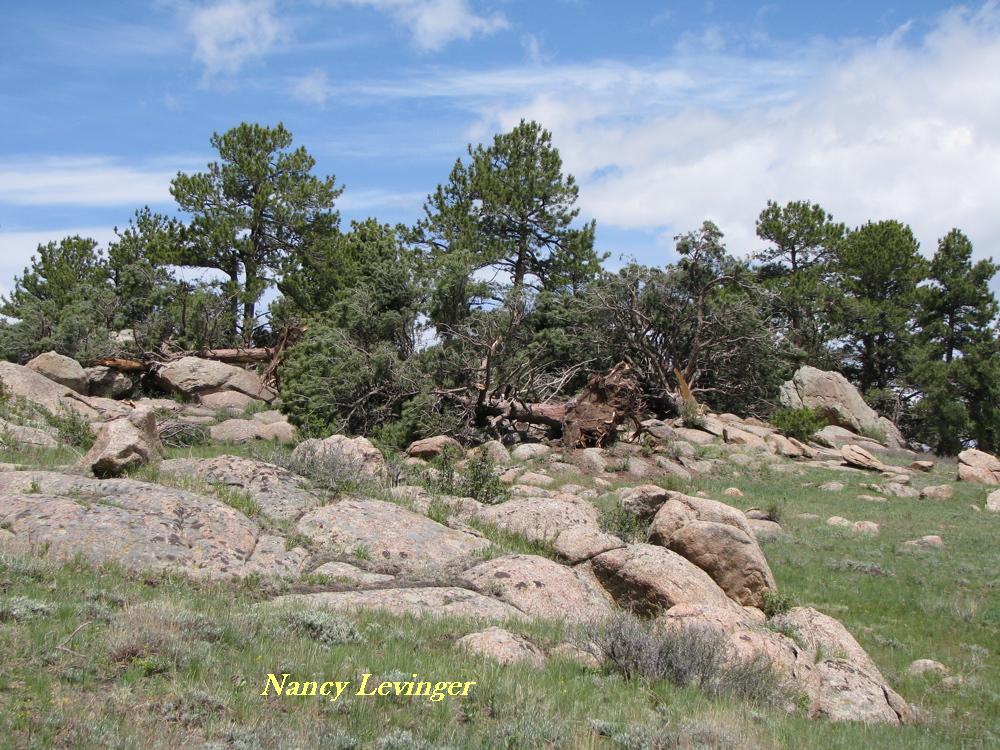

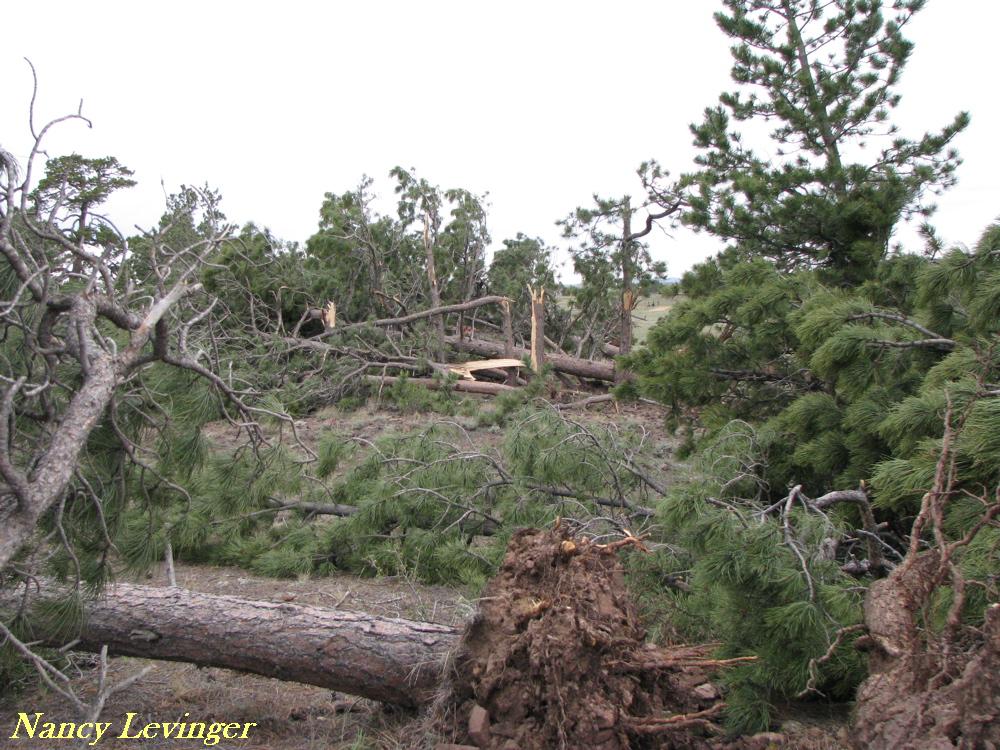

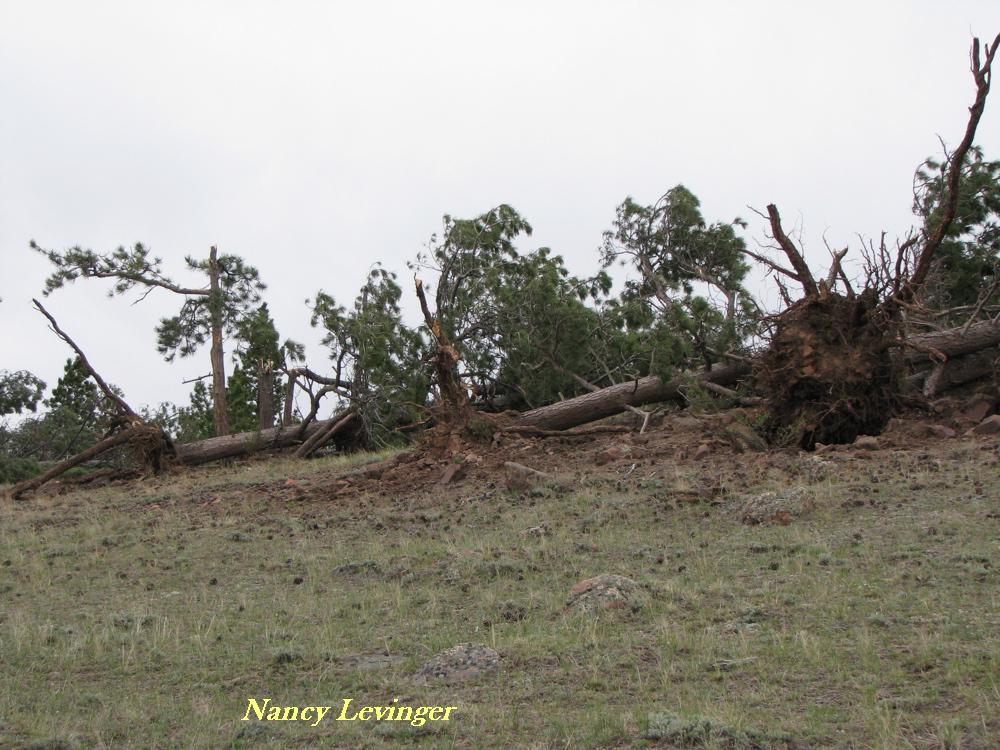

Nancy Levinger (Chemist who lives and works in Fort Collins) took
pictures of the tree damage near the family cabin. The damage occurred
from 1902 to 1906 UTC at elevations from 7700 to 7900 ft. She
provided valuable detail about the
tornado path and is still in the process of documenting the tree
damage. She took pictures of the downed trees and
documented the latitude and longitude of the damage. This information
was extremely
helpful.

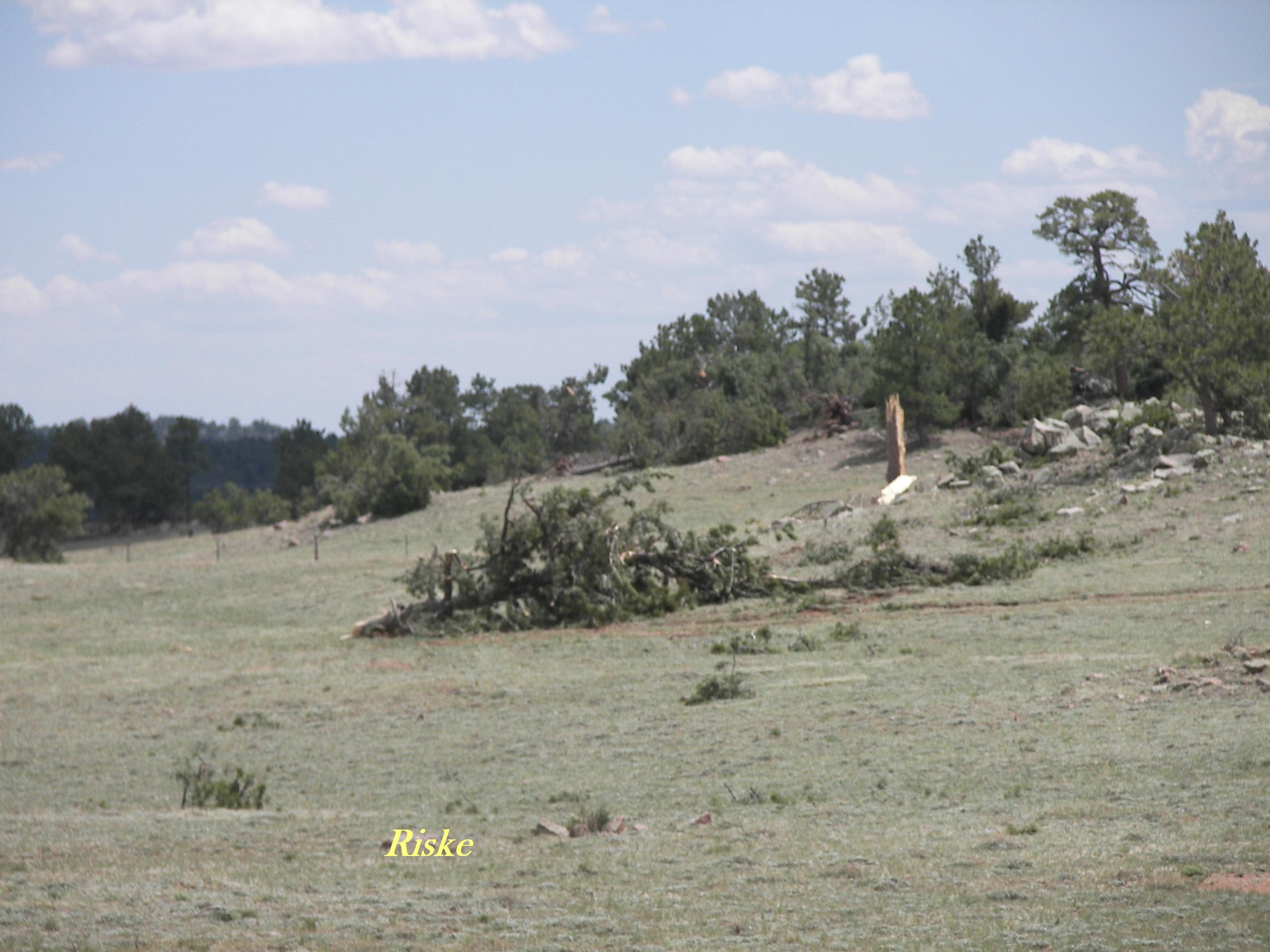

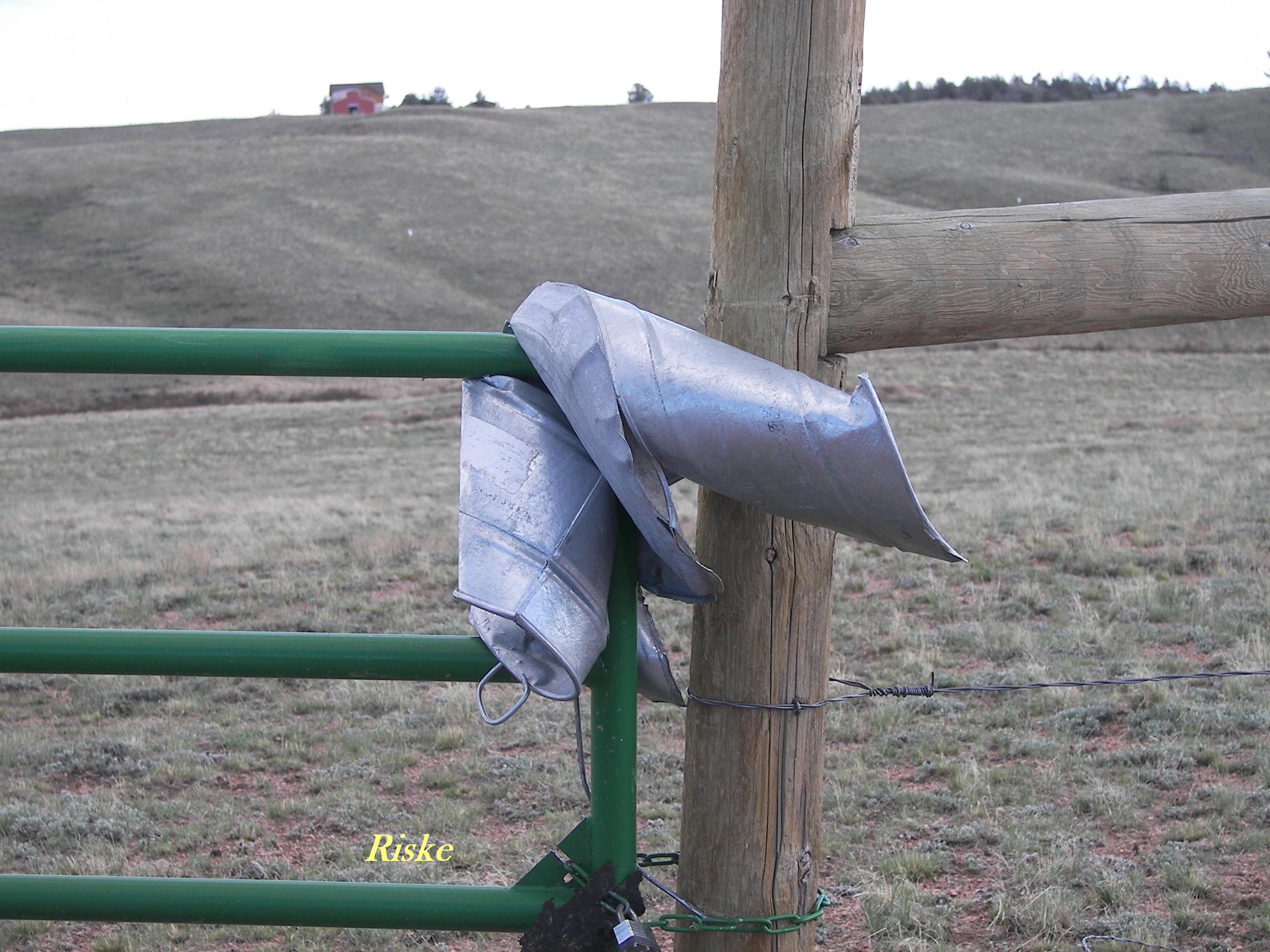

Jeff Mitros and Mr. Riske took
pictures of tree damage that occurred a few miles northwest of Harriman. I do not know the exact location where these
pictures were
taken, but my guess is that
they were taken along Monument Rd. about 3 to 5 miles northwest of
Harriman.

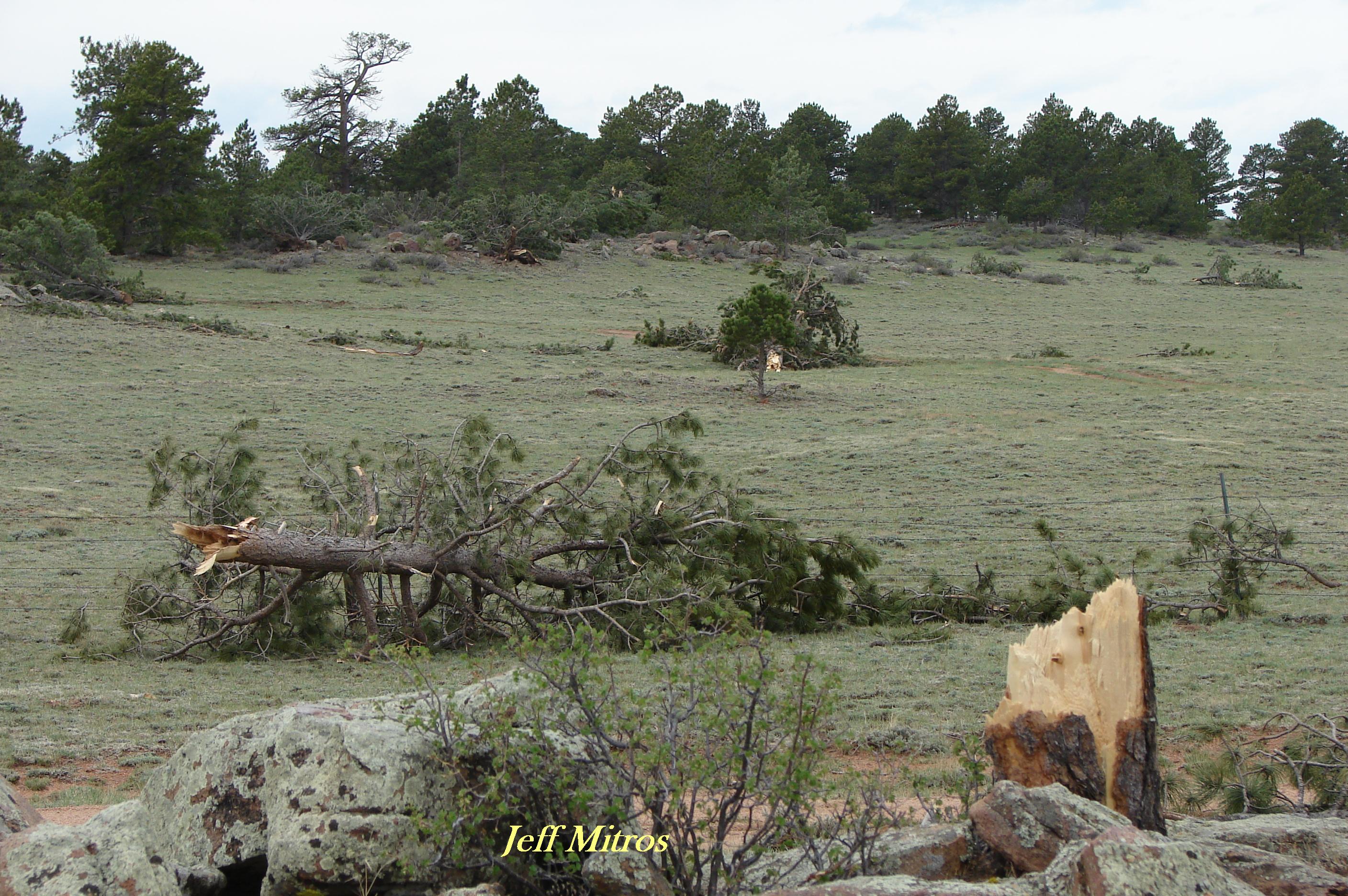

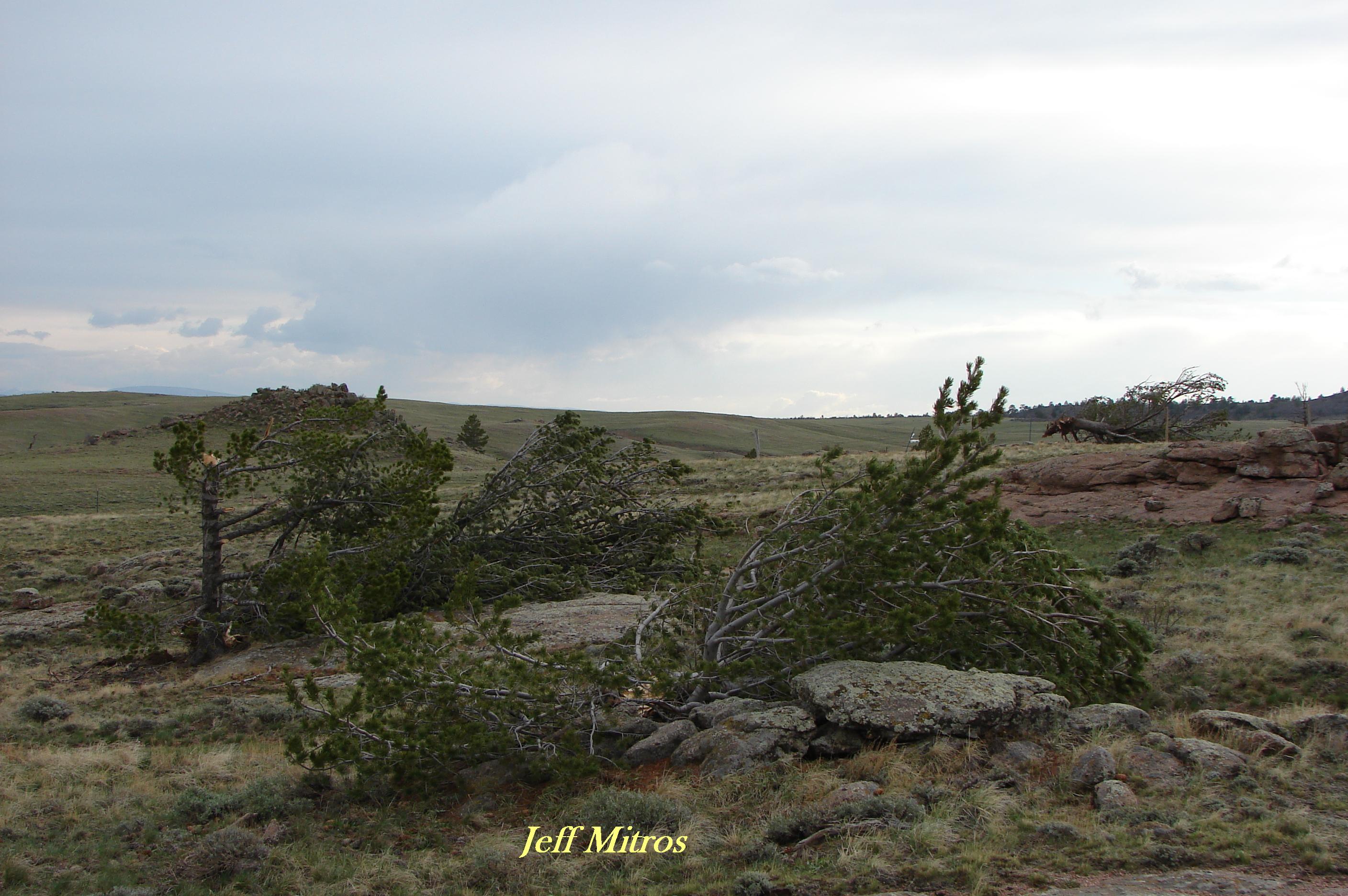

A tree was
snapped off and another uprooted somewhere southeast of Imson Pond along Monument Rd.
Tree damage occurred on Peter Hansen and Tim Warfield's property for
several miles. This damage was between the old Union Pacific
Railroad to near Imson Pond.
Very
old pine trees 3 to 4 ft in diameter were blown down by
the tornado near Imson Pond (7820 ft) around 1908 UTC. Tom Nowak, Jim Price and another person were
putting fish into Imson Pond in the dense fog
with visibilities near 100 ft. Quarter to ping-pong ball sized hail
chased them to their trucks. This is a good thing since they were then
hit by the tornado around 1908 UTC. They described a frightening
experience. The tornado buffeted their vehicles. One truck
contained a 1000 lb fish tank. This truck rocked back and forth by
the tornado and most of the windows were smashed out. Another
truck was actually lifted off the ground and set back down, with
windows knocked out as well. A camper shell was broken off one of
the trucks and flung 1/2 mile to the south. Debris was
flying everywhere during the tornado including picnic tables.
Large trees were downed on both sides of the road near the pond.
Tom Nowak took some pictures of the tree damage at Imson Pond and west
of Monument Rd. (southeast of Imson Pond). He also took some pictures
of the tree damage but apparently these didn't come out so well. He is
going back to the tornado damage area to take more pictures of the tree

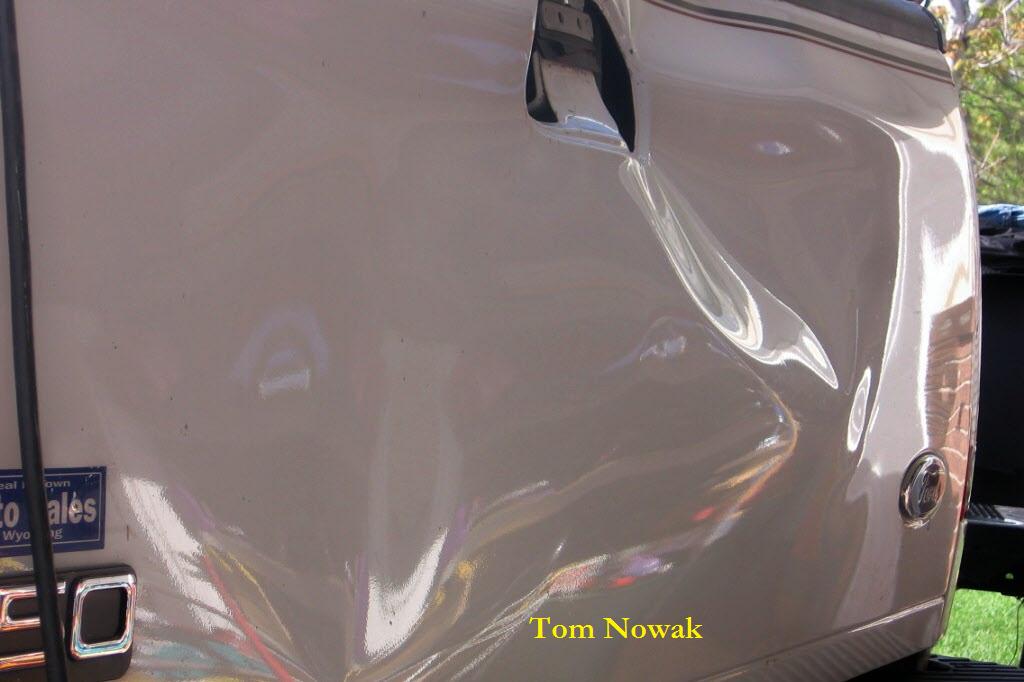

damage. These will be posted when I receive them. Here are a few

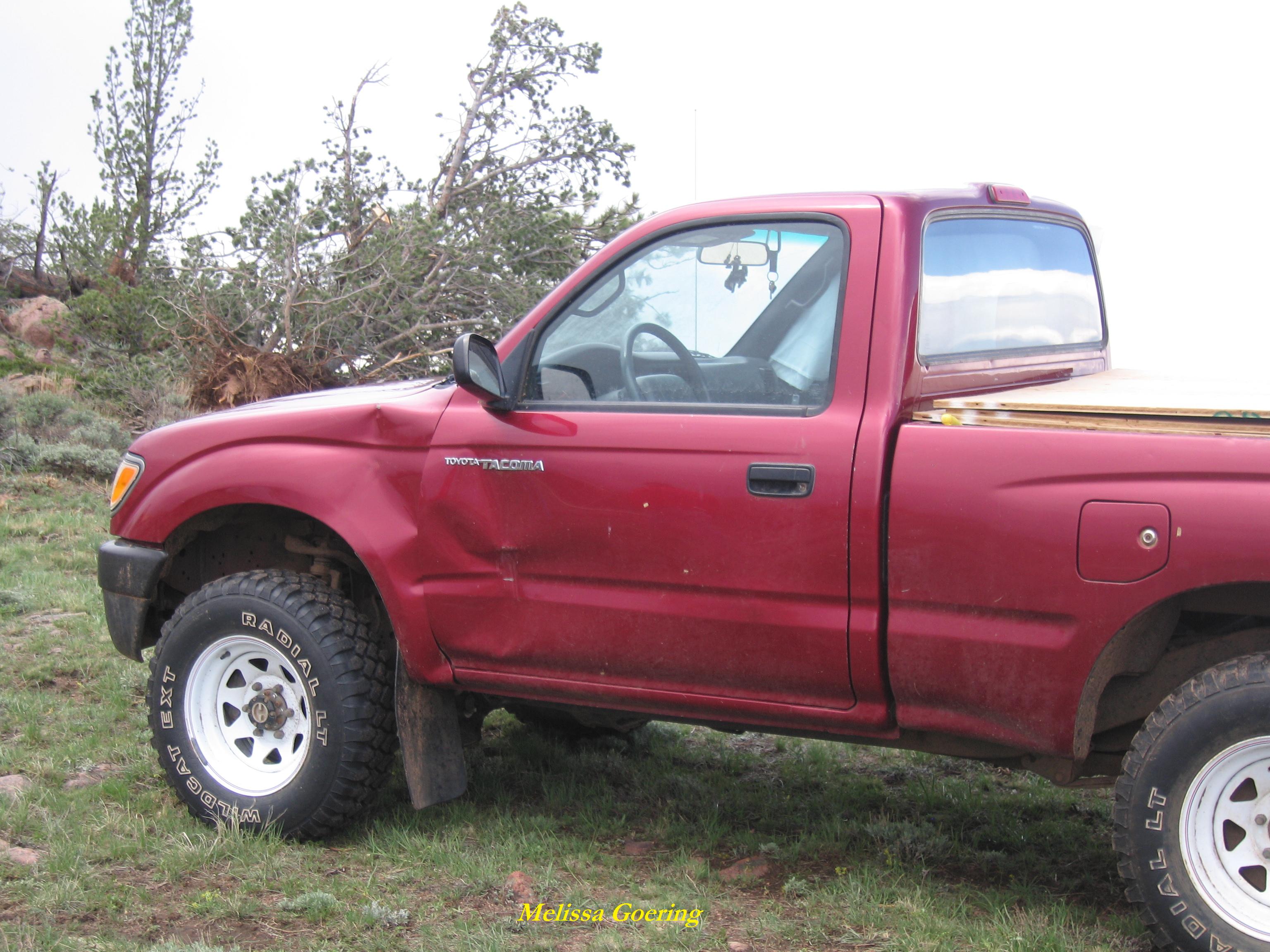

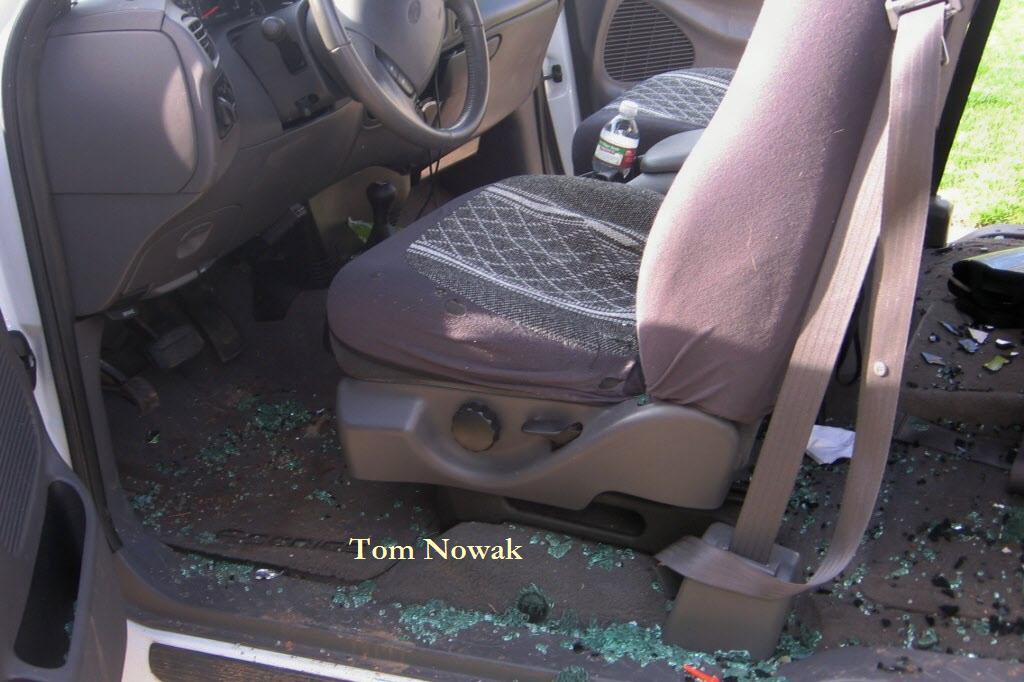

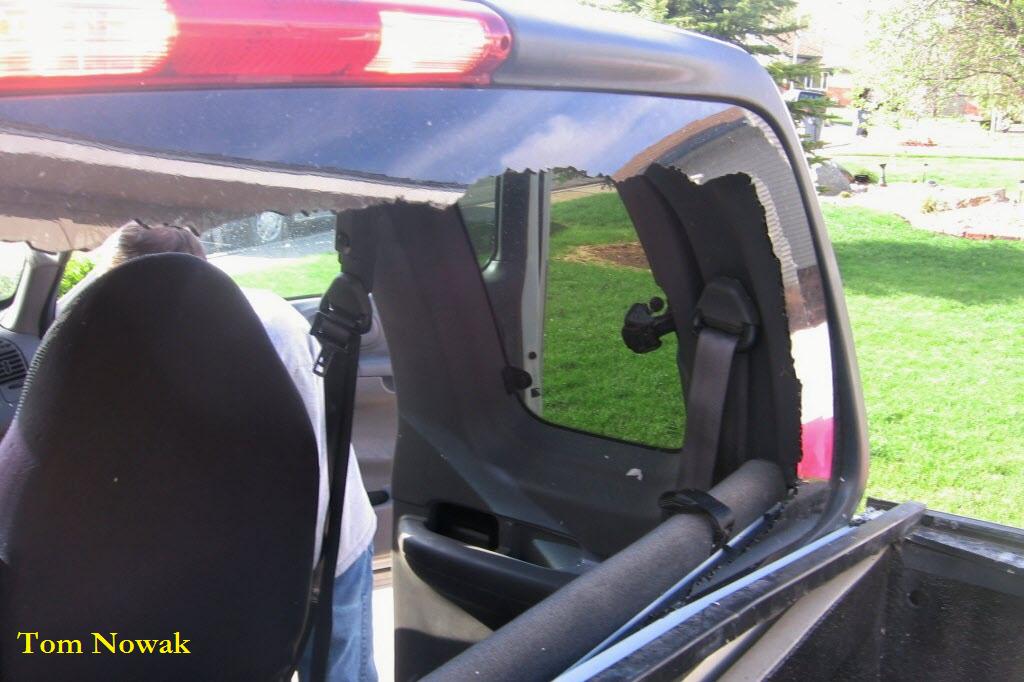

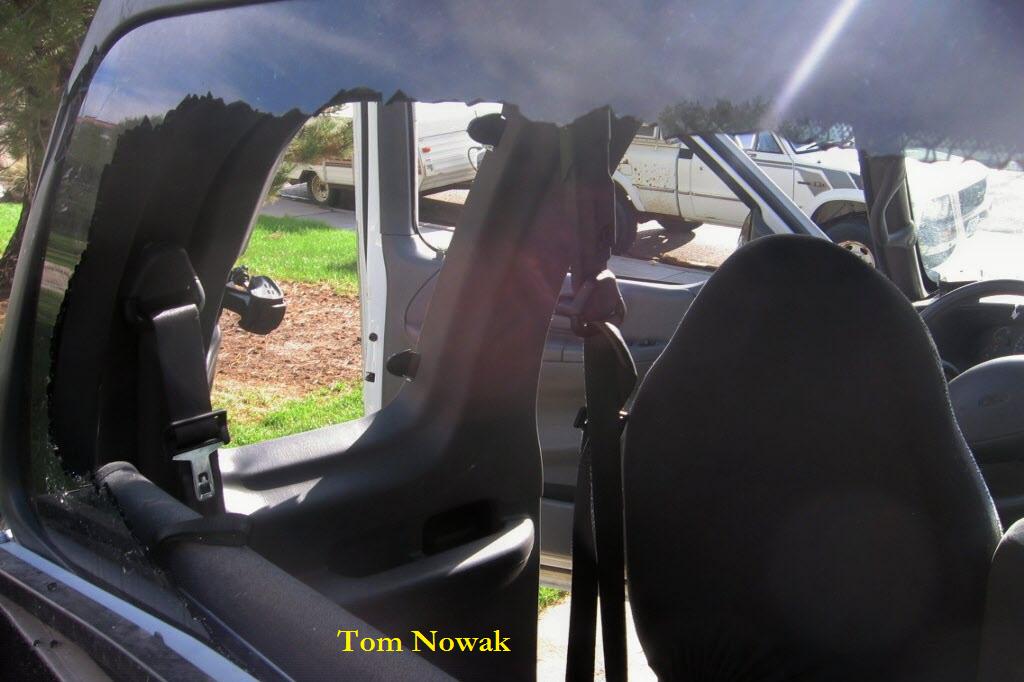

pictures of his truck that were taken the next day:
pic1 pic2 pic3 pic4 pic5 pic6 pic7 pic8 pic9 pic10
After leaving Imson Pond, the tornado
moved northwest over open country and destroyed snow fences
paralleling the railroad tracks to the north of Ramshorn Rd.
(information provided by Ted Lewis). The tornado
paralleled Ramshorn Rd. at 8170 ft from 1910 to 1911 UTC. Ted Lewis
measured 153 mph winds on his Davis Monitor 2. His house faired
fairly well even though trees were blown down. The northern
periphery of the tornado hit the Ted Lewis residence on the north side
of Ramshorn Rd. Many
trees were
downed on Ted's

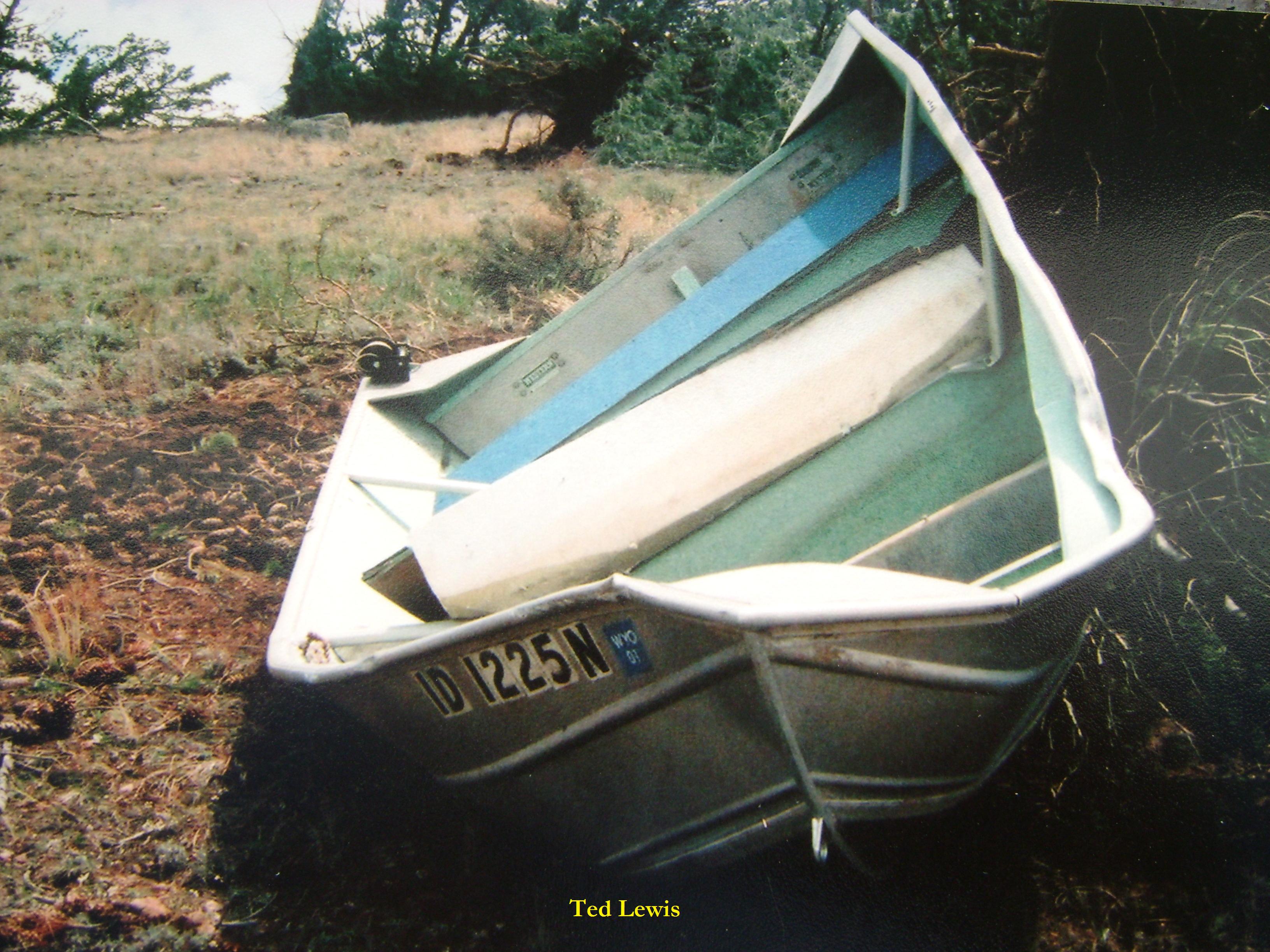

property. Ted took this
picture of his 12 ft. aluminum boat that was blown 500 yds.

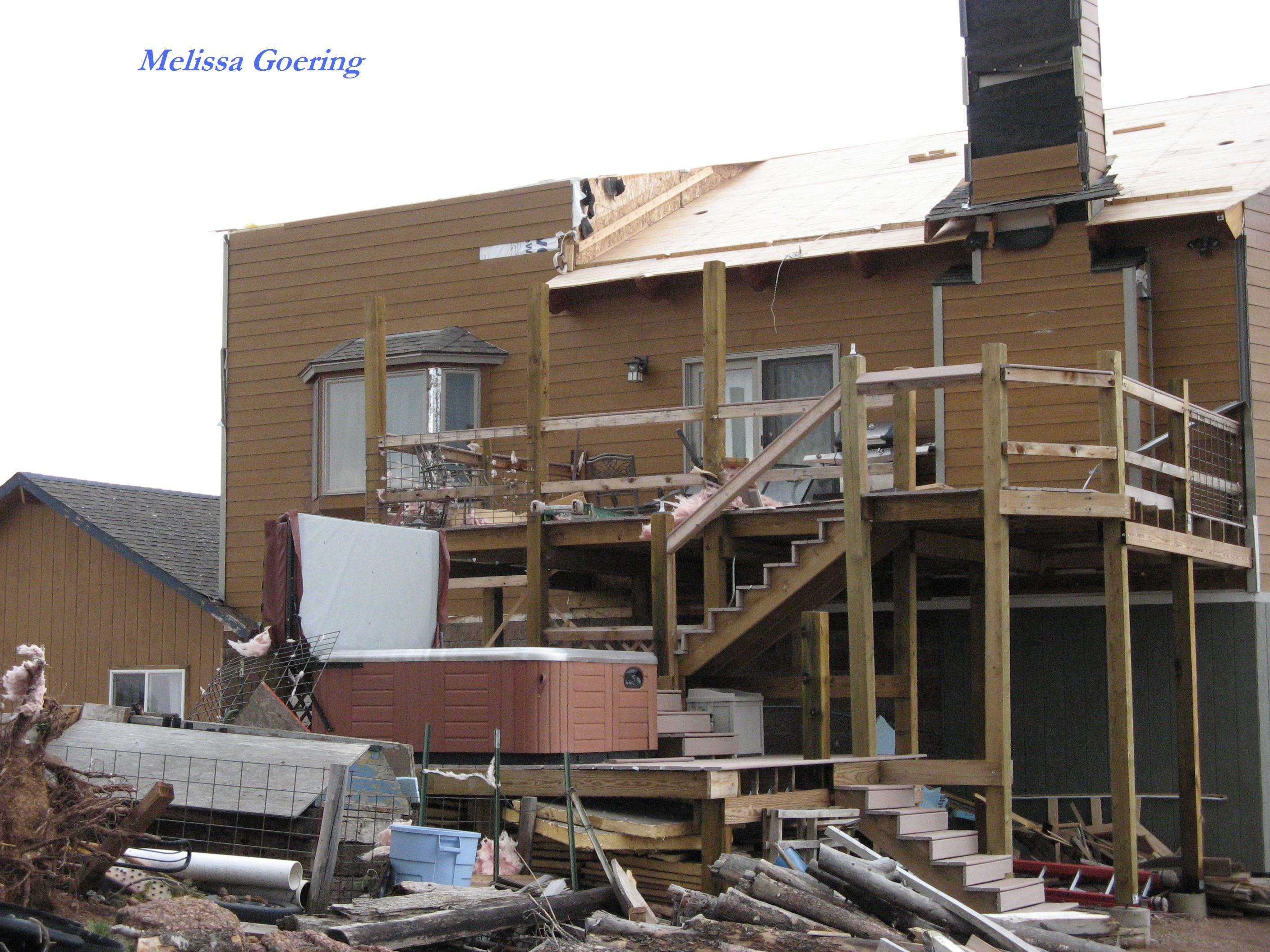

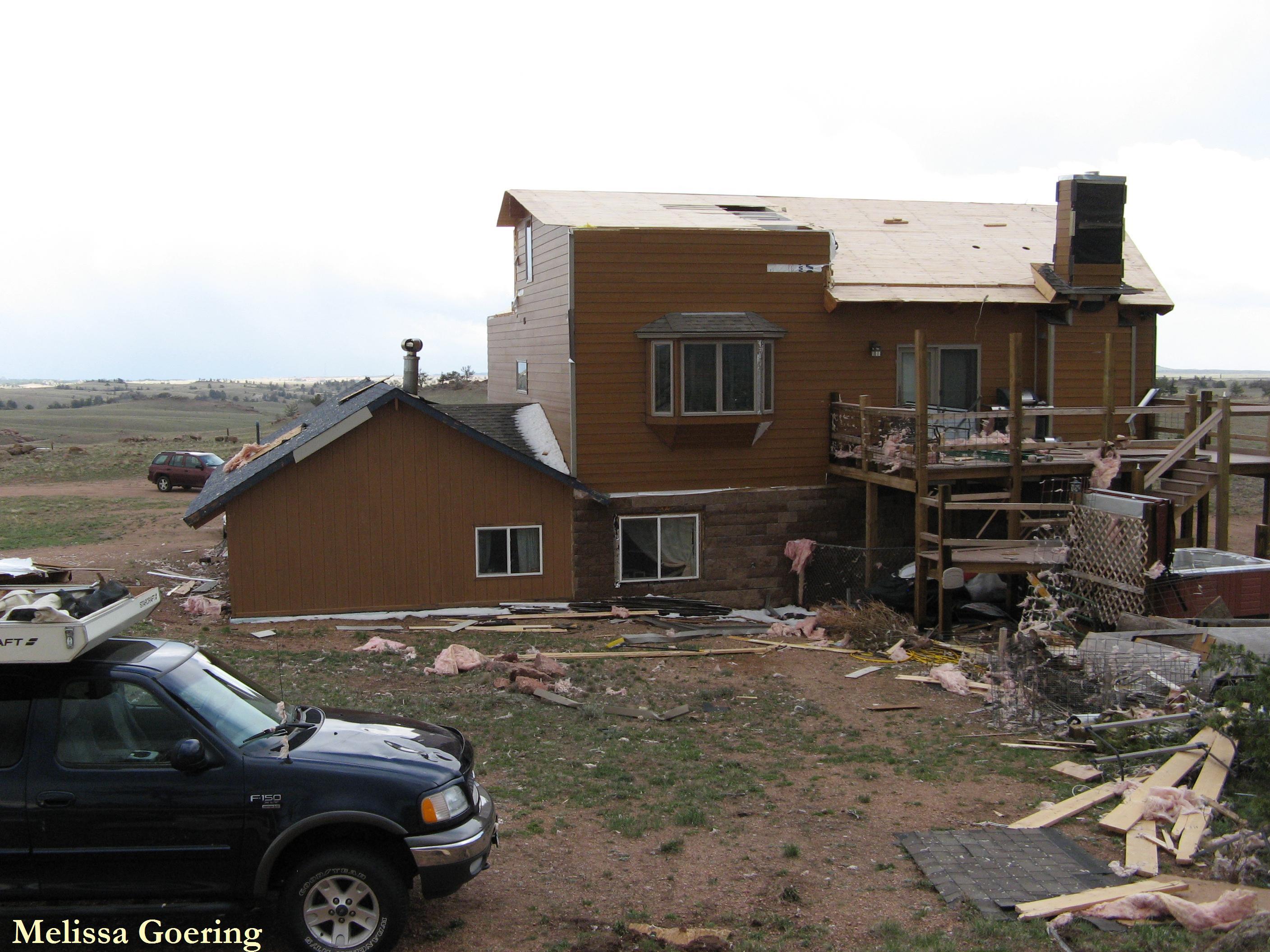

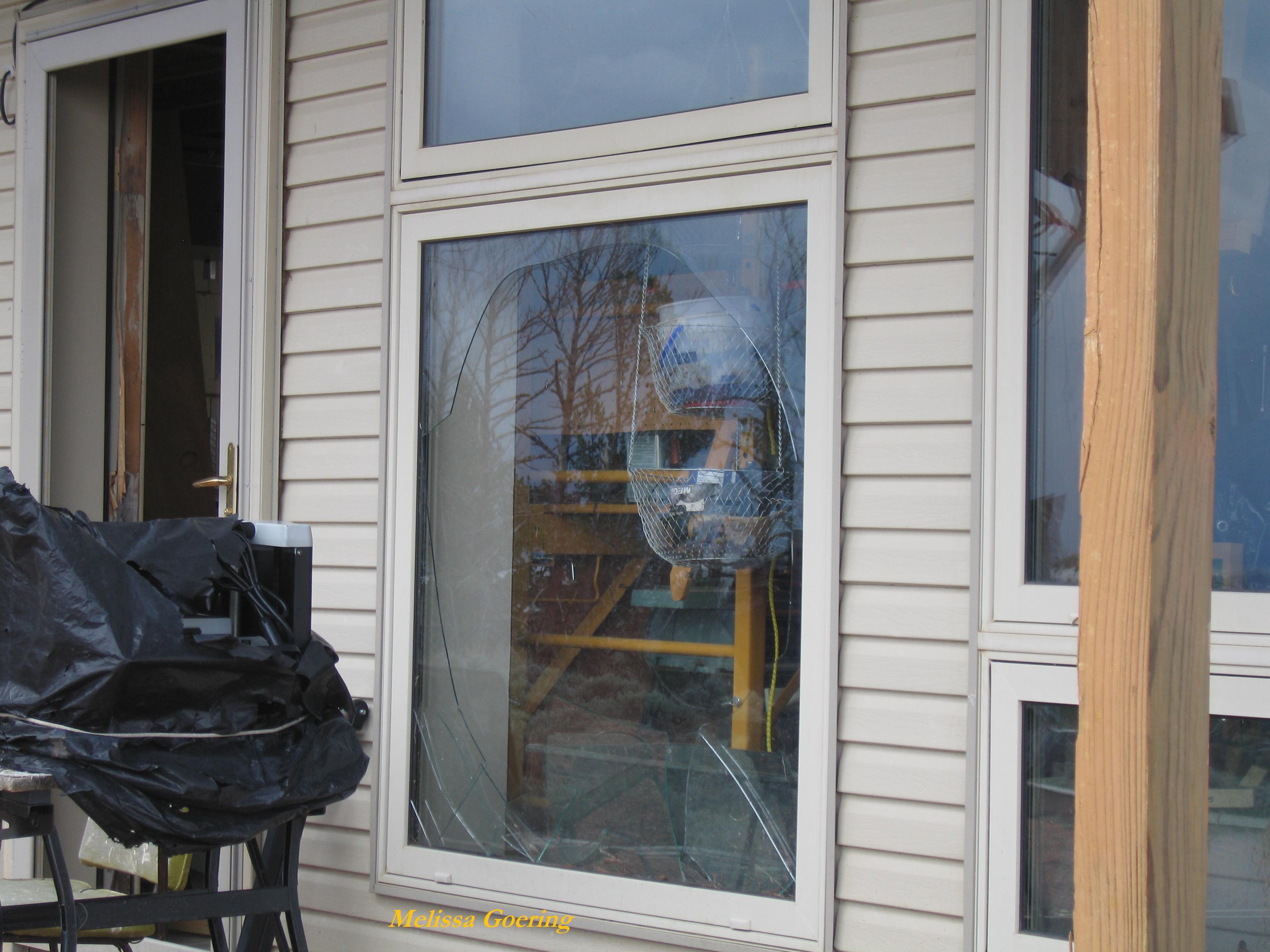

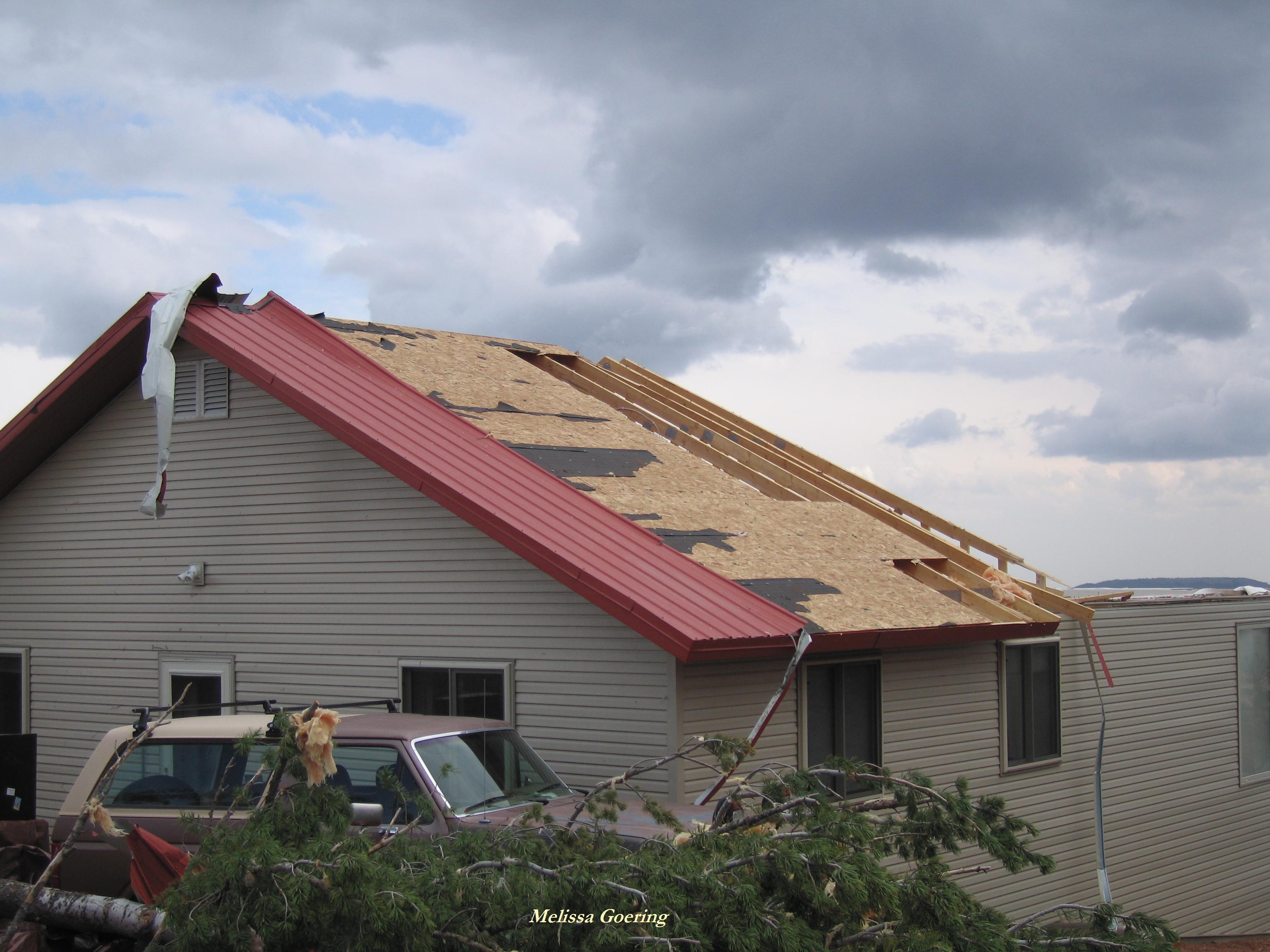

The tornado then hit the Paul
Hanselmann
house also on Ramshorn Rd. The front half of his roof was blown off,
with pieces of it found over 2 miles away. The back part of the roof
was heavily damaged. The Hanselmann
house was well constructed
with concrete-filed styrofoam and was reinforced with steel rebar anchored
to the foundation.

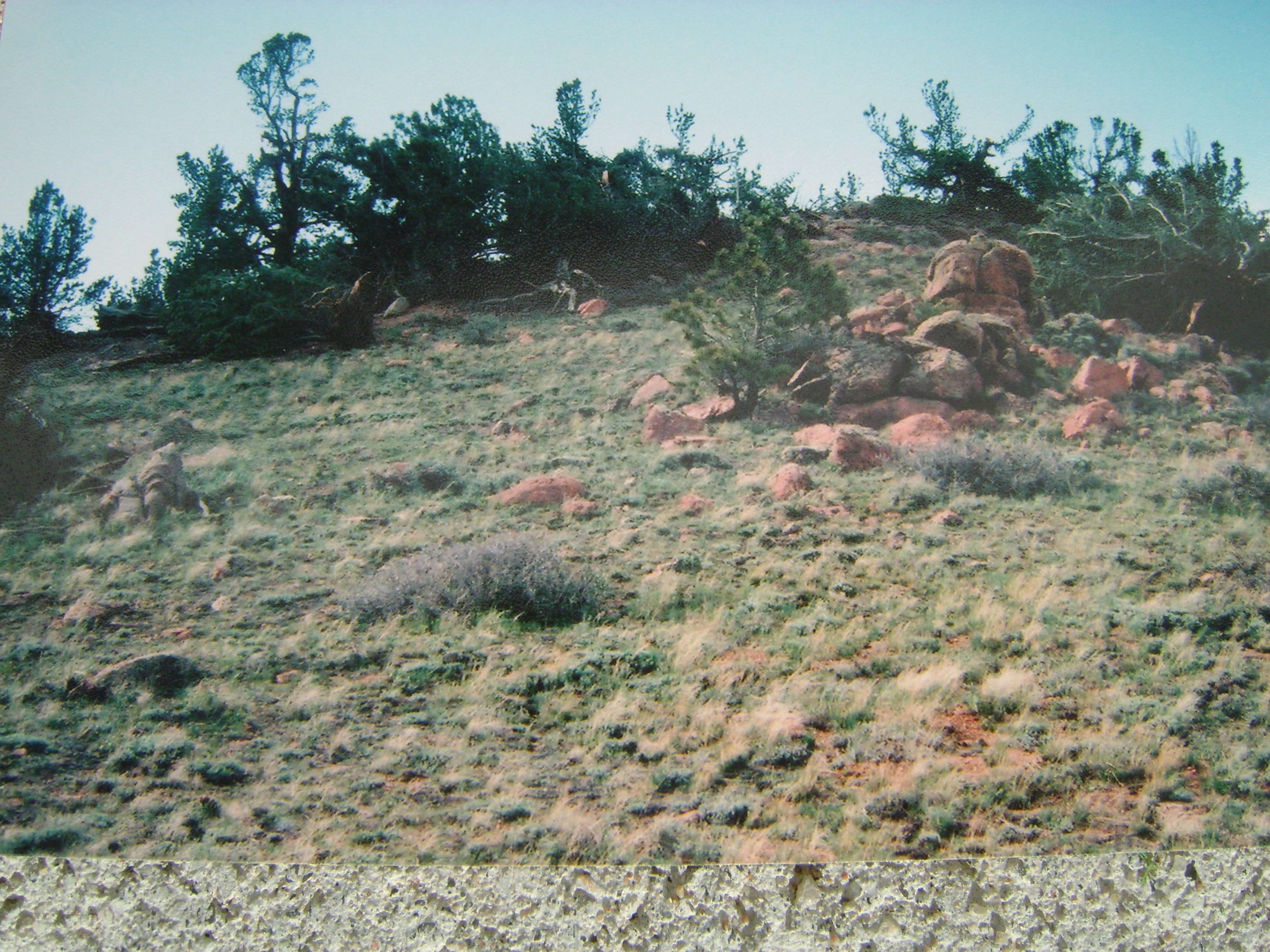

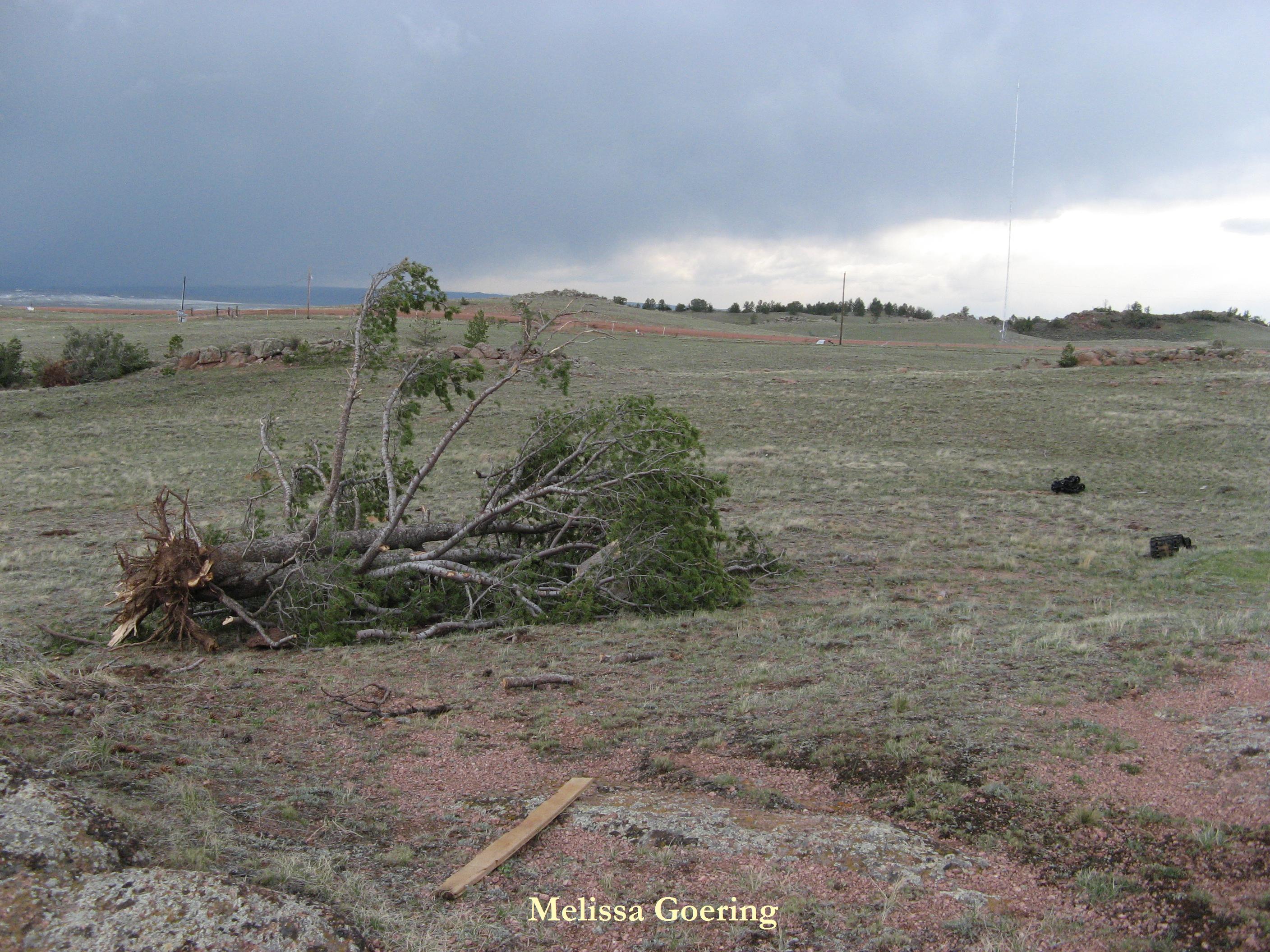

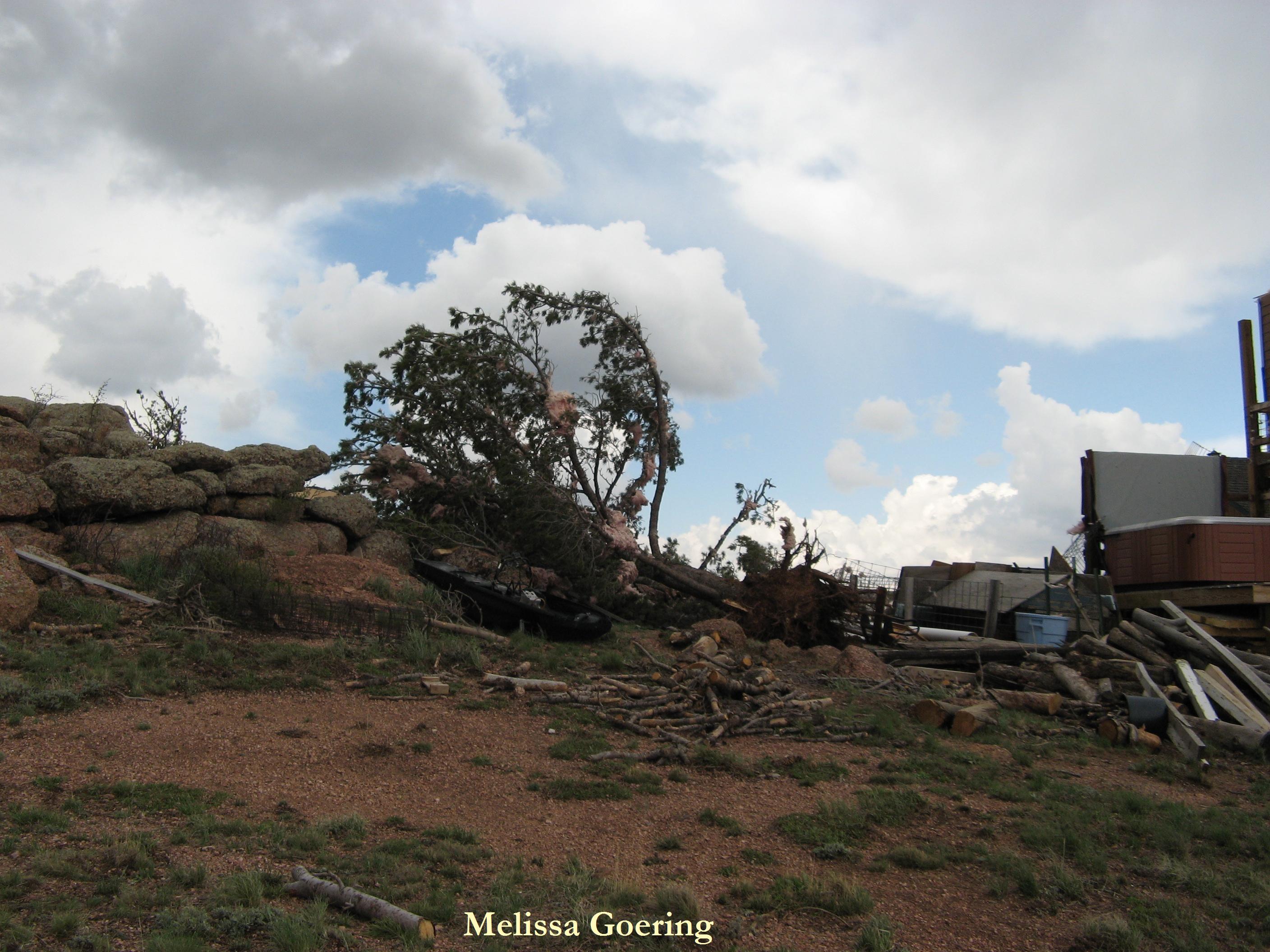

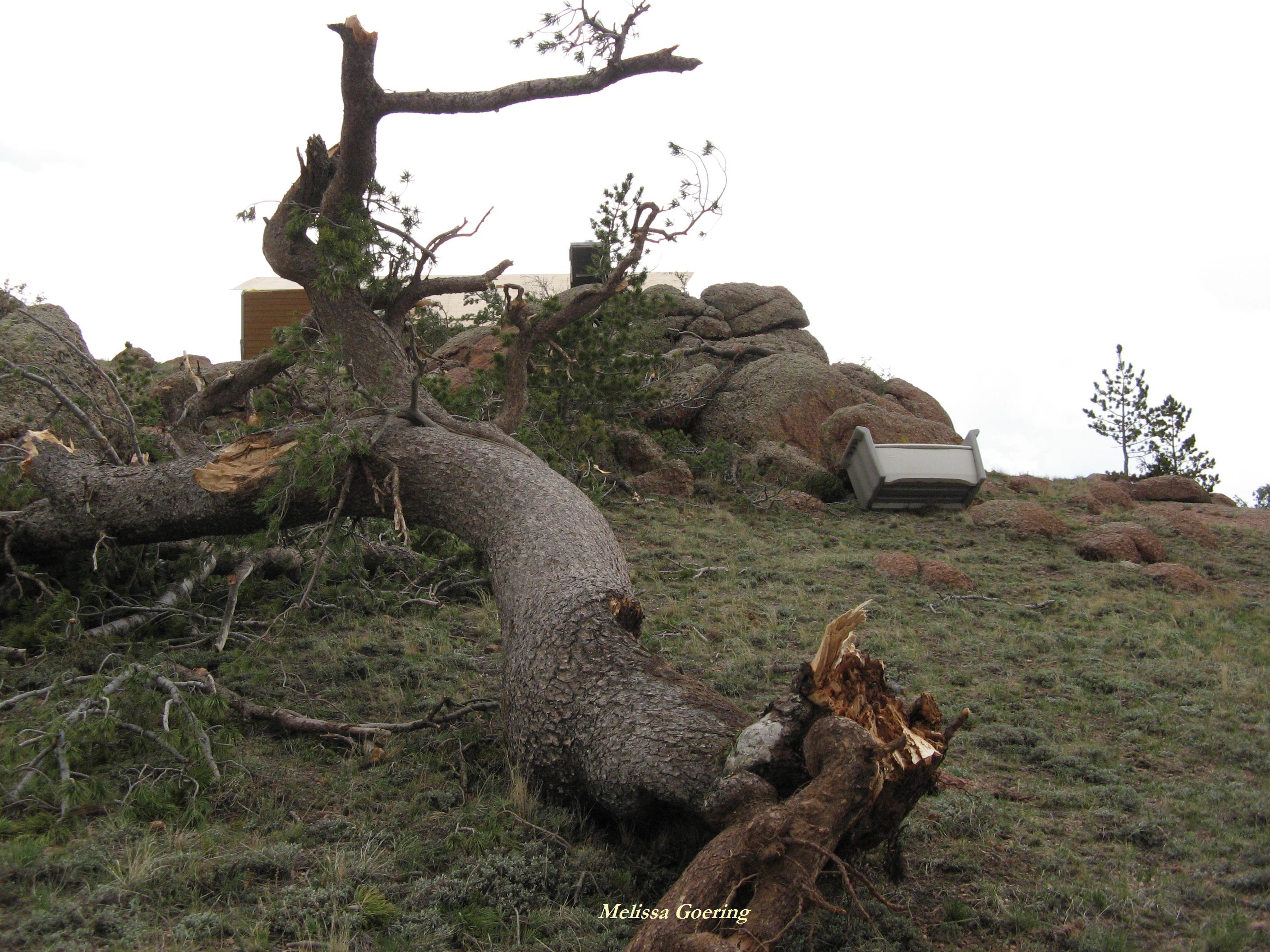

Trees were
downed near the
Hanselmann and Lewis residences. Here is a picture of
waferboard
from the Hanselmann house pushed through tree limbs. All these pictures
that were taken near the Hanselmann residence were taken by Melissa
Goering of the National Weather Service in Cheyenne. Shown below are additional pictures taken by Melissa Goering.

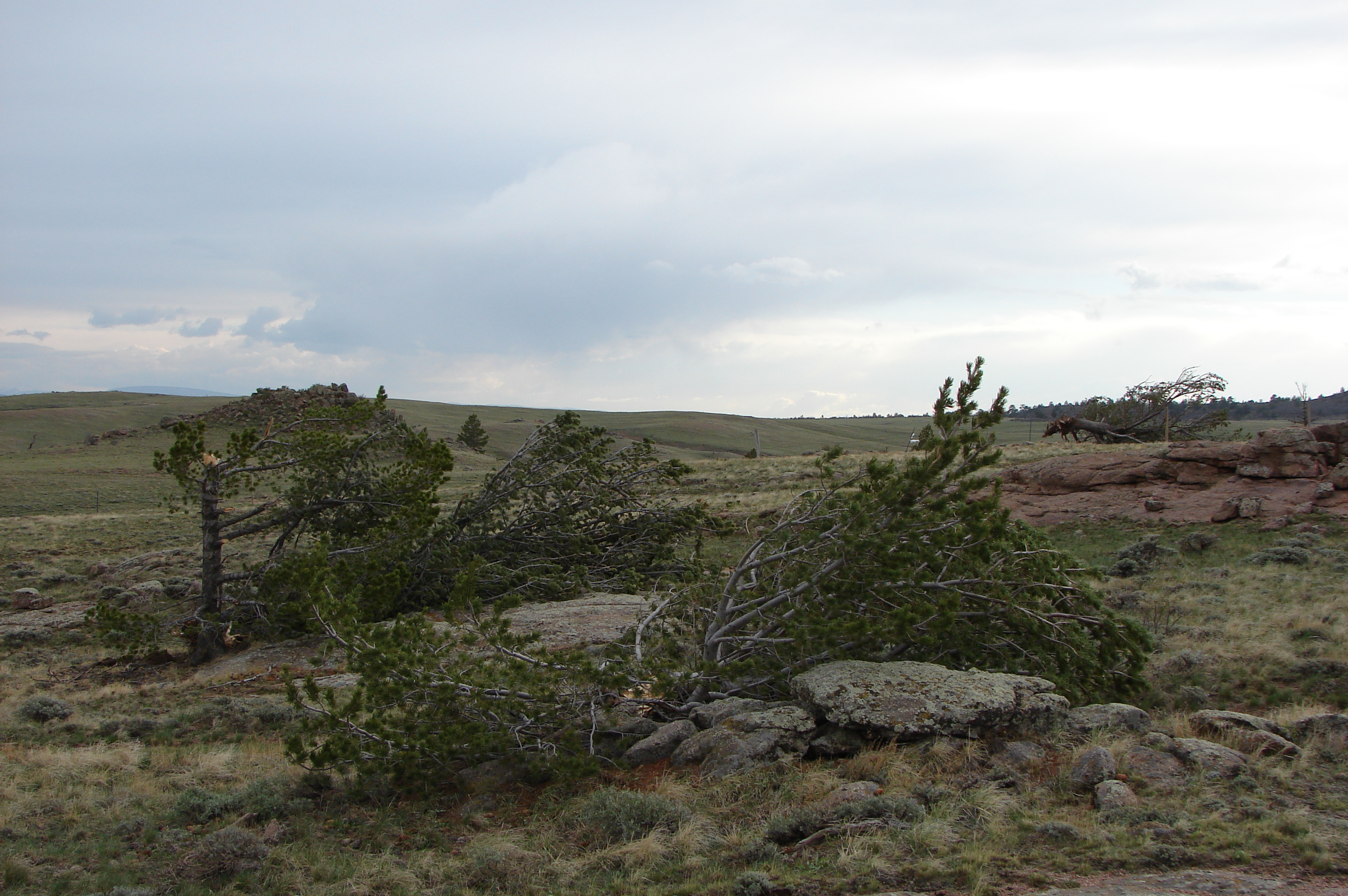

trees1 trees2 trees3 trees4 trees5 trees6 trees7 trees8 trees9 trees10
house1 house2
misc1 misc2 misc3
Ted Lewis took these pictures of the Hanselmann house.

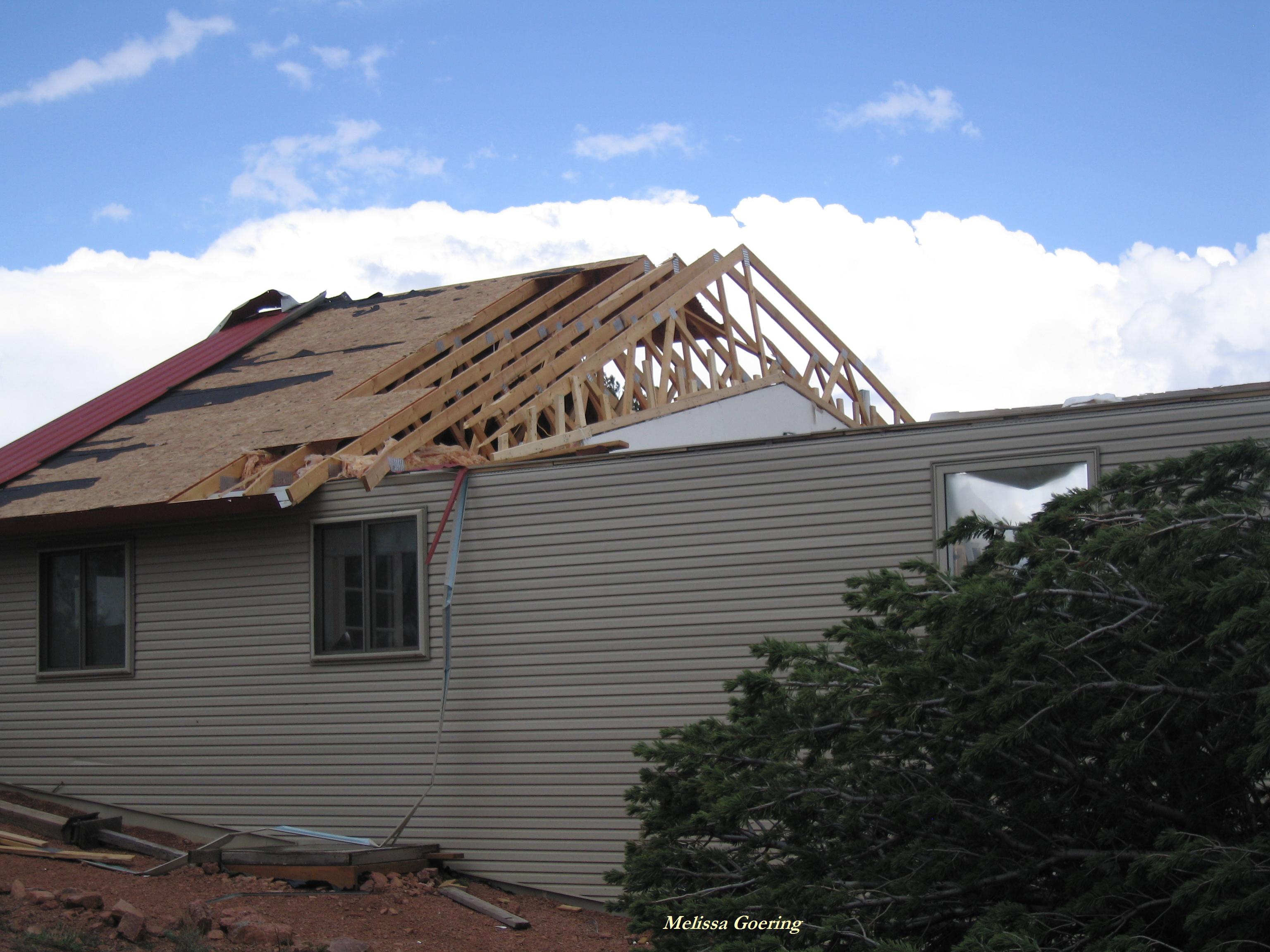

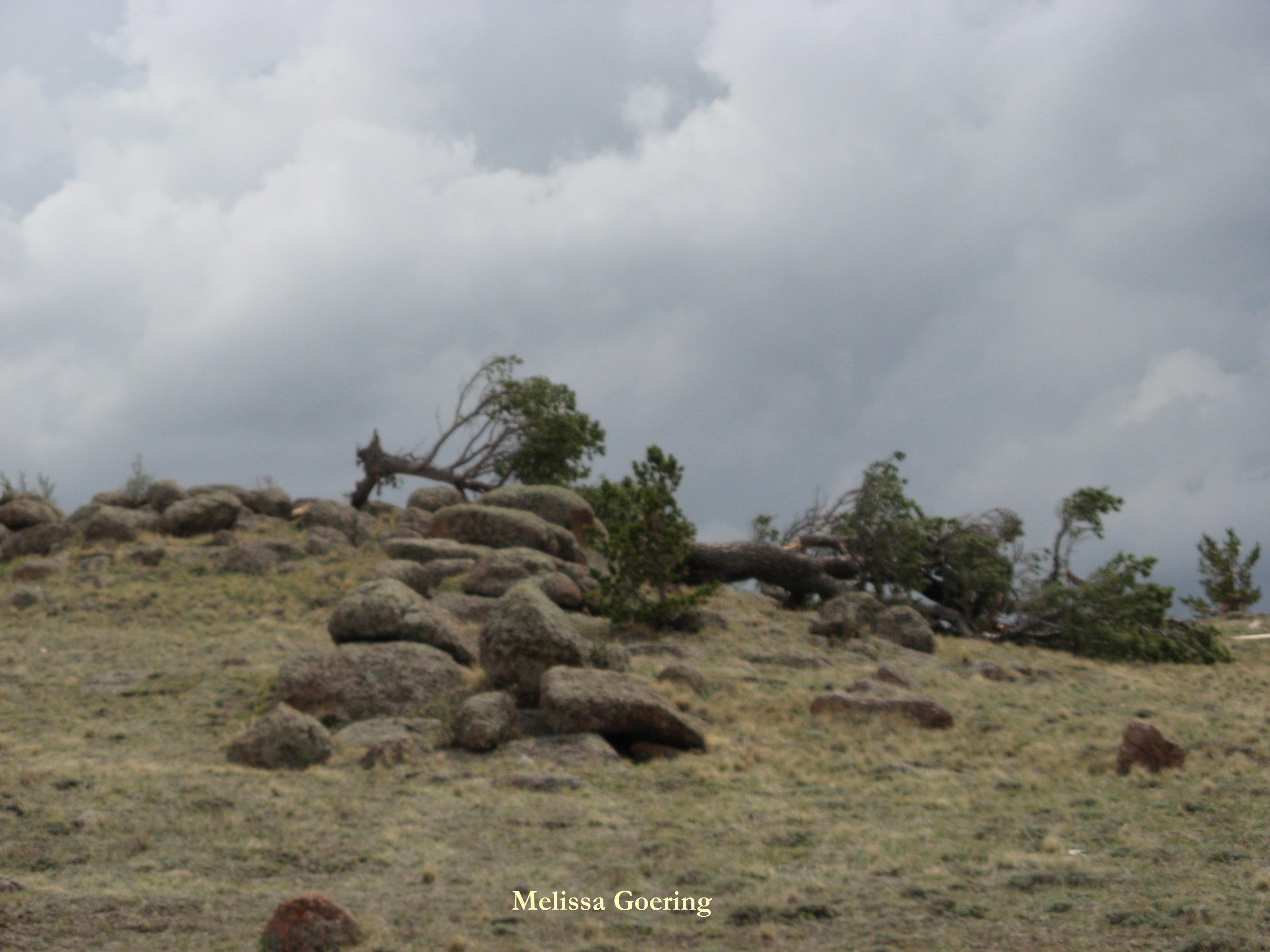

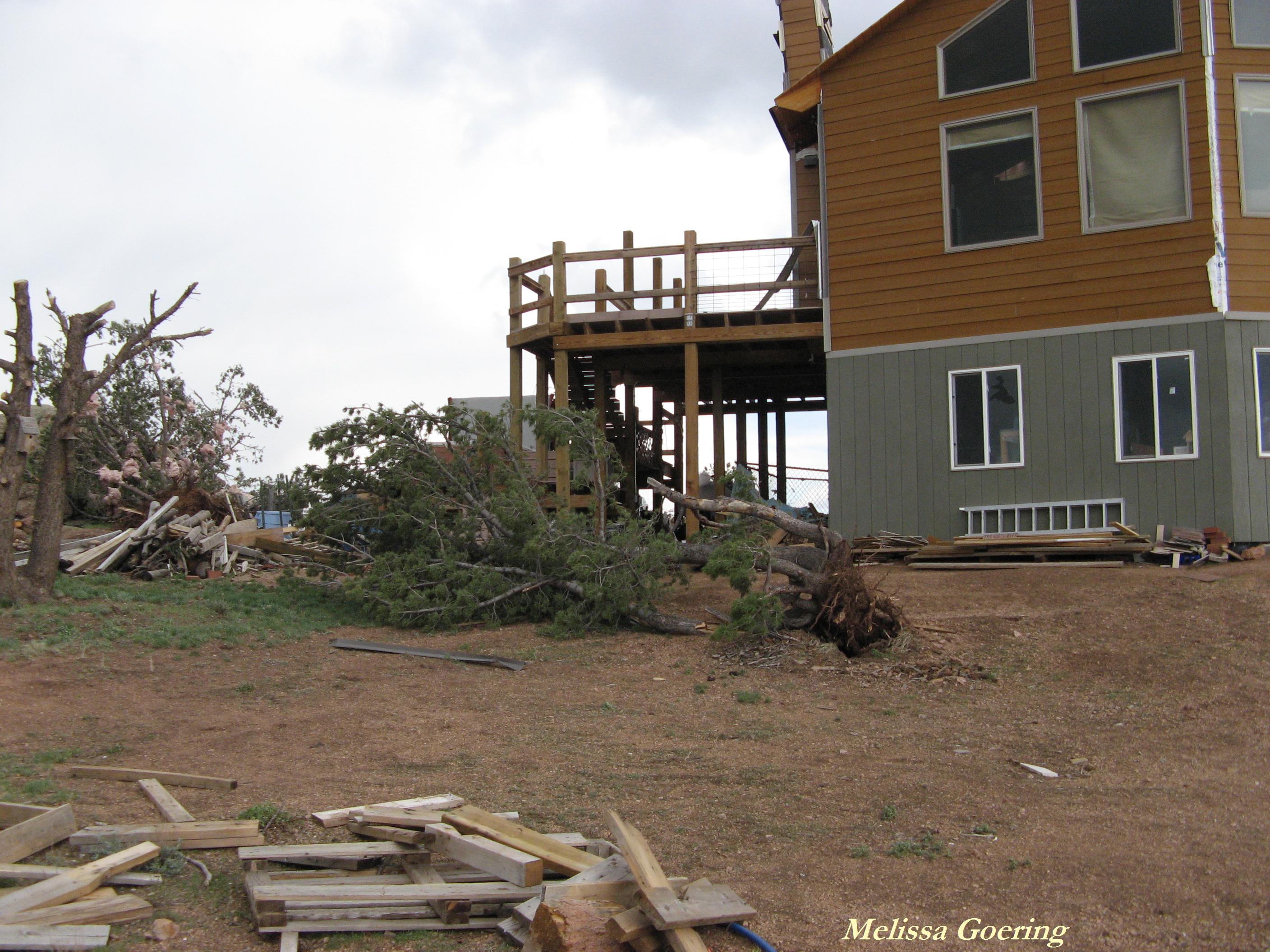

After leaving the Hanselmann house,
the periphery of the tornado hit the Maher residence around 1911
or 1912 UTC and the

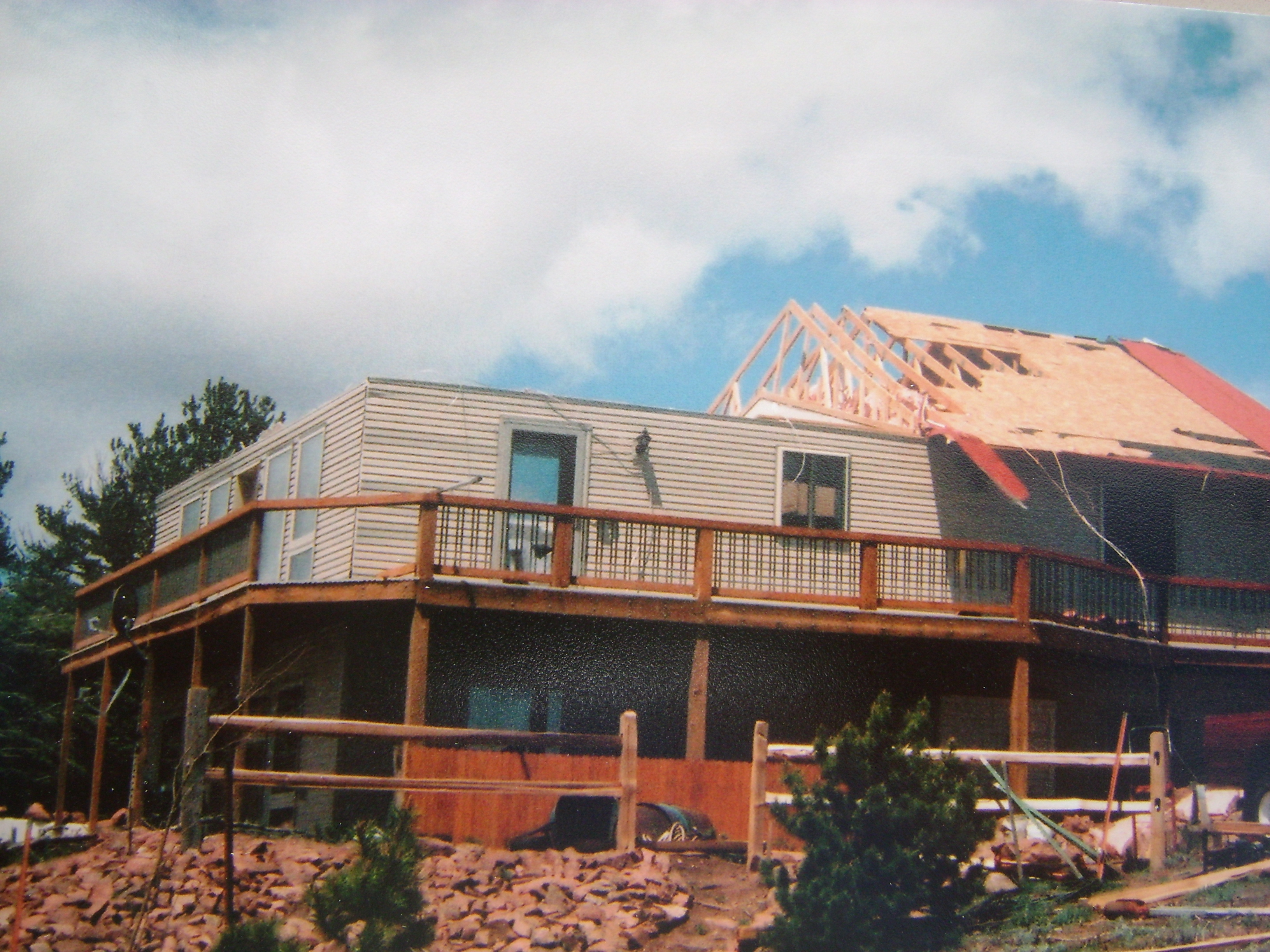

roof
had to be replaced. The pictures shown below were taken by the National
Weather Service in Cheyenne. This residence is 1/2 mile north or
northwest of the Hanselmann house.
house1 house2 house3 house4 house5 house6 house7
trees1 trees2 trees3 trees4 trees5 trees6 trees7 trees8 trees9 trees10 trees11 trees12 trees13 trees14
trees15 trees16
misc1 misc2 misc3

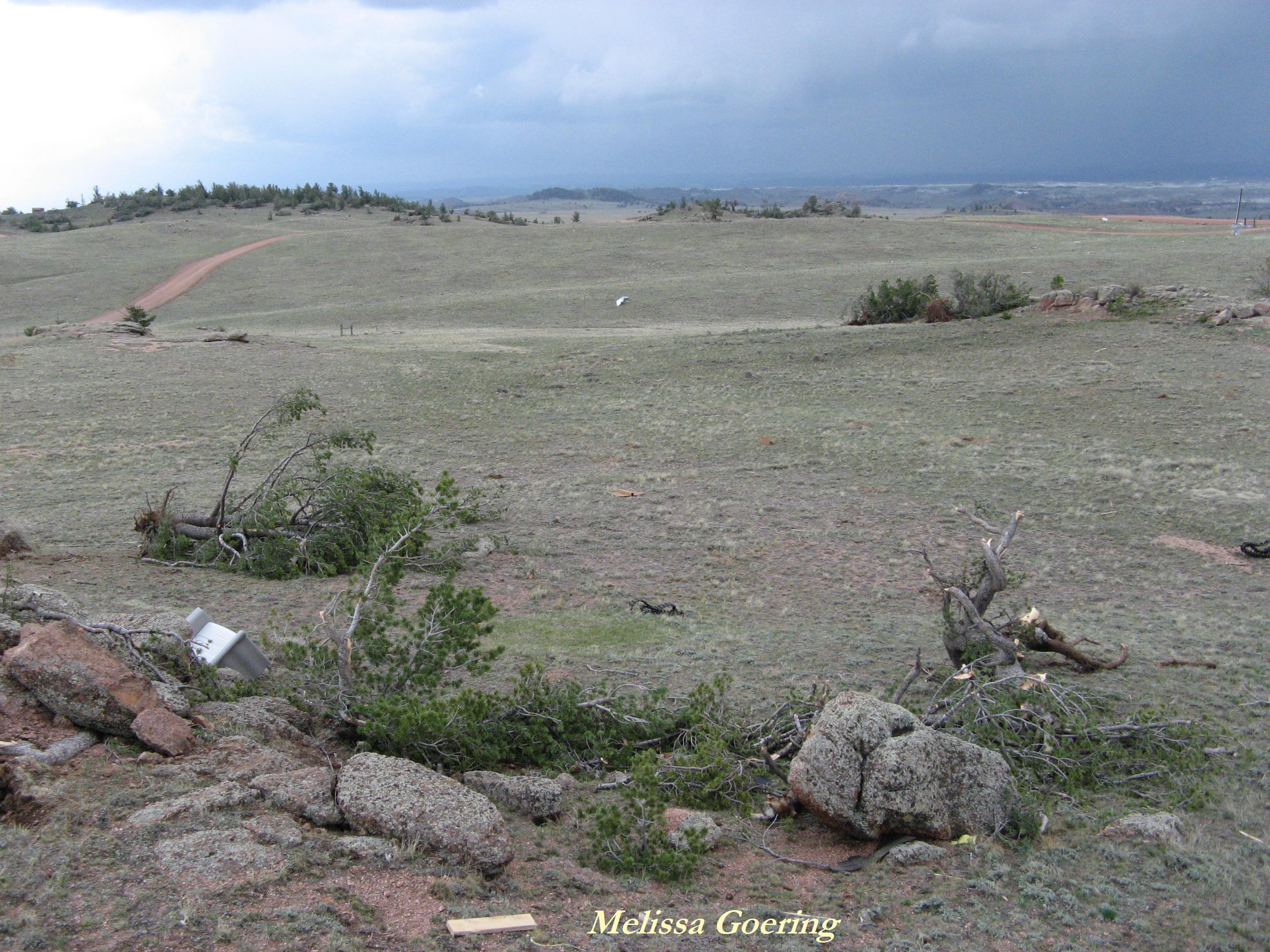

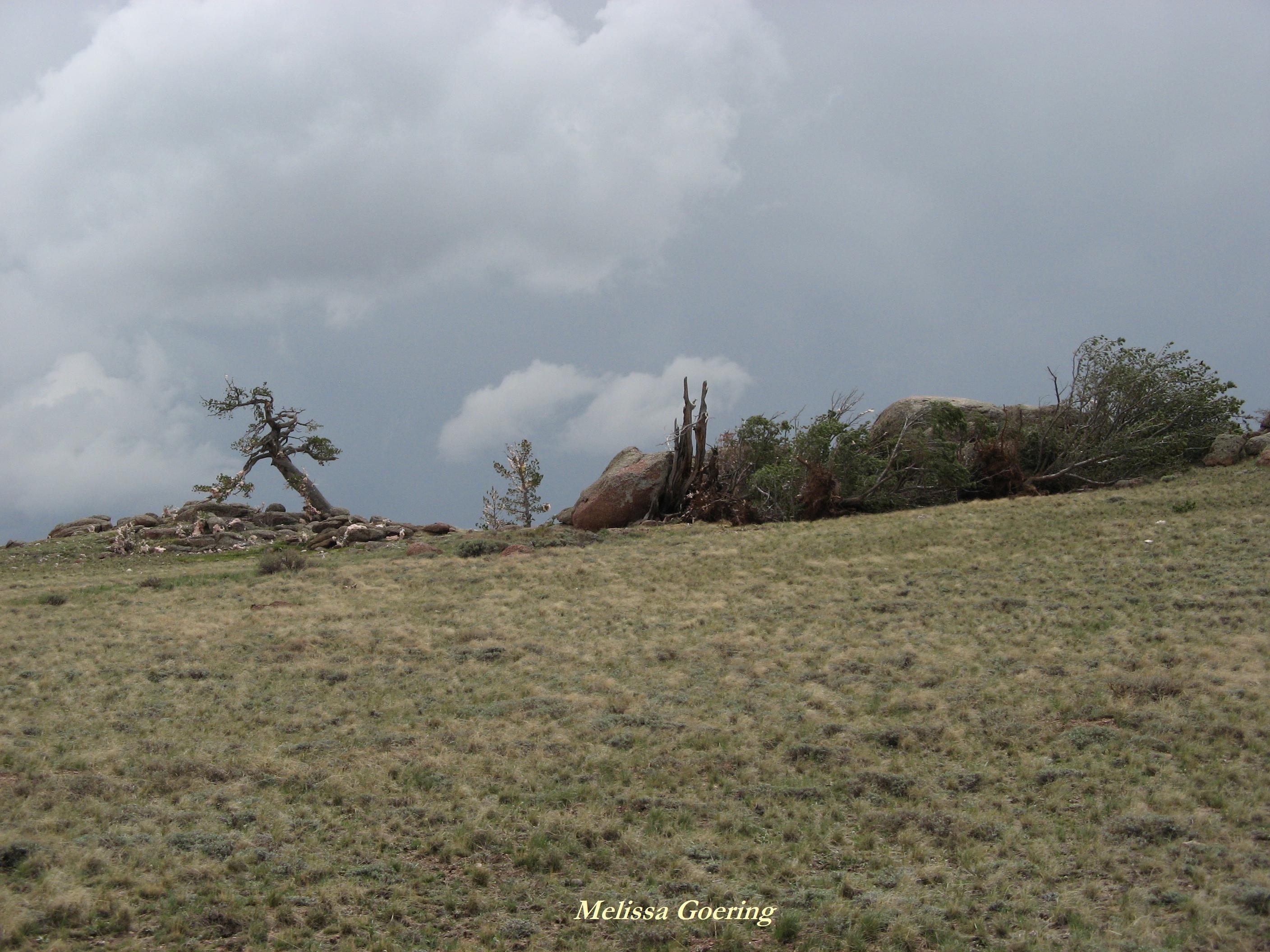

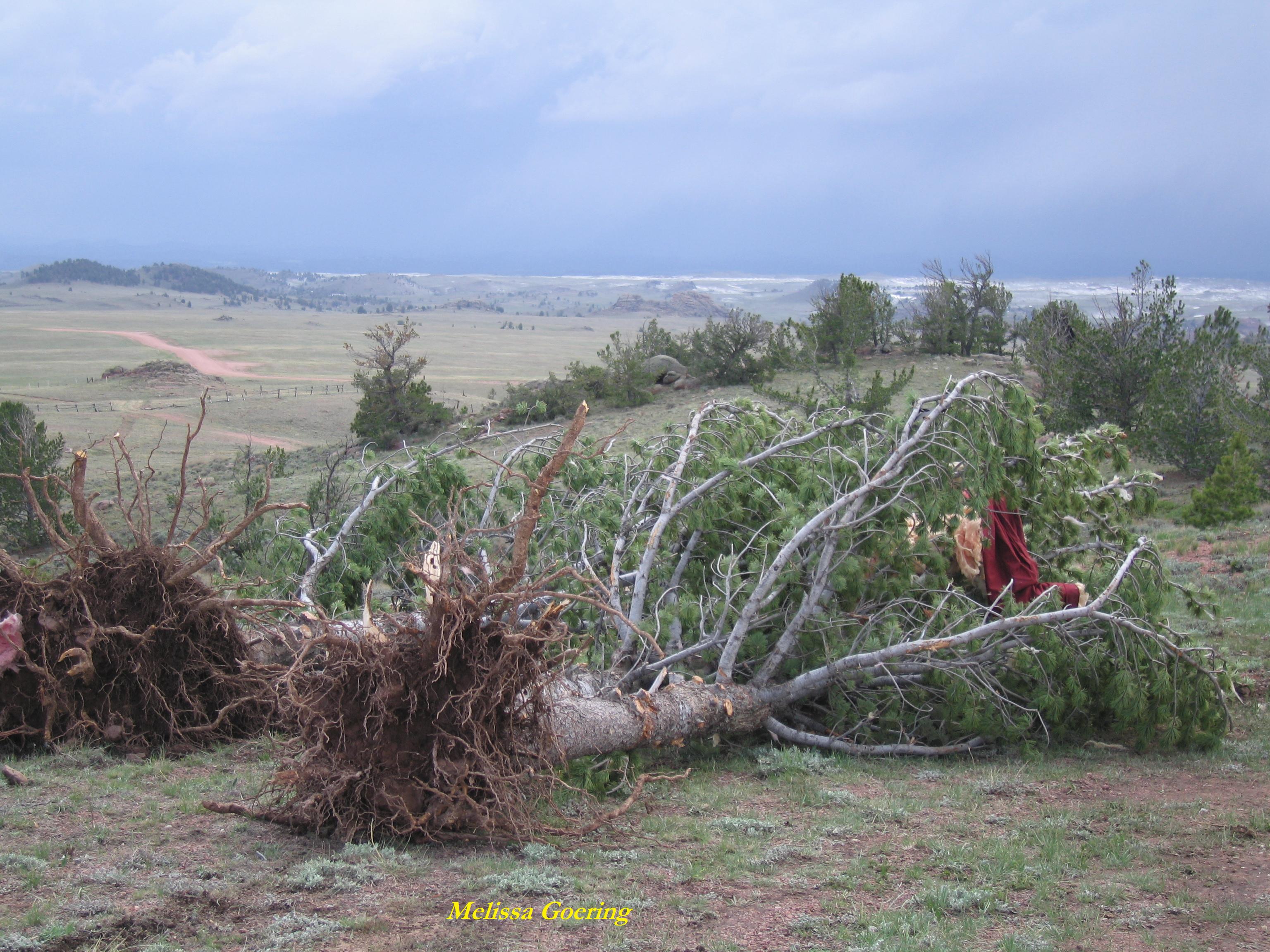

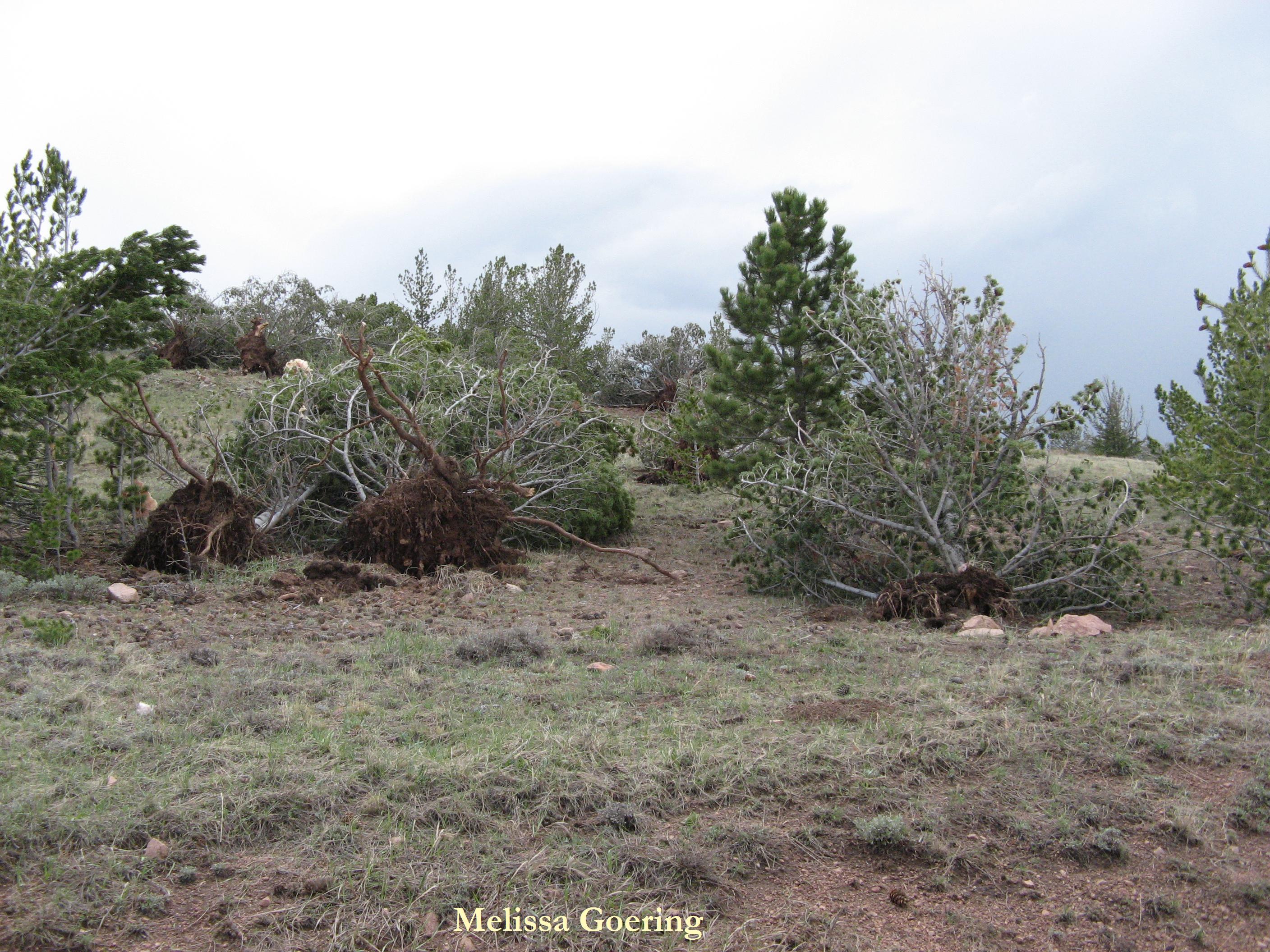

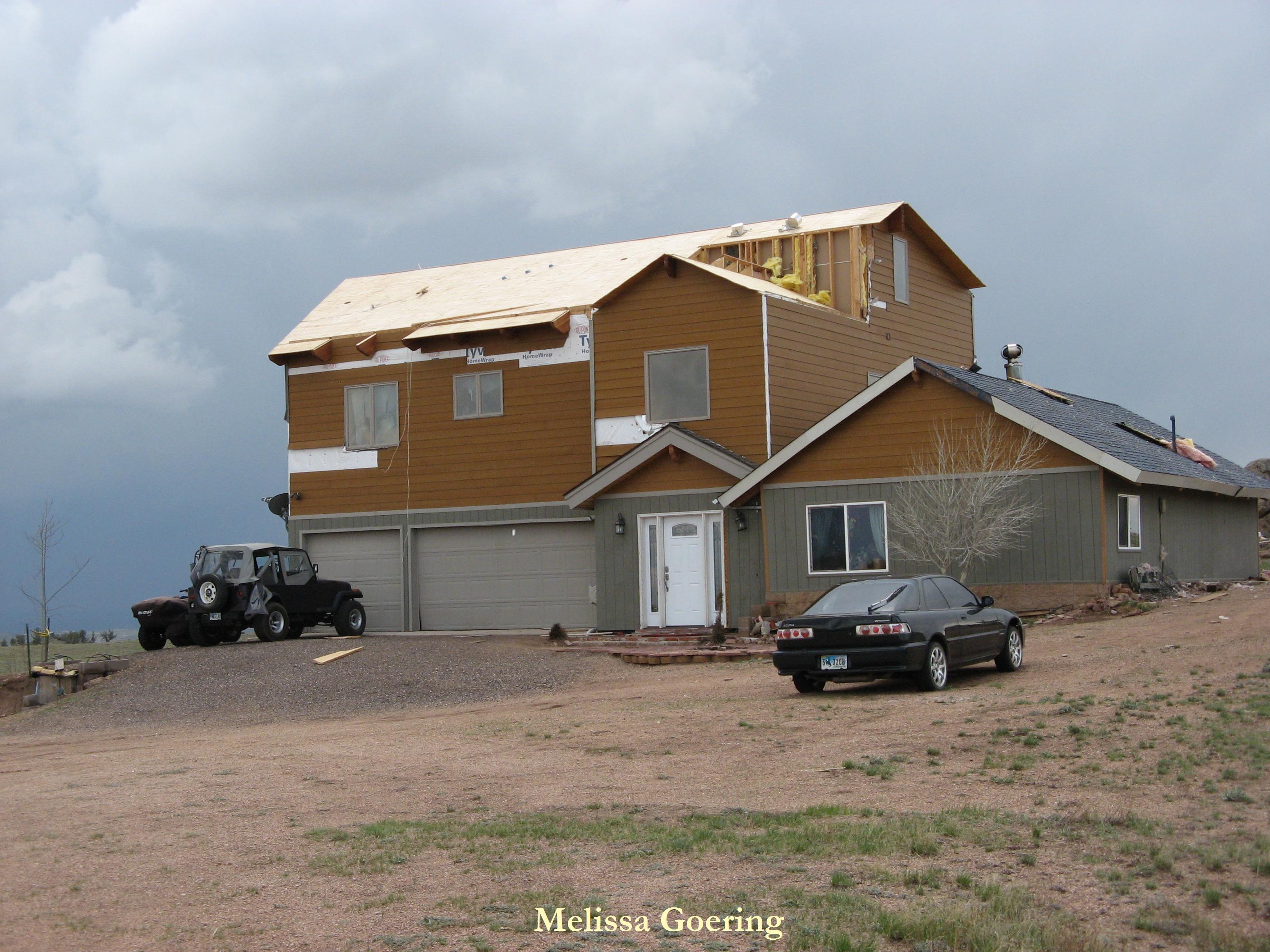

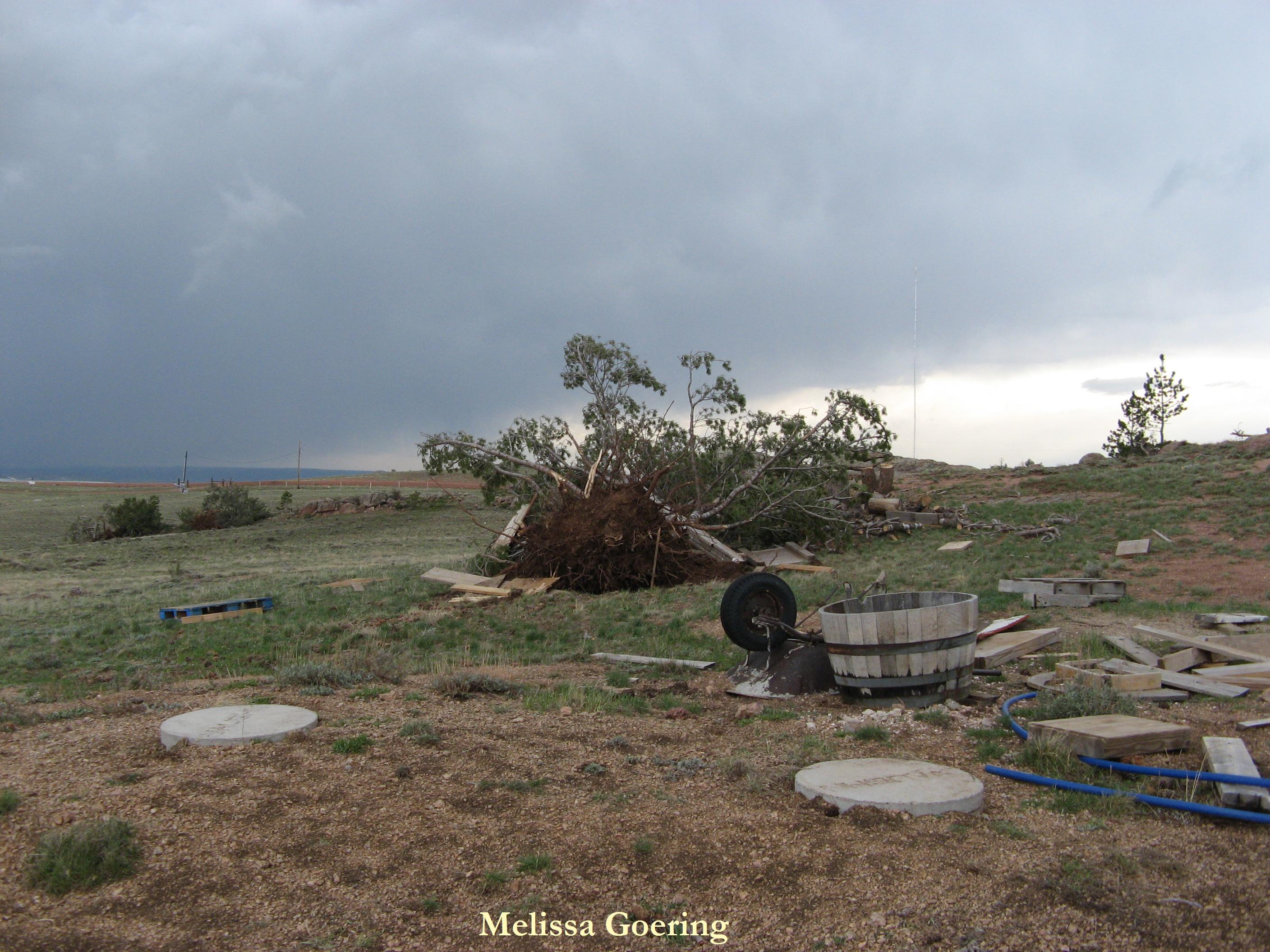

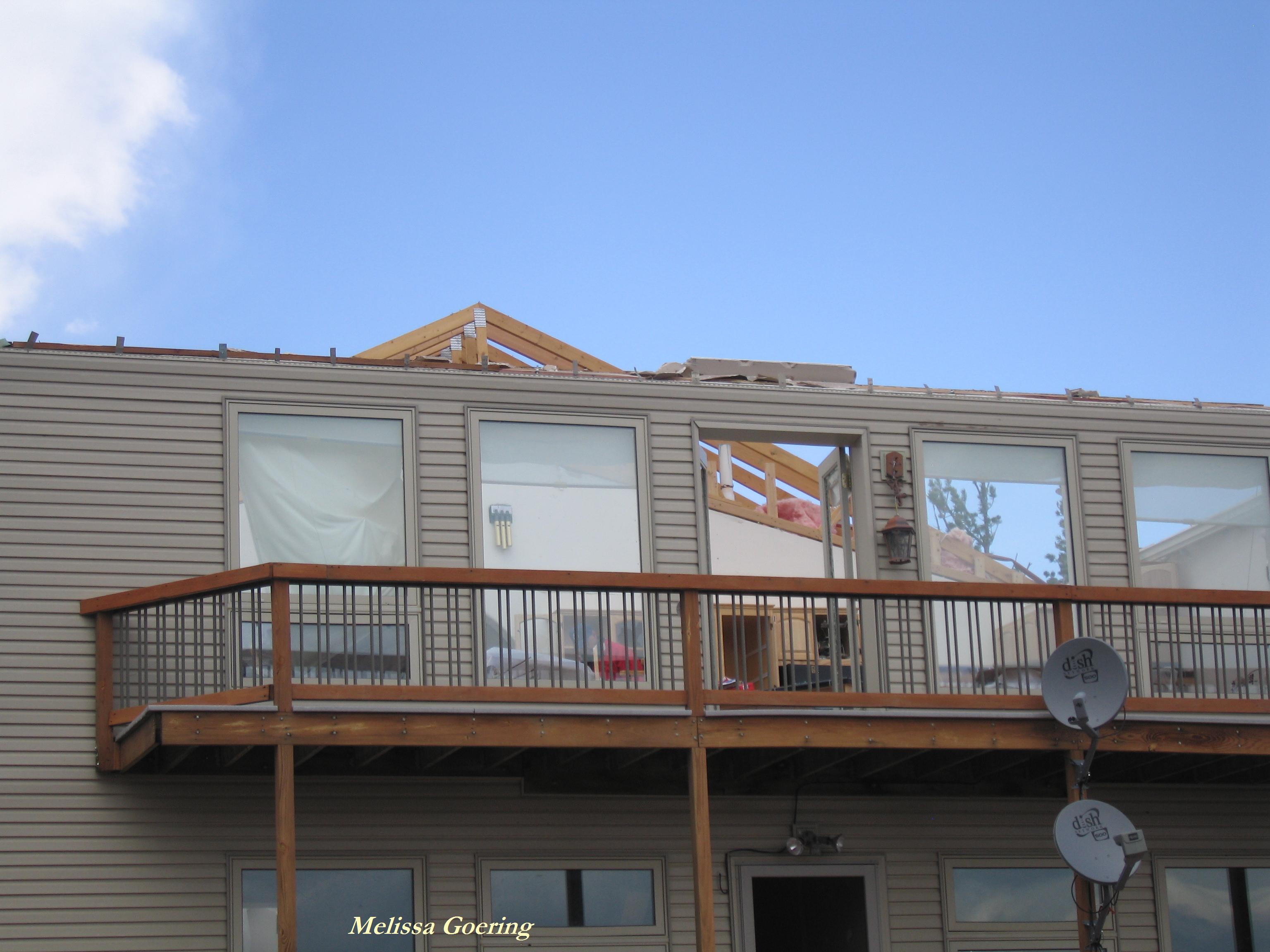

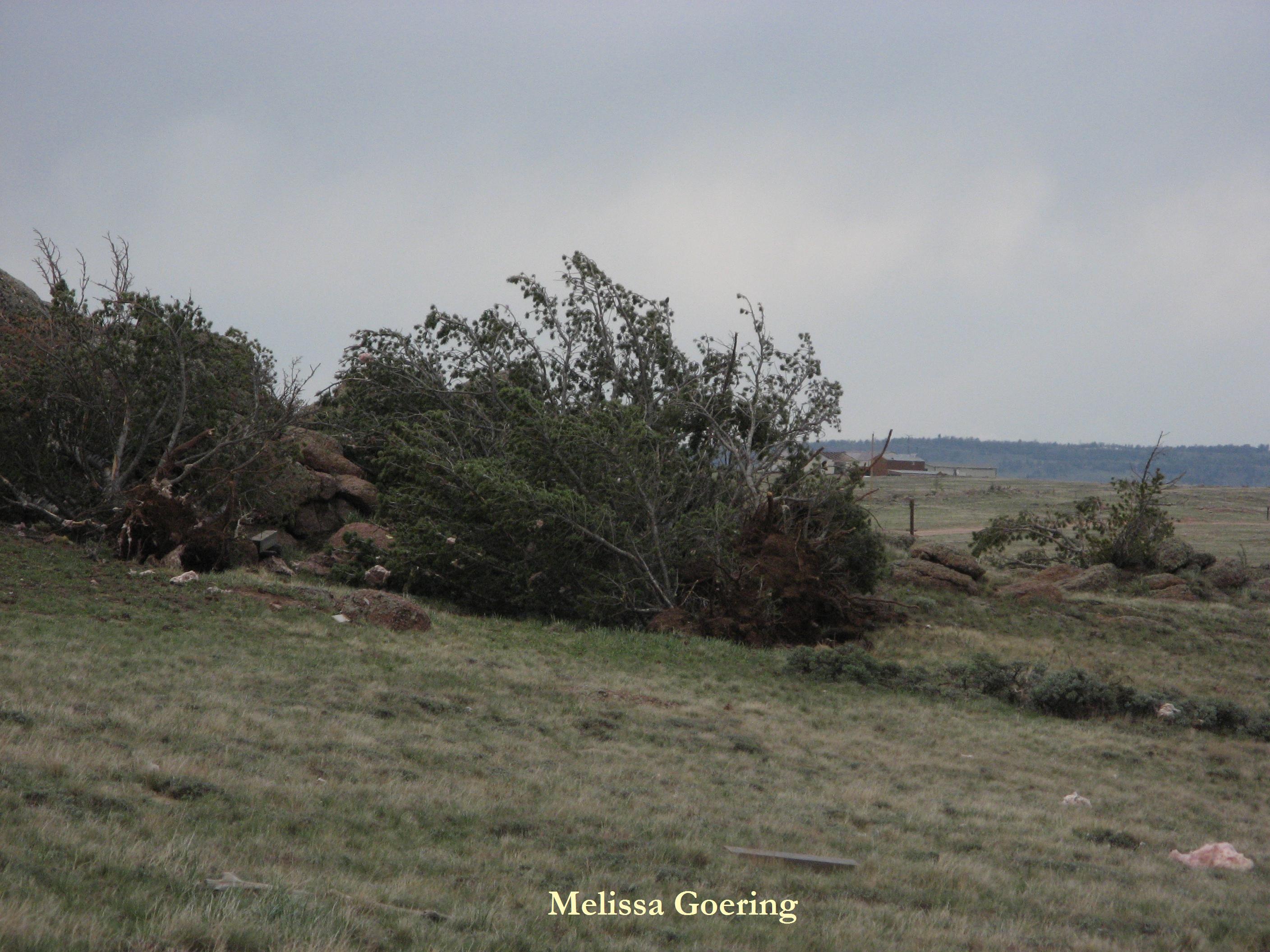

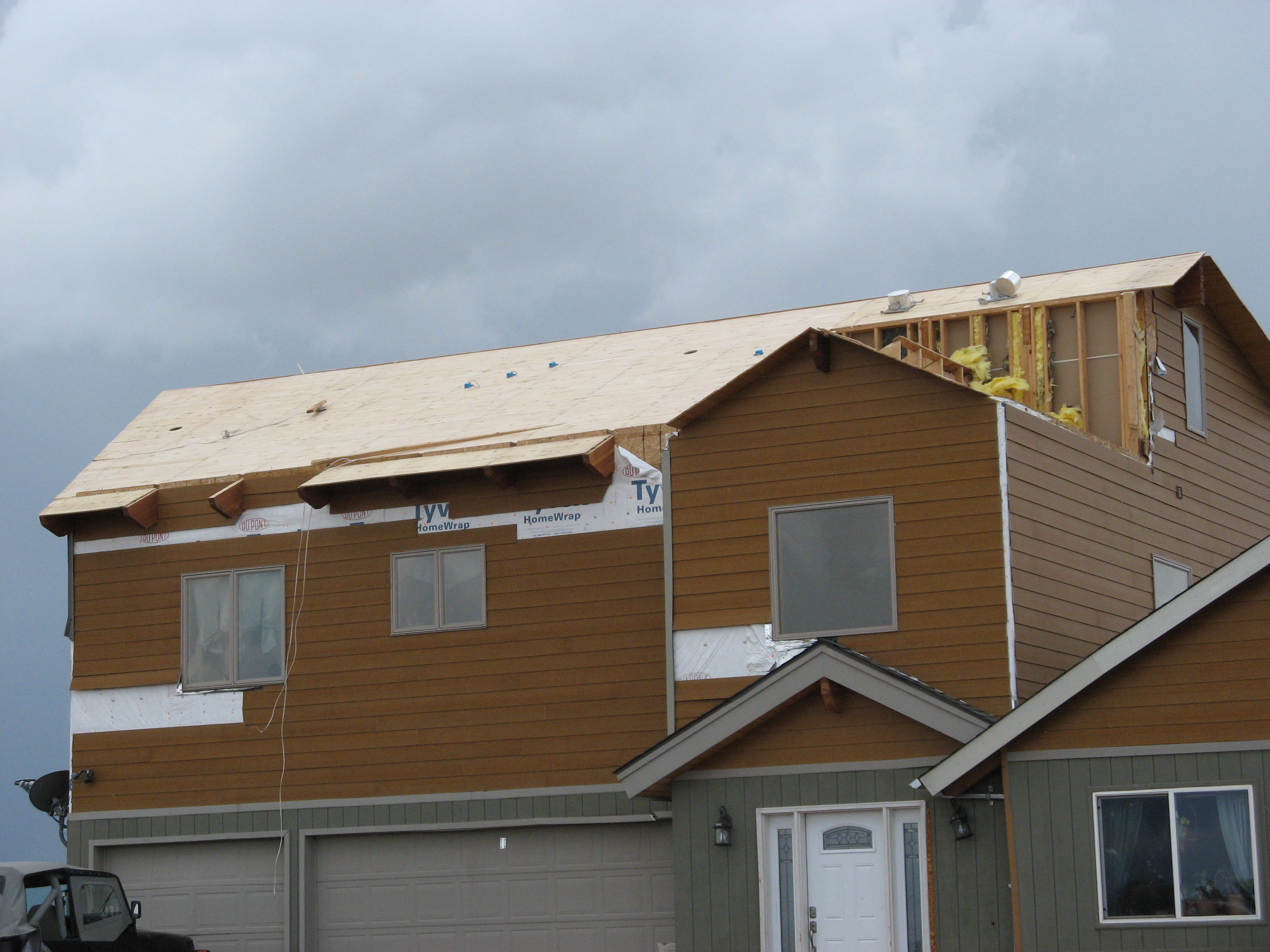

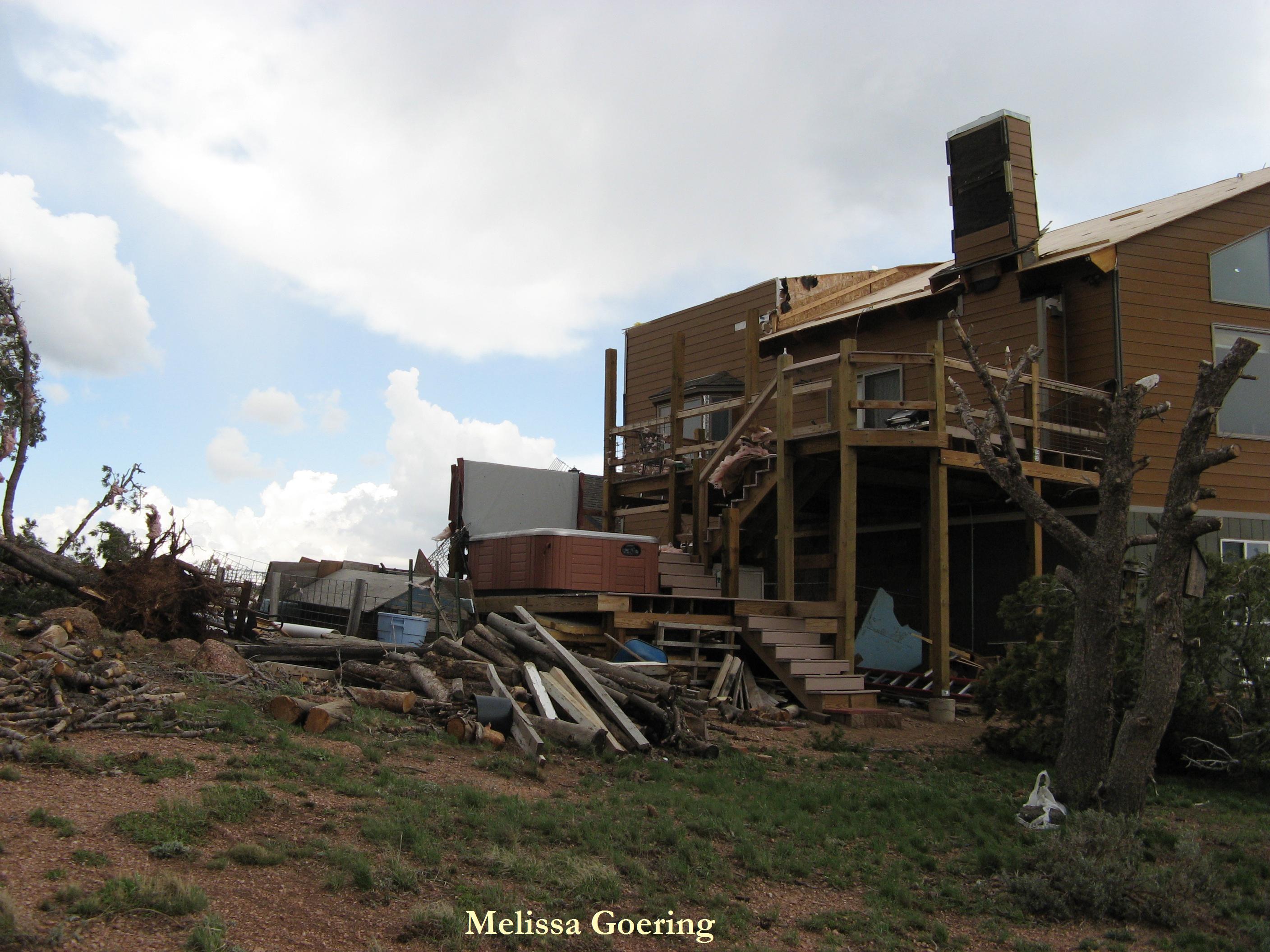

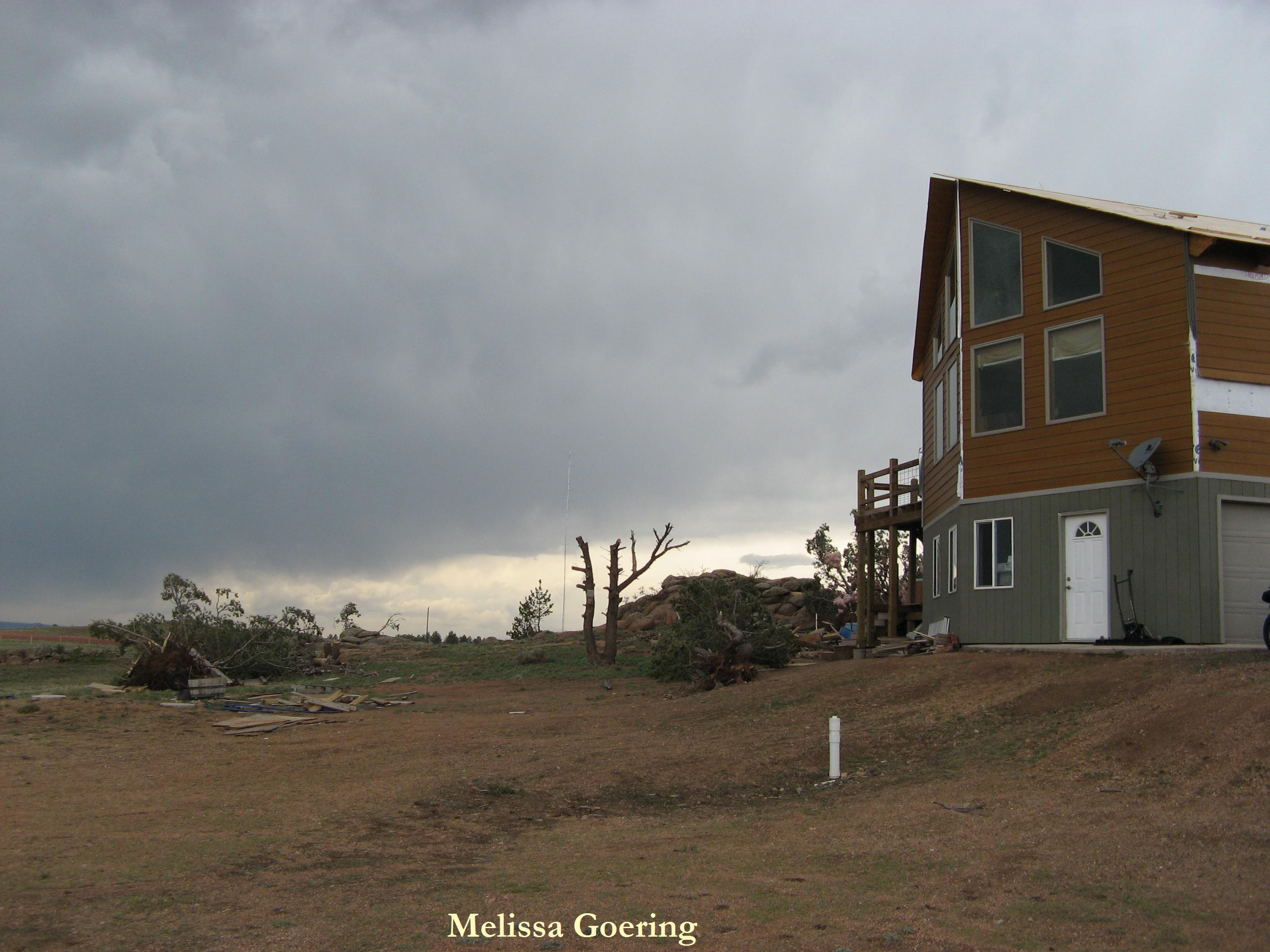

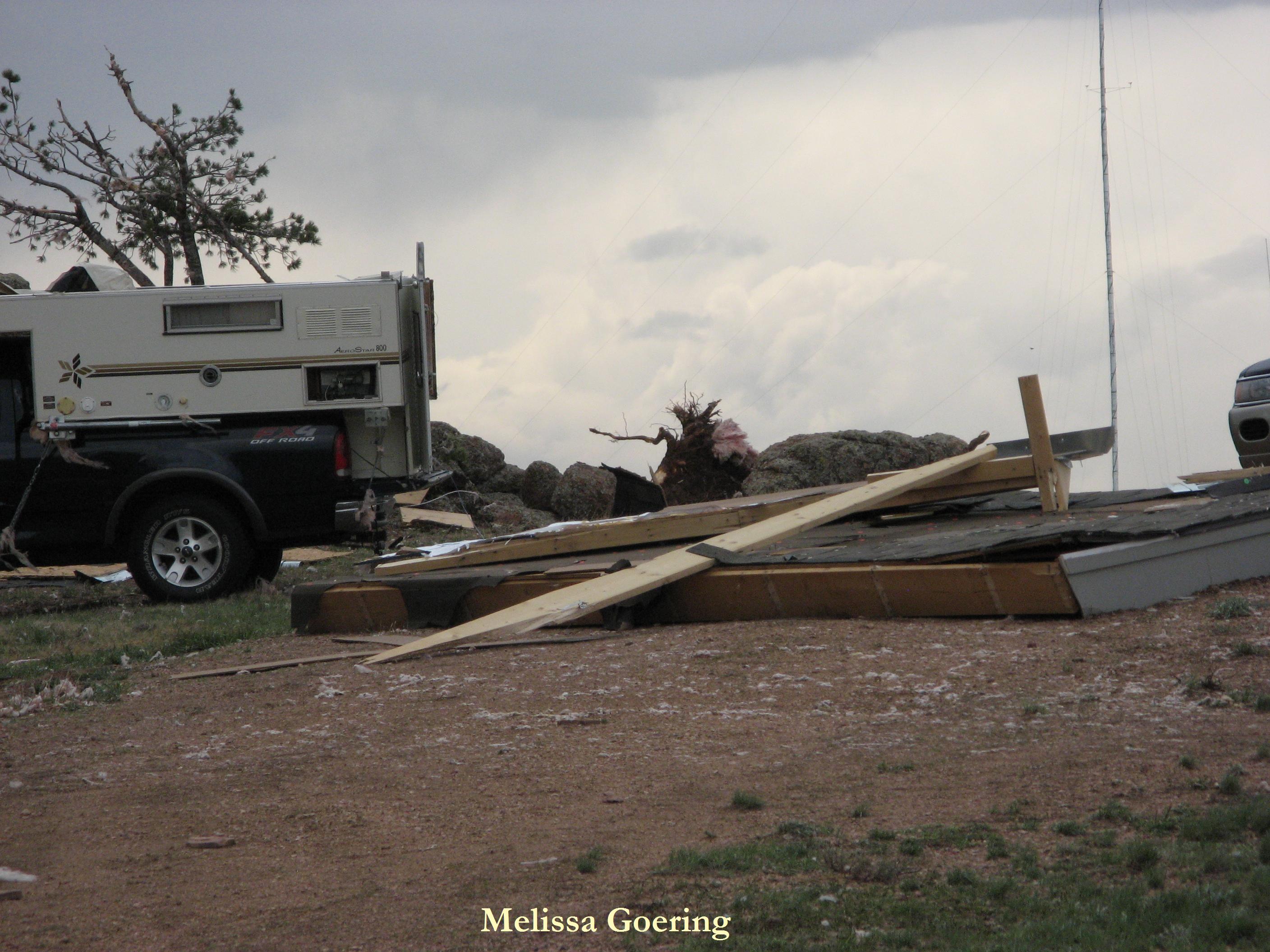

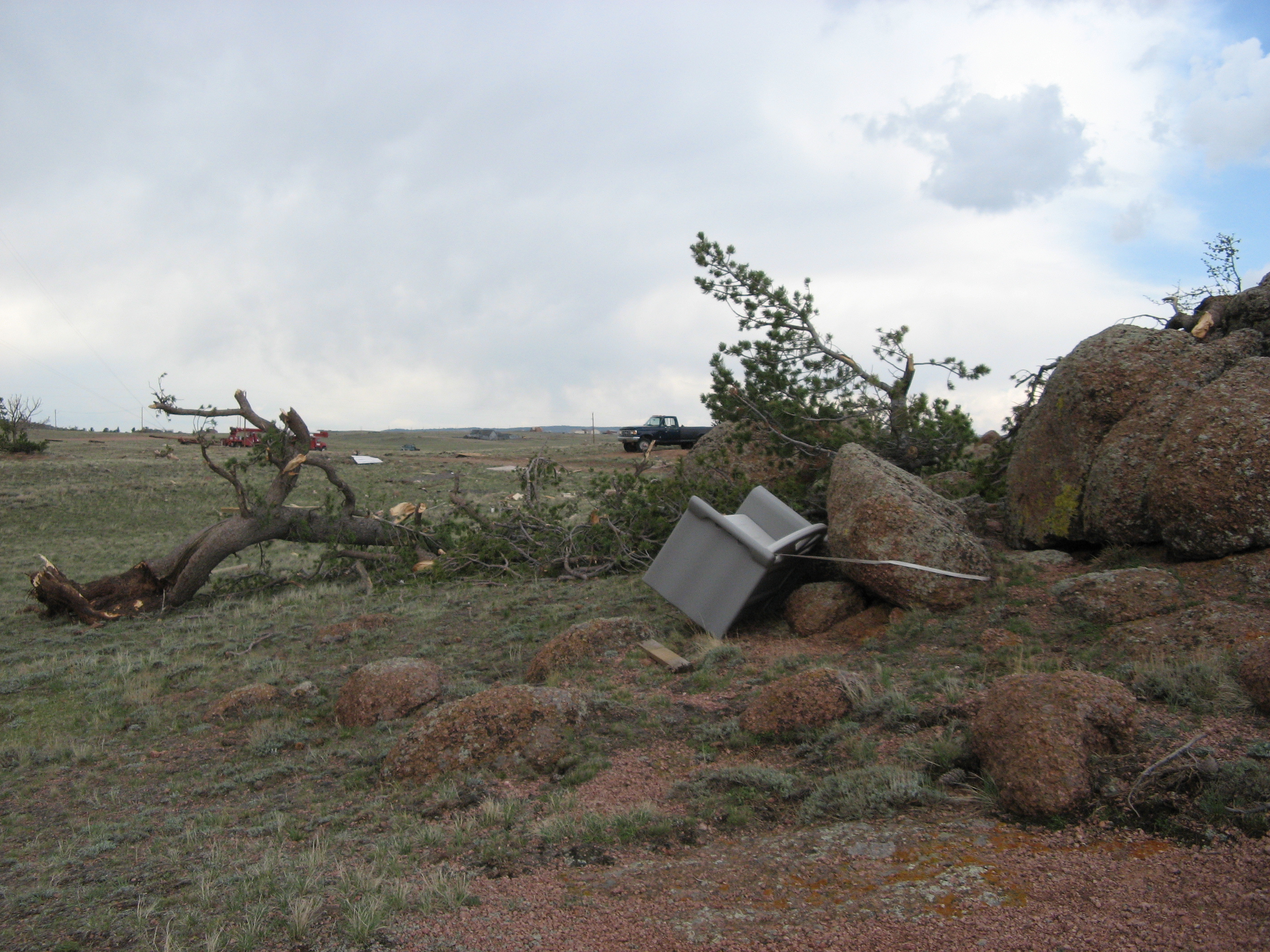

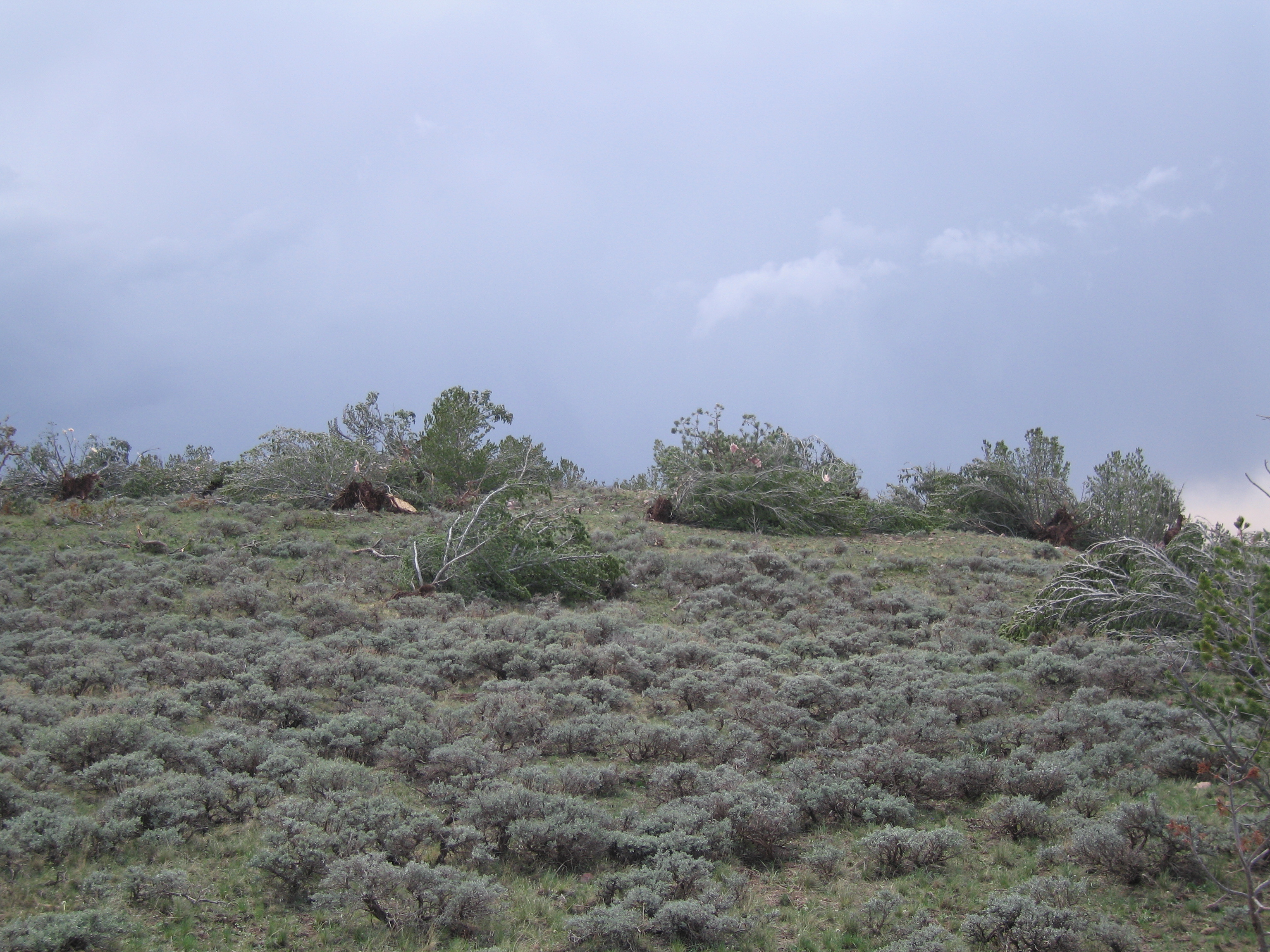

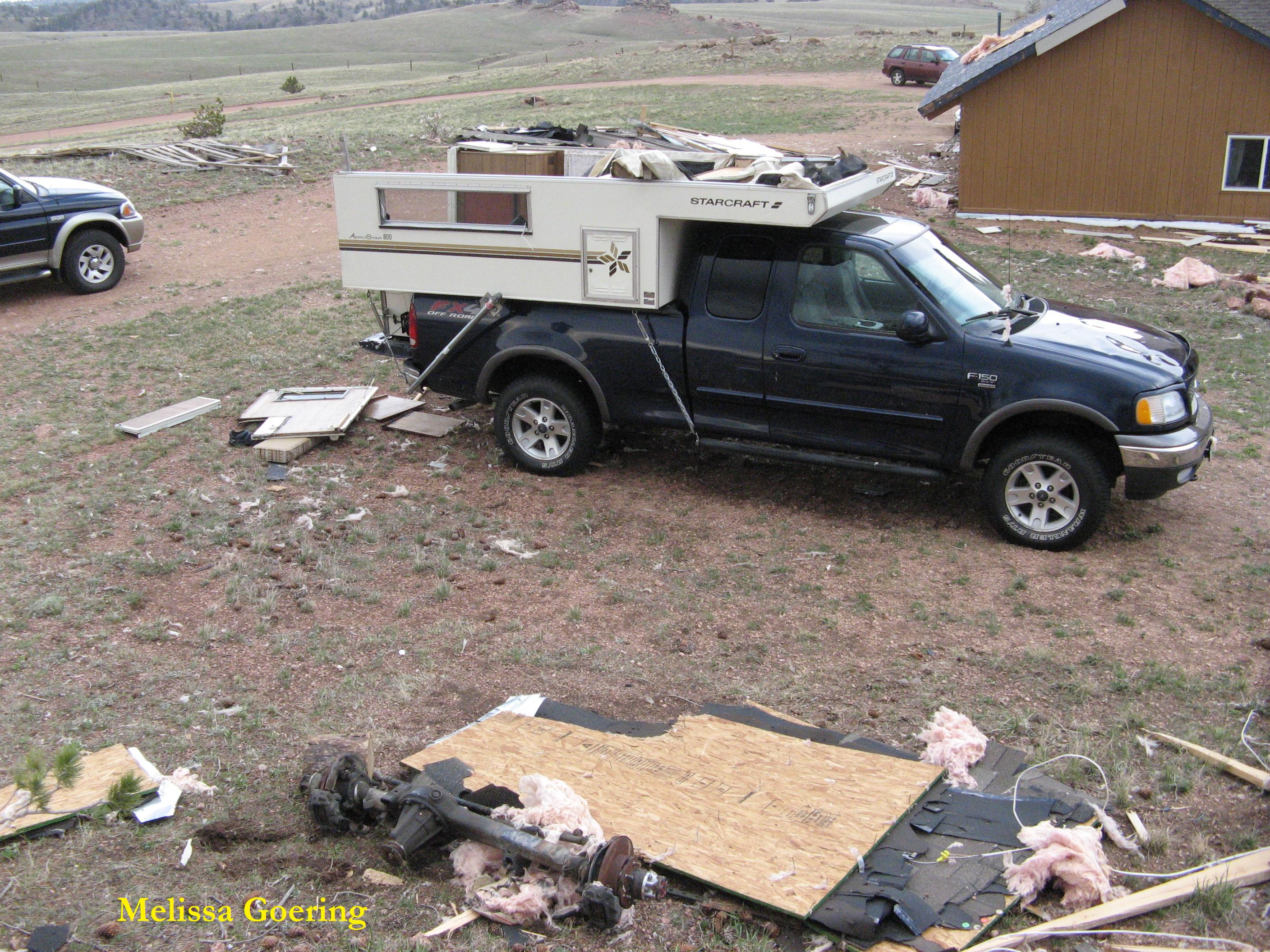

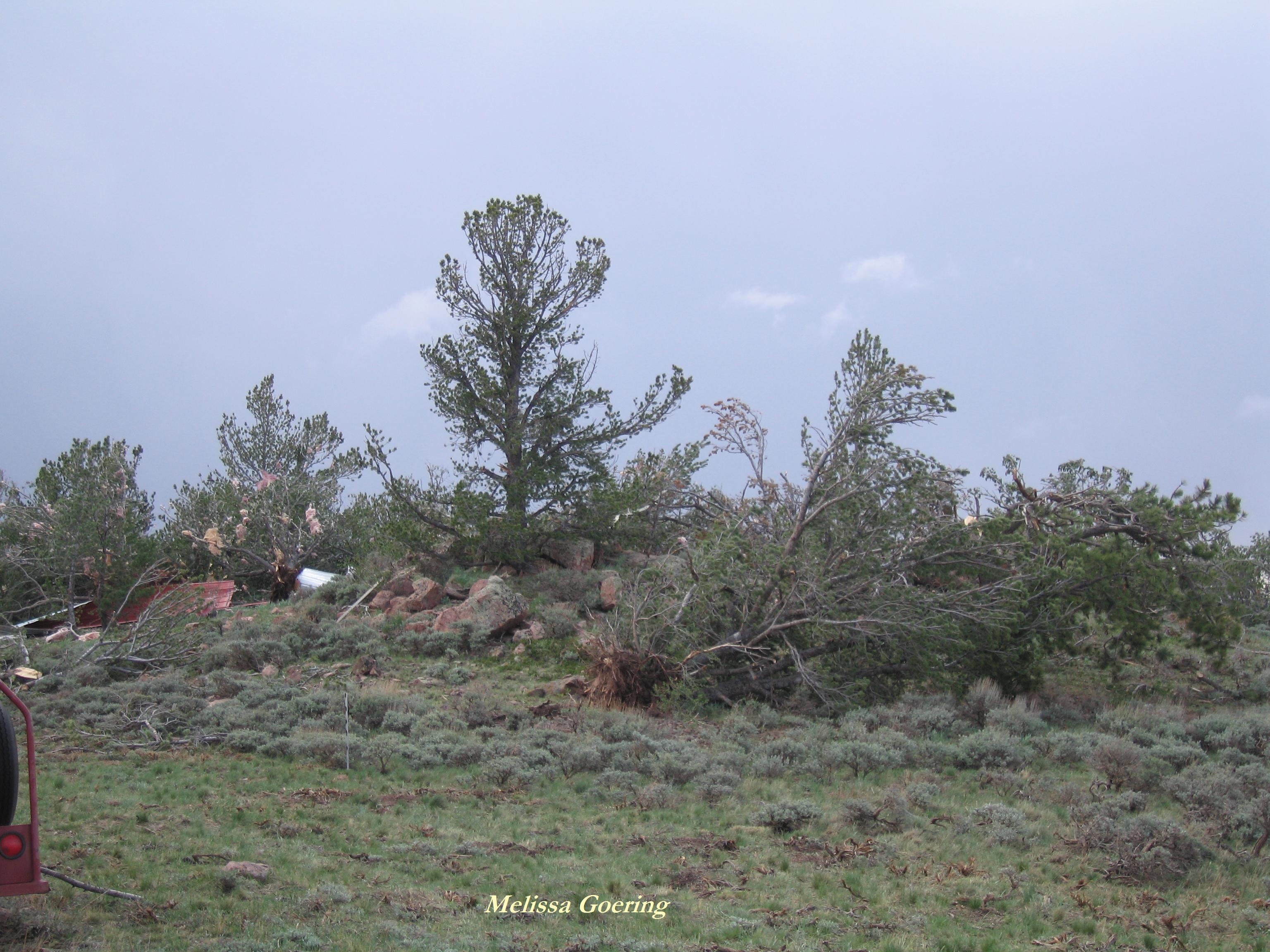

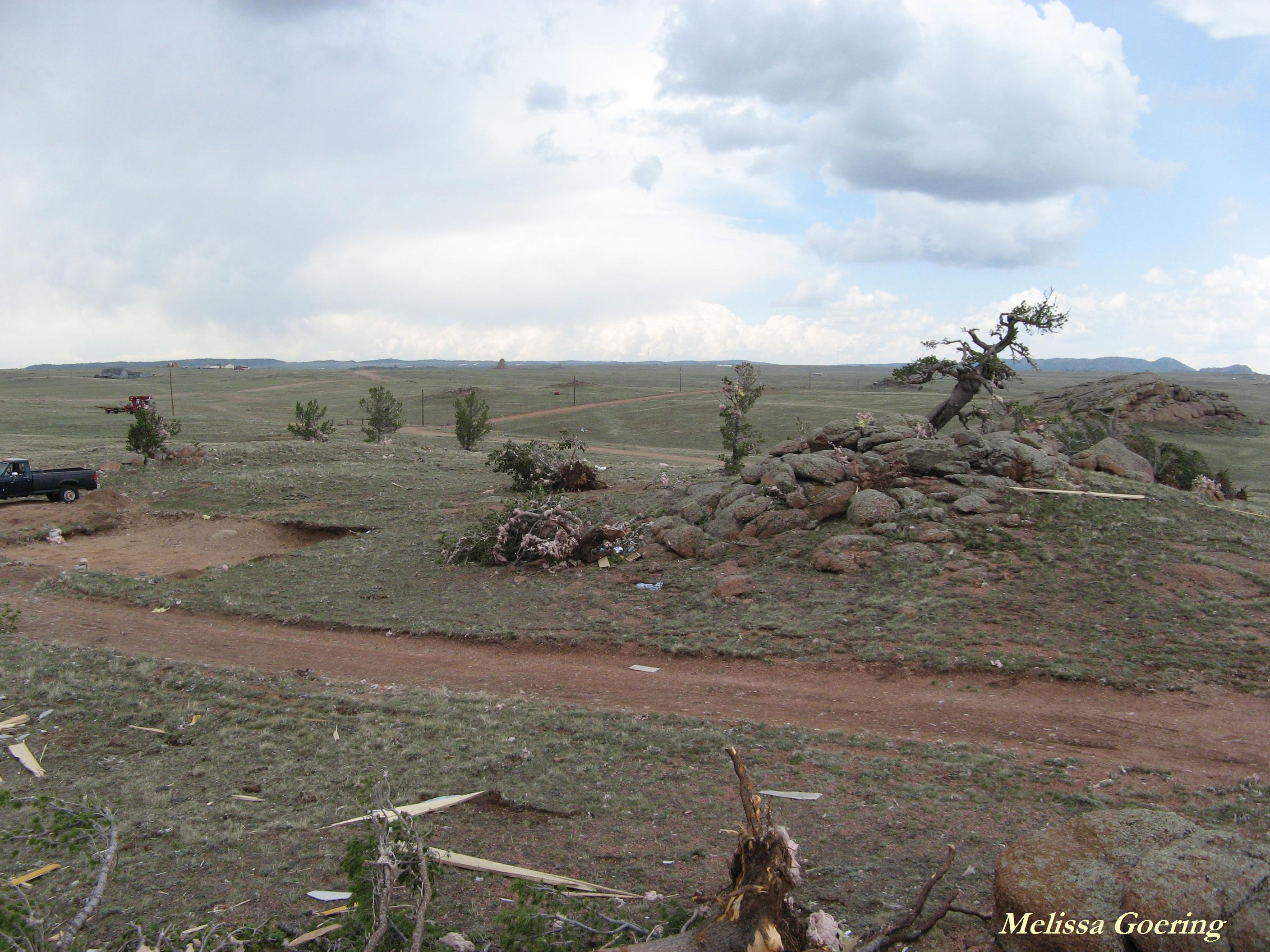

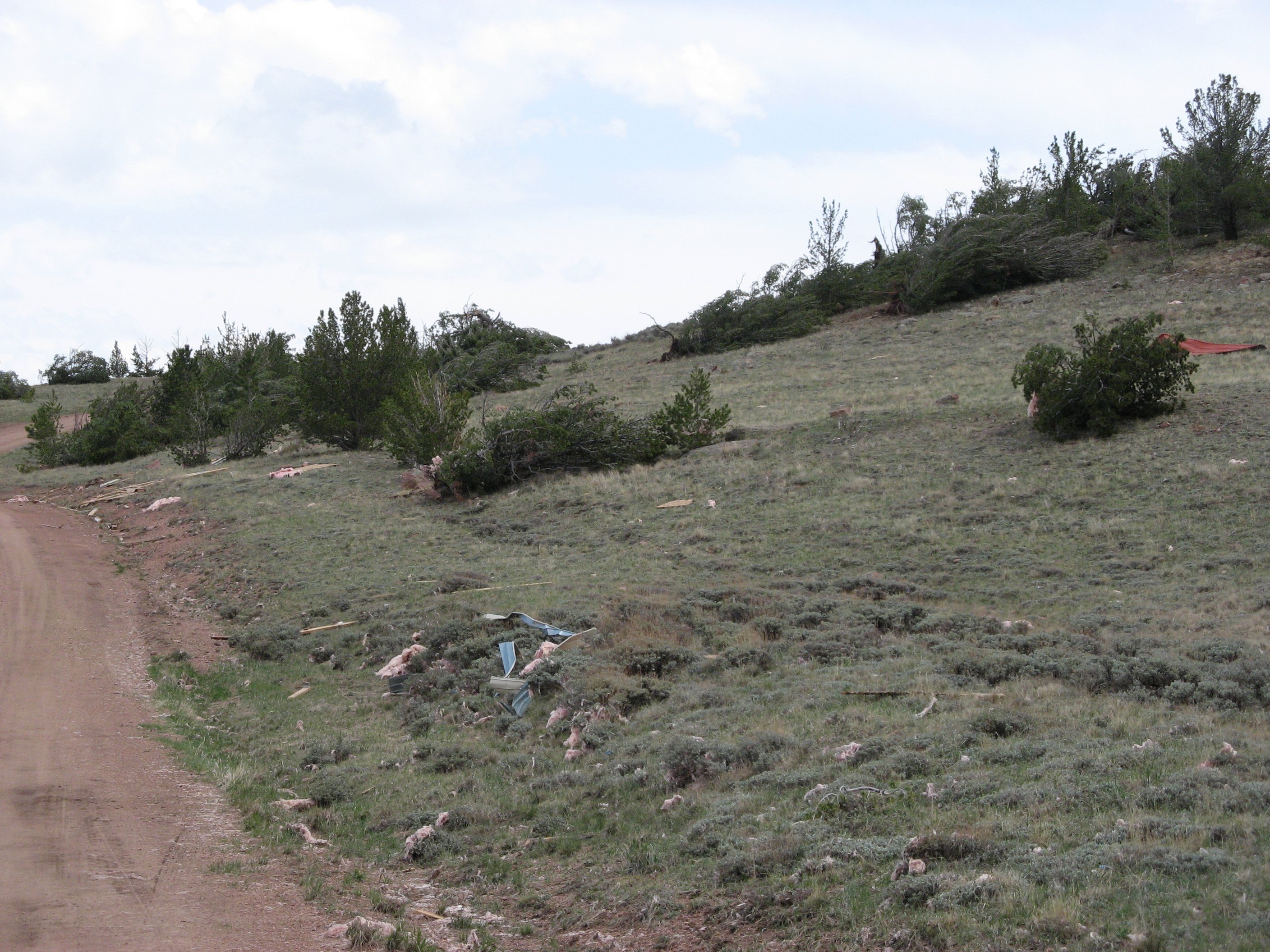

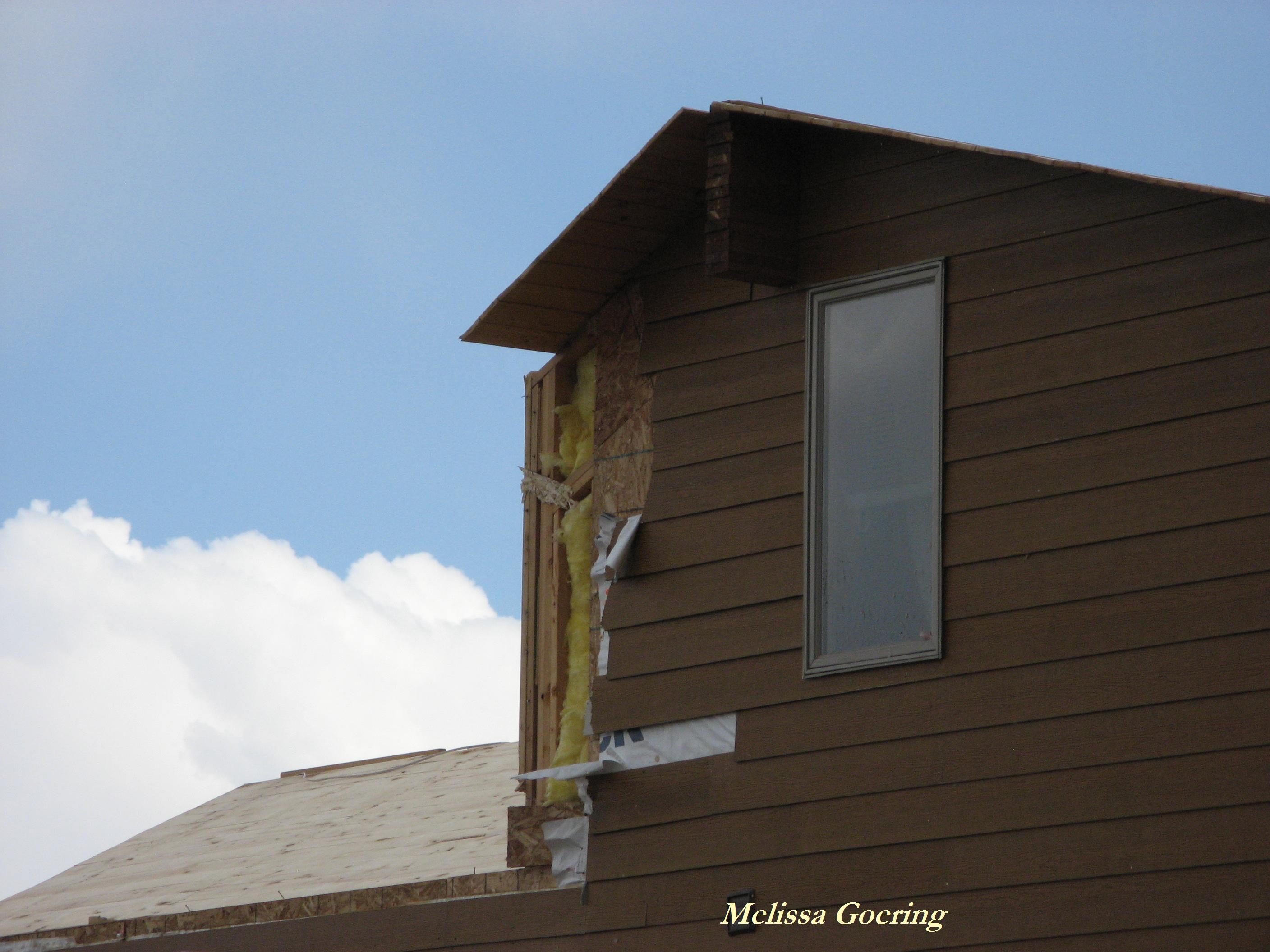

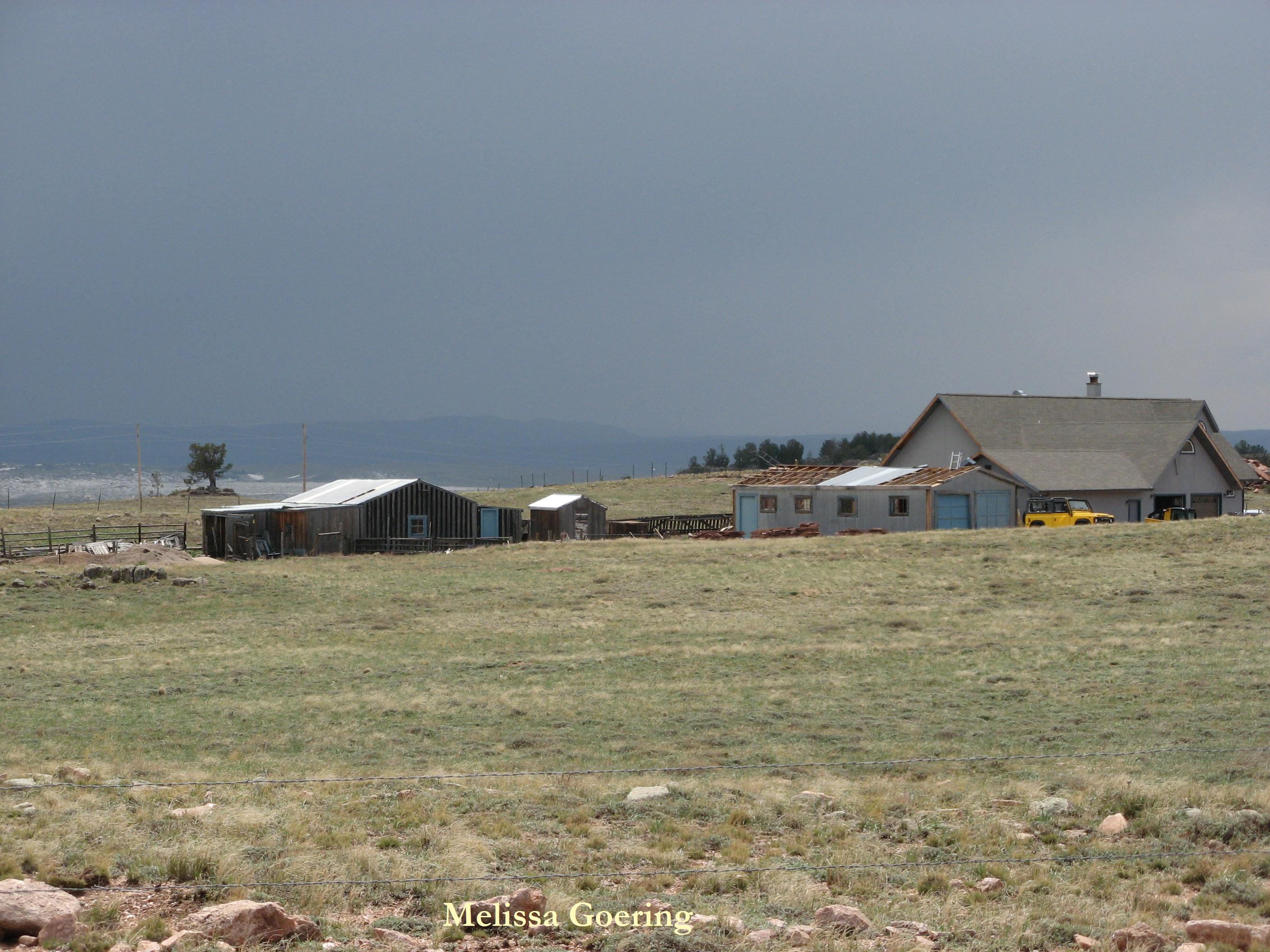

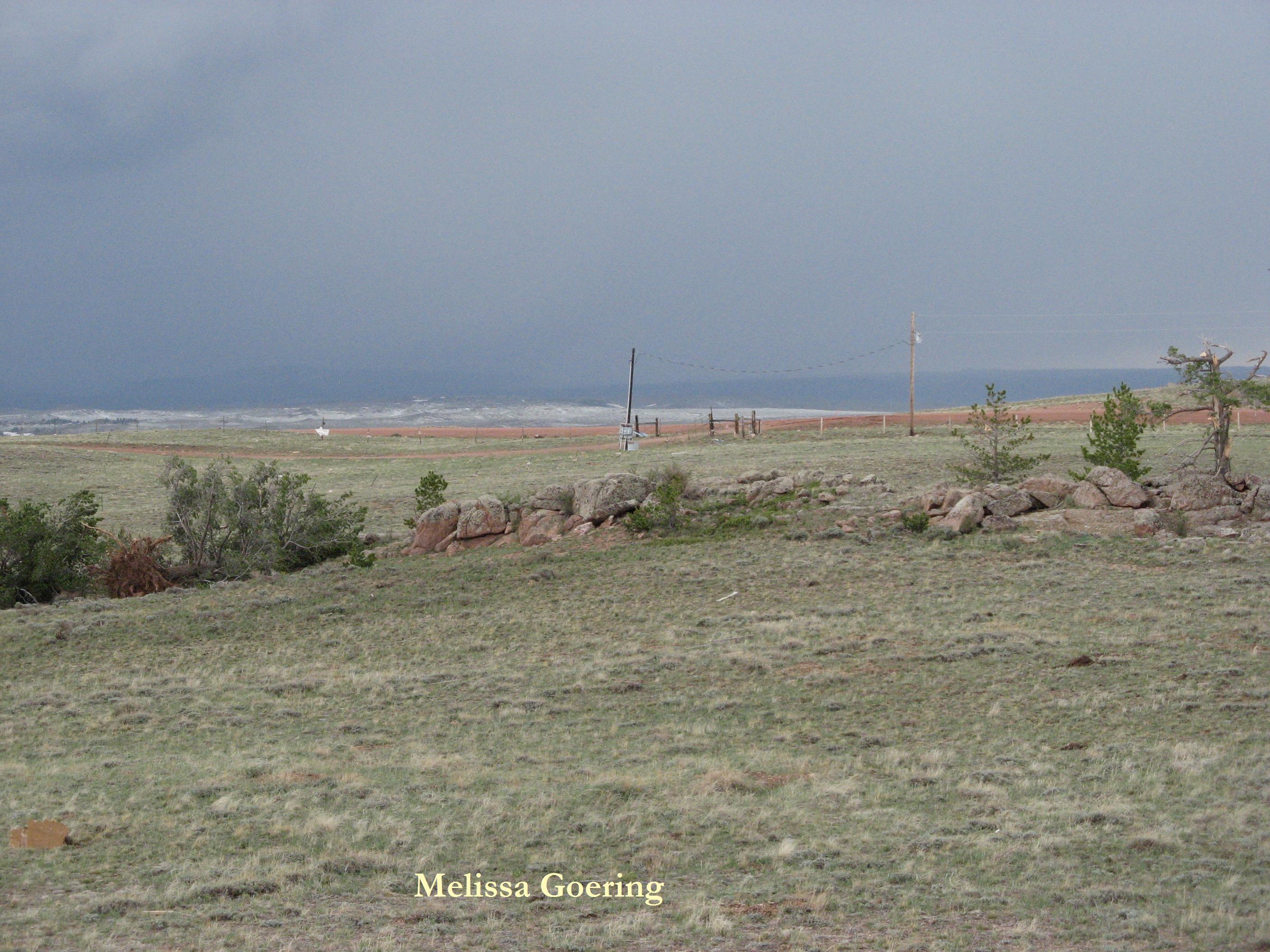

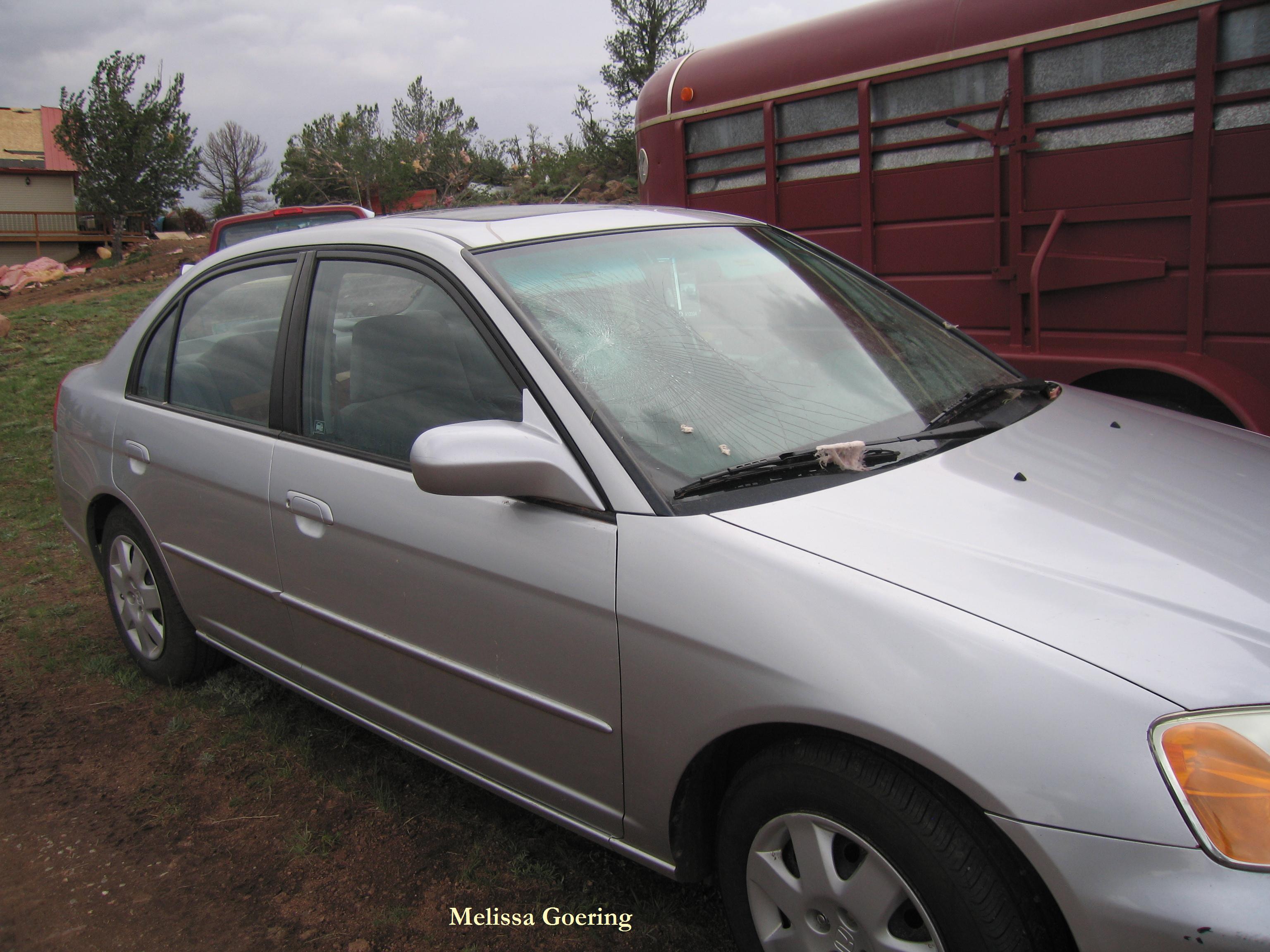

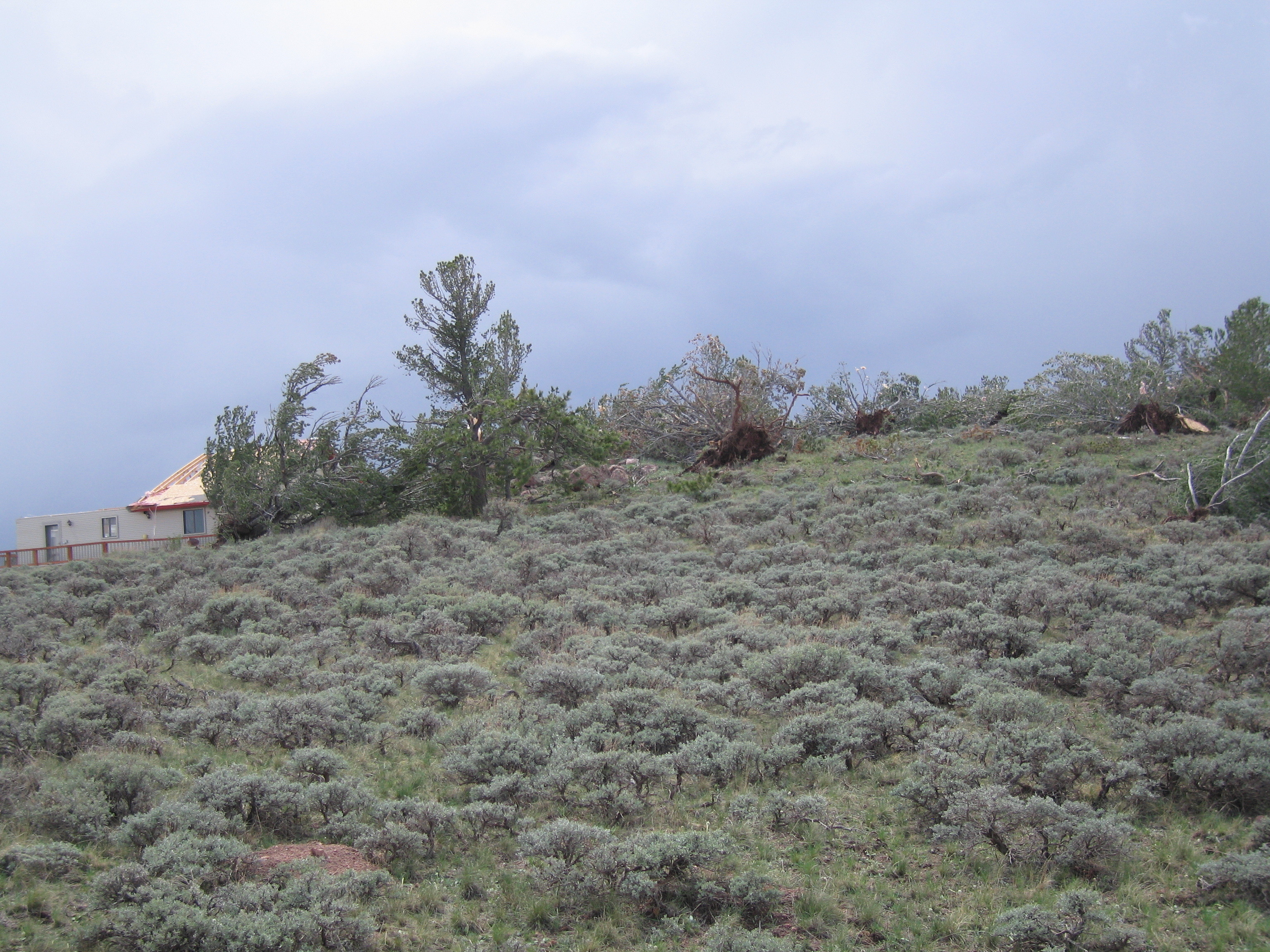

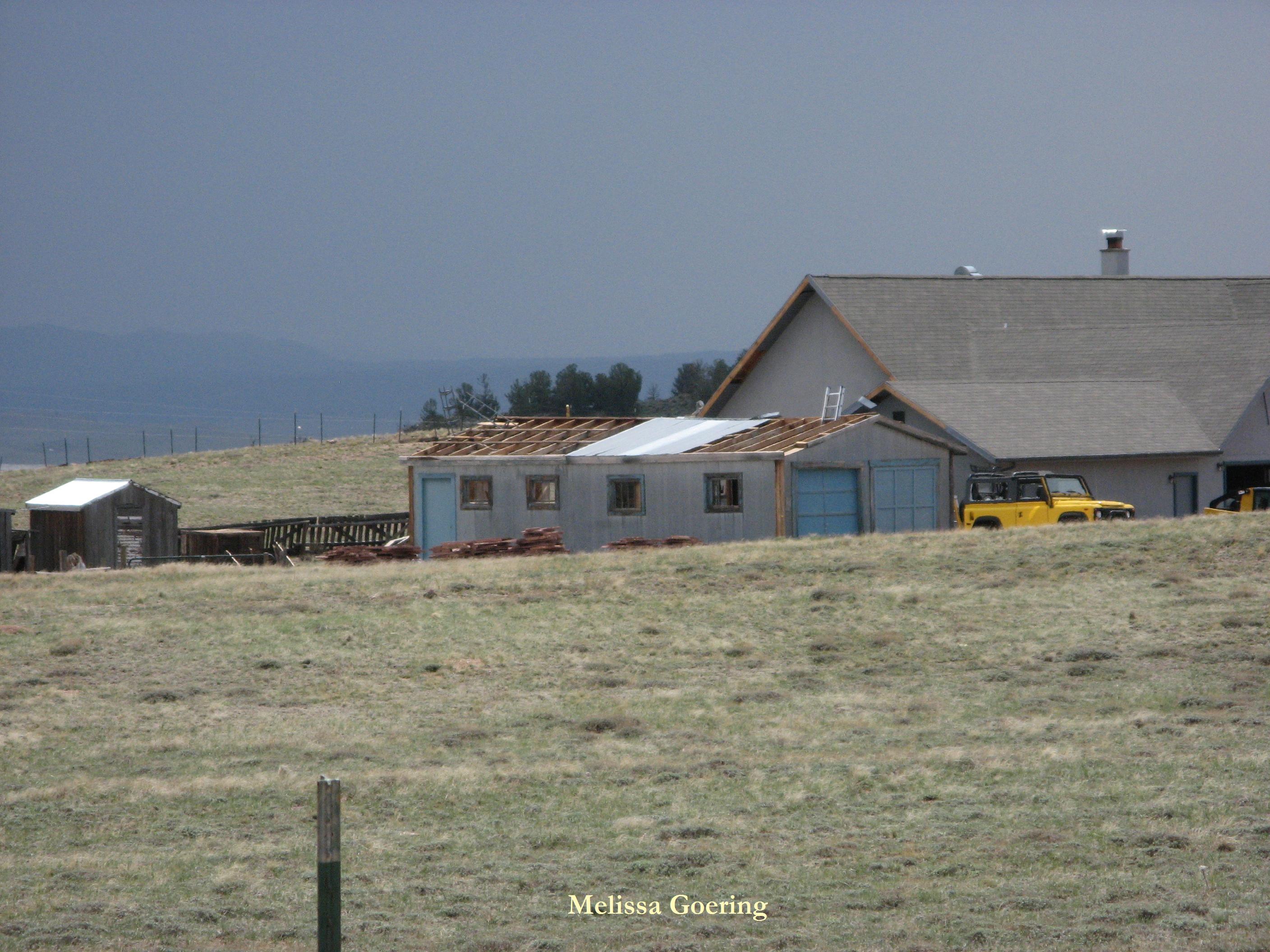

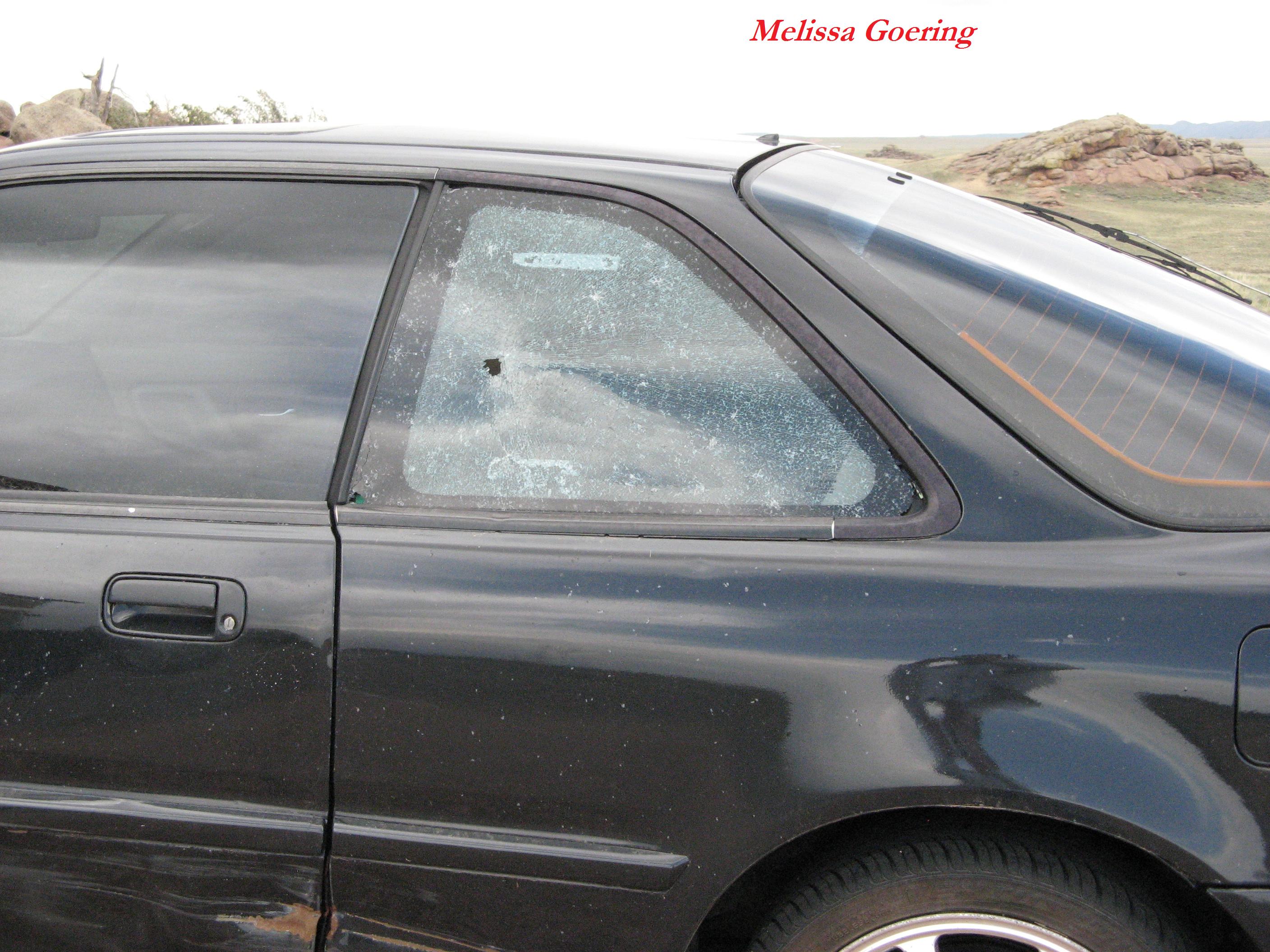

Some tornado was done to a residence and
outbuilding .87 miles southeast of
Ames Monument as
shown (pictures by Melissa Goering).

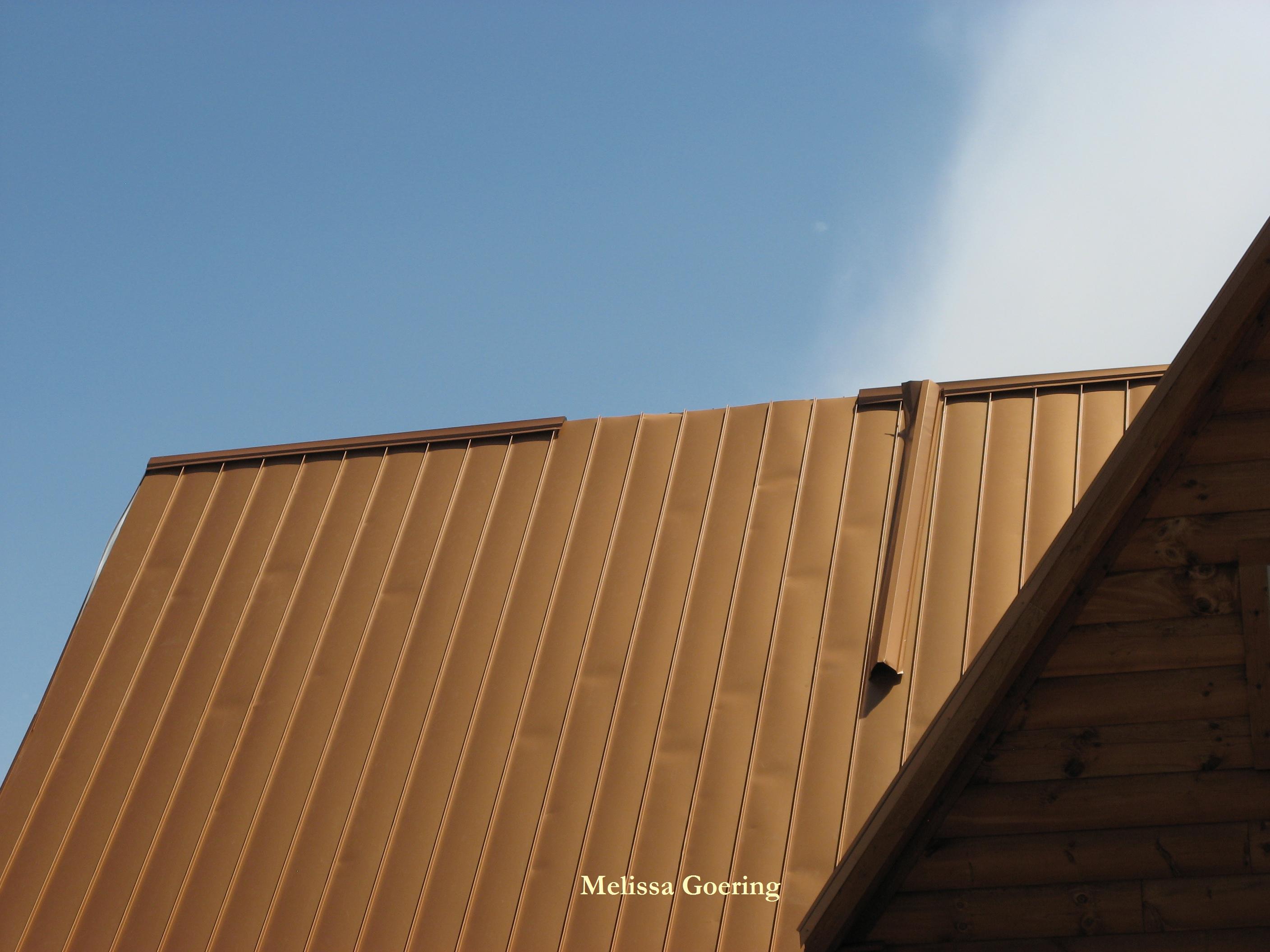

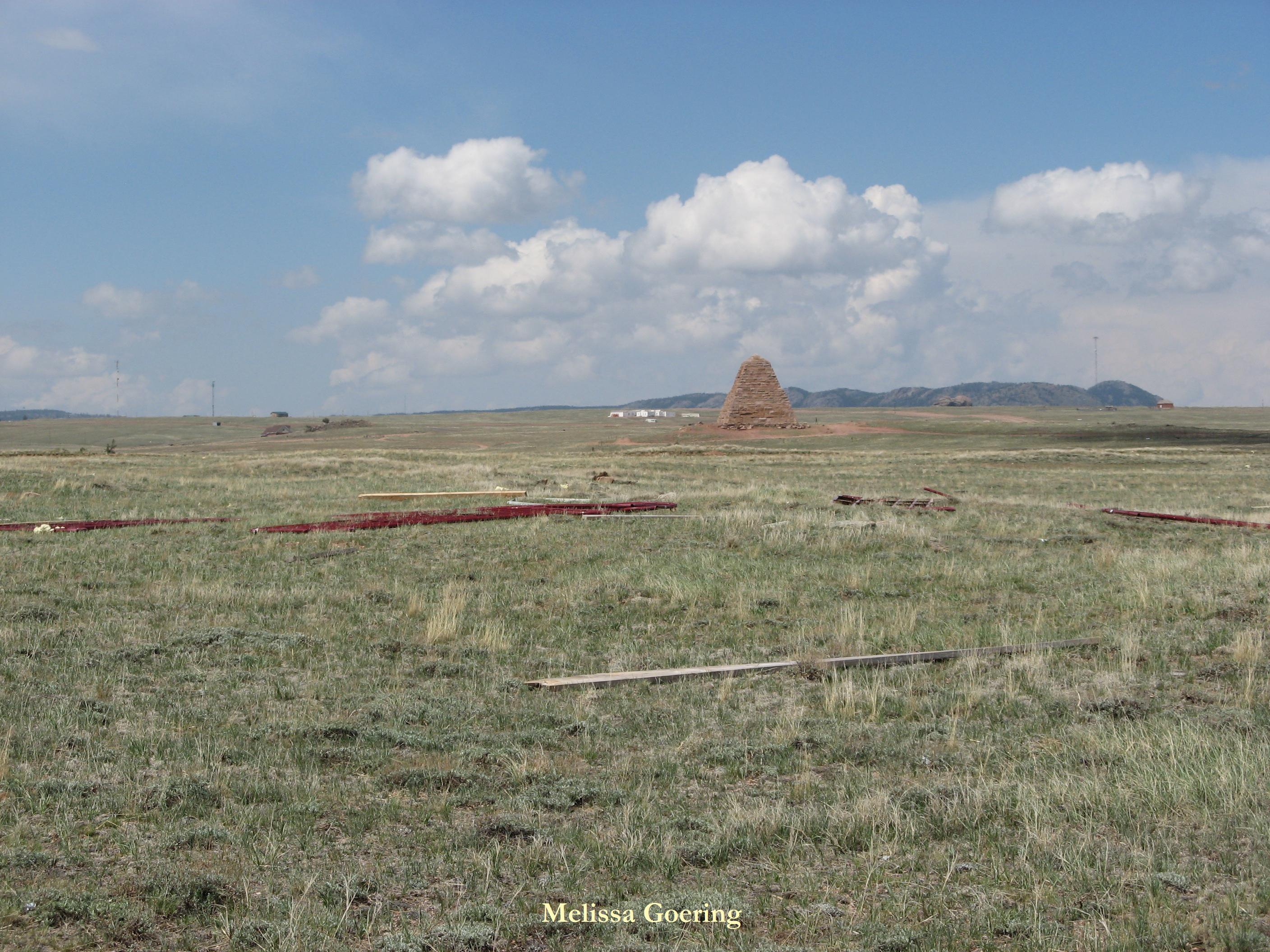

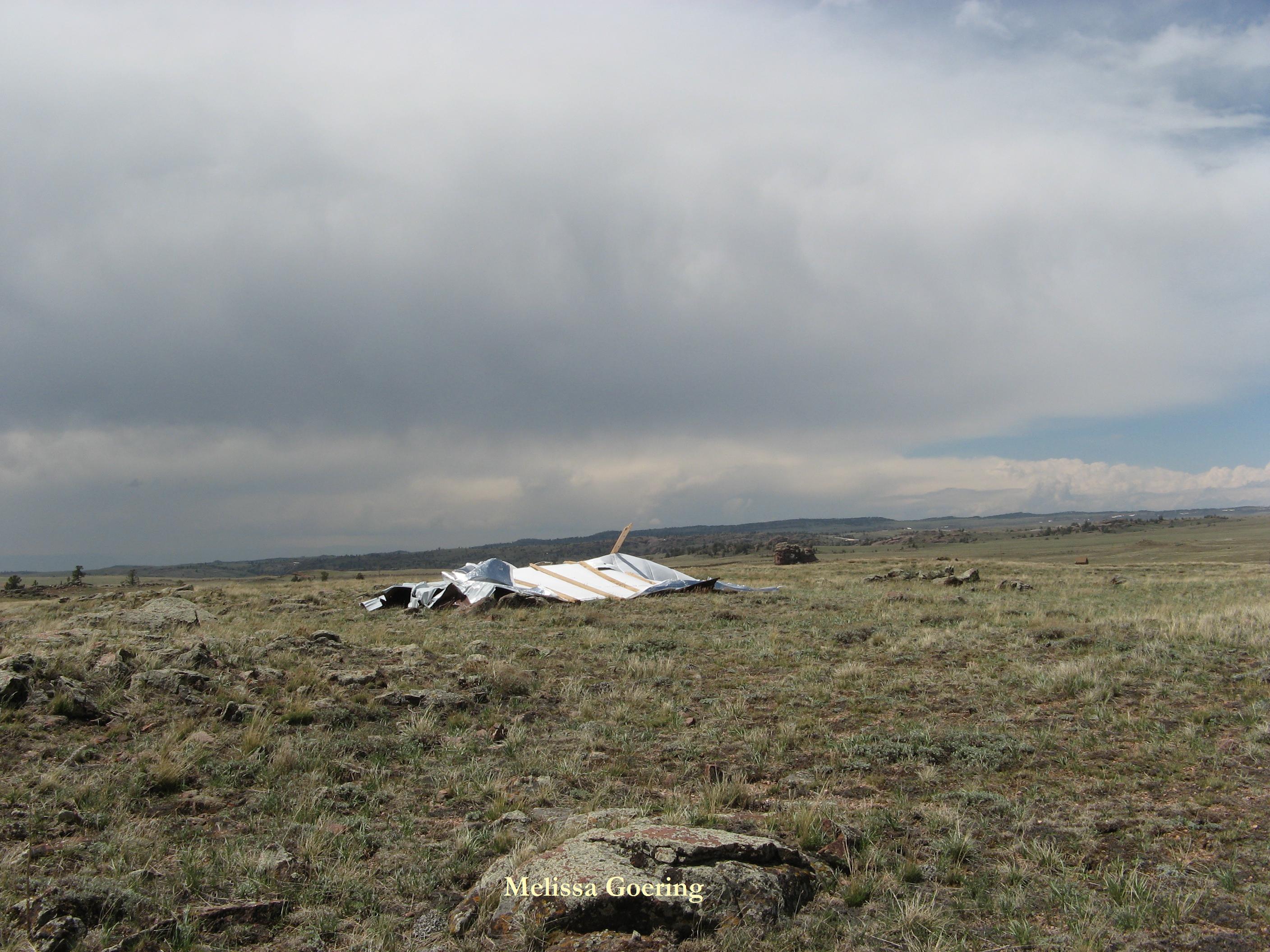

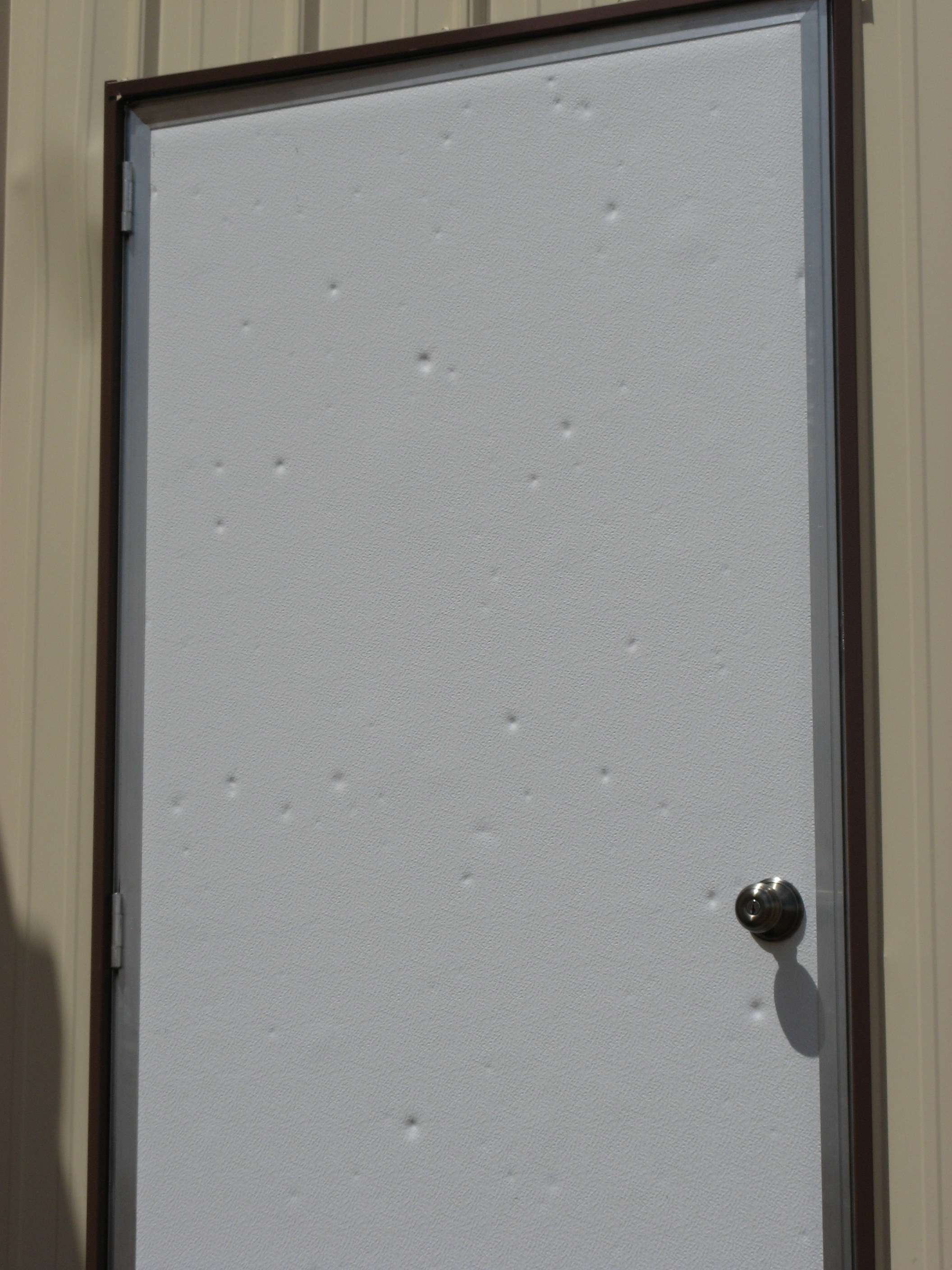

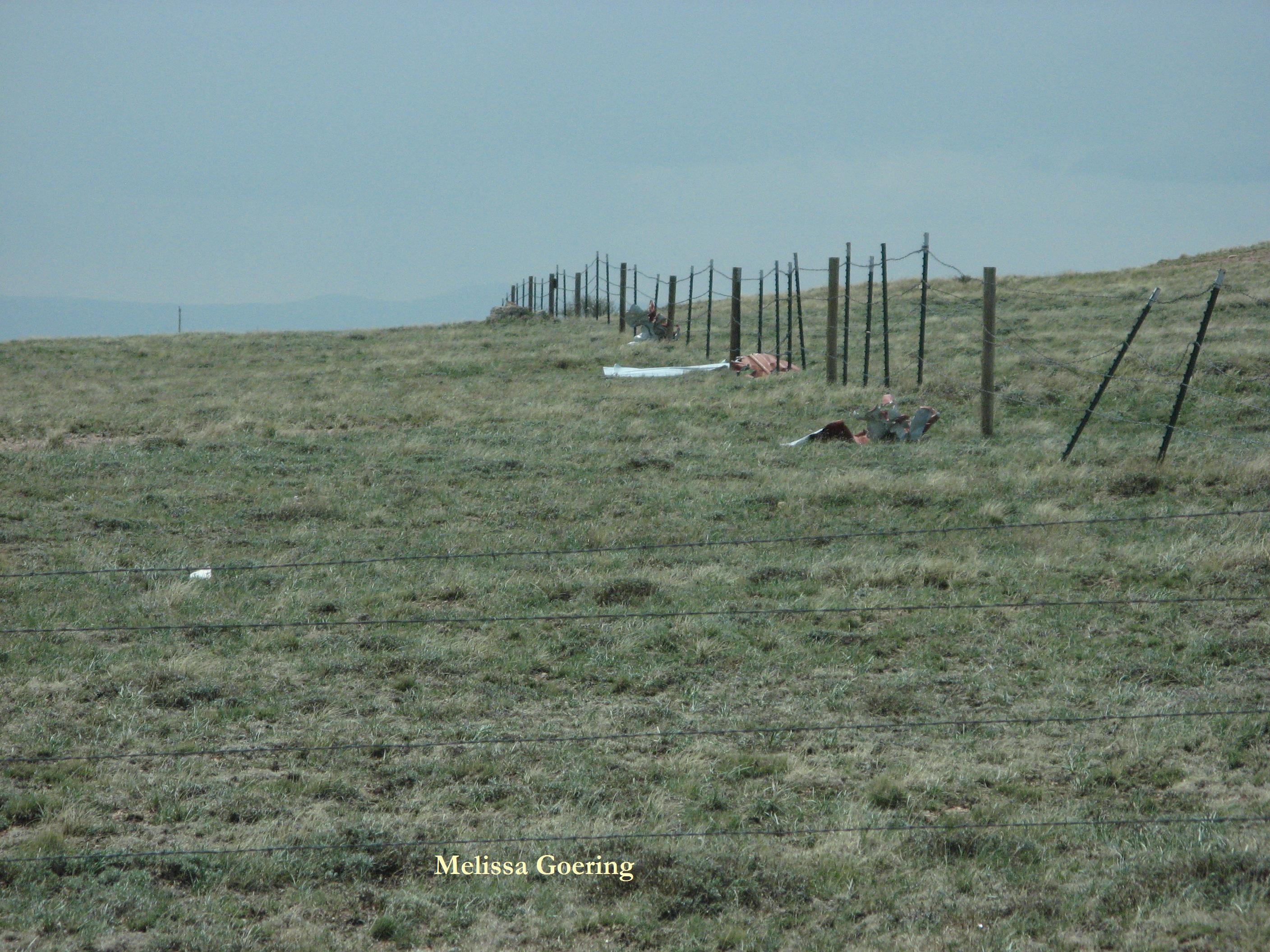

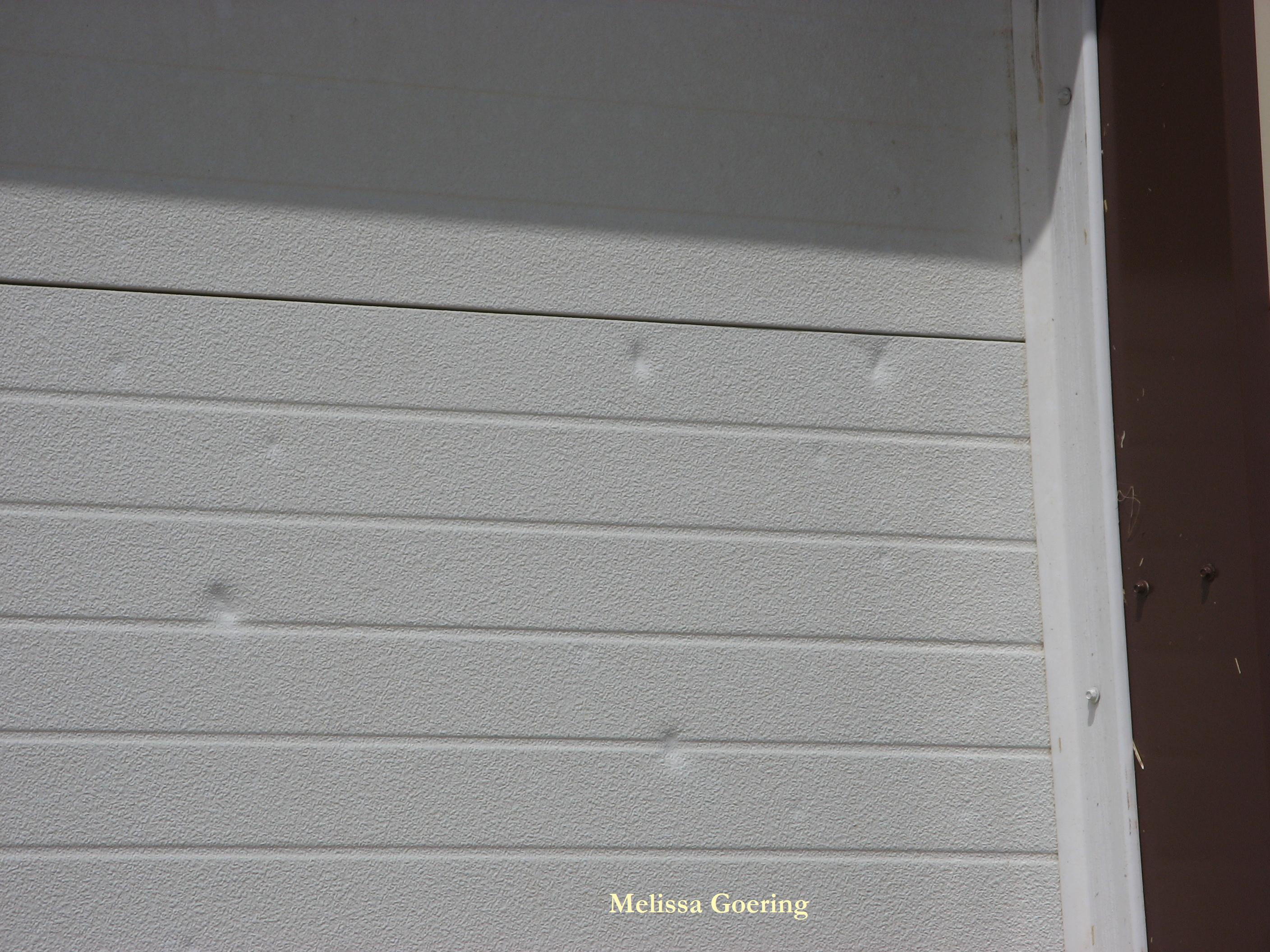

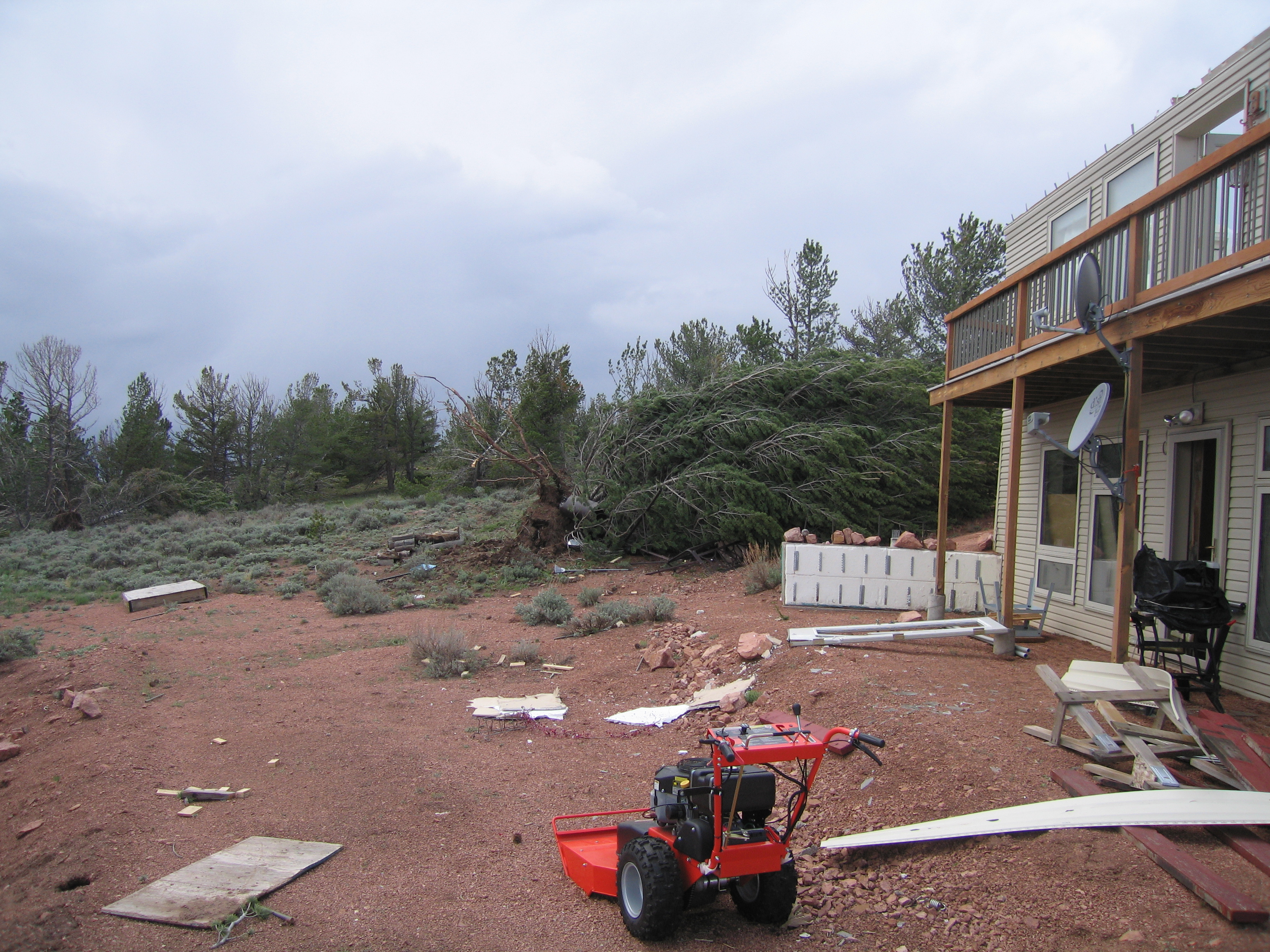

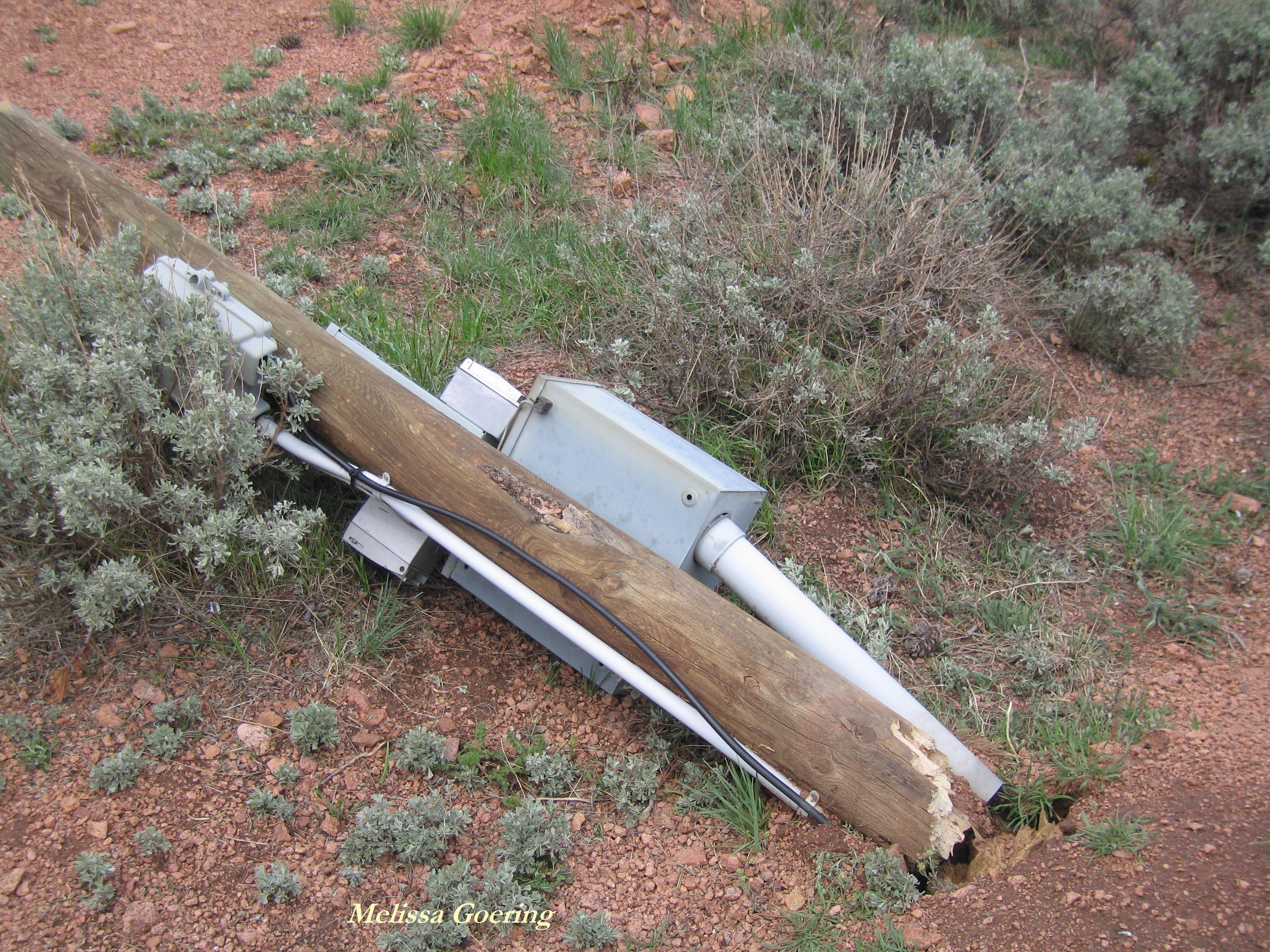

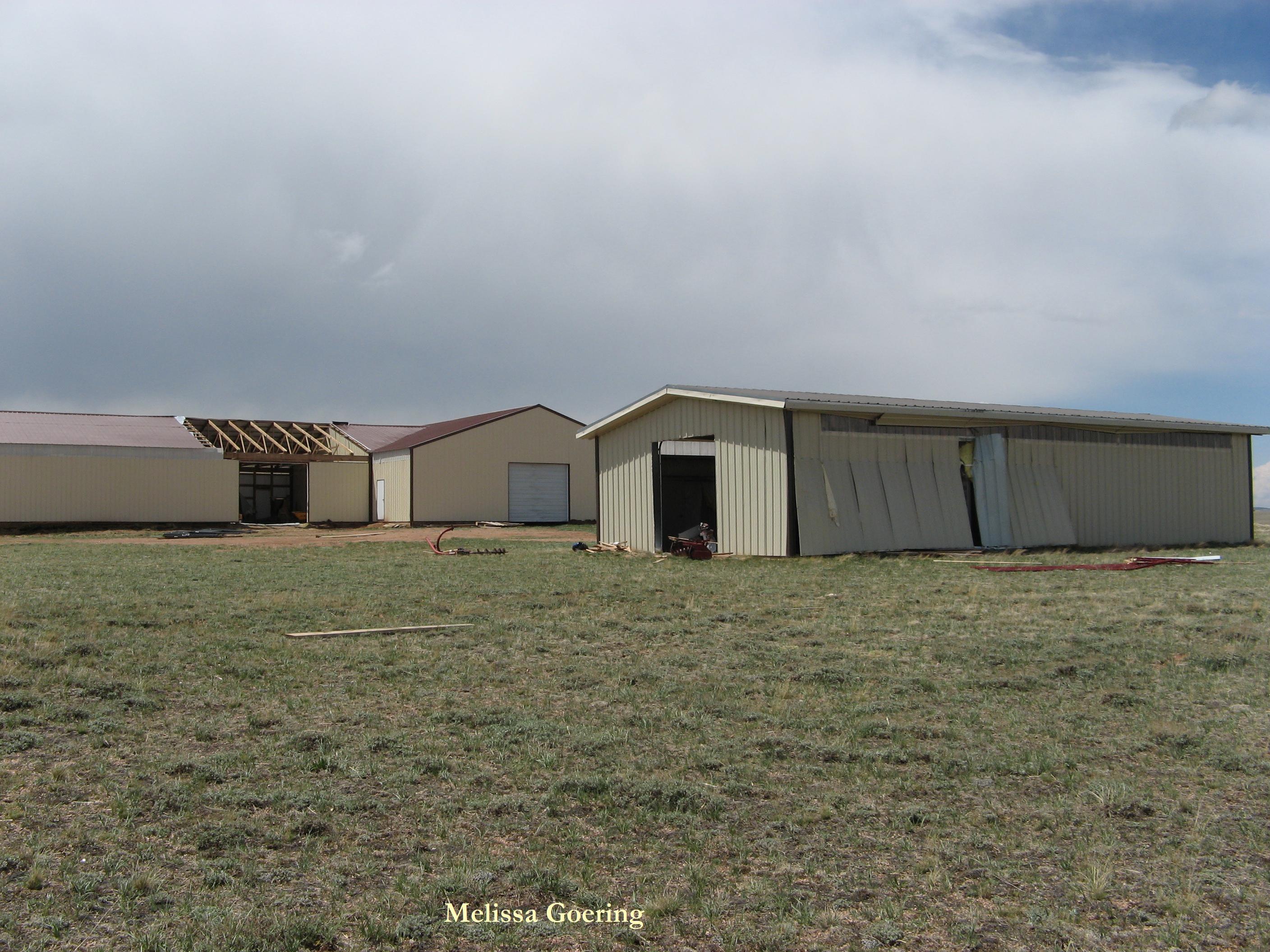

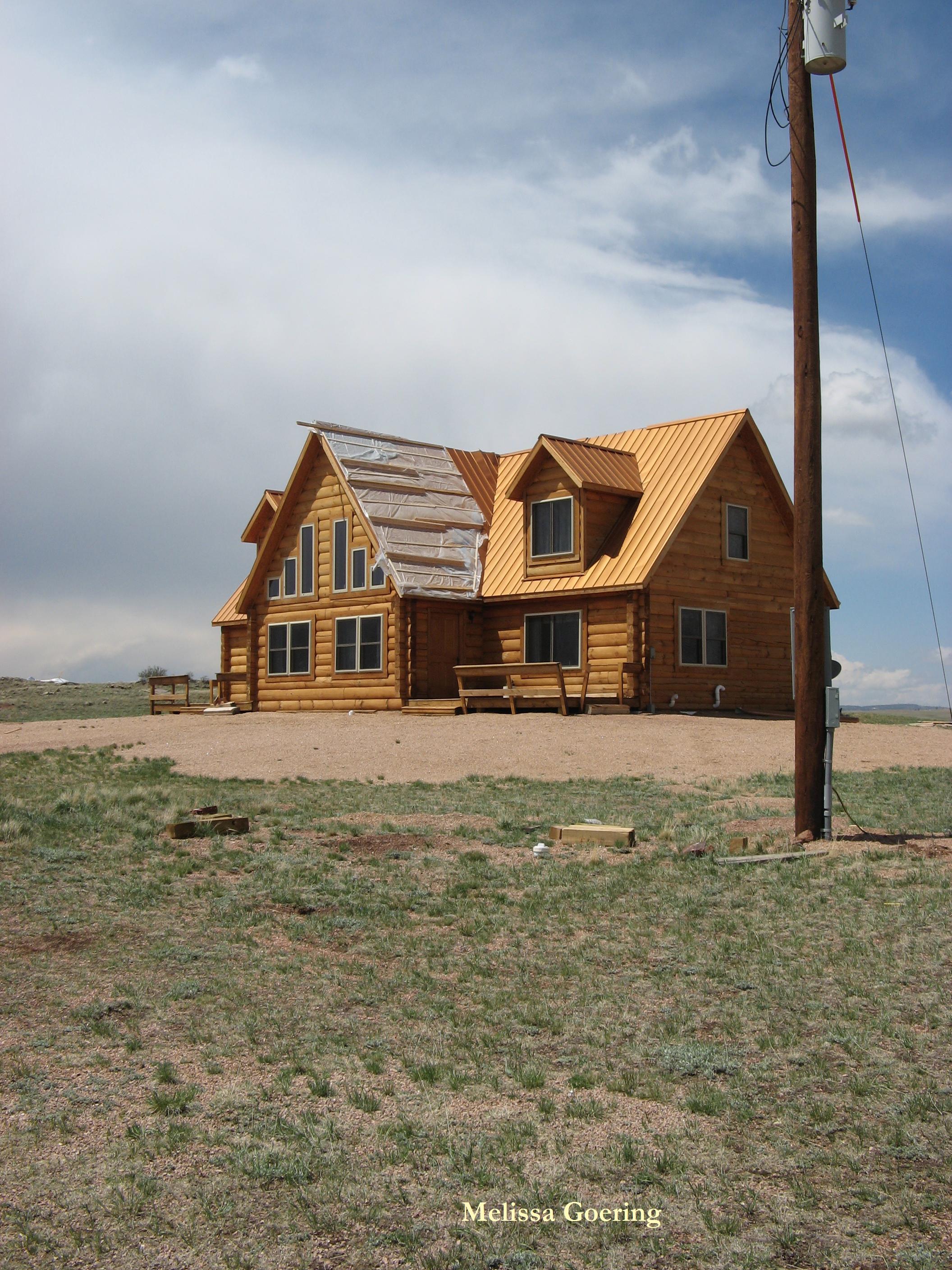

Some tornado and hail damage was done
to a residence and outbuildings .46 miles south of Ames Monument as
shown in these pictures by Melissa Goering.
hail1 hail2 hail3 hail4
debris1 debris2 debris3
house1
buildings
Francis Magrath who lives 1/2 mile west of the intersection of
Monument Rd. and Hermosa Rd. reported hail as large as golfballs. A few trees were downed about 1/2 mile northeast of
the Magrath's as the tornado passed to the east of their residence.
They reported that the visibility was around 100 ft. when the hail was
falling.

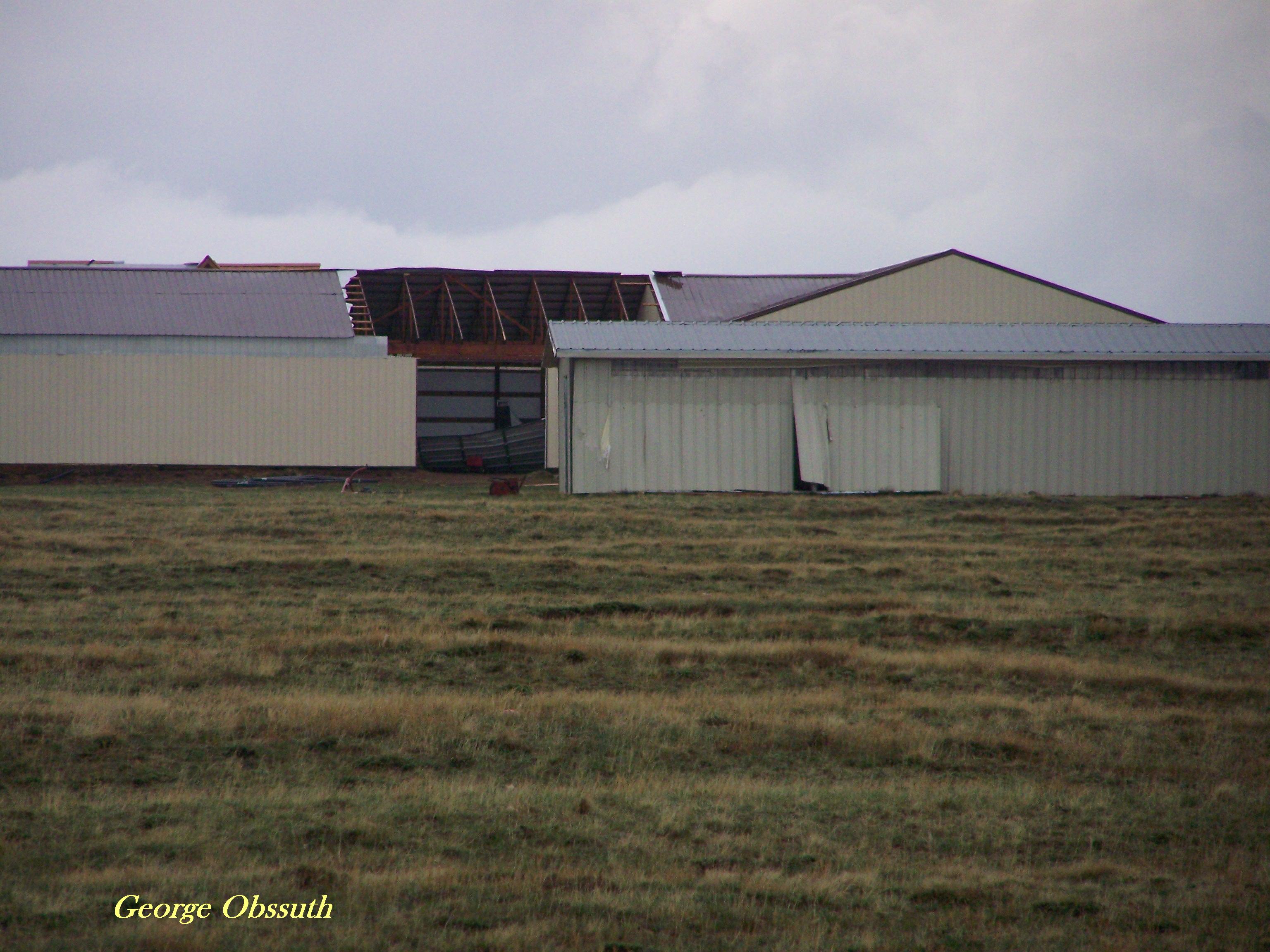

Some damage was done to the George
Obssuth residence (8280 ft) about 1/4
mile due west of the intersection of Monument and Hermosa Rds. (north of
Hermosa Rd.) around 1913 or 1914 UTC. He reported that $32,000 damage was done to his deck when
support beams were broken. Two isolated, old trees dating back to 1870
were heavily damaged just southeast of his house. A 1000 lb utility
trailer was blown
300-400 ft. on his property. South facing windows of his house were
blown/knocked in. The largest hail at the Obssuth residence was 2" in

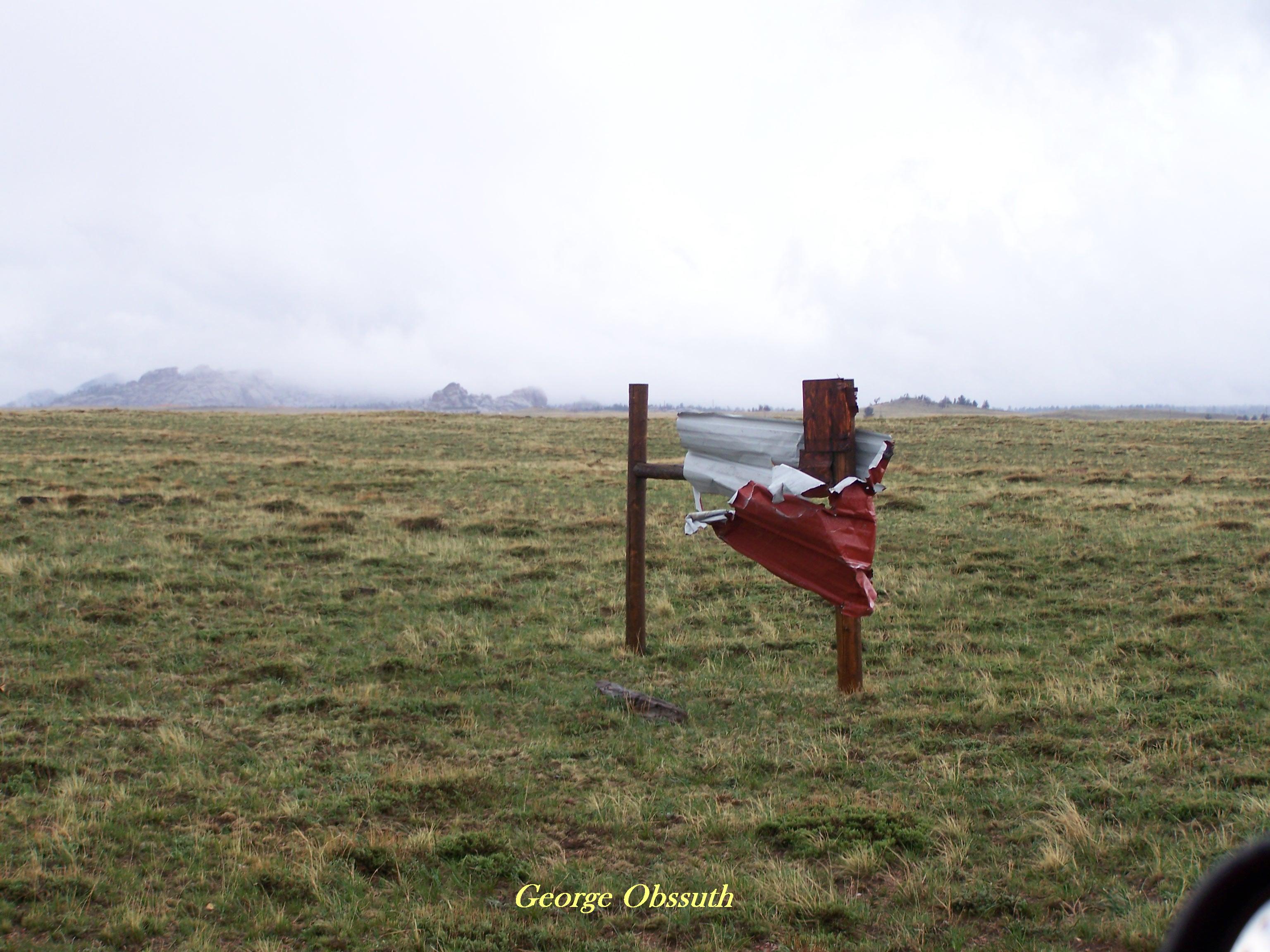

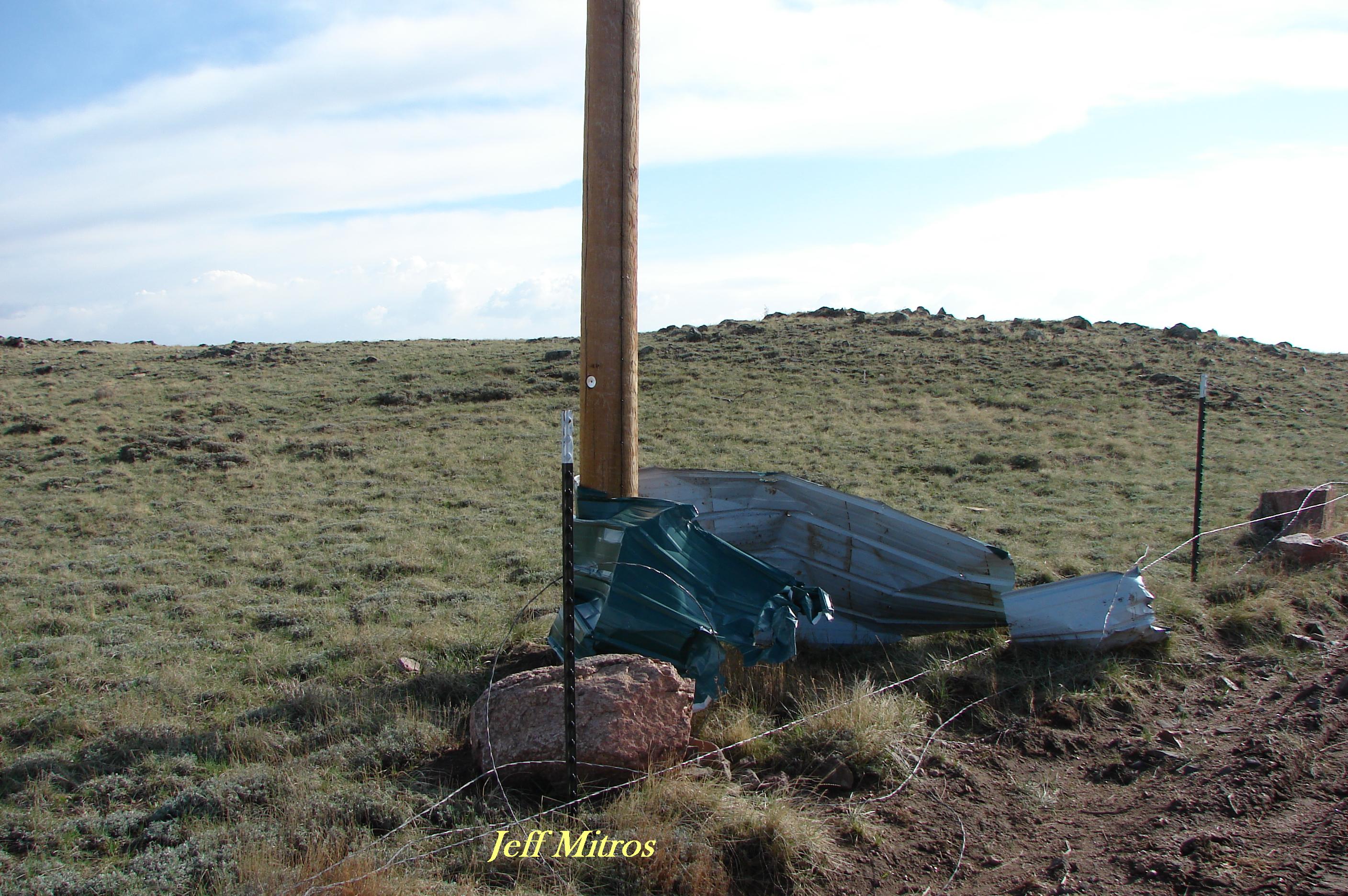

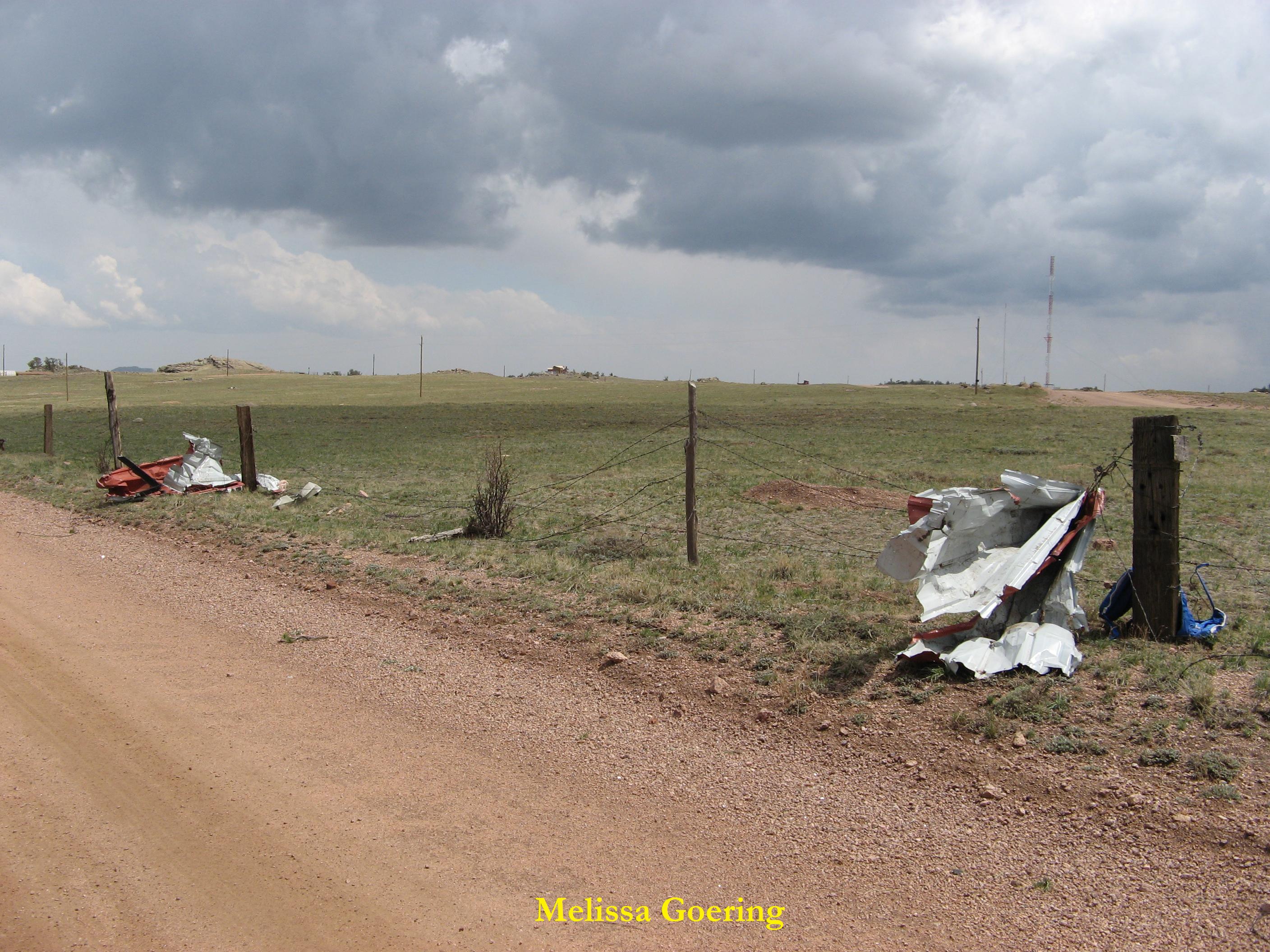

diameter. Shards of metal were blown several miles to the northwest. Many small
trees were uprooted and sheet metal roofing from the Hanselmann house (1.5 miles to the southeast) was

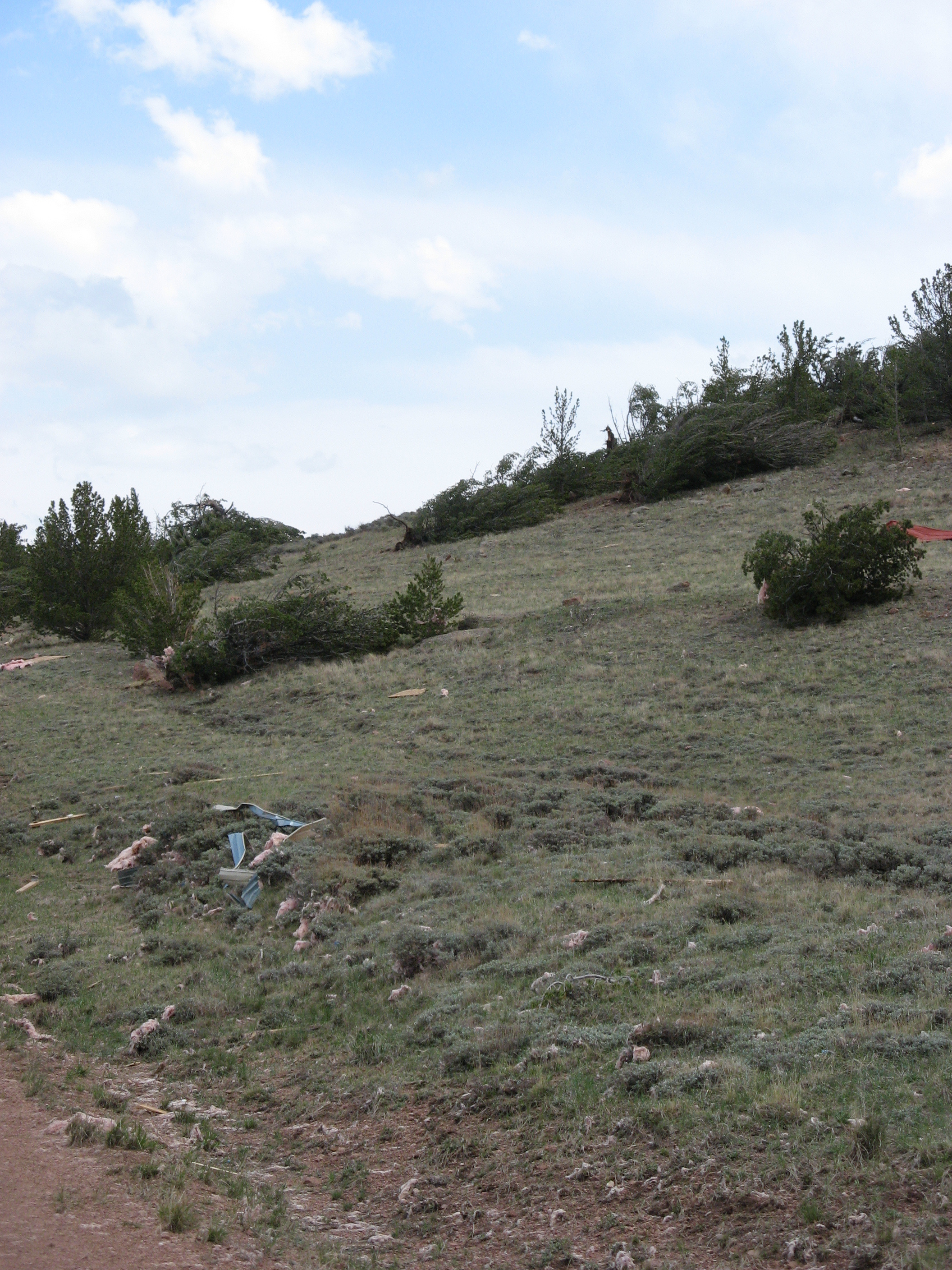

wrapped around wooden poles south of Ames Monument along Monument Rd. (east side of the road) as photographed by George Obssuth. This
homestead was damaged south of Ames Monument to the southwest of Monument Rd.

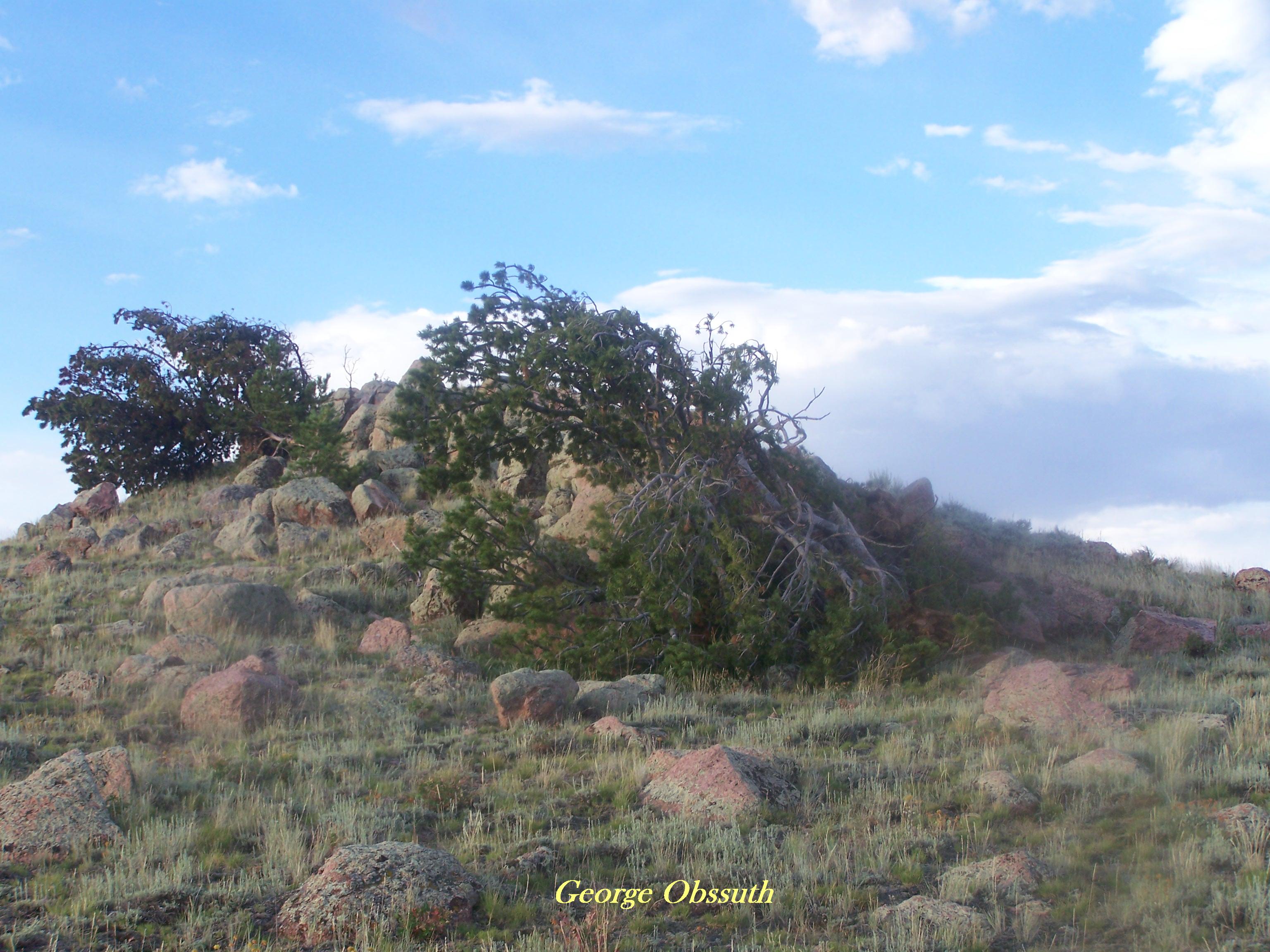

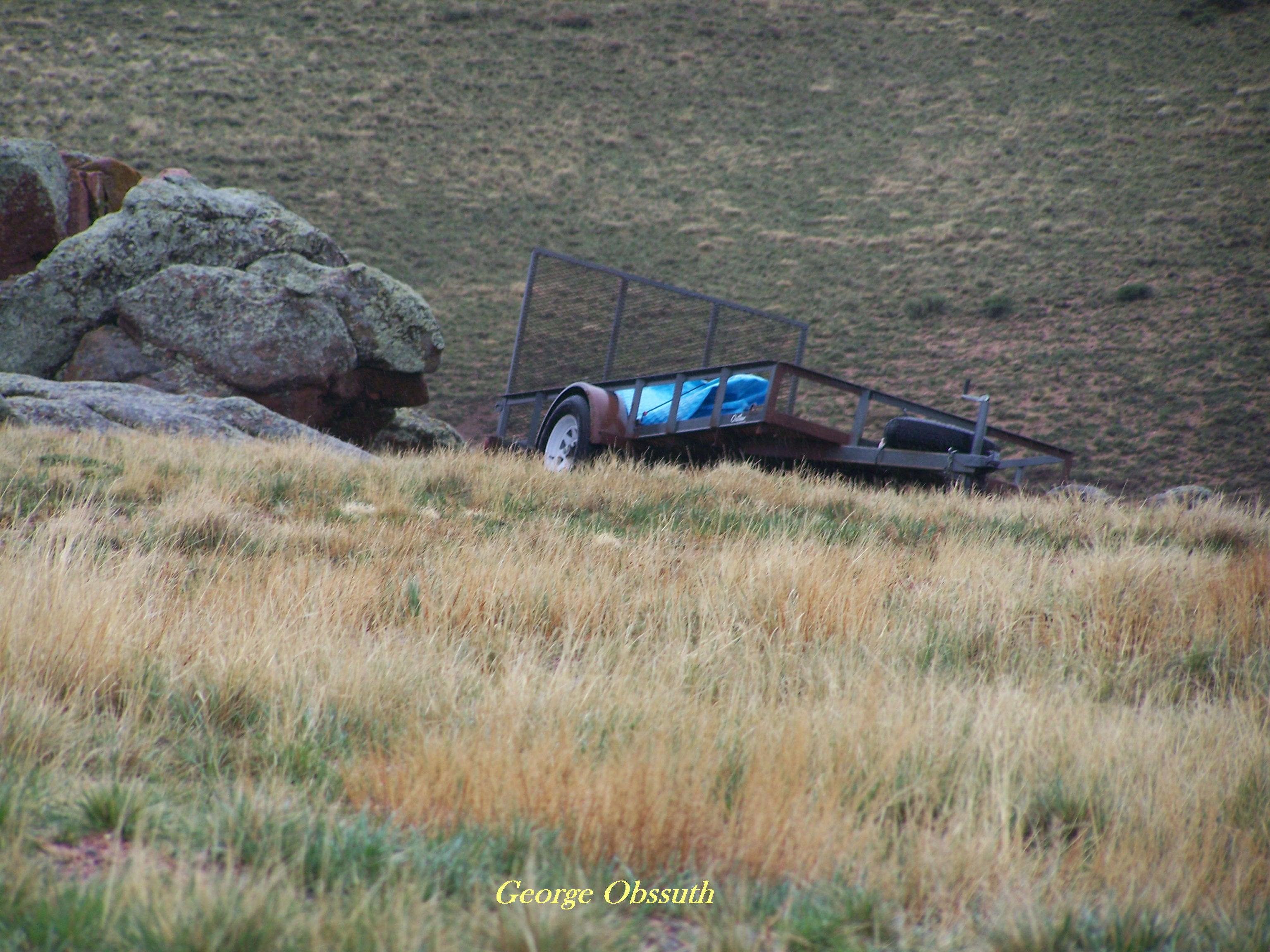

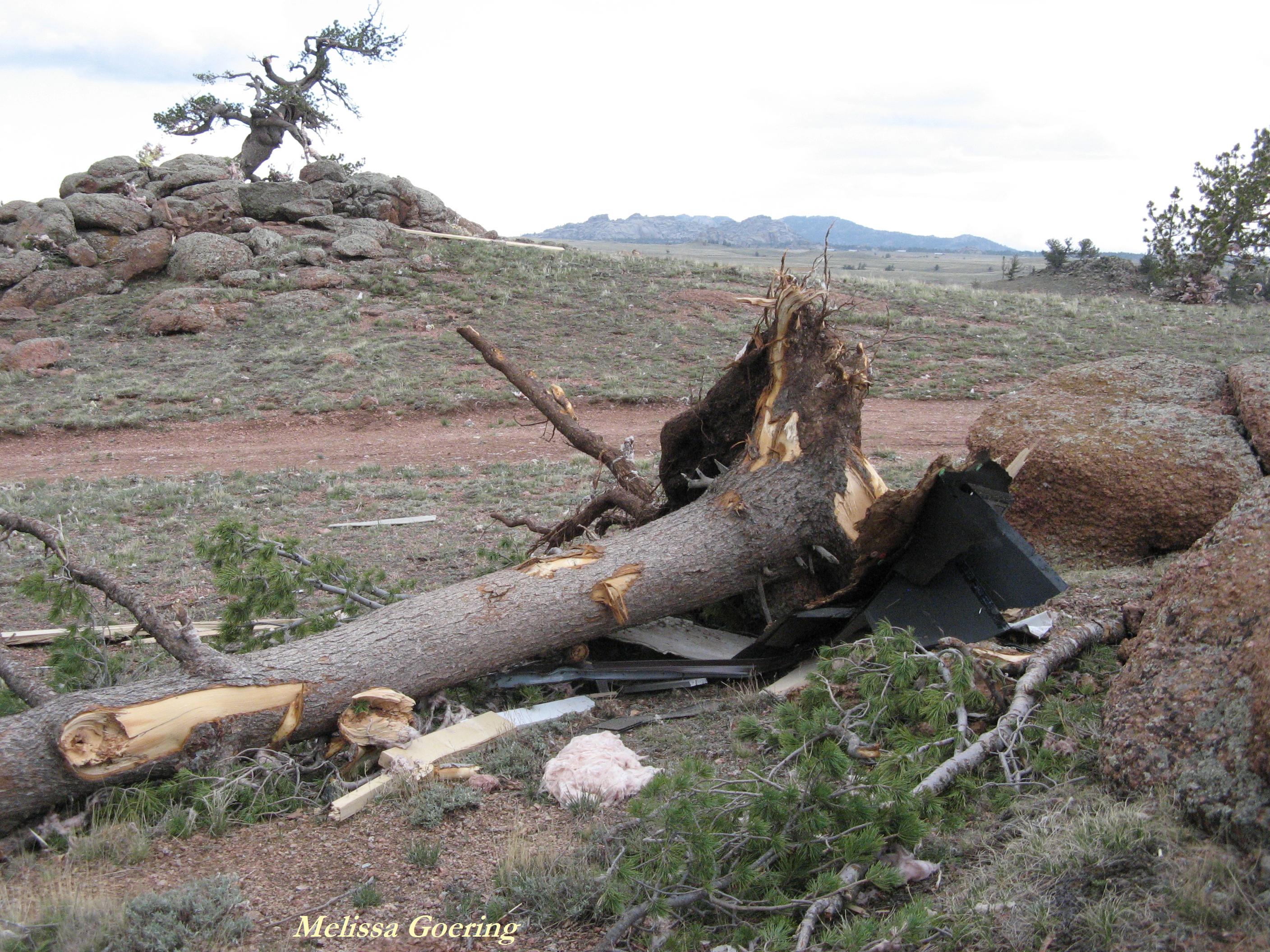

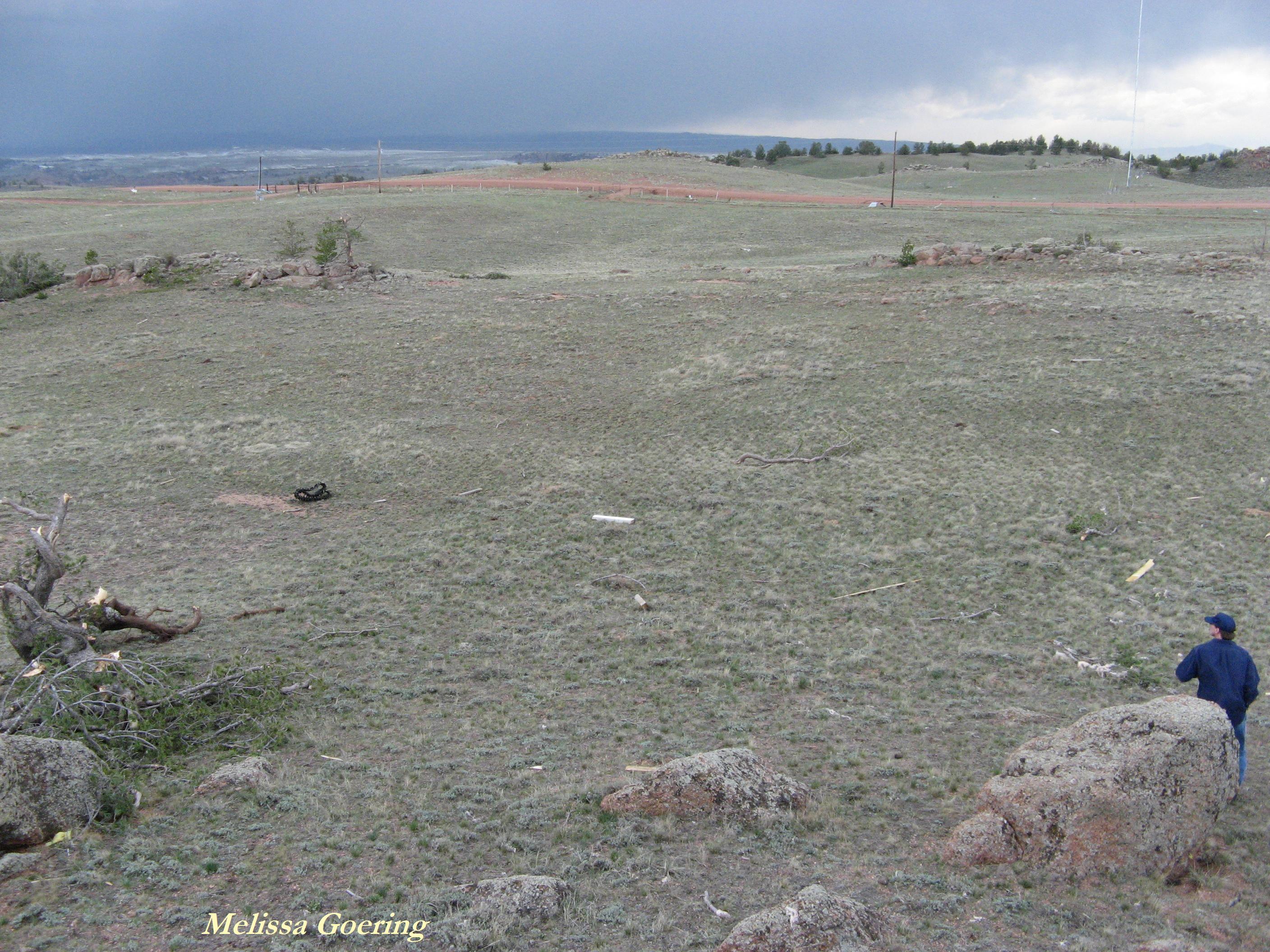

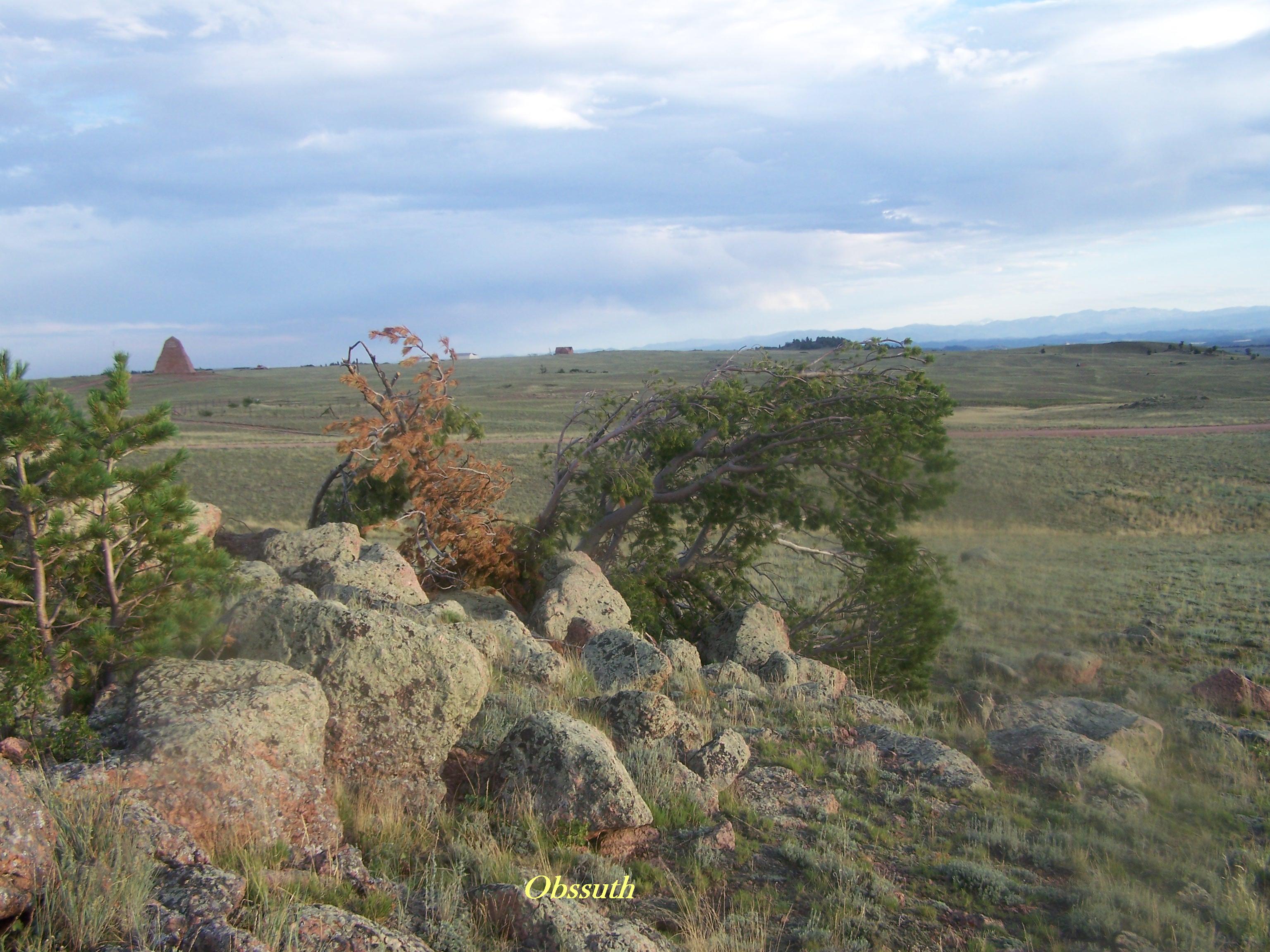

Here are some pics of the trees downed behind the Obssuth residence.
The first picture shows Ames Monument in the background and shows just
how treeless this area is.
Trees1 Trees2 Trees3 Trees4

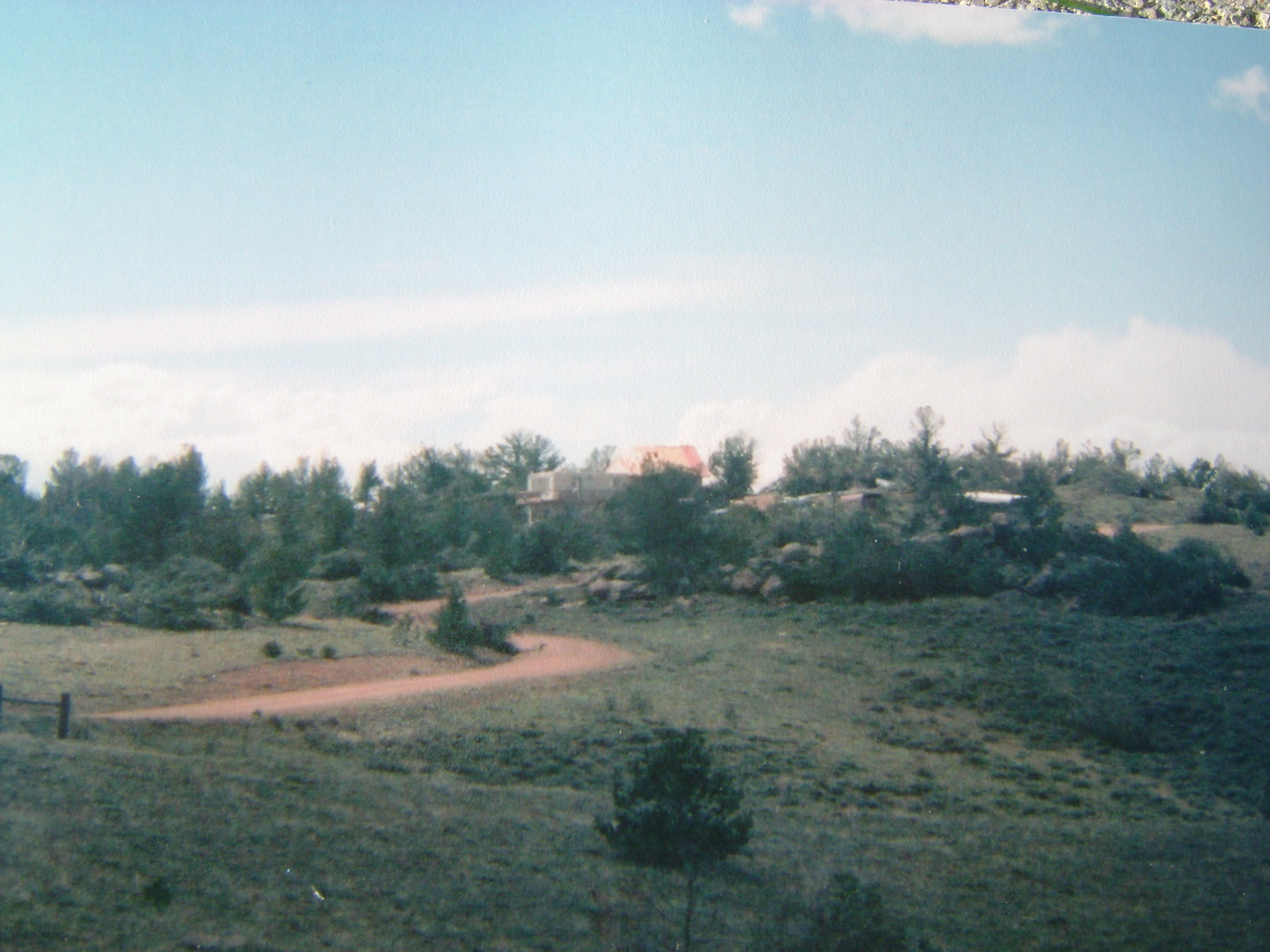

The tornado then moved over the Glen Smith residence between
Hermosa Rd. and Vedauwoo Rd. His house was partially unroofed and the
deck received damage. However, there is a 200 ft. rocky escarpment
immediately south of his house and this may have spared his residence
major damage. Many
trees (100 to 150) were downed on his property and along the dirt road
that leads to
his house. According to Smith, the trees were downed in a 1/2 mile
swath centered near his house. In fact, trees were downed at least as
far west as the Von Lunen residence. The roof of the Von Lunen house
was lifted and set back down and had to be replaced.

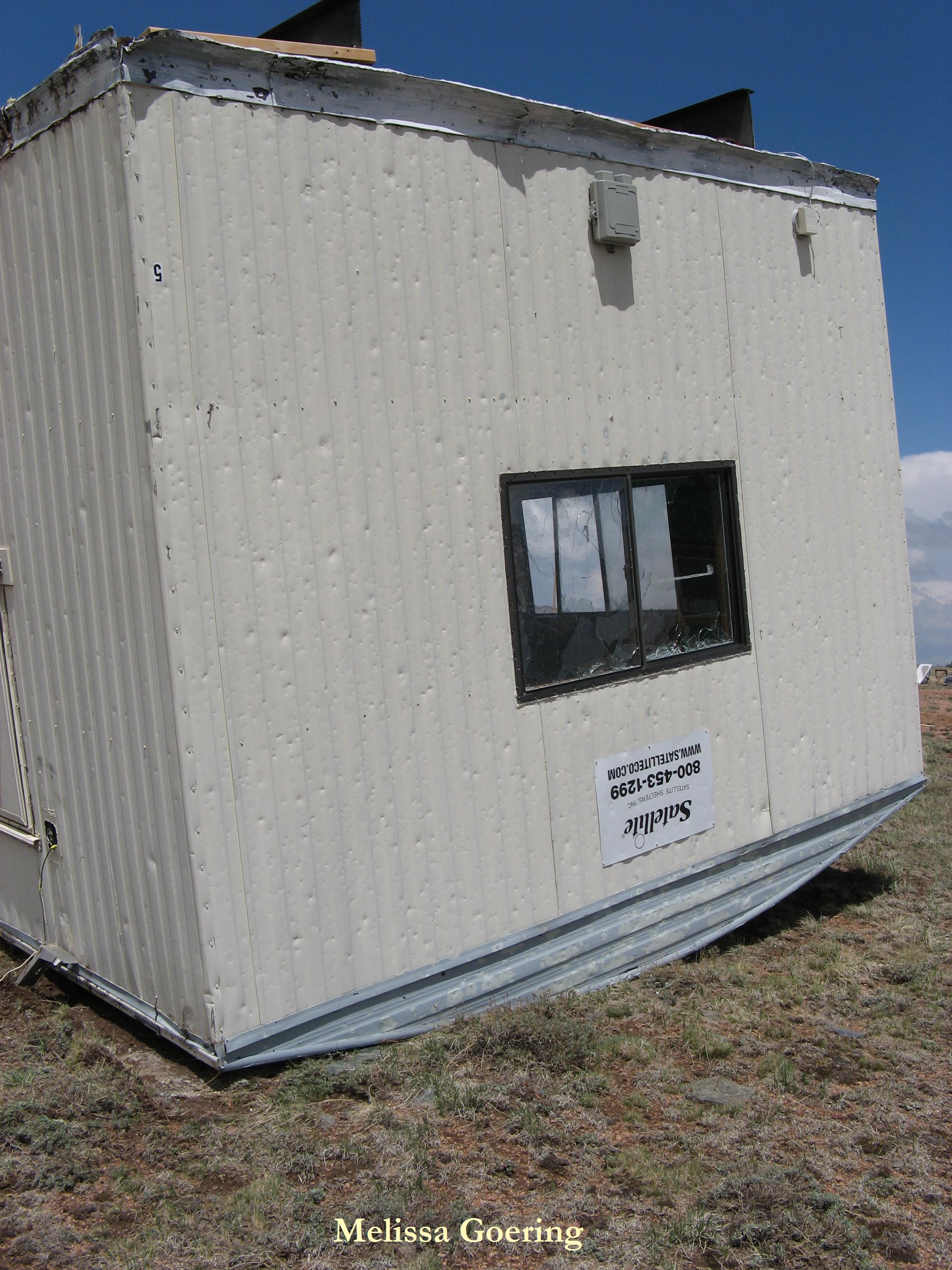

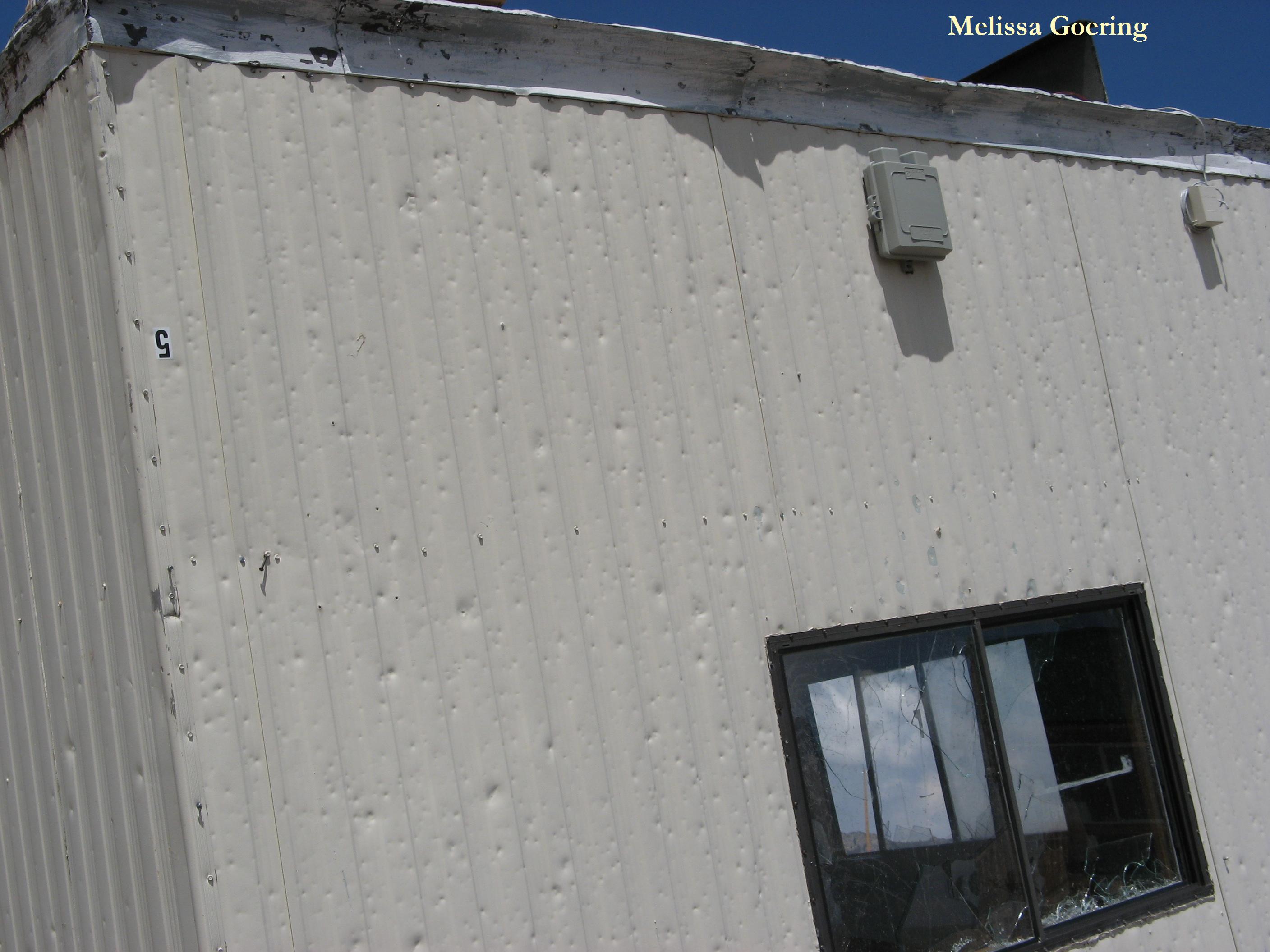

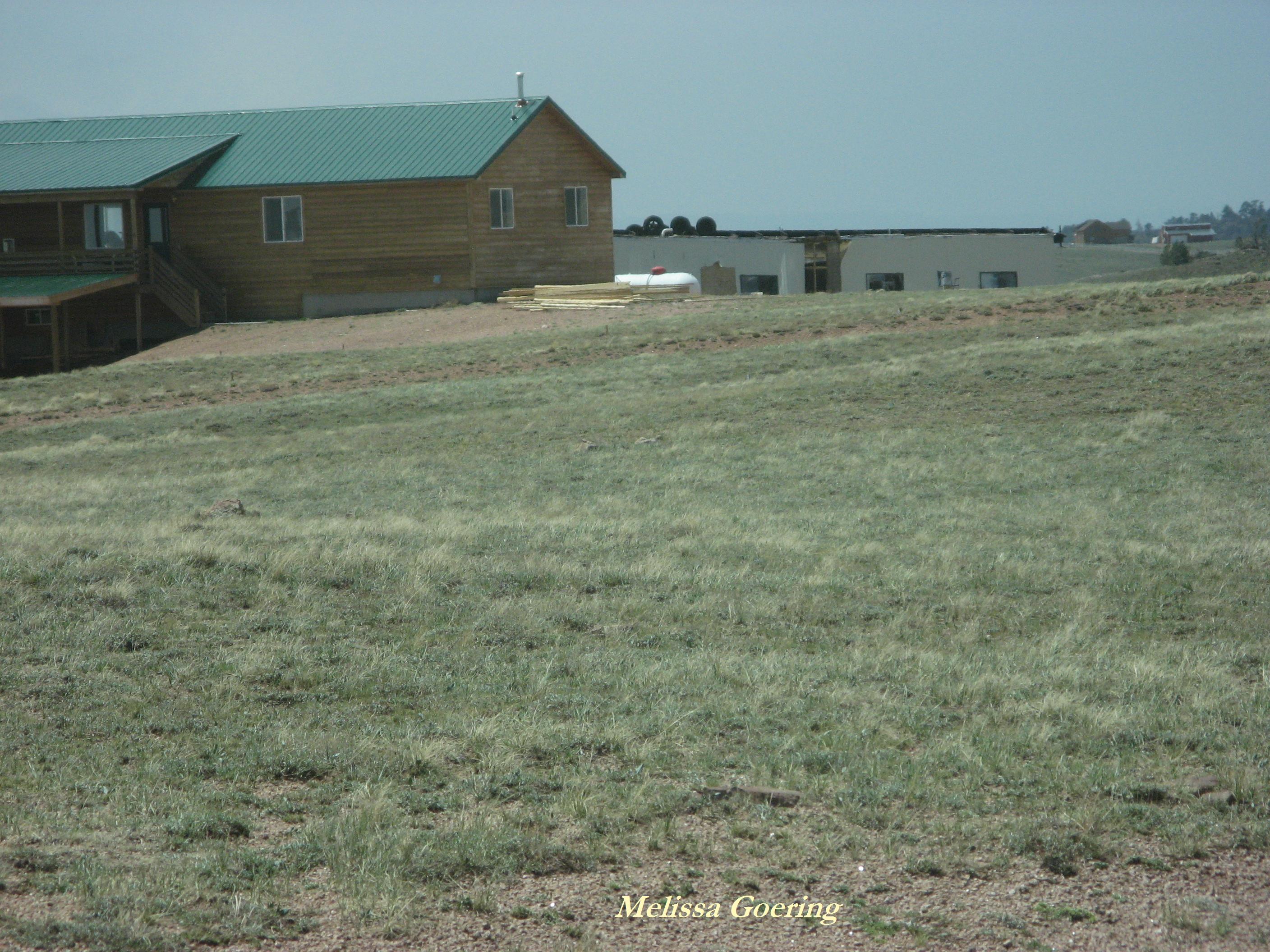

Some tornado and hail damage was done off of exit 329 along Monument Rd. as shown in these pictures by Melissa Goering.
trailer1 trailer2 trailer3 trailer4 trailer5 trailer6
house

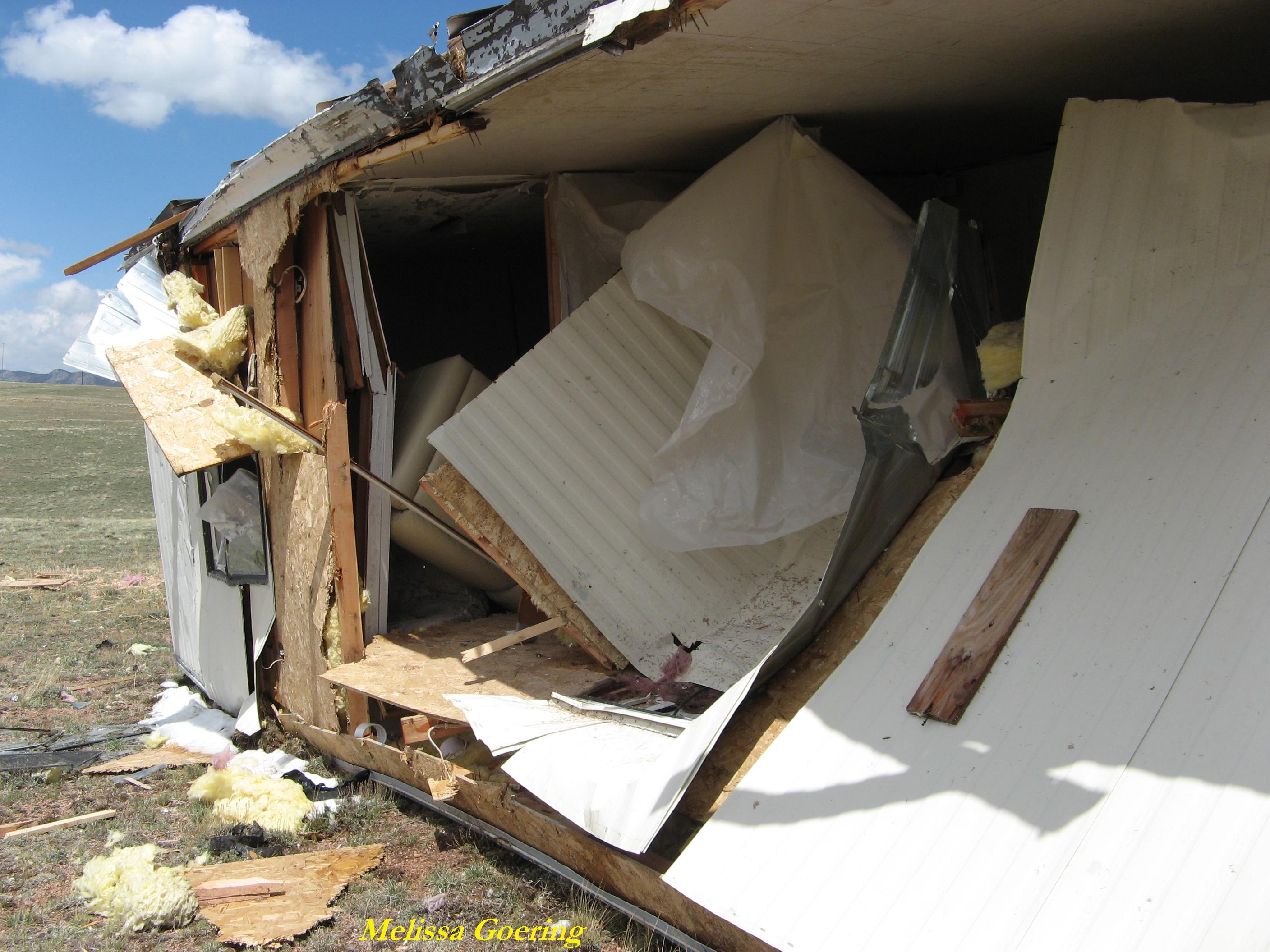

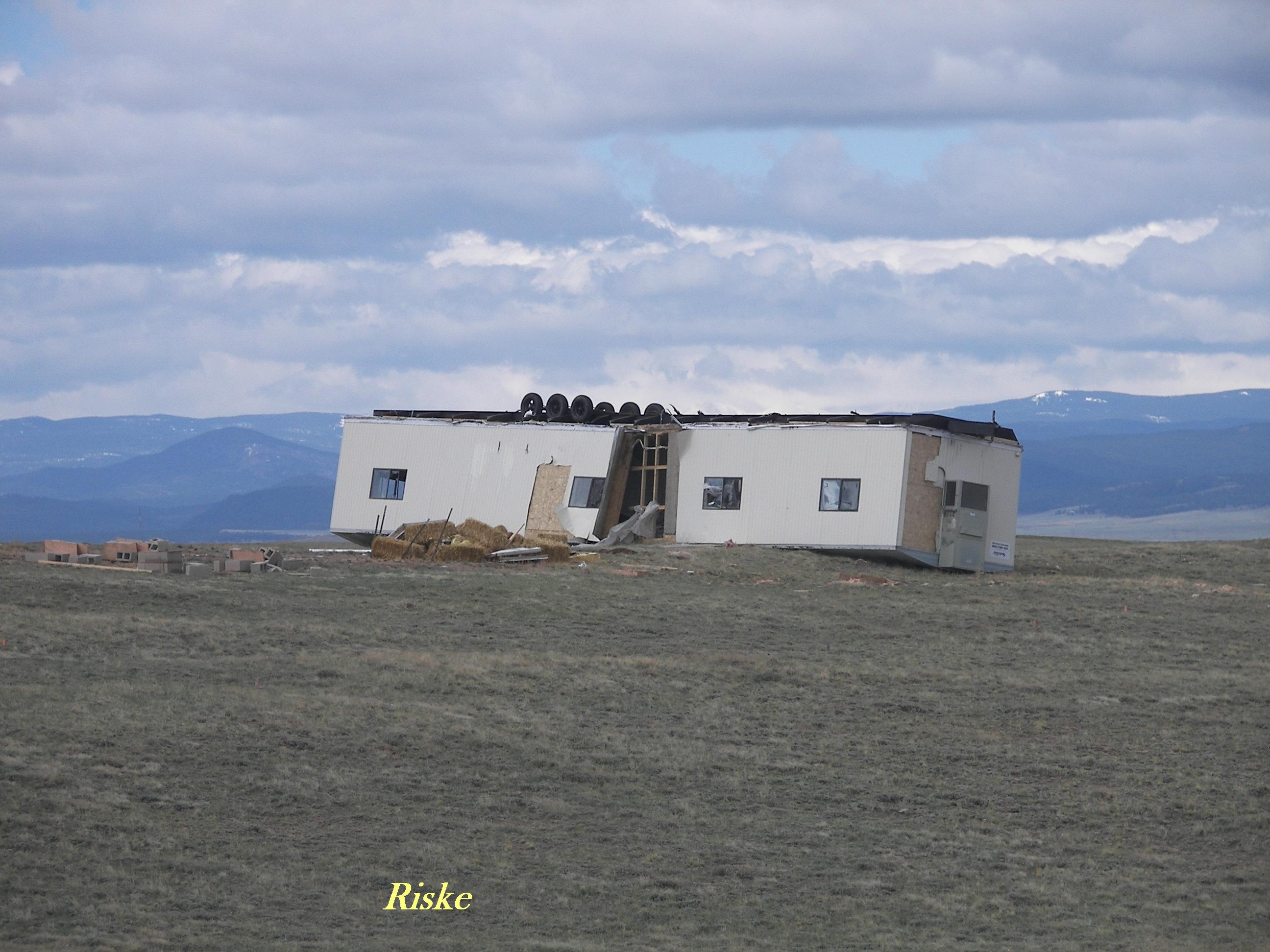

This
trailer belonging
to Phil Robinson Monument Rd. (not far from I-80 exit

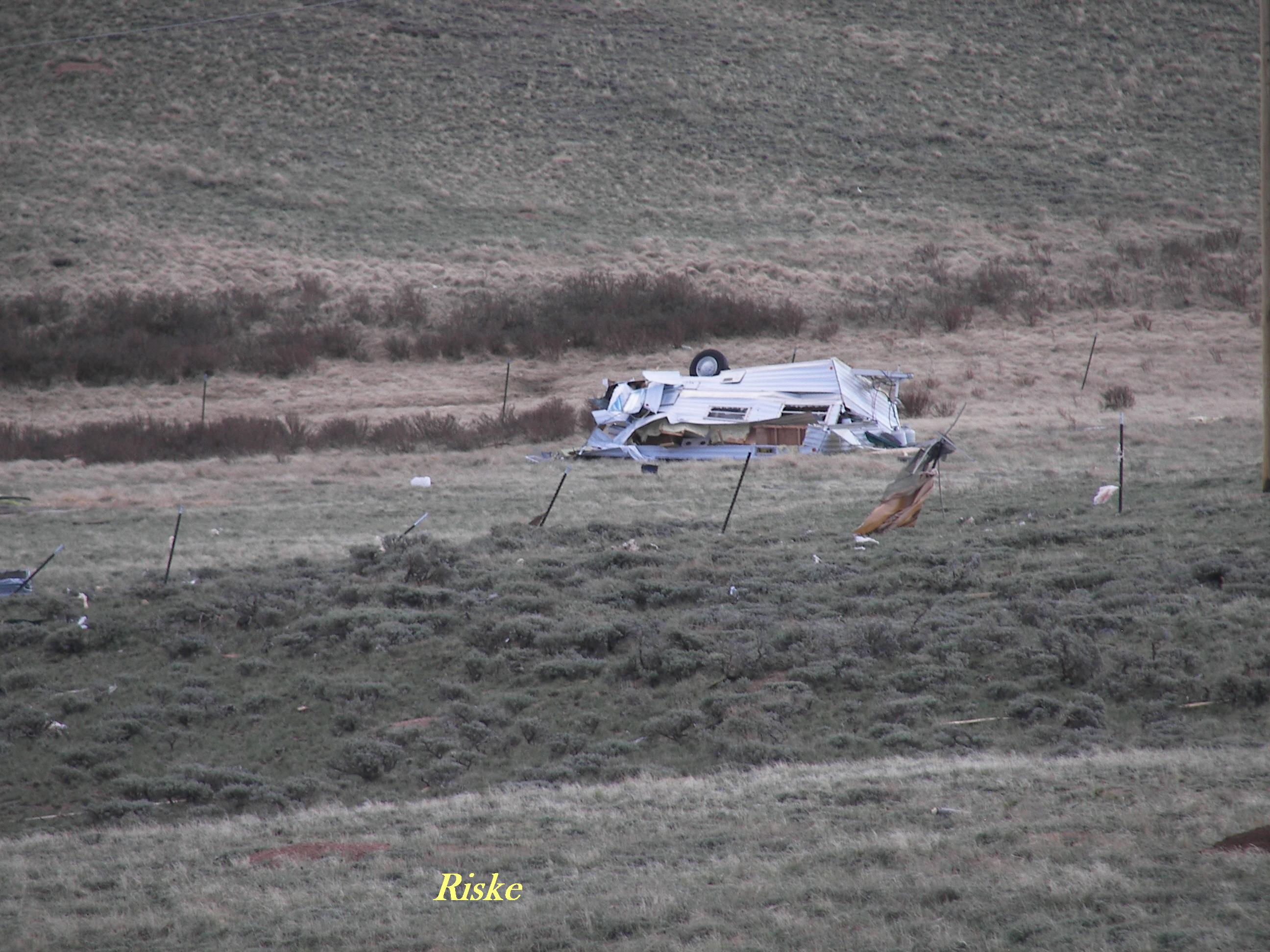

329) was flipped. This occurred on the easternmost extremity of the

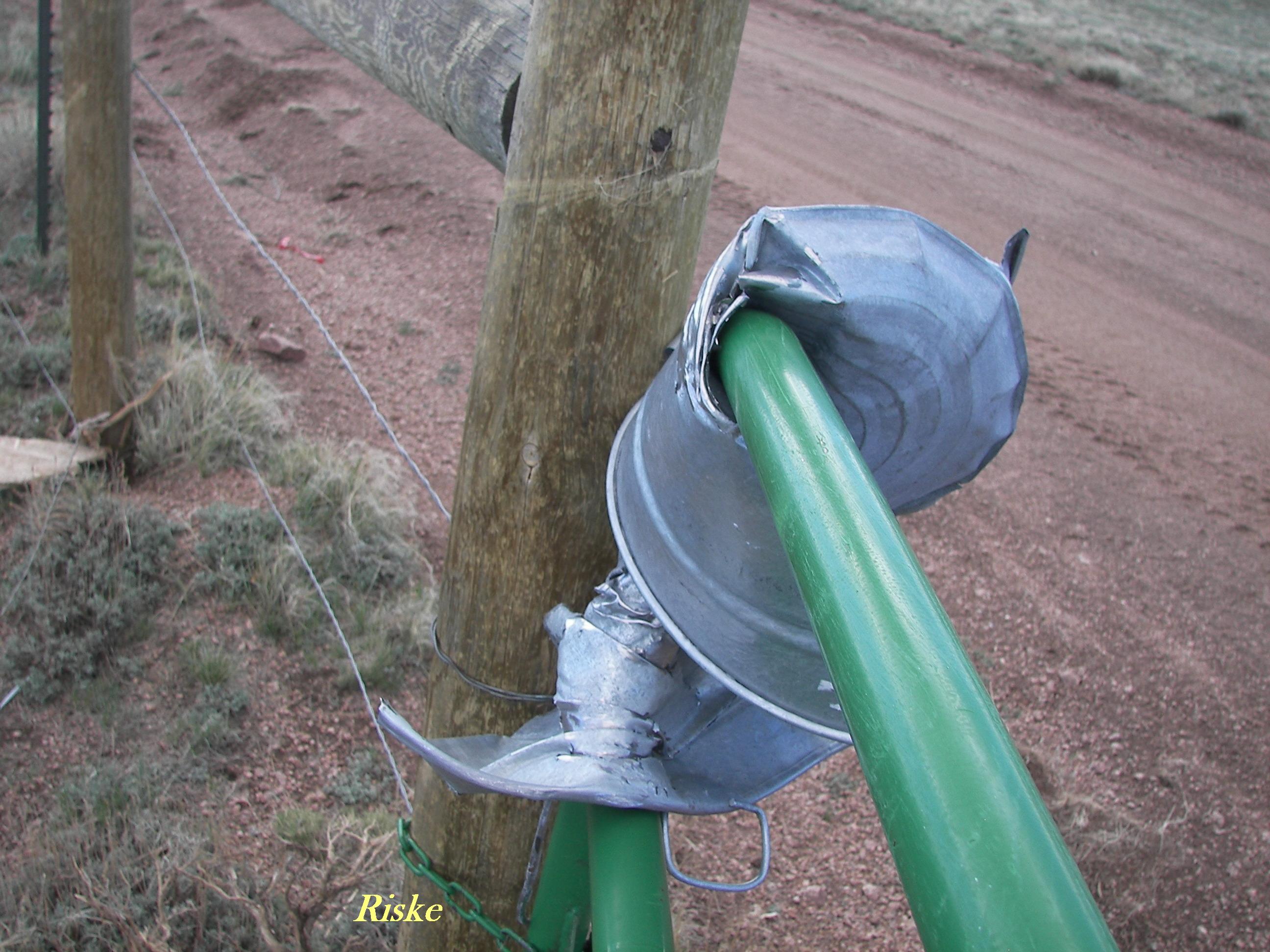

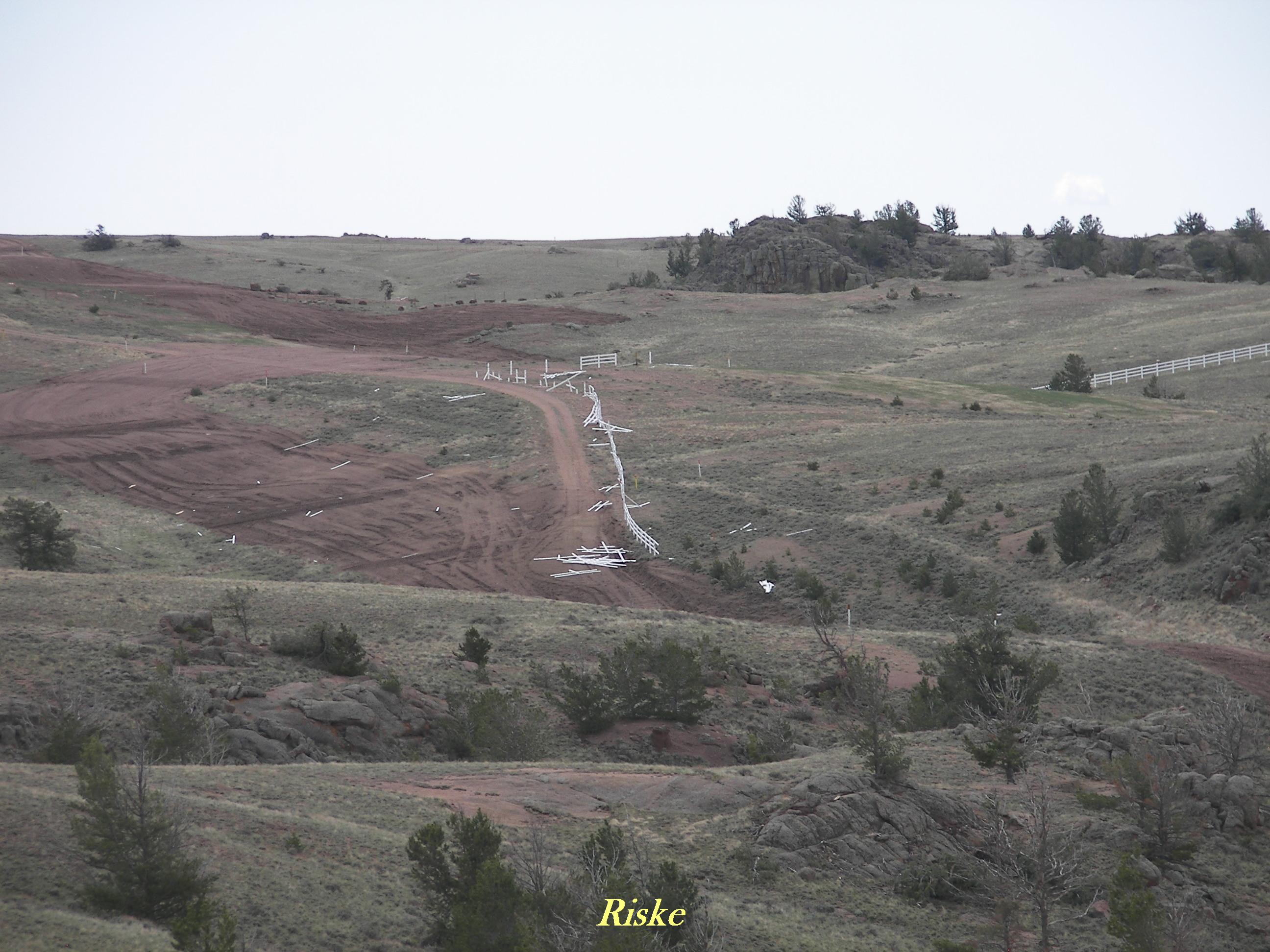

tornado. This picture was taken by Jack Riske. This is the same trailer
as shown in the pictures immediately above taken by Melissa Goering.

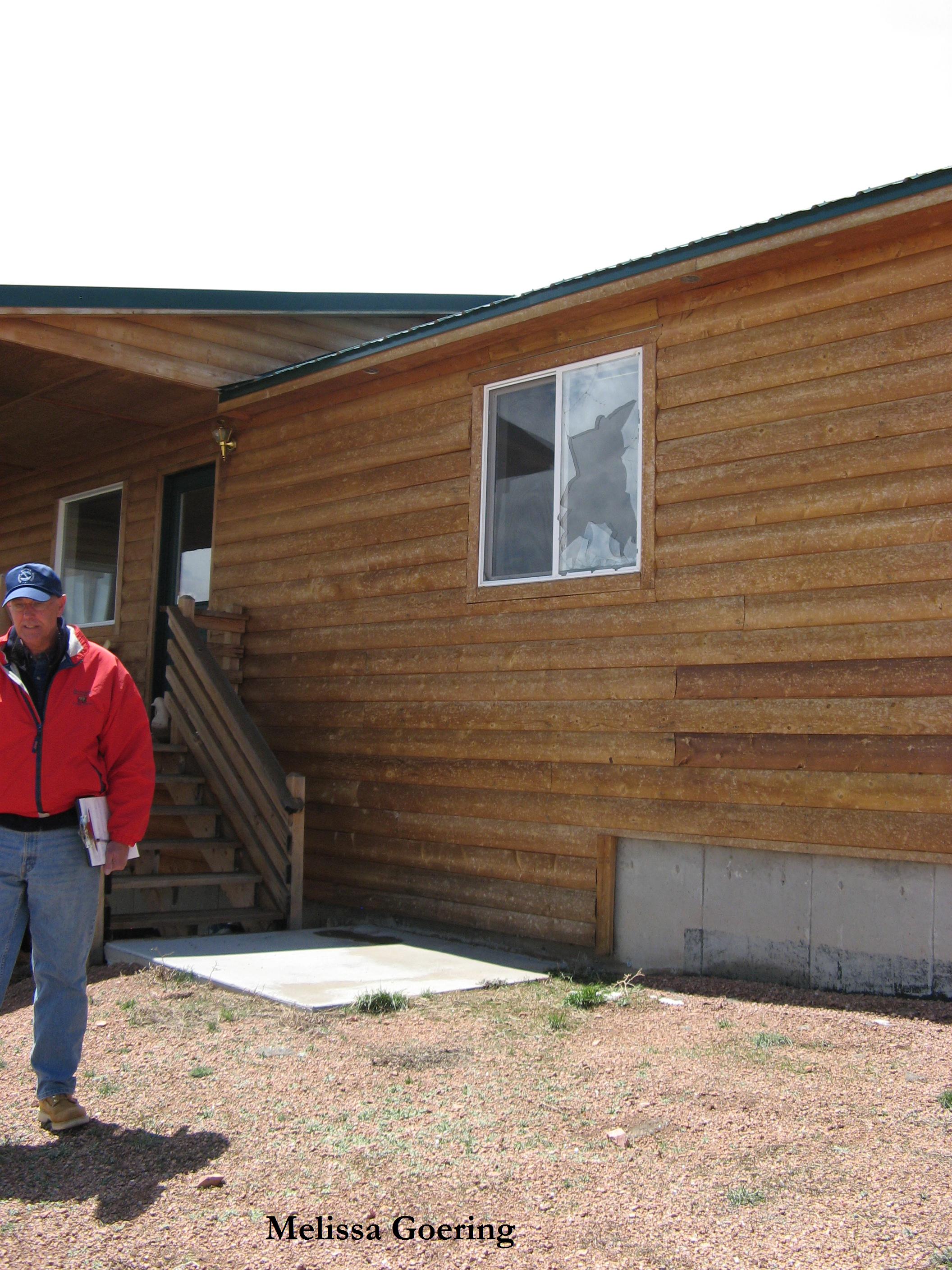

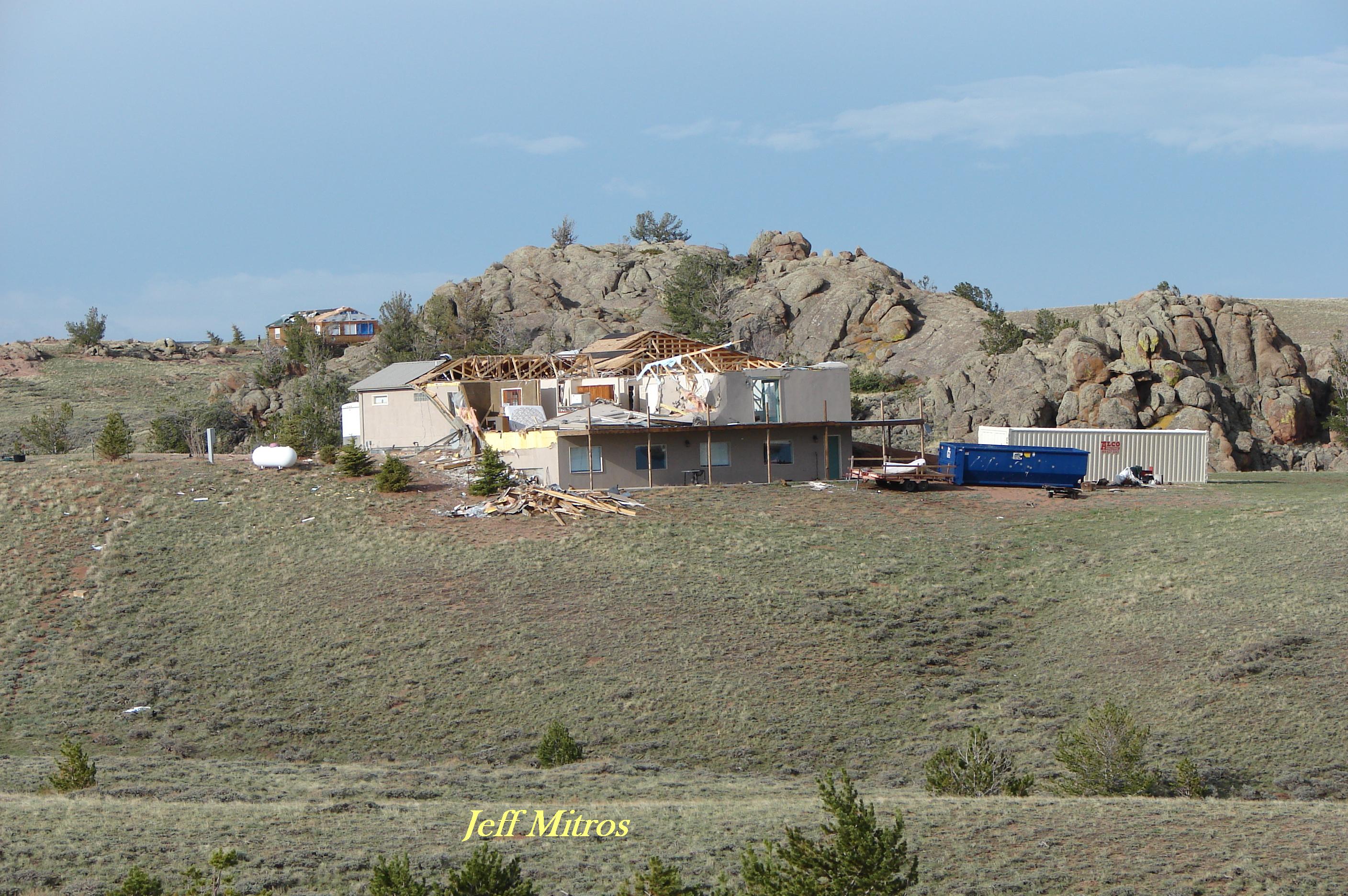

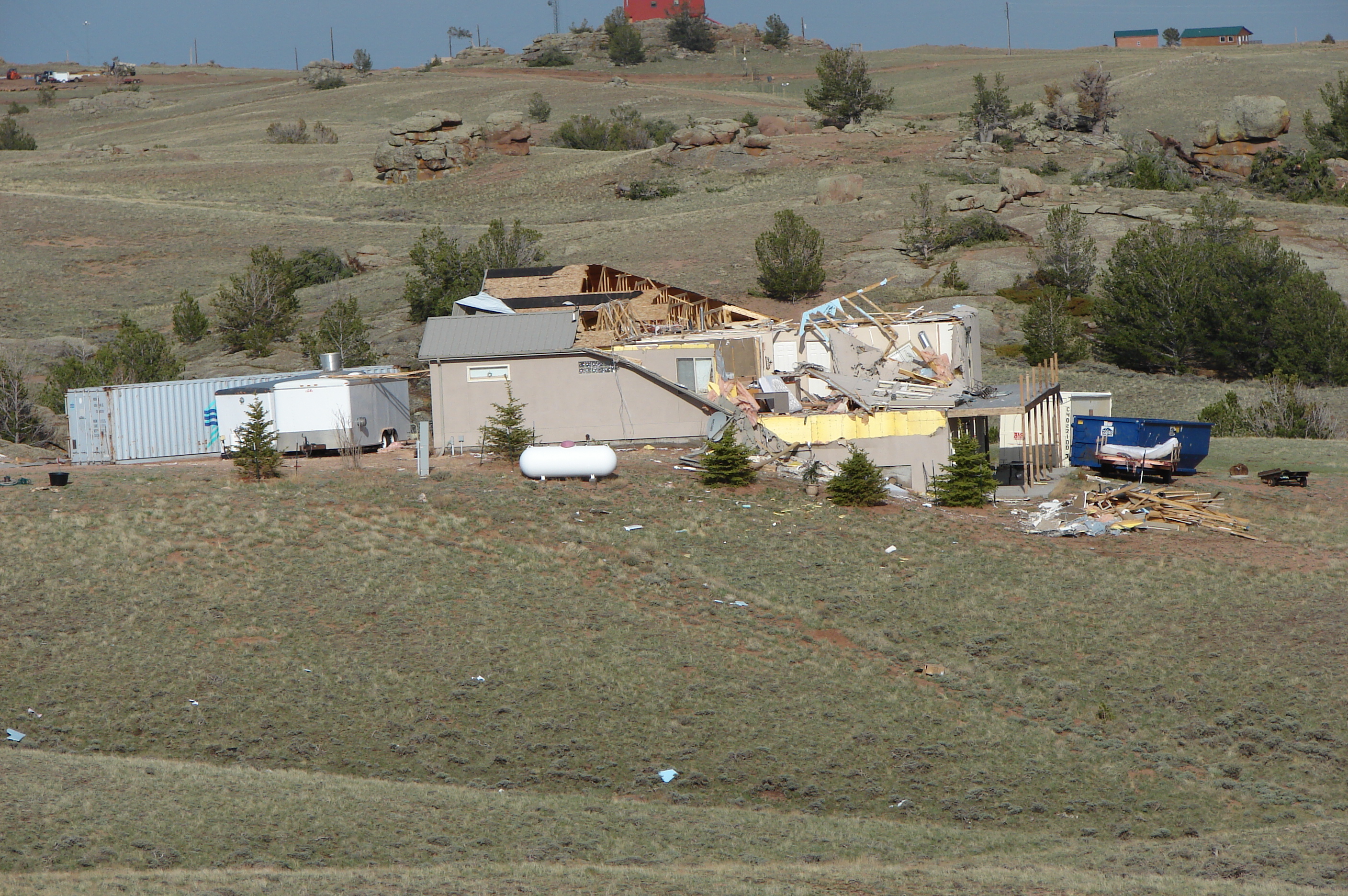

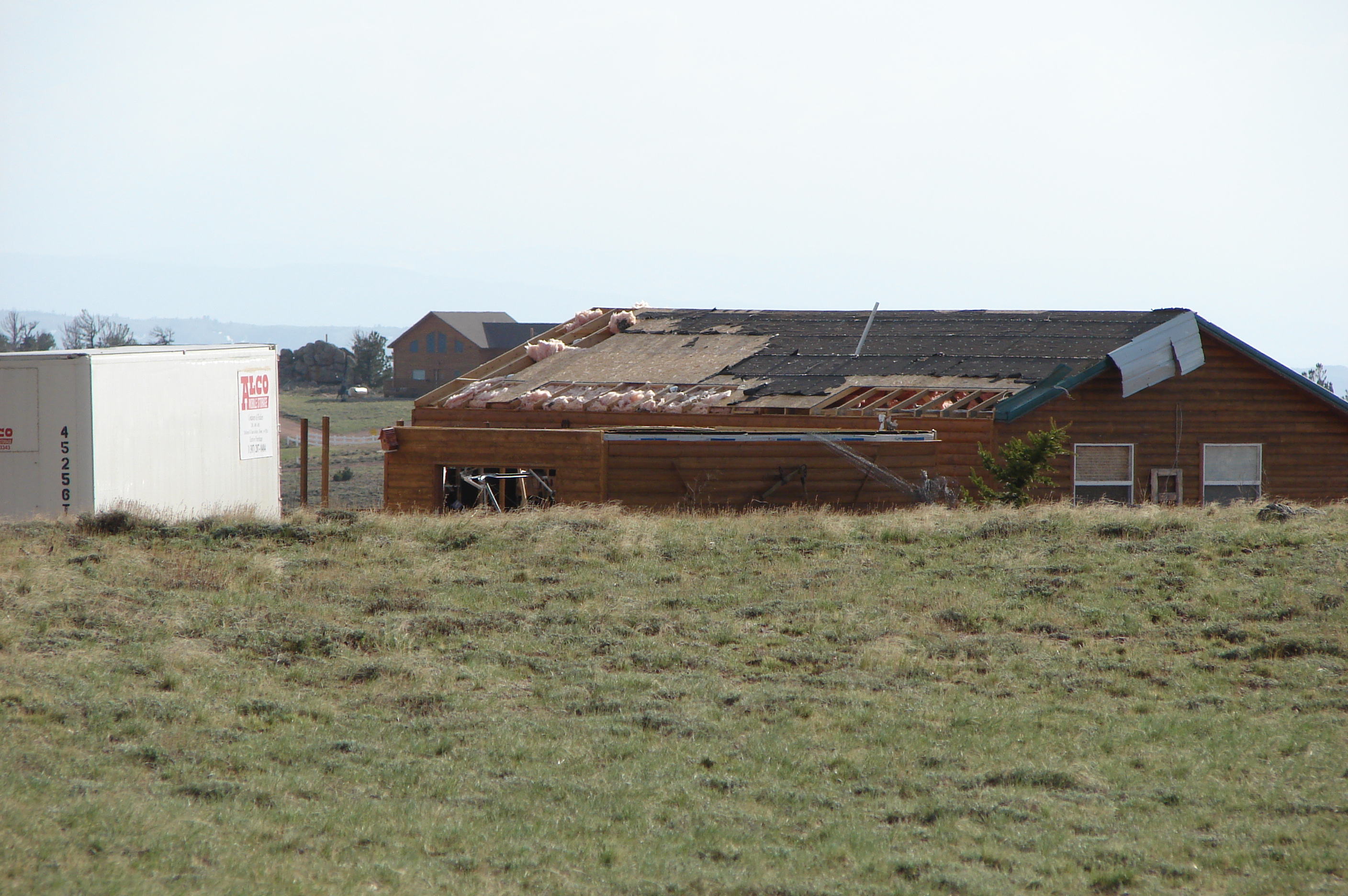

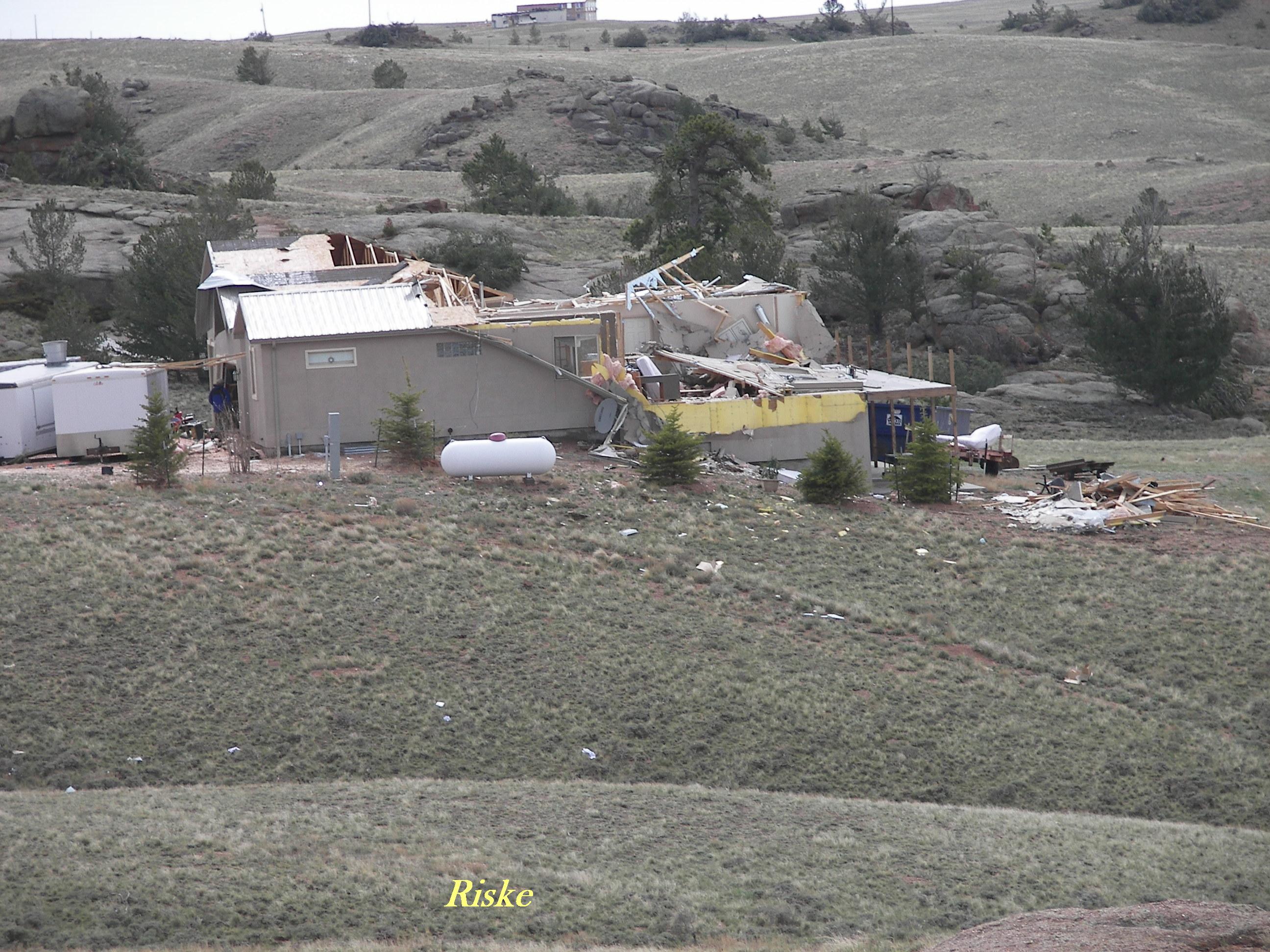

The tornado then hit the Gil Wilson house and especially the Gayle Wilson house immediately south of Vedauwoo Rd. Jack Riske
took these
pictures of the
Gayle Wilson
house. In the first picture, the Gil Wilson
house can be seen in the background. The roof of his
house was partially torn off. The porch was torn off and the garage lost its roof.
Fence located southeast of the Wilson residence was scattered.
The tornado then moved just west of the house belonging to Russ Rogers. Ten
windows of his house were broken by large hail and 2X4's. Thirteen roof
panels came off. His S-10 pickup was totaled after being hit by boards.
Debris was strewn all over his property. 2X4's were embedded in the
ground. Parts of a trailer were scattered for a mile. Many trees were
blown down. A 24 ft trailer was overturned and moved 150 ft. Glass from a house window blew into the house and sliced a wall.
Pic1 Pic2 Pic3 Pic4 Pic5 Pic6 Pic7 Pic8 Pic9 Pic10 Pic11 Pic12 Pic13 Pic14 Pic15 Pic16

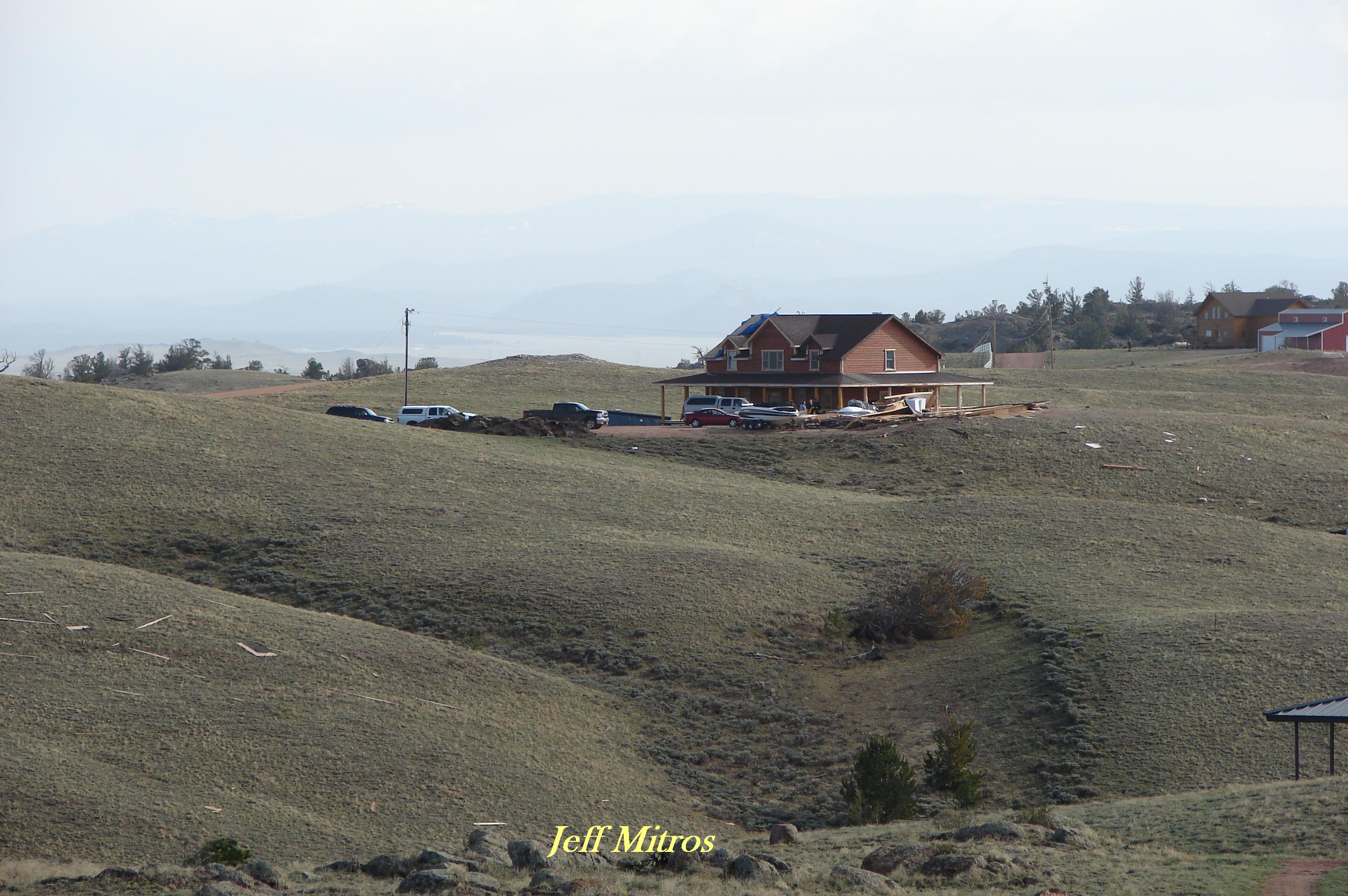

Jeff Mitros of Vedauwoo Rd. reported to me that
most of the extensive tornado damage was confined to a path about 1/4
mile wide. Along
this path the tornado climbed in elevation to 8700 ft. Major damage
occurred around 1917 UTC on West Vedauwoo road at 8400 ft. Gayle
Wilson's house was
destroyed by
the tornado. 2X4's from her roof were embedded in the ground several
feet. She told
me this was quite an accomplishment since the ground is so
hard (gravel-like) that it is difficult to even dig a shovel into it.
She also reported that nails from her roof were embedded the wrong
way into fence posts 500 yds. away at another residence. A woman in the
Vedauwoo area was injured by flying glass as one of the windows in her
house was blown out. All the south facing windows were either knocked

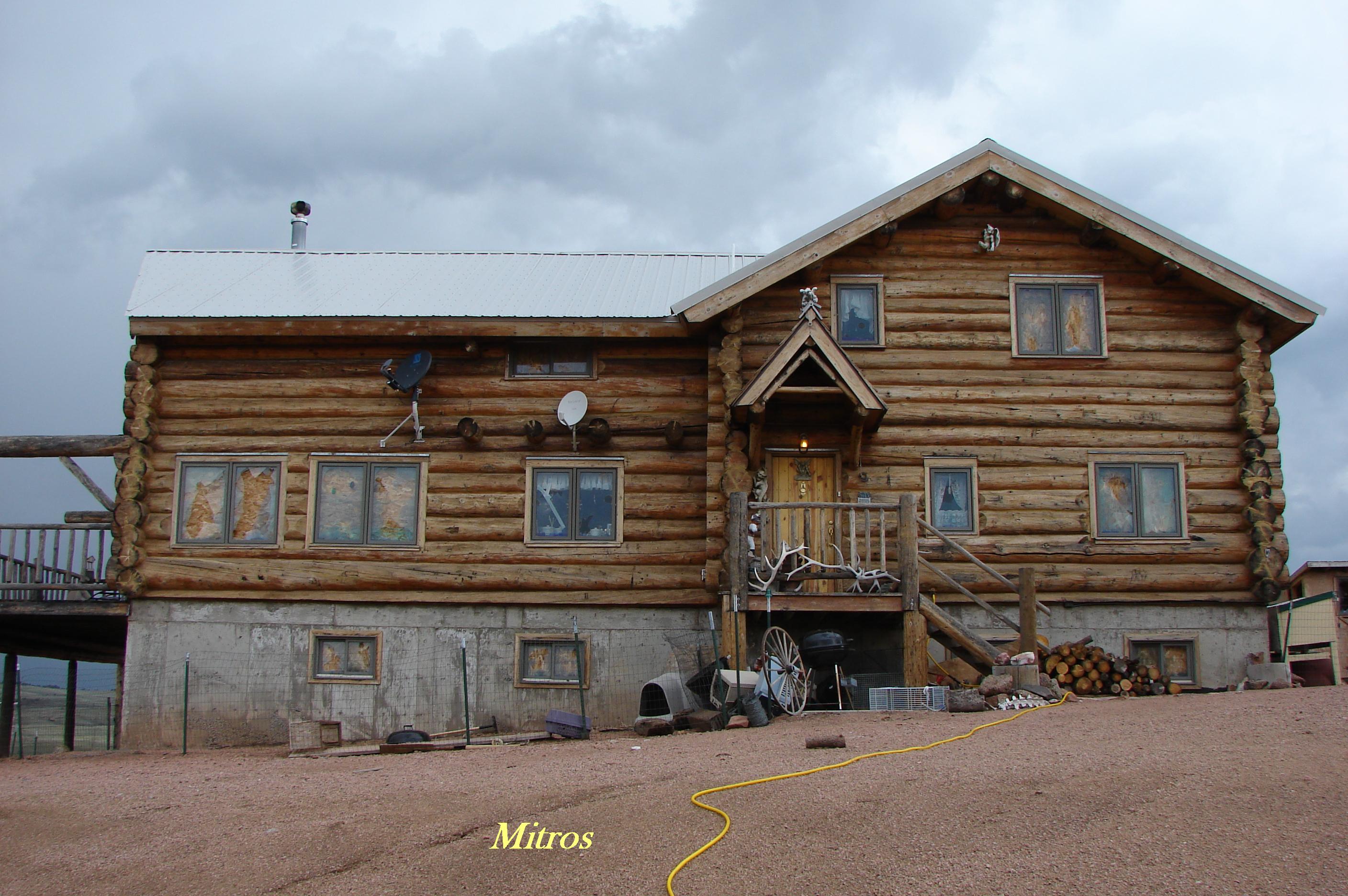

out or punched through by hail at the Jeff Mitros residence. Mitros
also reported numerous hail dents in vehicles. These dents were mainly
on the sides of the vehicles since the wind was so strong. Many of the

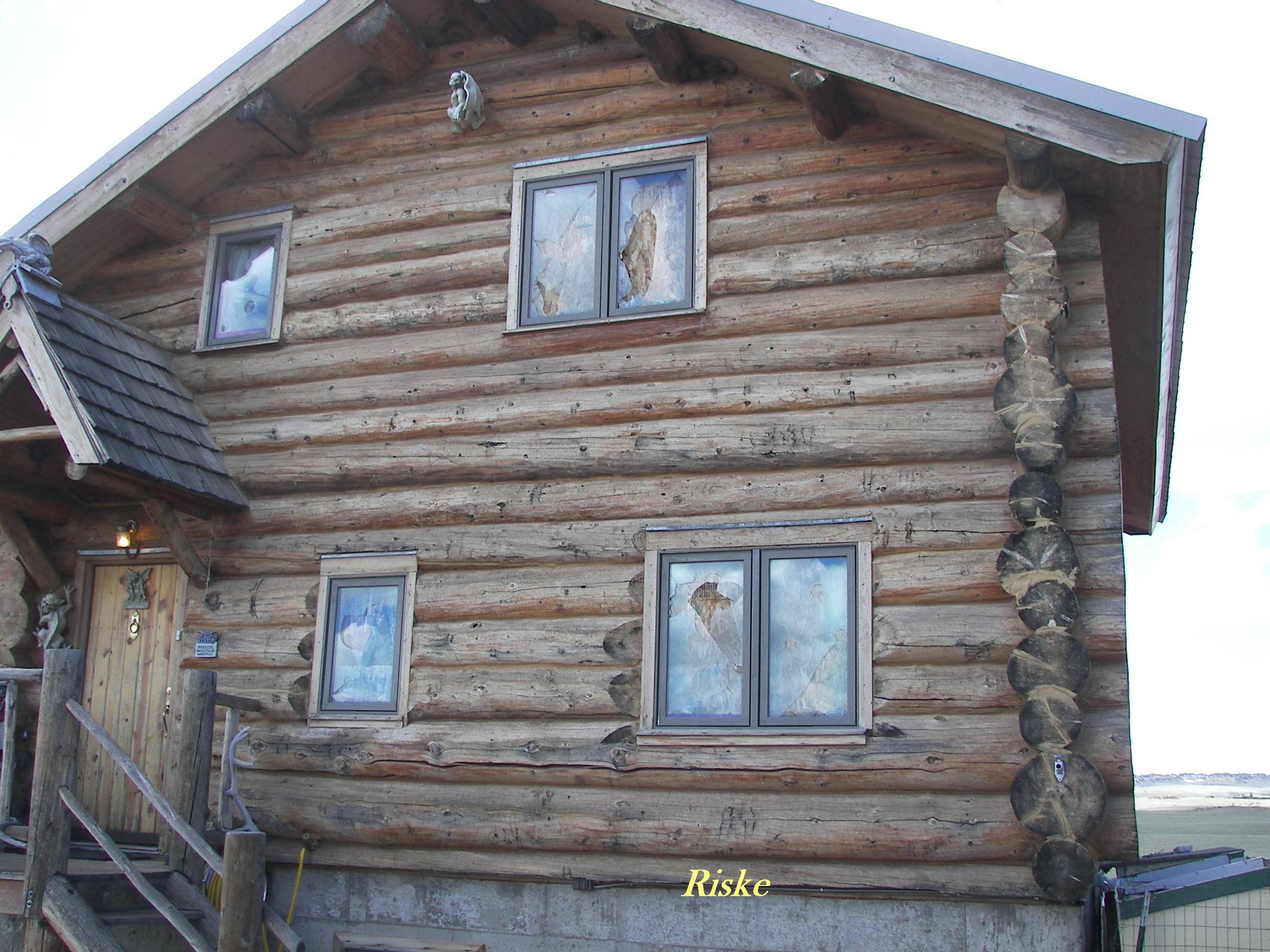

wooden logs of his log cabin
were damaged by hail. Hail also left large holes in the south
facing windows of another house on Vedauwoo Rd. Ping-pong to
golfball sized hail occurred on
Overlook Rd and Howe Lane. The tornado climbed to the summit of the
Laramie Ridge (>8700 ft) as it approached Overlook Rd. A grove of
Pine trees was downed by the tornado
on Overlook Rd. The Harriman-Laramie tornado path was
continuous for 18 miles from west of Harriman to north of Overlook
Rd, and possibly for 31 miles to north of Laramie. There is a hilly
area between Howe Lane and the southeast extremity of Laramie (3 to 4
mile stretch) where no people live and where few trees grow.

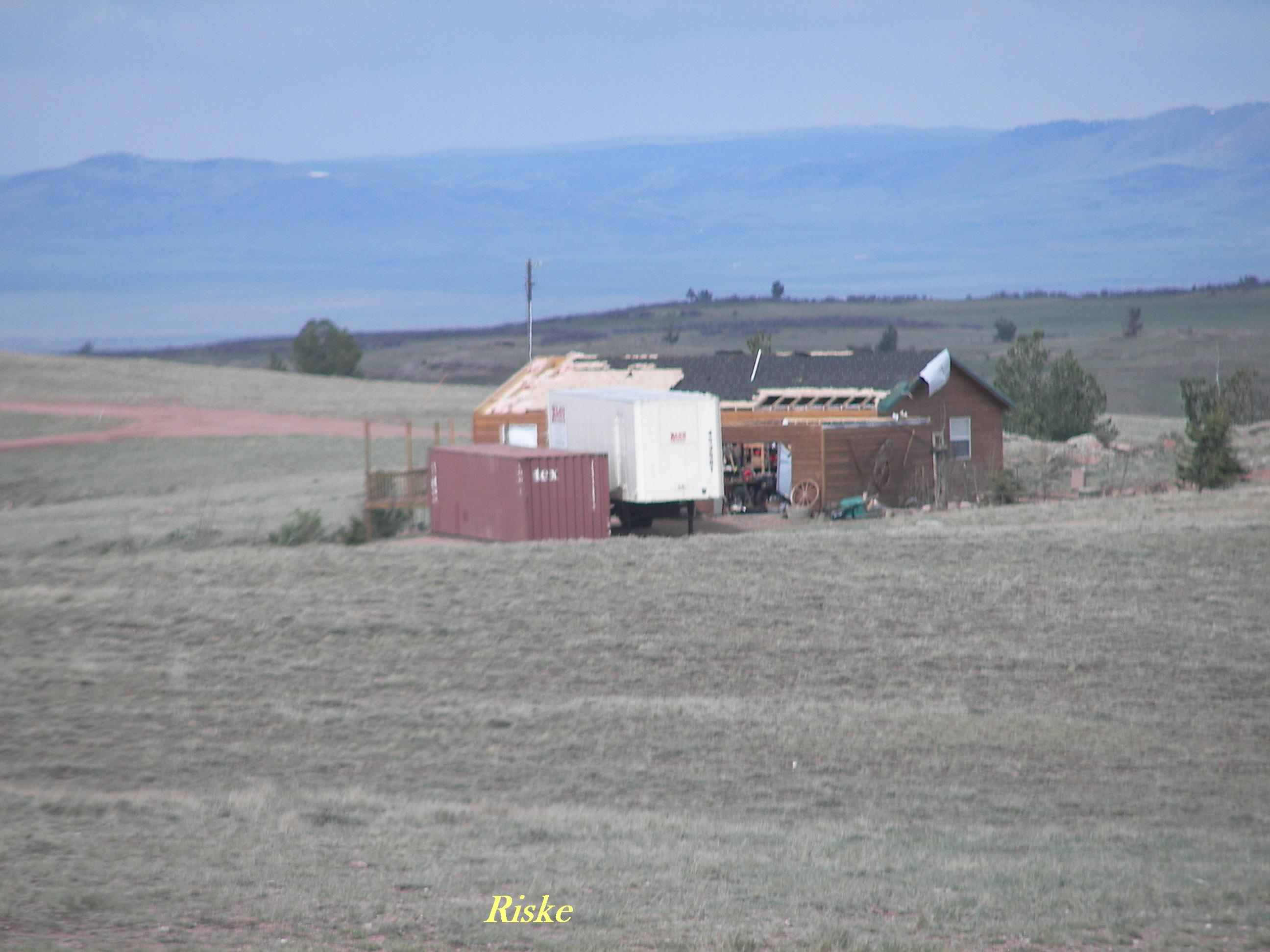

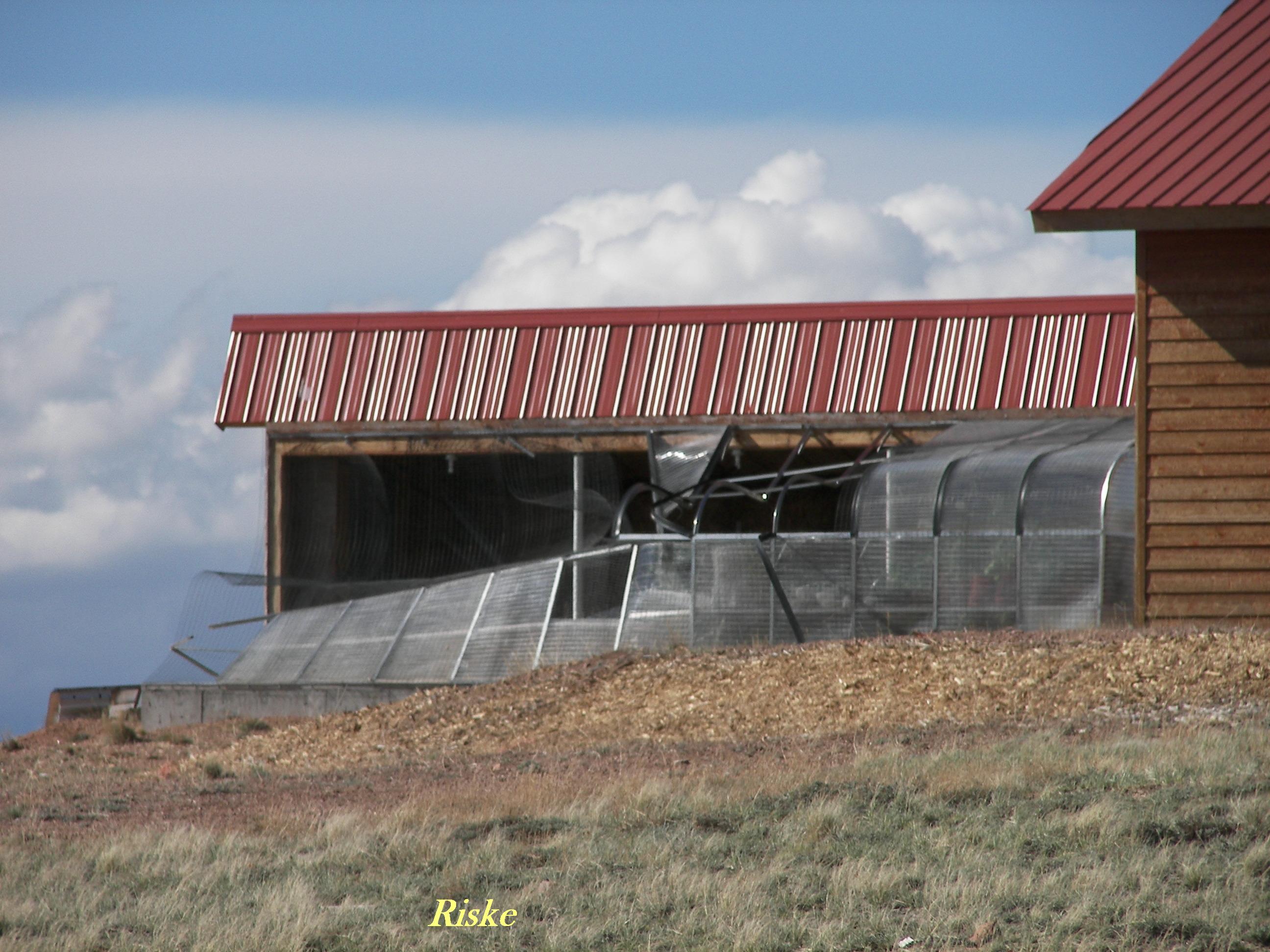

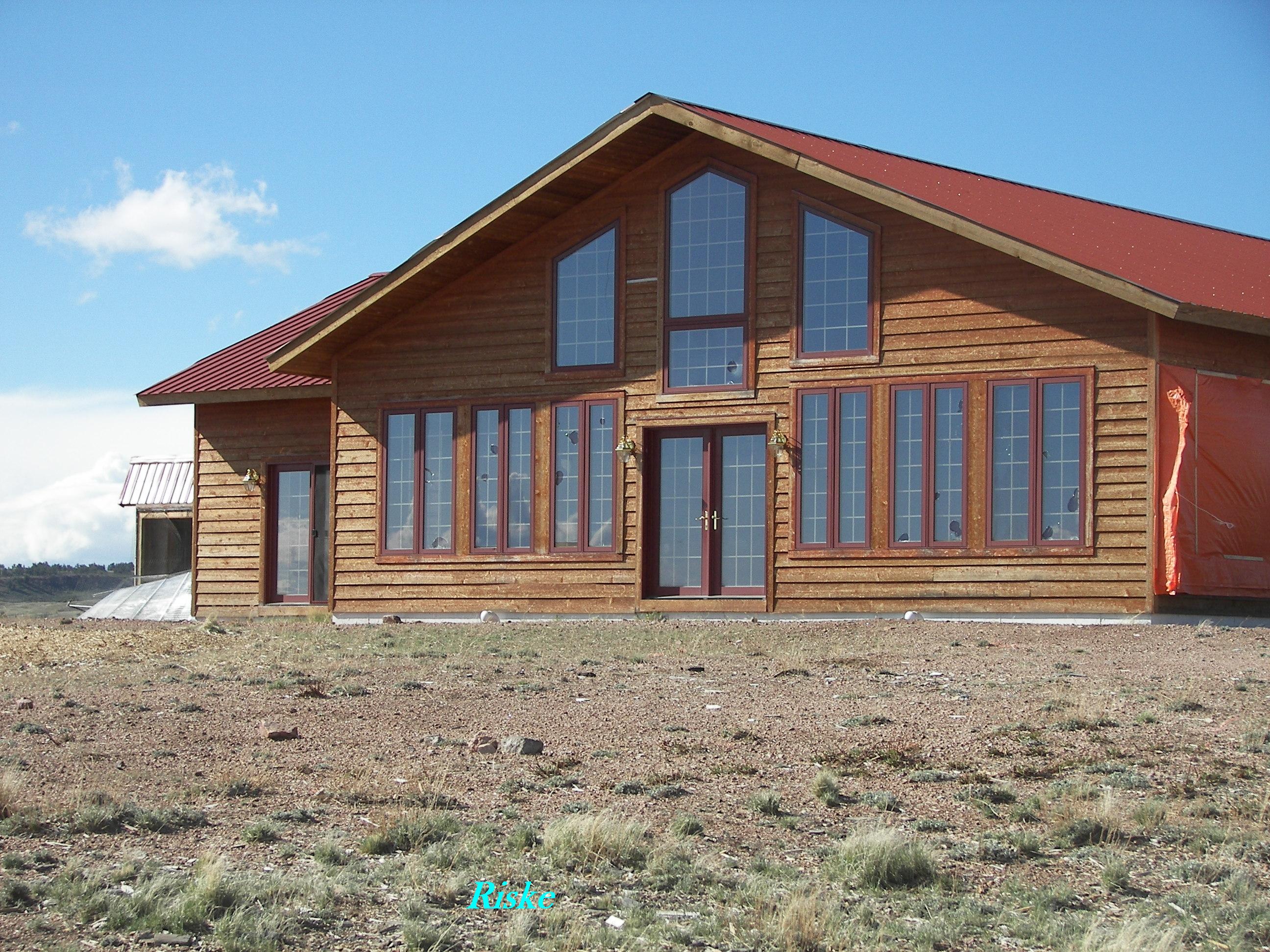

Jeff Mitros and Jack Riske took many
pictures of the tornado and hail damage. The Jeff Mitros residence
suffered damage from wind-driven hail. Mitros reported that dense
fog with
visibilities around 100 ft. prevailed all day. Some of the
holes in his house windows were the size of baseballs
and even softballs.
The elevation of the Mitros residence is 8400 ft and is located close
to "the summit" of the Laramie Range. Three inches of snow
fell on Overlook and Vedauwoo roads (Mitros and Myers
residences) during the evening of May 22 (after the
tornado). Jeff Mitros and Jack Riske helped document
this rare storm.

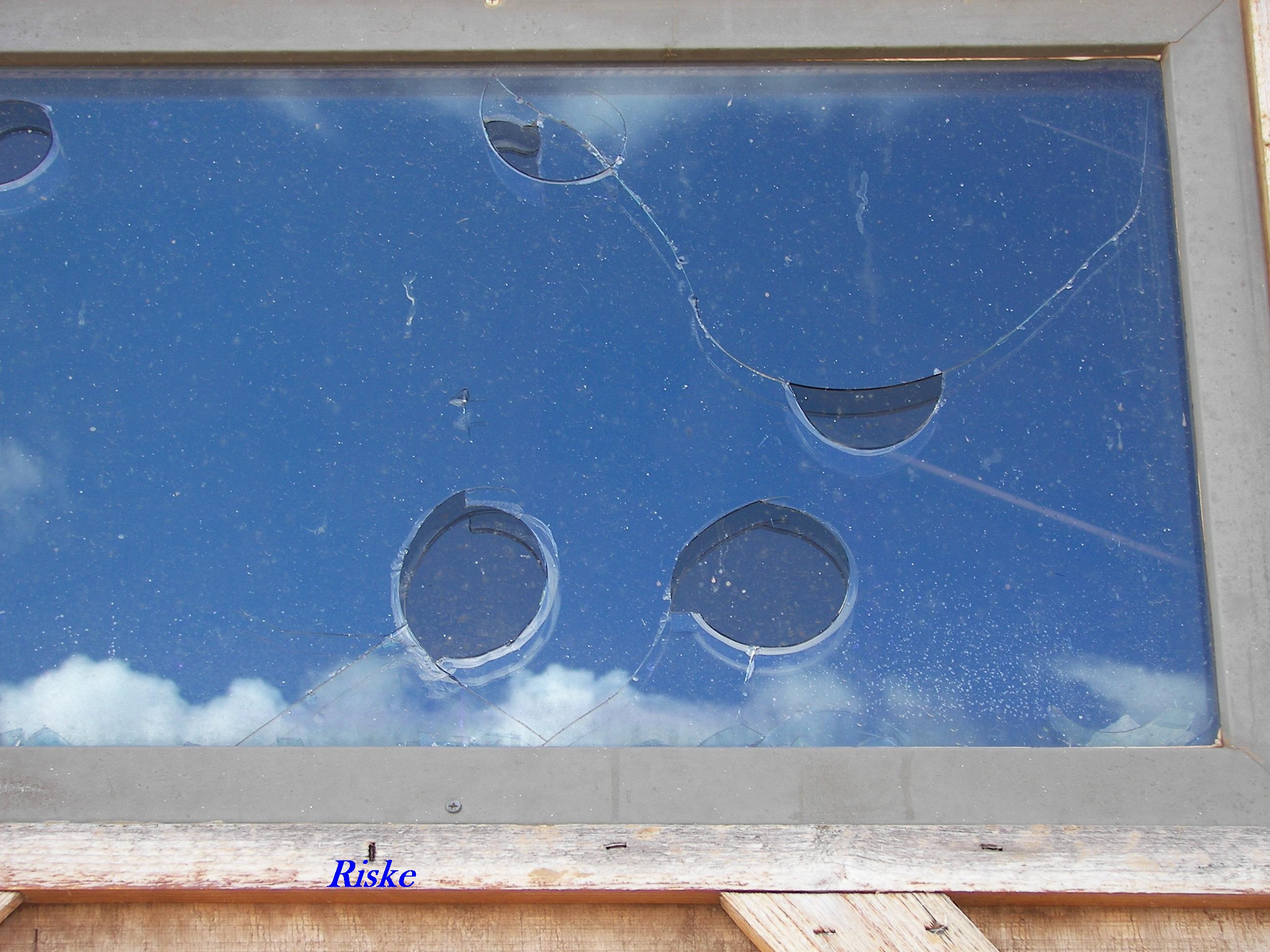

These pictures show the
extensive
damage to the windows of his house, Datsun Z-280 and other items
caused by very large hail. His windows are double paned, single
strength, 1/4" glass. The hail did not damage the interior glass.
The circular hole in the window on the 2nd floor was 4" in diameter
while one of the windows on the lower floor had a hole 4.75" by 4.5".
Perhaps there are studies that have determined hail size by the size of
holes in glass.
Pic1 Pic2 Pic3 Pic4 Pic5 Pic6 Pic7 Pic8
A
Datsun Z-280 received large dents and the passenger window was shattered at the Mitros residence.

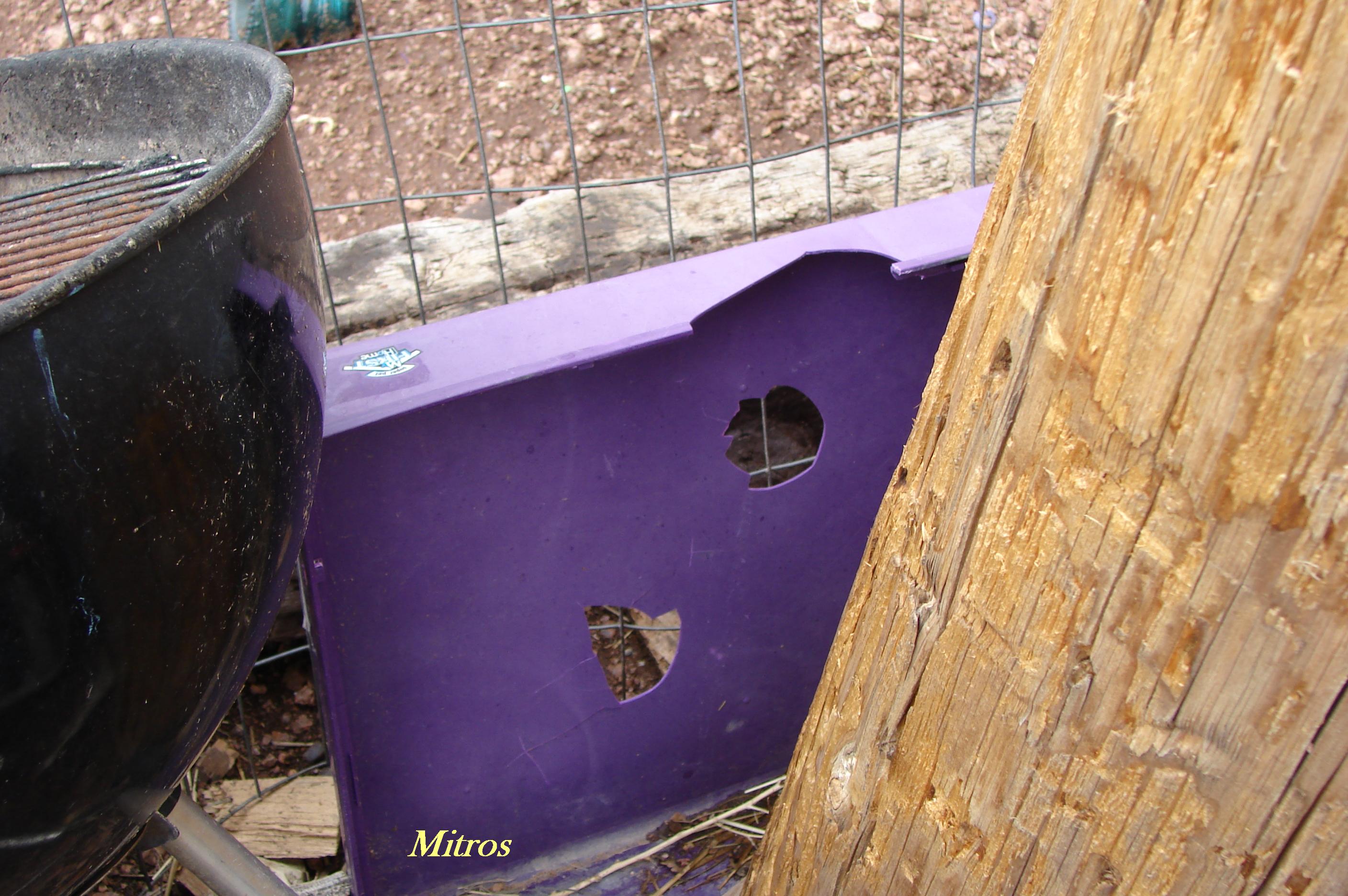

Holes in ~ 1/8" plastic sheet at Jeff Mitros residence
The tornado kept moving north-northwest after passing west of the Mitros residence. A house belonging to Phil Robinson received
holes in south facing windows from large hail. This house is 1 mile north-northwest of the Mitros residence. The
garage was also damaged.
A
few small
trees were snapped off or
uprooted south of the Phil Robinson residence. Metal was also
wrapped around a pole.
A small
trailer located south or southwest of the Mitros residence was thrown 300 to 500 yds.
A 15 gallon galvanized steel wash
tub was
wrapped around a
fence.
A
garage was destroyed and roof was lifted and set back down.
Thundersnow occurred on Vedauwoo Rd. for several hours starting around
630 pm MDT. The highest snow amount measured that evening was 5 to
6". Fairly frequent lightning accompanied the heavy snow according
to Ethan
Smith. However, residents 2 or 3 miles to the southeast along Hermosa
Rd. reported no measurable snow.
John Myers lives on the summit of the Laramie Range (elevation
8720 ft). He indicated that the tornado
path was continuous from West Vedauwoo Rd. to Overlook Rd, and northwest to
Indian Springs Rd. Myers prepared
maps
showing the locations of the damage. The tornado just missed his house
to the west around 1921 UTC. He reported quarter to golfball sized hail. A
"center-ridge skylight" on his property made of "heavy semi-rigid
plastic" had a hole about the size of a golfball.
Many
trees
16" to 30" in diameter were snapped off or uprooted along Dry Gulch
(many about 10 ft above the ground). He told me that trees tend to grow
on the southern end of the gulches (on the north facing slopes). He
also took pictures of trees uprooted or snapped off about 150 yds.
southwest of his house. Myers also documented trees down along Indian
Springs Rd. He tried to survey the tree damage further north next to
Howe Lane (north of the Gilmore Gulch area) but was unsuccessful at
getting close
since the land is private or government owned. As far as he could see,
there was no damage from his vantage point. John Myers went out of his way to help document the storm.
Other pictures taken by Myers include:
Pic1
Pic2
Pic3
Pic4
Pic5
Pic6
Pic7
Pic8
A CoCoRaHS observer 1.3 miles
southeast of Laramie reported that 1.5" hail caused car dents.
According to Dave Claypool, a master technician at the College of
Agriculture's Plant Science Center, "It got very noisy from the hail
and wind. There was a lot of pea sized hail, but there were many big
ones mixed in. "We picked up one hailstone that was 1.5" across."
A
tornado moved along I-80 between 1928 and 1930 UTC, and
then across the far eastern and northeastern part of
Laramie between 1931 and 1935 UTC. F1 damage was done to
many structures.
I did not document the Laramie segment of
the tornado. A quick internet search revealed the following damage:
A truck driver suffered a broken ankle when his truck was
overturned on I-80.
Numerous homes, a church and dance hall were damaged.
College of Agriculture greenhouse facilities were damaged (5 of 18
greenhouses damaged and the hoophouse greenhouse destroyed)
A storage shed and
wooden pole barn were destroyed near the greenhouses. Huge pieces of the barn
were carried 250 yds.
10 large spruce trees were either uprooted of snapped
in half at the greenhouse facilities.
Many trees were snapped in half or
uprooted at the Jacoby golf course.
A
board was driven into a building.
The tornadic storm continued to the north-northwest through
central Albany county. No tornado damage occurred, but this area
is fairly desolate. It is possible that tornadoes went unreported.
Based on radar, large hail undoubtedly occurred as the storm moved to
the east and north of Rock River.
It is possible but unlikely that the tornado that touched down along
the Colorado state line was continuous to Laramie. As already noted in
the discussion above, there were at least 2 and possibly 3
breaks
in the tornado path. The first break may been from 1900 to 1901
UTC north of the old Union Pacific Railroad. The 2nd possible break
occurred over an undocumented and inaccessible area between 1917
and 1919 UTC. The 3rd possible
break
occurred between 1922 and 1926 UTC before the storm reached the
southeast outskirts of Laramie.
Again, I would like to thank those in southeast Wyoming who helped me complete this investigation. Benjamin Franklin once said:
"Some are weatherwise but most are otherwise."
This may be true for some parts of the country, but
after
talking to many residents in southeast Wyoming, I can conclude that
most are weather-wise and some are otherwise!!
Radar Loops
The following are radar loops from the Cheyenne WSR-88D. The 3rd loop
was extended out in time until 2038 UTC to capture a probable
tornado with this storm from north of Cooper Lake to north of Rock
Creek.
Storm relative
velocity loop (1845 to 1934 UTC)
Reflectivity loop (1845 to 1930
UTC)
Storm relative velocity loop (1900 to 2038 UTC)
Keep in mind that beam blockage was likely occurring with the .5° slice from the Cheyenne radar. As the storm moved from 7500 ft. to 8700 ft., the lowest slice of the Cheyenne radar
was partially beneath the ground, resulting in lower
reflectivity (50-55 dbz) values from southeast of Vedauwoo to Laramie. The actual
reflectivity values were probably 60-65 dbz. The 1.5° slice supports
this notion.
The Crystal Lake Reservoir/Hecla Tornado
Unofficially, a small
tornado touched
down 3 miles south of I-80 on Harriman Rd. a little later in the
afternoon from another storm. I was able to document this storm with the help of Walter Ferguson and a few other people. This
tornado moved
to the
north-northwest and downed trees in several locations. Several trees
were downed 3 miles south of I-80 on Harriman Rd on the William Prince
property. They estimated winds up to 80 mph. Walter
Ferguson reported to me that there was lots of tree damage southwest of
Hecla along South Crow Creek in sections 2 and 34 of townships 13 and
14. An old cabin was extensively damaged on Crystal Lake
Road in section 28 of township 14, with the
roof blown across the road. This tornado continued north-northwest. A
few trees were downed and shingles were torn off of a house. A heavy
camper was turned upside down. This damage occurred about 4 miles
east-northeast of Buford. Residents described this event as a
mini-tornado. The tornado most likely started between 2115 and
2125 UTC (325 pm MDT) and ended before 2140 UTC. These times were
obtained by matching the radar imagery to the locations that received
damage. However, the radar signatures were not nearly as clear cut with
this storm since the tornado was so small. This storm was not as strong
as the Harriman-Laramie storm, but still contained dime sized hail
that was blowing horizontally at the William Prince residence. The
southern end of the storm was centered just east of Wellington, CO
at 2038 UTC, 6 miles east of Harriman at 2108 UTC, 3 miles
west of Granite at 2129 UTC and 4 miles west-northwest of
Granite at 2137 UTC. The area southeast of Granite is
completely
devoid of people. It is possible that
tornadoes occurred earlier with this storm. The path of this tornado was very close
to the path of the
April
23, 1960 tornado. It appears that the 1960 tornado path was about 1 to 2
miles west of this tornado, and about 4 to 7 miles east of the
Harriman-Laramie tornado. I
drew the path of the 1960 tornado in 2000 with the
help of Walter Ferguson whose family has resided in the local area
for several generations.
Other Severe Storms
According to Wylie Walno II Lt. Col.,
another tornado apparently destroyed a barn 4 miles west of the
tri-county border. Hail accumulated to a foot deep
in this area and took 3 days to melt. I am still trying
to confirm this tornado, but the area is very sparsely populated. The
same storm produced large amounts of hail west of Virginia Dale.
This center of the storm was located 5 miles southeast of Virginia
Dale at 2012 UTC, from Virginia Dale to 4 miles northwest of
Virginia Dale at 2025 UTC, 4.5 miles northwest of Virginia
Dale at 2029 UTC (6 to 8 miles west of Harriman) and 1.5 miles
east of Tie Siding at 2038 UTC. This possible tornado is not plotted on any of the damage path maps.
Another storm developed near Broomfield, CO at 1752 UTC and produced a
tornado southwest and west of Dacona between 1823 and 1832 UTC. 2" hail
and 1.5" hail were reported via CoCoRaHS 3 miles east and 2.5 miles
northeast of Longmont respectively. This storm temporarily weakened
after moving past Longmont. The storm intensified near Masonville and produced
golfball sized hail 1 mile east of Buckhorn Mountain. Golfball sized
hail dented cars in Poudre Park.
A severe storm developed north of Hardin, CO in Weld county at 2055
UTC. Large hail probably occurred with this storm southeast of
Barnesville. This severe storm continued to 3 miles northeast of
Purcell at 2135 UTC.
A very brief tornado apparently occurred just west of Interstate 25 (time ??) in southeast Wyoming and caused no damage.
A storm moved into Wyoming from Colorado after 02 UTC and produced a
tornado about 13 miles east of Cheyenne at 0233 UTC. A pole barn was
destroyed. The Laramie Fire Department and EMA provided me with this picture of
the
tornado
(supposedly from the Hillsdale area). However, they told me that this
could also be the Laramie tornado. They didn't have high confidence
about where this tornado occurred. This tornado is not
shown on the smaller scale maps, but is shown on this larger scale
terrain map. A more accurate version of the terrain map showing the updated, main storm track can be found
here.
Meteorological
Discussion

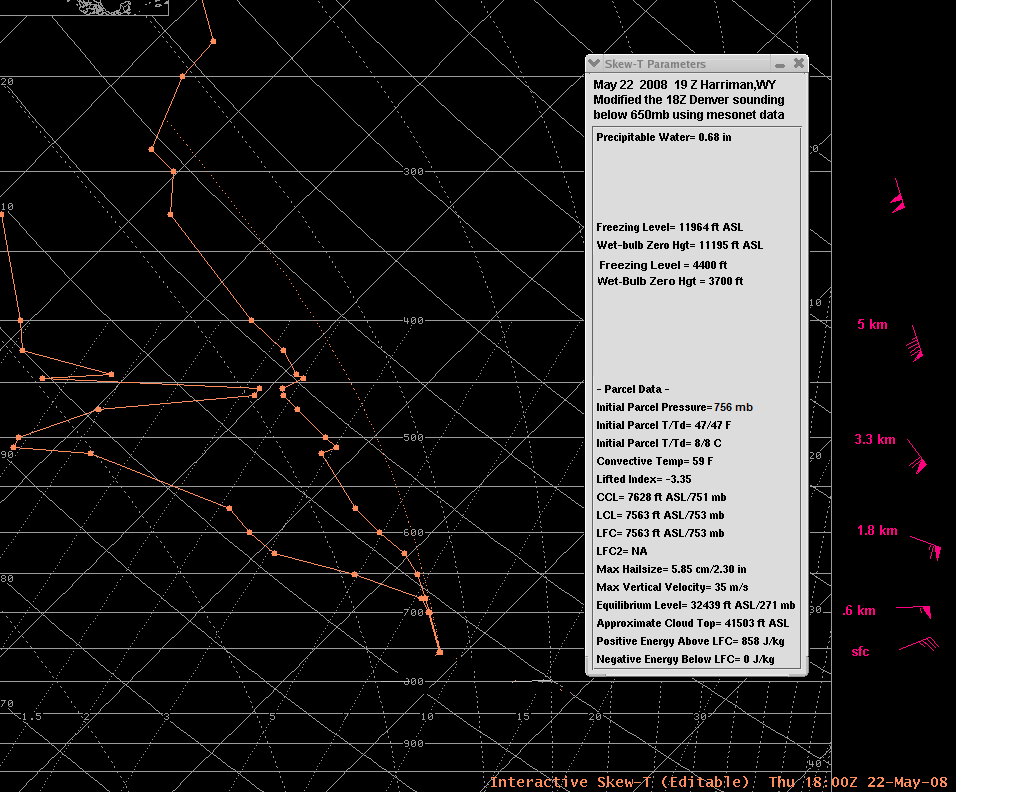

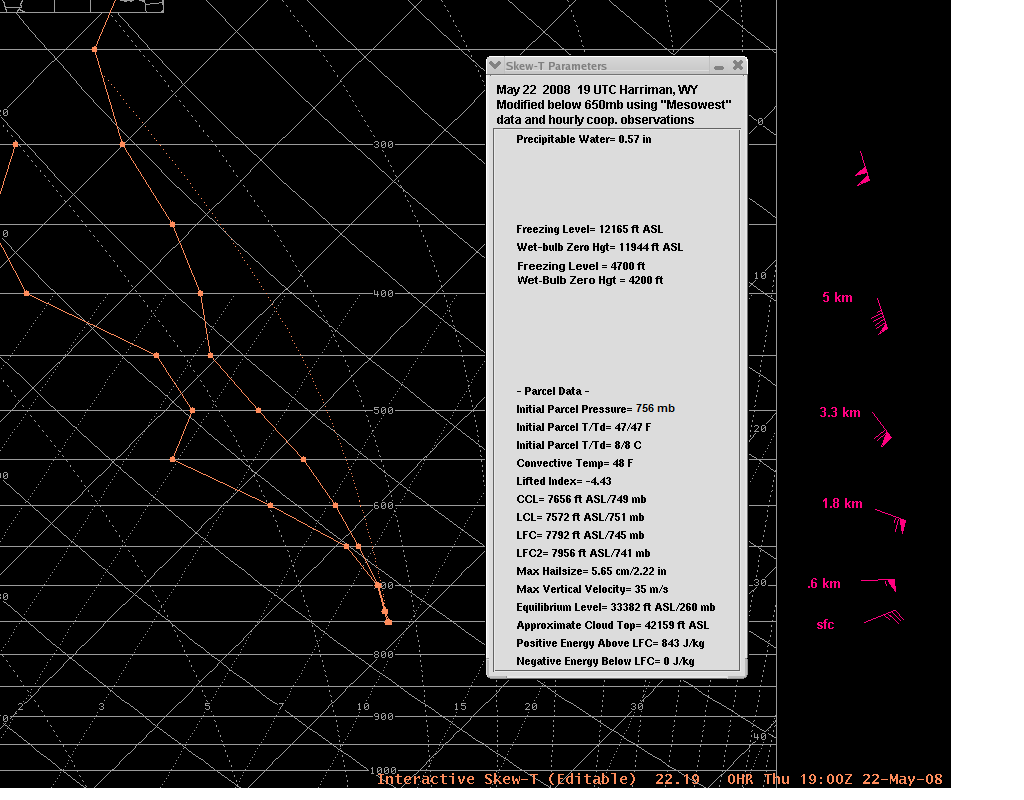

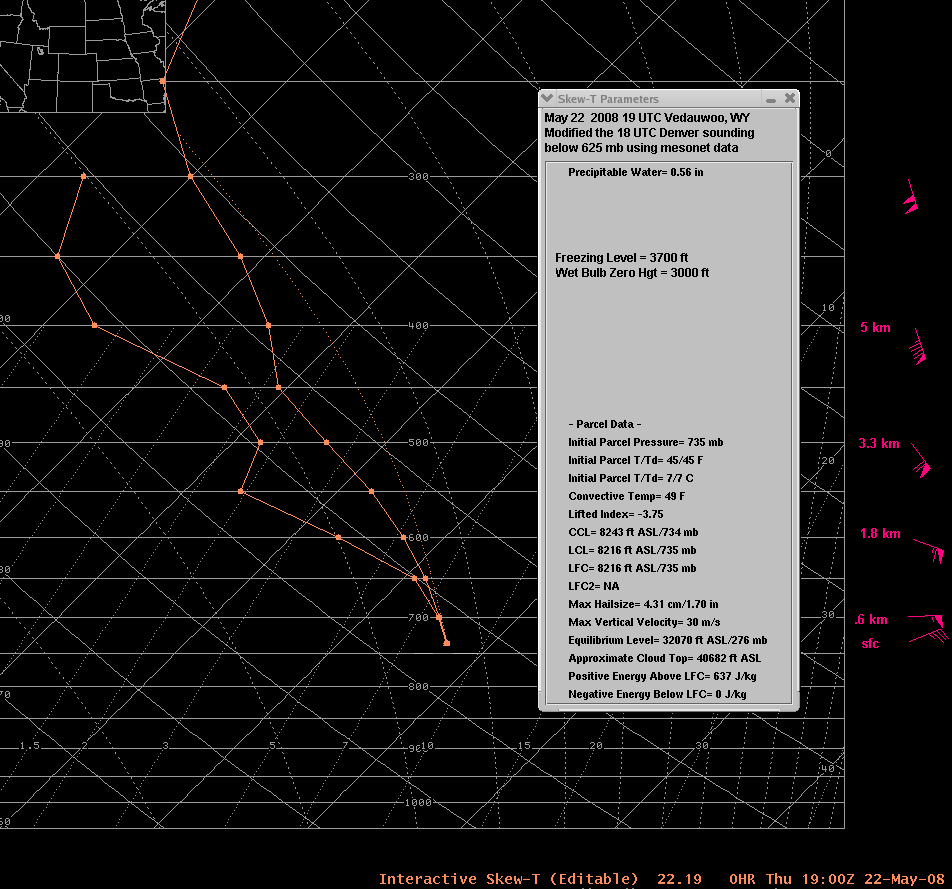

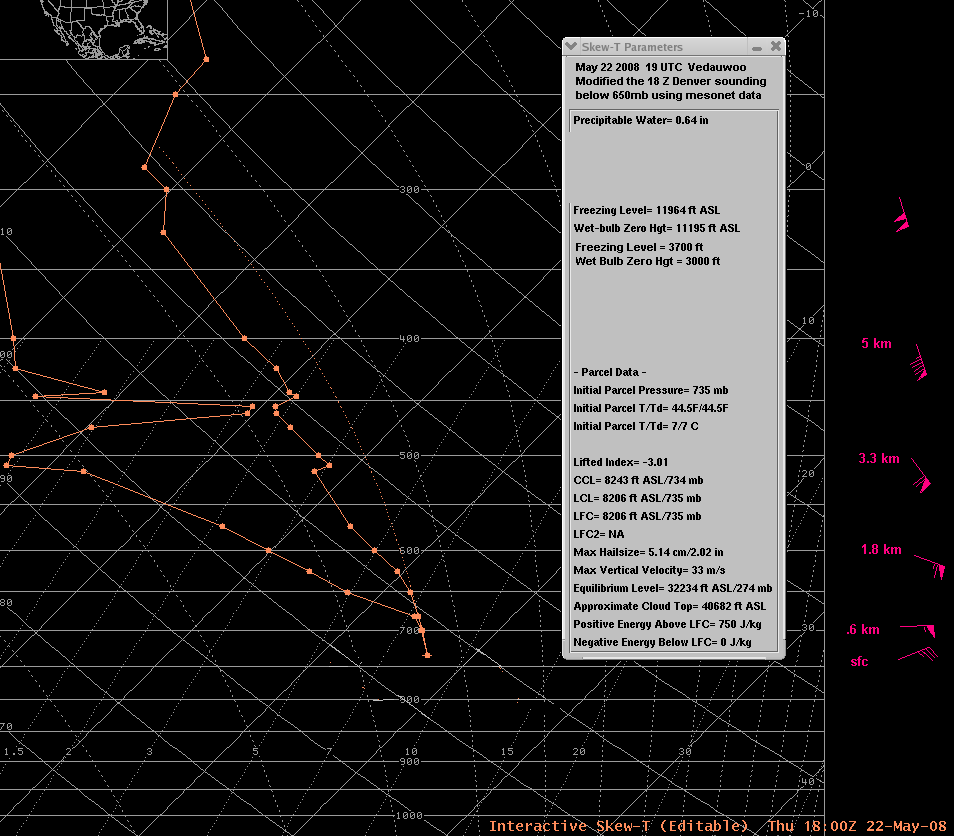

A deep upper trough was digging into the
intermountain west at
00 UTC
May 22, 2008. 500mb winds of 100 kts on the back side of this trough were
indicative of a deepening system. The 500mb height in the center of the upper
low was 550 dm over central UT. The
surface
chart at 00 UTC showed a surface front stretching from central LA into north
TX and then into northeast NM and eastern Colorado. Only marginal moisture
was in place across western Kansas with surface dewpoints in the 50-55F range.
However, rich moisture in the Red River Valley of southern Oklahoma and north
Texas was poised to make a fast return.
The
03,
06, 09 and

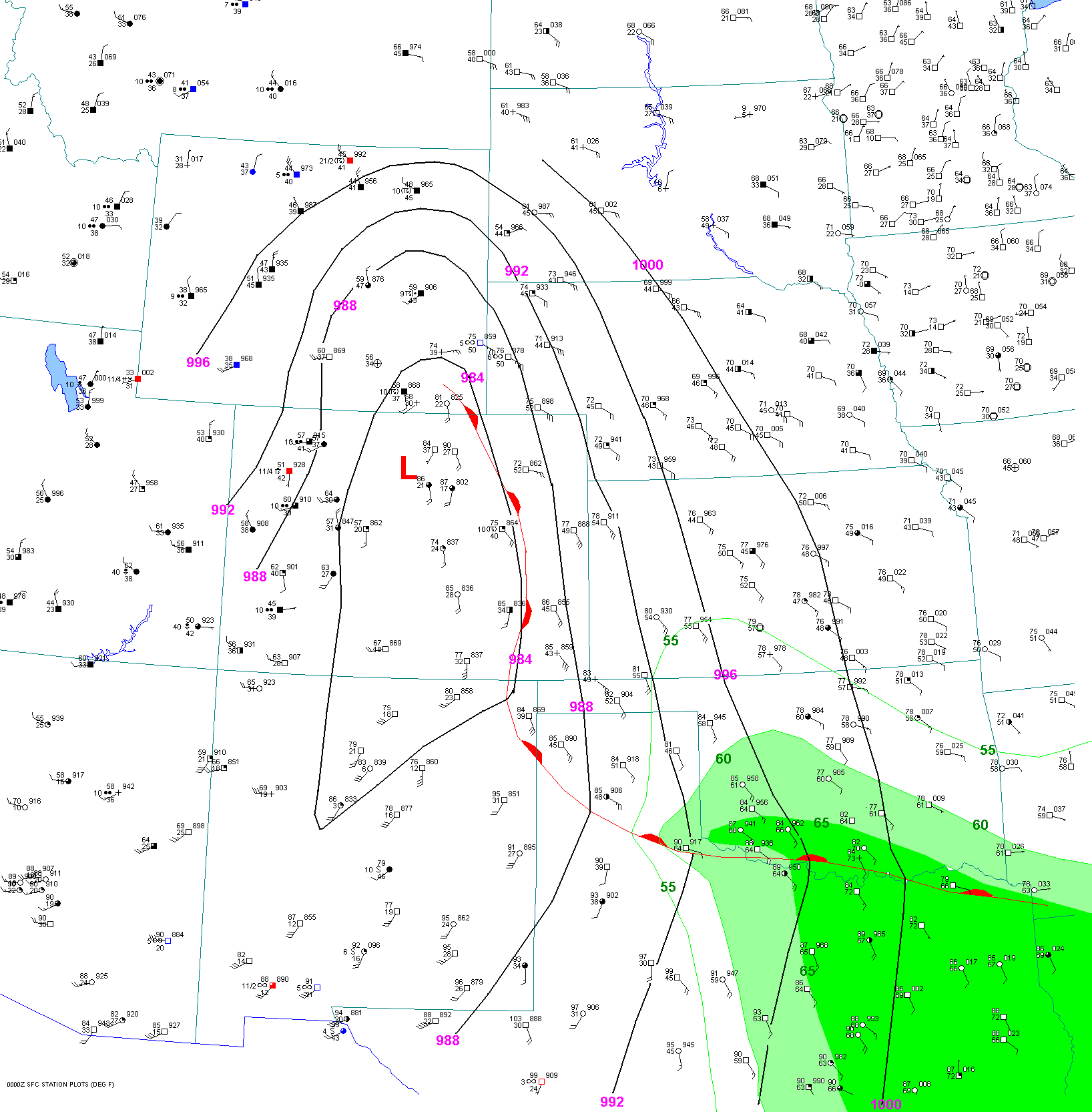

12 UTC surface charts show a strong surge of moisture through western Oklahoma,
western Kansas and eventually eastern Colorado. By 03 UTC, 60-65F dewpoints
were surging through northwest Oklahoma and into the eastern Oklahoma
panhandle. In fact by
06
UTC, 55-60F surface dewpoints were already surging into eastern Colorado. By
09 UTC the dewpoint at Limon, CO was up to 58F, with 53-55F dewpoints
along the front range of northern Colorado. Limon reported overcast skies
at 1800ft, which indicates the low level moisture was at least 1800 ft deep.
This
loop

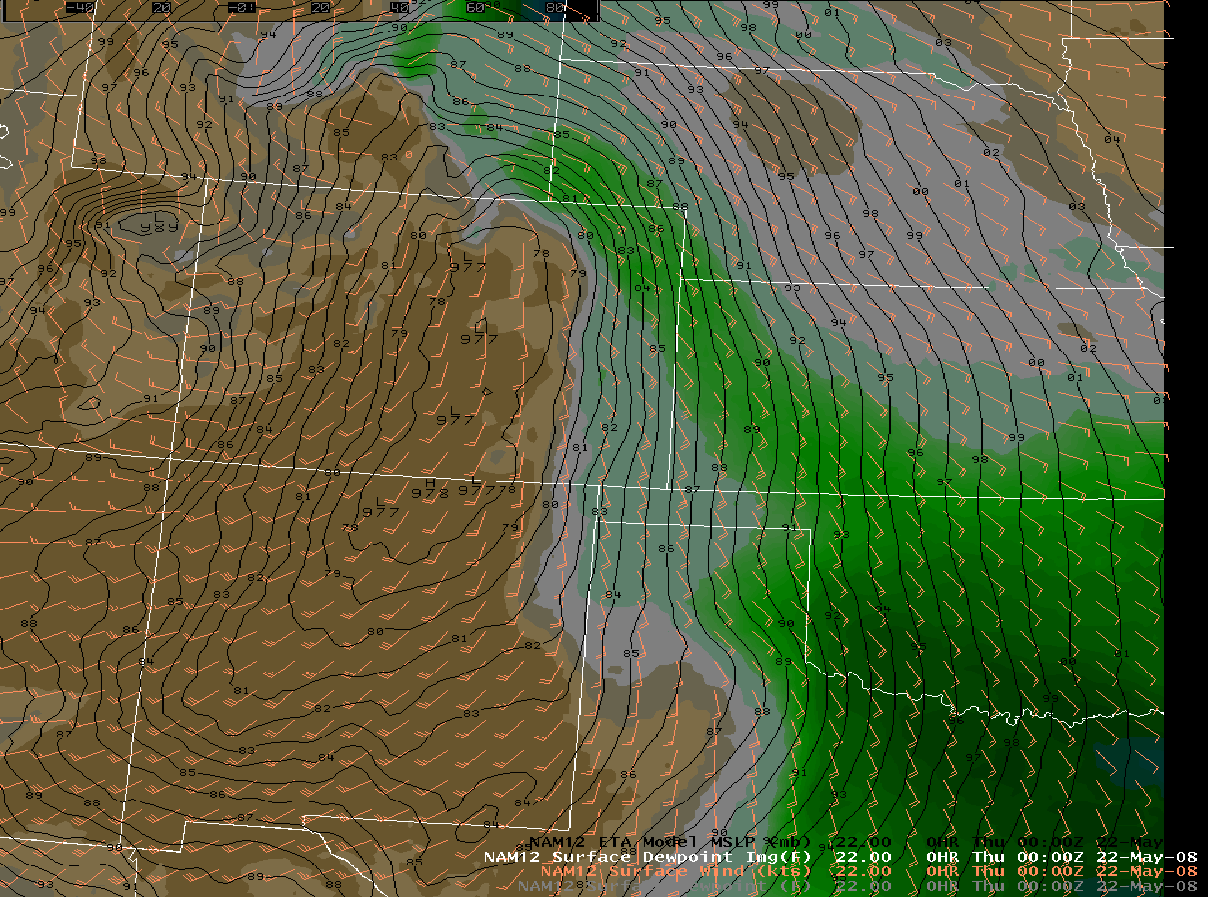

of the NAM 00hr to 18hr dewpoint and sea level pressure (SLP) fields
valid from 00 UTC May 22 to 18 UTC May 22 shows the moisture racing to
the northwest between 00 and 12 UTC. This upslope flow north of the
warm front can be easily seen. At 00 UTC the warm front was across
southern Oklahoma. The dryline intersected the warm front southwest of
Childress. By 12 UTC the warm front was located across far southern
Kansas.
By
12 UTC the moist axis was located from southwest Kansas into eastern and
northern Colorado and had shifted a little to the northeast since 09 UTC. The 12
UTC 500mb chart indicated strong cooling since 00 UTC. The
500mb
temperature was down to -14C at Denver. The pacific cold front had already
progressed through Albuquerque as seen on the
700mb
chart. The 700 mb temperature was down to -1C at Albuquerque. Mid level cooling
had obviously occurred even ahead of the front across the plains and at Denver.
By
15 UTC,
the warm front had progressed into central CO and western Kansas. Rich moisture
was in place across the front range of northern CO with 54 and 55F dewpoints at
Greeley and Akron respectively. The surface theta-e axis extended from central
Kansas into northwest Kansas to Woodrow and Greeley, CO. Strong upslope flow was
occurring and rich moisture was being transported into the Laramie Ridge and up
the Laramie mountains. A surface dryline was beginning to take shape from the
western Panhandles to extreme eastern Colorado.
Between 1500 and 1600 UTC, the east to west frontal boundary over Weld
county, CO actually
sagged south as a cold front into southern Weld
county. By 1600 UTC this boundary was located from Fort Lupton to
Hudson. The first part of the radar loop from FTG clearly demonstrates this.
By
16 UTC,
55-56F dewpoints were noted as far west as Kersey and Boulder, CO, or
just south and southwest of Greeley. Initial radar
echoes began to develop just south of the Denver International
Airport by 16 UTC. This area of development was along or just west of a
N-S boundary that was probably forced by the terrain. A surface front
stretched from Platteville to Hoyt to Woodrow. This front actually
pushed southward on the western end between
1600 and
1630 UTC, stalling in southern Weld county. The dewpoints in this initiation area were only in the 40s to near 50F.
But higher dewpoints were located just to the north and west. By
1635 UTC, 45 dbz echoes were noted at 23,000 ft about 3 miles
northeast of the airport. The
front
at 1635 UTC stretched across southern Weld county. A terrain
related feature (at least that is our current thinking) extended from
Parker to east of DIA to near Fort Lupton. As earlier noted, 50 dbz
echoes were
present on the lowest radar slice from Denver by 1648 UTC. The storm
was severe by
1700 UTC just west of Hudson, CO.

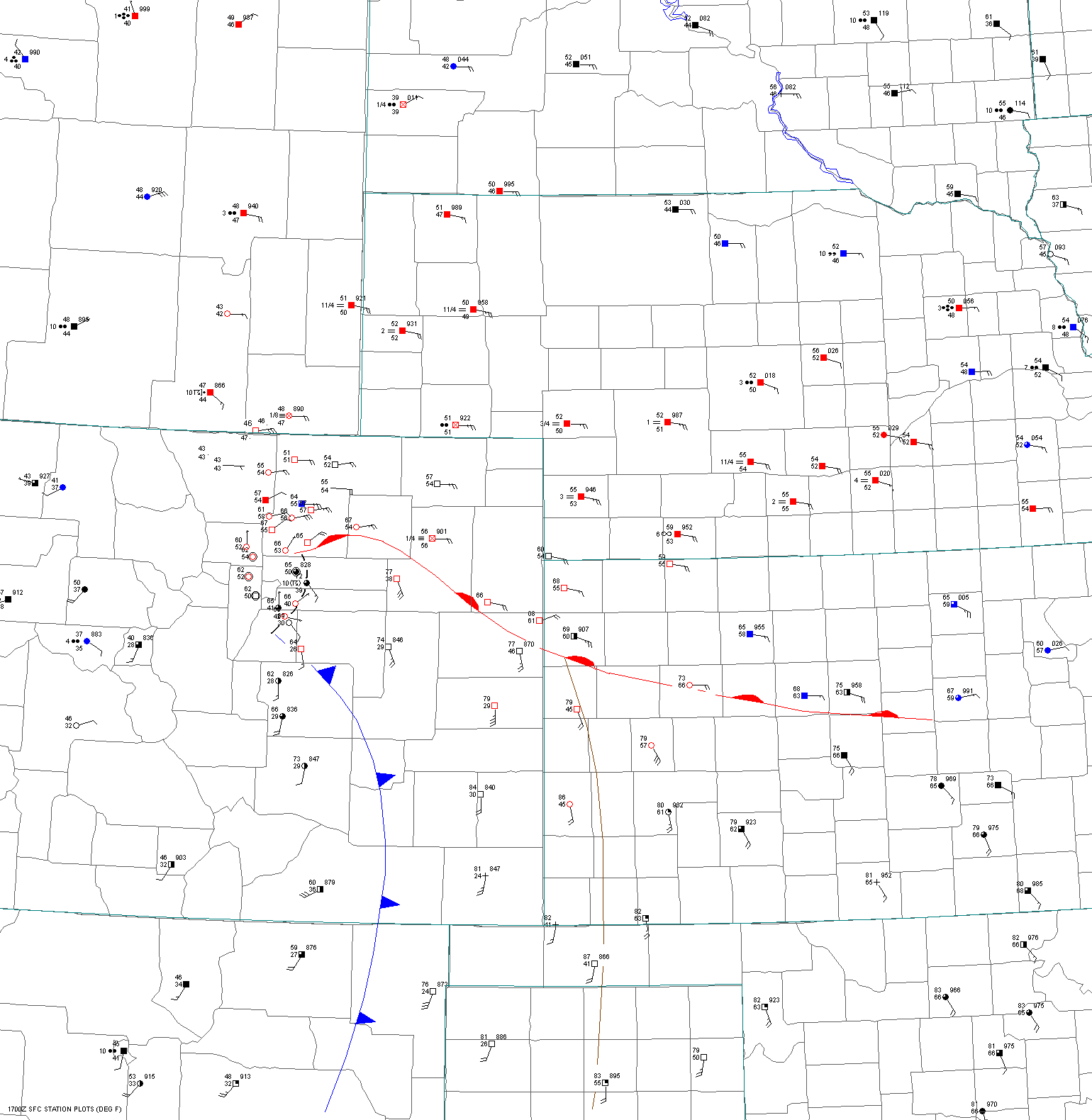

The
17 UTC
surface chart showed a T/TD of 70F/55F at Greeley, CO.
Modifying
the 18 UTC Denver sounding with these values yields 2800 j/kg surface
based CAPE. This represents the upper limit for surface based,
pre-storm CAPE that was available. The moist axis extended all the way
northwest to Red Feather Lakes and Crystal Lake, where the T/TD were
43F/43F at both stations. Interestingly, the theta-e values were the
same at these stations as Haigler, NE and Concordia, KS. T/TD values of
43F/43F at Crystal Lake and 47F/47F at Harriman at 17 UTC have almost
the same theta-e as T/TD values of 72F/61F at Emporia, KS and
74F/61F at Chanute, KS.
At
1701
UTC the storm north of Denver and southwest of Hudson was rapidly
becoming severe after encountering dewpoints between 53 and 55F. The
storm was 25 minutes away from producing a strong
tornado. The storm was about to encounter a surface
that
stretched ese to wsw from Woodrow to Wiggins and then ene to wsw
from Wiggins to north of Brighton. There was a very narrow corridor of
higher theta-e surface air immediately north of the front.
Sunshine
was warming the low levels north of the boundary on the front's western
end (east of Greeley to Wiggins to east of Platteville).
This elevated heating, along with dewpoints from 54 to 56F, and
reasonably cool 500-300mb temperatures, was allowing for moderate
surface based CAPE ahead of the storm (particularly in the inflow of
the
storm). Another surface
boundary was oriented generally south to
north from Parker to east of DIA to near Hudson at 1700 UTC, and was likely forced
by terrain. The storm initially developed along this N-S boundary. Thus
far, the
storm was located in marginal instability immediately to the west of
the N-S
boundary, but south of the warm front that stretched from generally
west
to east. Surface based CAPE values in this region near DIA were about
1500 j/kg. Dry
air was actually located east of the storm (south of the boundary) from
just east of Hudson to Prospect Valley to Hoyt and southward to
the Front Range Airport. The T/TD were 72F/29F at the Front Range
Airport (FTG) while the T/TD at DIA were 65F/50F. The wsr-88d
is located at FTG.
Backed winds and relatively high theta-e low level air existed
northwest and north of the storm over southern Weld county. In fact the
storm was about to move into a very
favorable area for tornadoes. Fairly high dewpoints actually existed
north of DIA but south of the boundary. So the storm became severe by
17 UTC even before reaching the warm front. By
1727
UTC when the storm became tornadic, the storm was located just north of the surface
boundary. From 1727 to 1745 UTC, the surface
boundary
surged
to the north and northwest immediately behind the storm so that the
storm stayed in an ideal location, with high theta-e air and strong
east winds immediately on the cool side of the boundary. The
1730
UTC radar image with surface observations overlaid shows strong inflow
to the east-northeast of the storm at Greeley and Kersey. Here is the
1740
UTC radar image with the boundaries drawn in. At this time the storm
was immediately north of the boundary, with relatively high theta-e
inflow into the storm from the east.
This dry surge actually kept
pushing
northwest and was through Peckham, CO by 1745 UTC. But by
18 UTC
the
boundary that had been surging northwest had slowed somewhat and was located just
northwest of Peckham. The storm was beginning to move further away
from the boundary. At 18 UTC the storm was
obviously still ingesting high theta-e air from the east. Therefore,
the storm managed to stay in a favorable location for
tornadoes through 1810 UTC. After 1810 UTC the storm
passed south and west of Wellington where
surface temperatures were cooler. By 1820 UTC, a tornado was still
occurring west of Wellington. The T/TD at Wellington were 55F/54F at 18
UTC and 58F/56F at 19 UTC. Thus, as the storm moved west of Wellington,
surface based CAPE was down to roughly 1500 j/kg. There may have been a
small inversion near the ground as the storm suddenly moved into cooler
air. The storm temporarily weakened. This surface chart and
radar
overlay for 1830 UTC shows that "cooler air" was indeed surrounding the
storm. I use the term cooler here because the storm was still located
around 5200 ft elevation and had not started climbing to higher
elevations yet. While surface temperatures were from 66 to 70F around
Greeley, Peckham and Lucerne (4700-4900 ft), temperatures were only
around 55F at Wellington and Briggsdale (5200 ft). So the storm had
moved into a potentially much cooler airmass. Although difficult to
prove, the storm likely moved into an area with a near-surface
temperature inversion.
The previously shown .5° reflectivity
loop from FTG (1430 to 1827 UTC) shows how the storm moved relative to the boundaries.

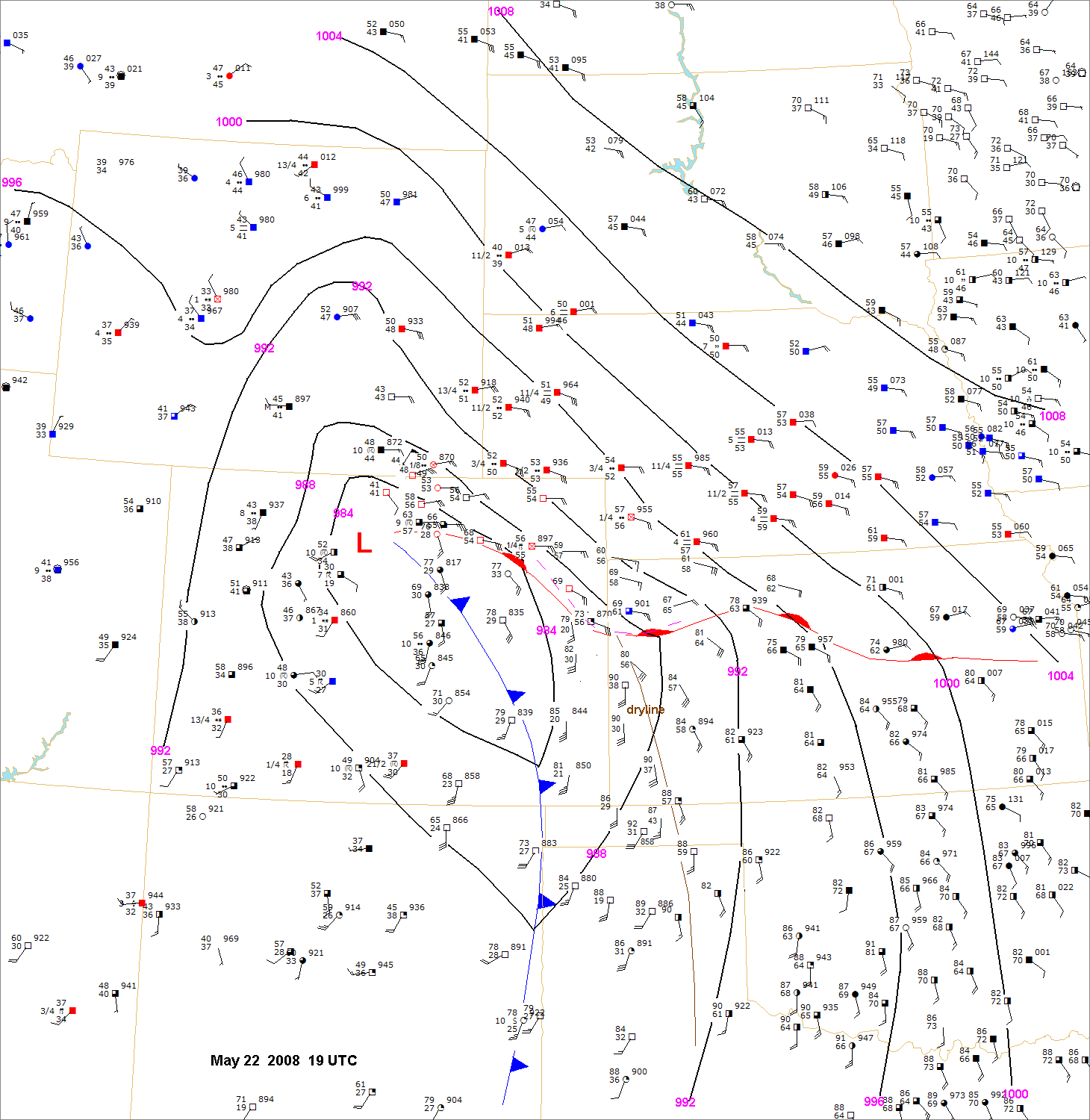

To demonstrate further how the storm moved in relation to the surface boundaries, an 8-frame
loop
was made in which radar data were overlaid with surface observations
every 30 minutes. A few COAGMET surface locations provided data
that were unavailable otherwise. For example, the observation near
Peckham showed the passage of the warm front from 1730 to 18 UTC.
Locations that were hit by the tornado early on (1727 to 18 UTC,
actually experienced a sudden windshift to the southeast and pronounced
drying as the front passed. Keep in mind that these frames were every
30 minutes and do not show the elevated core that developed near DIA
around 1630 UTC. This loop clearly shows that the front sagged south
into southern Weld county between 1500 and 16 UTC, then suddenly surged
north as the storm crossed the boundary after 17 UTC. This surge was
short-lived and by 1830 UTC had slowed its northward movement. So in
summary, the storm developed near DIA immediately on the cool side of
the N-S boundary, then moved north-northwest and stayed immediately
west of the westward moving, N-S boundary through 1700 UTC. At
1701 UTC the storm was still south of the warm front. The storm crossed the warm front (east-west boundary) around
1710 UTC. By 1722 UTC the storm had already developed a
hook.
The 8 frames described above can be found below:
1500 1530 1600 1630 1700 1730 1800 1830
The distribution of surface-based CAPE (CAPE
sb) is very important when assessing the severe storm environment. At
18
UTC, the CAPE
sb along the direction of the storm motion was
fairly broad along the immediate front range. Note the moderate to high CAPE
values (2000-2900 j/kg) from Arvada and Brighton north-northwest to
Greeley. So a storm developing near DIA would have more time in the
high-theta-e air compared to storms further east on the plains.

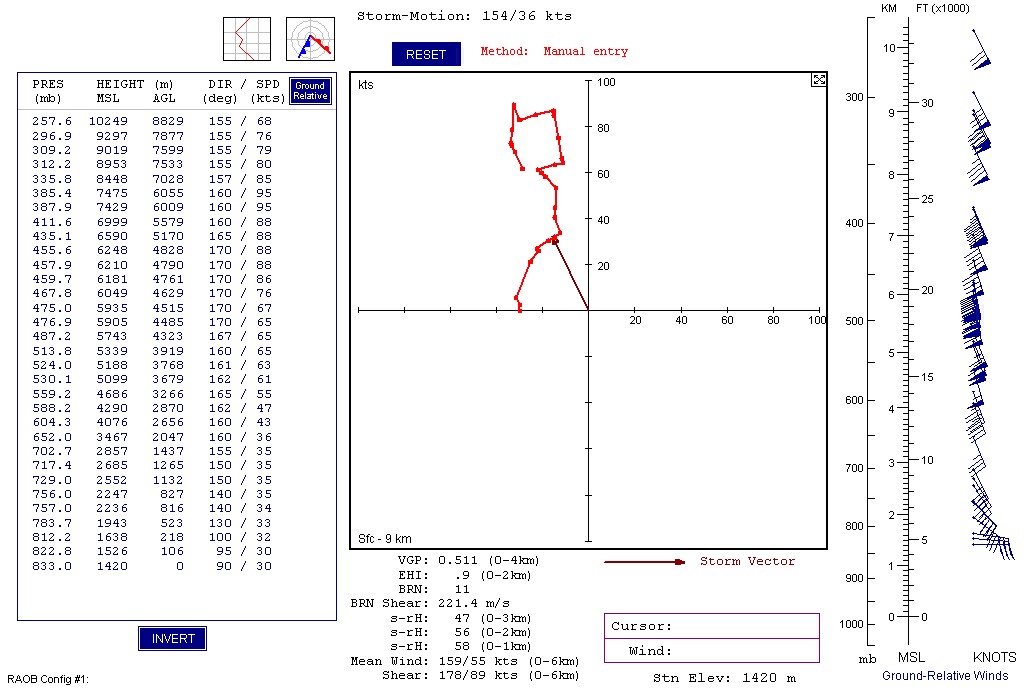

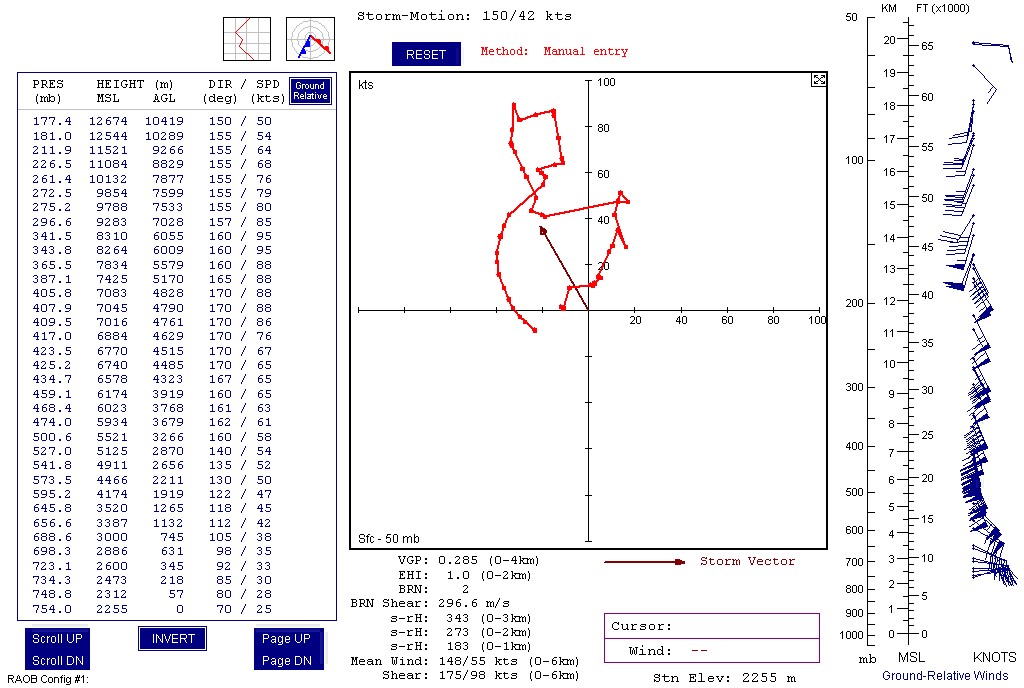

A
hodograph
was constructed by Dan Bikos for the Windsor tornado event. Note that
the 0-3 km storm relative helicity was not very large (about
50 m²/s²). However, it is possible that the srh was over
100 m²/s² if the low level winds were 40-45 kts instead of 30
to 35 kts. This is still not very large. However, the 0-3 km and 0-6 km
shear values were very large (over 50 kts and near 80 kts

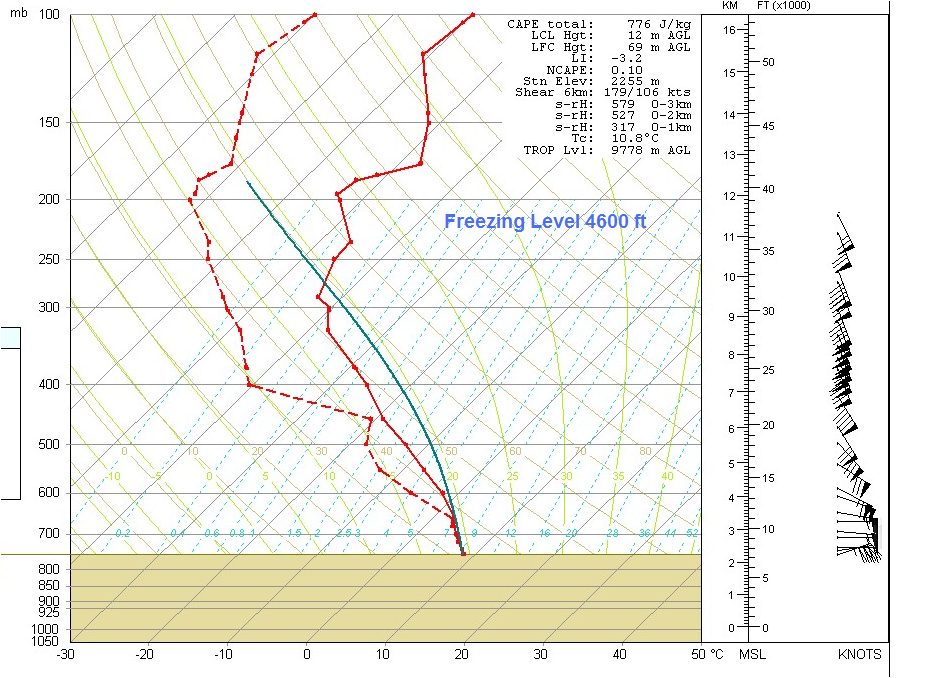

respectively). Dan's approximate sounding is shown
here.
A satellite loop from 14 UTC to 2030 UTC can be found
here.

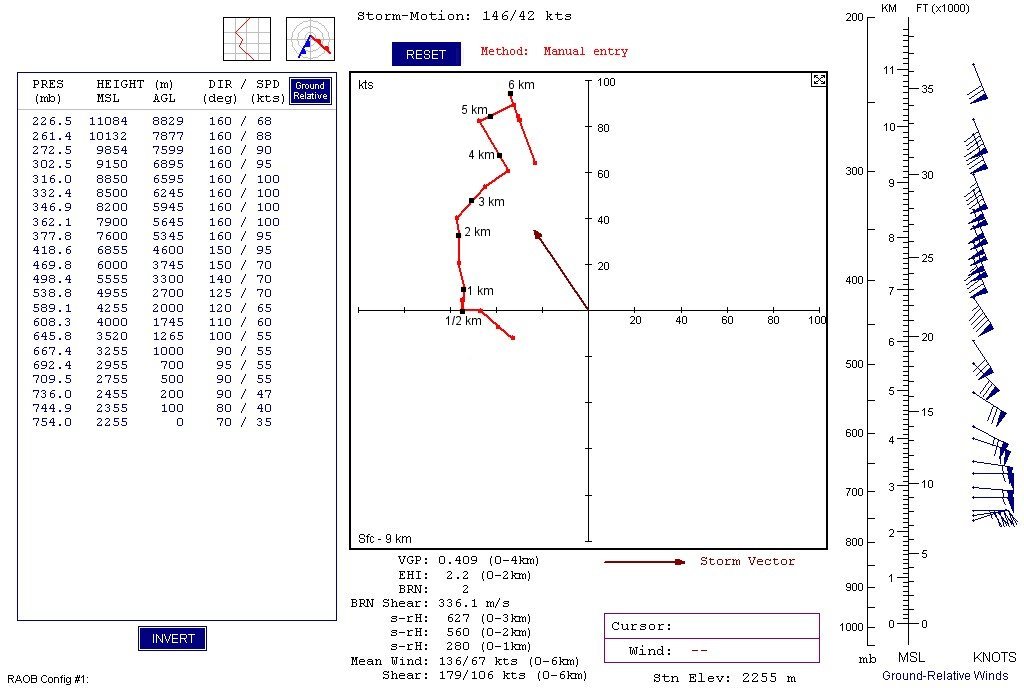

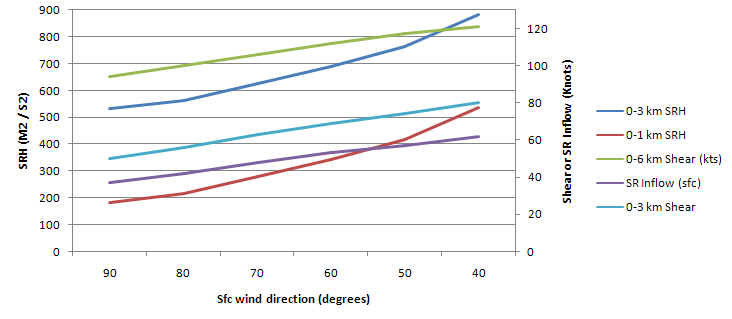

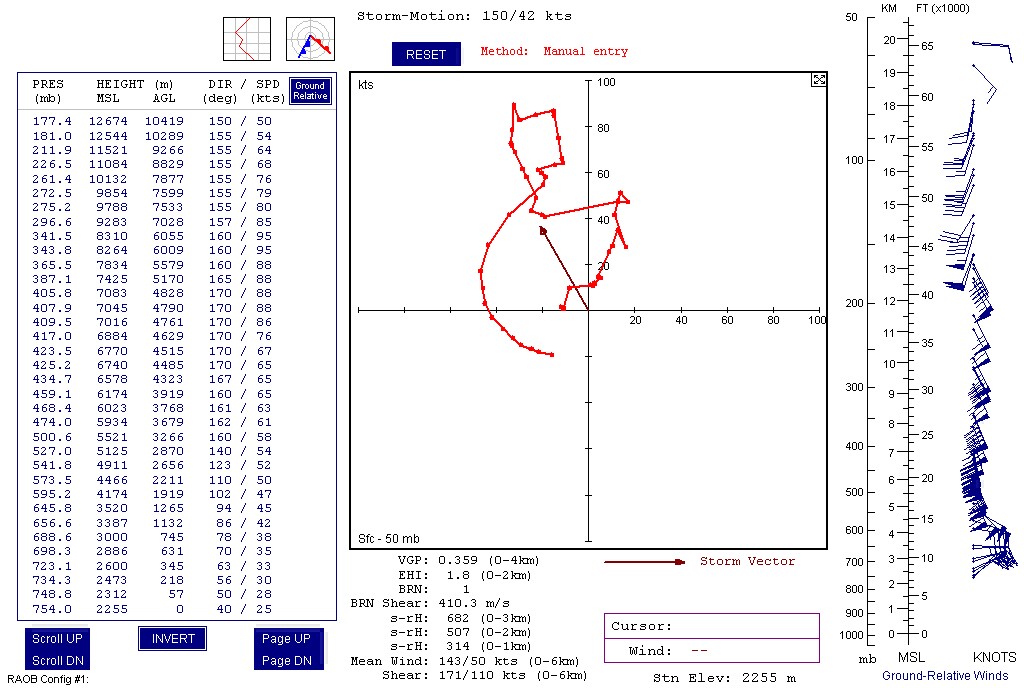

Now let's turn our attention to Wyoming. As already discussed, the
primary Colorado storm weakened a little in northern Larimer county and
then intensified before entering Wyoming. By 17 and 18 UTC the surface
temperature was 47F at Harriman, WY. Also, since dense fog was
occurring, the dewpoint was equal to the temperature. Assuming
saturation, what T/TD would be required at sea level to achieve the
same theta-e as Harriman, WY? Since the T/TD were 47F/47F at
Harriman, a T/TD of 66F/66F would be required at 1000 mb to yield the
same theta-e. Why is this? To understand this, let's look at the
potential temperature and mixing ratio's for both locations. For
Harriman, the potential temperature and mixing ratio were 89F and 9.2
g/kg. At 1000mb, a location with T/TD of 66F/66F would have a potential
temperature of 66F and mixing ratio of 13.8 g/kg. Thus, the
mixing ratio would be 50% lower at Harriman than at the sea level
location. However, the potential temperature would be 23F higher at
Harriman. Thus the notion that it was too cool on the Laramie Ridge on
May 22, 2008 for severe storms is obviously misguided. In fact, it was
warm enough so that the level of free convection was near
the ground. This is despite dense fog and actual temperatures from
44 to 48F. Thus, before drawing conclusions about the severe weather
environment, one should modify soundings using actual surface
observations. Sometimes this requires the use of mesonet data since
surface observations are sparse.
Let's compare (Table 1) the theta-e values on the elevated
terrain and lower terrain by displaying temperature, dewpoint, mixing ratio,
potential temperature and equivalent potential temperatures at 17 UTC. Note that
only temperature data were available for Harriman, Lynch, Virginia Dale 7 ENE
and Emkay. Dewpoint data actually were available at the remainder of the
stations including Estes Park, Crystal Lakes and Red Feather Lakes. However,
since dense fog was present at these 4 Wyoming stations through 19 UTC, we will
assume that the dewpoints were equal to the temperatures.
Table 1 |
|
|
|
|
|
|
|
|
17
UTC |
Elev(ft) |
Pres.(mb) |
SLP(mb) |
T(F) |
Td(F) |
MR(g/kg) |
theta(F) |
theta-e(K) |
Crystal Lake |
8620 |
724 |
986 |
43 |
43 |
8.2 |
92 |
331.6 |
Estes Park |
7700 |
745 |
983 |
53 |
46 |
8.9 |
98 |
337.5 |
Harriman,WY |
7450 |
756 |
987 |
47 |
47 |
9.2 |
89 |
332.5 |
Lynch,WY |
7200 |
762 |
987 |
46 |
46 |
8.7 |
86.7 |
329.9 |
Virginia Dale 7
ENE
|
7000 |
767 |
988 |
47 |
47 |
9 |
86.9 |
330.8 |
Emkay,WY |
6720 |
774 |
989 |
49 |
49 |
9.6 |
87.6 |
333.1 |
Cheyenne |
6140 |
789 |
987.7 |
48 |
47 |
8.8 |
83.5 |
328 |
Nunn
|
5650 |
804 |
986 |
51 |
51 |
10 |
83.8 |
331.8 |
Wellington |
5300 |
813 |
985 |
55 |
54 |
11.1 |
86.3 |
336.5 |
Briggsdale S |
4838 |
833 |
991 |
55 |
54 |
10.8 |
82.6 |
333.3 |
Greeley |
4700 |
835 |
984 |
64 |
55 |
11.2 |
91.7 |
340.2 |
Akron |
4700 |
839 |
990 |
56 |
56 |
11.5 |
82.1 |
335.1 |
Goodland |
3700 |
870 |
990.7 |
69 |
60 |
12.9 |
90.4 |
344.5 |
Saint Francis |
3350 |
881 |
|
68 |
55 |
10.6 |
87.4 |
335.8 |
Hill City |
2600 |
918 |
995.5 |
65 |
58 |
11.3 |
78 |
332 |
Concordia |
1500 |
948 |
1000.5 |
65 |
59 |
11.4 |
73.1 |
329
|
OKC |
1230 |
951 |
997 |
81 |
66 |
14.6 |
88.8 |
348.5 |
Chanute |
1000 |
967 |
1001.6 |
74 |
61 |
12 |
79.1 |
334.6 |
Salina |
1280 |
957 |
999.1 |
67 |
59 |
11.3 |
73.6 |
329 |
Emporia |
1170 |
960 |
1001.5 |
72 |
61 |
12.1 |
78.2 |
334.3 |
Notice that Lynch, WY
actually has the same theta-e as Salina, KS even though the T/Td are 21F/13F higher at Salina. The mixing ratio is 30%
higher at Salina, so the potential temperature must compensate to yield similar
theta-e values. Indeed, the potential temperature was 86.7F at Lynch and only
73.6F at Salina.
Surface theta-e continued to increase from 17
to
18
to
19
UTC.
Tables 2 and 3 show temperature, dewpoint, mixing
ratio, potential temperature and equivalent potential temperature values for
various sites over the plains. Again, this is done to demonstrate that T/Td
values cannot be used without elevation to assess how "juiced up" the surface
layer is. In Table 5 the theta-e values between 330K and 335K are
highlighted in red. The
theta-e
values from 330 to 335K are shown in a partially analyzed surface chart for 19
UTC. This terrain map with surface observations for
19 UTC overlain is only partially completed.
Let's compare(Table 2) the theta-e values on the elevated
terrain and lower terrain by displaying temperature, dewpoint, mixing ratio,
potential temperature and equivalent potential temperatures at 18 UTC.
Table 2 |
|
|
|
|
|
|
|
|
18
UTC |
Elev(ft) |
Pres.(mb) |
SLP(mb) |
T(F) |
Td(F) |
MR(g/kg) |
theta(F) |
theta-e(K) |
Crystal Lakes |
8620 |
723 |
887 |
43 |
43 |
8.2 |
91.7 |
331.4 |
Red Feather |
8214 |
733 |
887 |
44 |
44 |
8.4 |
90.7 |
331.4 |
Ames Mon. 2S |
8200 |
735 |
987 |
45.5 |
45 |
8.7 |
91.9 |
333.0 |
Pumpkin Vine |
7700 |
749 |
987 |
46.3 |
46 |
9.0 |
89.4 |
332.3 |
Harriman,WY |
7450 |
756 |
987 |
47 |
47 |
9.2 |
89.3 |
332.7 |
Lynch,WY |
7200 |
761 |
987 |
46 |
46 |
8.8 |
87 |
330.1 |
Virginia Dale 7
ENE
|
7000 |
766 |
987 |
48 |
48 |
9.4 |
88.1 |
332.7 |
Emkay,WY |
6720 |
773 |
987 |
48 |
48 |
9.3 |
86.7 |
331.5 |
Cheyenne |
6140 |
788 |
988.2 |
49 |
49 |
9.5 |
84.8 |
330.8 |
Nunn
|
5650 |
803 |
985 |
52 |
52 |
10.4 |
85.1 |
333.7 |
Greeley |
4700 |
833 |
983 |
70 |
55 |
11.2 |
98.4 |
344.5 |
Akron |
4700 |
839 |
989.7 |
57 |
56 |
11.5 |
83.4 |
335.9 |
Goodland |
3700 |
870 |
990.7 |
64 |
59 |
12.4 |
85.2 |
339.7 |
MCcook |
2800 |
911 |
996.2 |
61 |
56 |
10.6 |
75 |
328 |
Hill City |
2600 |
918 |
994.3 |
73 |
62 |
13.1 |
86.2 |
342.4 |
Concordia |
1500 |
948 |
1000.6 |
67 |
59 |
11.4 |
75.1 |
330.3 |
Imperial |
3300 |
885 |
995.7 |
56 |
54 |
10.2 |
74.3 |
326.3 |
OKC |
1230 |
951 |
996.2 |
86 |
67 |
15.1 |
93.9 |
353.4 |
Chanute |
1000 |
967 |
1001.6 |
76 |
64 |
13.4 |
81.2 |
339.9 |
Topeka |
890
|
972 |
1004.1 |
66 |
59 |
11.1 |
70.3 |
326.4 |
Salina |
1280 |
957 |
998.6 |
73 |
61 |
12.1 |
79.7 |
335.4 |
Emporia |
1170 |
960 |
1001.4 |
76 |
63 |
13.0 |
82.3 |
339.5 |
Notice that Greeley, CO actually has a higher
theta-e than Emporia, KS even though the temperature/dewpoint are 6F/8F higher
at Emporia. The mixing ratio is 16% higher at Emporia, so the potential
temperature must have compensated to yield a higher theta-e at Greeley. Indeed,
the potential temperature was 98.4F at Greeley and only 82.3F at
Emporia.
Notice that Red Feather Lakes, CO actually has a higher theta-e
than Concordia, KS even though the temperature/dewpoint are 23F/15F higher at
Concordia. The mixing ratio is 36% higher at Concordia, so the potential
temperature must compensate to yield a higher theta-e at Red Feather Lakes.
Indeed, the potential temperature was 90.7F at Red Feather Lakes and only 75.1F
at Concordia. Severe storms passed just east of Red Feather Lakes in the early
afternoon.
Let's compare(Table 3) the theta-e values on the elevated
terrain and lower terrain by displaying temperature, dewpoint, mixing ratio,
potential temperature and equivalent potential temperatures at 19
UTC.
Table 3 |
|
|
|
|
|
|
|
|
19
UTC |
Elev(ft) |
Pres.(mb) |
SLP(mb) |
T(F) |
Td(F) |
MR(g/kg) |
theta(F) |
theta-e(K) |
Vedauwoo 2S |
8200 |
735 |
985 |
45.5 |
45.0 |
8.7 |
91.9 |
333.0 |
Lynch,WY |
7200 |
760 |
985 |
48 |
48 |
9.5 |
89.4 |
333.6 |
Virginia Dale 7
ENE
|
7000 |
765 |
985 |
48.5 |
48.5 |
9.6 |
88.9 |
333.7 |
Emkay,WY |
6720 |
772 |
986 |
49 |
49 |
9.7 |
88.2 |
333.8 |
Cheyenne |
6140 |
787 |
987.7 |
50 |
49 |
9.5 |
86 |
331.7 |
Nunn
|
5650 |
803 |
983 |
52.5 |
52.5 |
10.6 |
85.6 |
334.6 |
Wellington |
5300 |
812 |
983 |
58 |
56 |
11.9 |
87.9 |
341.1 |
Briggsdale N |
5039 |
826 |
988 |
56 |
54 |
10.0 |
84.9 |
335.1 |
Iliff |
3900 |
865 |
988 |
55 |
54 |
10.4 |
76.8 |
328.5 |
Sterling |
3900 |
865 |
|
59 |
56 |
11.2 |
80.9 |
333.4 |
Briggsdale S |
4838 |
831 |
988 |
58 |
55 |
11.2 |
86.1 |
336.8 |
Akron |
4700 |
839 |
990 |
56 |
55 |
11.1 |
82.3 |
334.1 |
Goodland |
3700 |
870 |
990 |
69 |
61 |
13.4 |
90.4 |
345.8 |
Haigler |
3291 |
883 |
|
60 |
56 |
11 |
78.8 |
331.4 |
OBerlin |
2736 |
911 |
|
61 |
58 |
11.4 |
75 |
330.4 |
Saint Francis |
3350 |
881 |
|
68 |
57 |
11.4 |
87.4 |
338.1 |
Hill City |
2600 |
918 |
994 |
78 |
63 |
13.6 |
91.3 |
347.2 |
Concordia |
1500 |
948 |
1000 |
71 |
61 |
12.2 |
79.2 |
335.3 |
OKC |
1230 |
951 |
996 |
87 |
67 |
15.1 |
94.9 |
354.1 |
Chanute |
1000 |
967 |
1001.5 |
78 |
65 |
13.8 |
83.2 |
342.3 |
Topeka |
890
|
972 |
1003.7 |
69 |
58 |
10.7 |
73.3 |
327.2 |
Salina |
1280 |
957 |
998.0 |
74 |
62 |
12.6 |
80.7 |
337.3 |
Fairbury |
1500 |
950 |
1003.0 |
61 |
59 |
11.4 |
68.9 |
326.1 |
Scandia |
1450 |
949 |
1001 |
69 |
61 |
12.2 |
77 |
333.9 |
Notice that Vedauwoo, WY actually has almost
the same theta-e as Scandia, KS, even though the temperature/dewpoint are
24F/16F higher at Scandia. The mixing ratio is 31% higher at Scandia, so the
potential temperature must compensate to yield similar theta-e values. Indeed,
the potential temperature was 91.9F at Vedauwoo and only 77F at
Scandia.
At 19 UTC, two mesonet observations
and 1 cooperative observer location recorded hourly temperatures. These
observations were all within 8 miles of each other. The temperature was
47F at Harriman (756 mb), 48.5F at the cooperative observer site 7
miles east-northeast of Virginia Dale (767 mb) and 48F at Lynch
(762 mb). These 3 observations lie along the same moist adiabat, as one
would expect in moist upslope flow. So I have fairly high
confidence in the accuracy of these measurements. Veta Mitchell, the
cooperative observer 7 miles east-northeast of Virginia Dale provided
me with the hourly temperature measurements for her location. The
tornado actually first touched down about 2 miles north-northwest of
her house. So the hourly measurements that she collected are very
useful in determining surface based CAPE.
An important thing to note is that a 47F dewpoint at Harriman actually has
about the same mixing ratio as a 54.5F dewpoint at 1000mb. Of course this
assumes that the sea level pressure at Virginia Dale and 1000 mb are similar. If
the sea level pressure is higher at the lower elevation then the difference
would be greater. Also, even though 47F seems chilly, this temperature
at 7500 ft actually lies along the same dry adiabat as 90F at 1000mb.
Since visibilities were near zero
before the storm, I am assuming that dewpoints were equal to the
temperatures. I constructed approximate soundings for these locations
using the 19 UTC RUC initialization and 18 UTC Denver sounding. Of
course, the boundary layer had to be modified based on the surface
mesonet observations. I modified using the 19 UTC observations since
these are just prior to the tornadic storm. The RUC soundings
were more representative than the NAM/WRF soundings. The nam
soundings were superadiabatic near the surface and dry
adiabatic above the surface layer. This is not reasonable.
The RUC soundings were closer to moist adiabatic from the
surface to above 700mb. The modified 18 UTC RUC soundings
yielded similar CAPE values to the modified 18 UTC Denver sounding. I
have determined that CAPEsb was 750 to 850 j/kg near
the beginning of the Harriman-Laramie tornado path where
surface measurements were available. The theta-e values at the
three locations were almost identical. The RUC model, which
typically overestimates CAPEsb (at least lately), actually
did a reasonably good job with CAPEsb fields, perhaps for the wrong
reasons. The fact that this model actually forecasted CAPEsb
values up to 1000 j/kg at 6 to 12 hours could be a result of the
model's usual overestimation. A look at RUC soundings for May 22 showed
a superadiabatic layer near the surface and unreasonably high
dewpoints. The starting pressures were also too high. The NAM/WRF
underestimated CAPEsb in southeast Wyoming.
The storm kept moving upslope from
southwest of Harriman at 1858 UTC to near Vedauwoo at 1917 UTC.
Meteorological towers actually measured the wind and temperature at
several locations near the path of the storm. Thus far I have access to
the data for two of these towers. One of the towers is located 2 miles
west-southwest of Ames Monument at 41', 7.51' latitude and 105', 25.6'
longitude with an elevation of 8220 ft. The tornado actually passed
east and north of this tower by 2 miles. The average temperature at
the tower (near ground level) from 1830 to 1840 UTC was 45.4F.
The sustained windspeed was about 30 kts from 80° around 1830 UTC.
The wind became variable and subsided after 1840 UTC. The
tornadic storm passed to the east and north of the tower, so by
1910 UTC the strongest low-level flow was surely northeast of the
tower. Using 44.5F at 735 mb in the Denver 18 UTC and
RUC 19 UTC soundings (using starting pressure of 735mb) yields CAPE
values from 600 to 750 g/kg. I assumed
T=Td since dense fog blanketed the Ames Monument area before and during
the storm. The freezing level near Vedauwoo was 3700 ft. I
have prepared a new sounding for the area south of Ames Monument
since the wind tower data showed a warmer temperature of 45.4F.
This sounding, which was modified at the lowest levels from the
19 UTC RUC, shows 800 j/kgCAPE sb.
Another wind tower located at 41° 2.7' N and 105° 18.36'
(elev. 7700 ft) showed winds backing to 70° well ahead of the
tornado, then backing even further to between 35° and 55° as
the tornado approached from the south. The wind data from this tower showed a 90 mph wind gust at 128 ft as the tornado passed just to the west.
The tower reported a nearly constant average temperature from 46.0F to
46.6F leading up to the tornado. This yields about the same
theta-e as Harriman, WY (47F/47F at 7450 ft). Note that temperatures
changed roughly moist adiabatically with increasing elevation
from Harriman to south of Ames Monument. So CAPE values changed
little following the storm (650 to 800 j/kg). Another sounding using
surface data at the wind tower location will be generated, but the CAPE
with this sounding will probably be very similar to the CAPE for
the Harriman sounding.
Table 4 and Table 5 show the CAPEsb
values for Harriman and Vedauwoo 2S(Ames Monument 1.6 wsw). Table 4 uses the 18 UTC Denver
sounding while Table 5 uses the 19 UTC RUC initialization. These are modified
using the temperature readings from the 3 stations and assumes saturation (there
was dense fog). Note that the winds in these soundings were derived from KCYS VWP and Base Velocity.
Table 4
|
|
|
|
|
|
|
|
|
DEN 18 Z/mesonet/VWP/Base V |
Elev(ft) |
Pres.(mb) |
T(F) |
Td(F) |
MR(g/kg) |
theta(F) |
theta-e(K) |
CAPE(j/kg) |
Harriman |
7450 |
756 |
47 |
47 |
9.2 |
89 |
332.5 |
858 |
Vedauwoo 8SE |
7700 |
747 |
46.4 |
46 |
8.9 |
90.3 |
332.7 |
871 |
Table 5
|
|
|
|
|
|
|
|
|
RUC 19 Z/VWP/mesonet/base vel. |
Elev(ft) |
Pres.(mb) |
T(F) |
Td(F) |
MR(g/kg) |
theta(F) |
theta-e(K) |
CAPE(j/kg) |
Harriman |
7450 |
756 |
47 |
47 |
9.2 |
89 |
332.5 |
843 |
Vedauwoo 2S
|
8200 |
735 |
45.5 |
45.0 |
8.7 |
91.9 |
333.0 |
760 |
Vedauwoo 8SE |
7700 |
747 |
46.4 |
46 |
8.9 |
90.3 |
332.7 |
714 |
Here is a sounding for Harriman, WY by Dan Bikos using RAOB.
It is very difficult to achieve low dewpoint
depressions, relatively high theta-e values at low-levels and excellent
vertical wind shear at 7500-8700 ft on the Laramie Ridge/Mountains. As previously
mentioned, the dewpoints were equal to the temperatures along and east of the
summit of the Laramie Ridge. But CAPEsb values still ranged from 600 to 900 j/kg. In typical low plains severe storm situations, these CAPE would be
considered very marginal. When CAPEsb is marginal, tornadic storms can still
occur, especially when LCL and LFC heights are low and considerable CAPEsb exists at low levels. This was indeed the case on May 22 on the
Laramie Ridge. In fact, after initially weakening upon moving into cooler air on
higher terrain northwest of Wellington, CO, the storm quickly reintensified
after encountering dense fog east of Virginia Dale. The
LFC (level of free convection) was possibly at the ground as the storm
moved from west of Harriman to Overlook Rd since the approximate
soundings show no CIN above the surface.
The vertical wind shear profile
featured strong shear. The surface wind backed to the northeast by
mid-day at the mesonet locations. This backing was corroborated by the
wind tower data. Thus we have high confidence that the surface winds
were from the east-northeast around 30 kts before the storm approached
from the southeast. As the storm approached, winds likely backed to the
northeast as shown by the wind tower that was less than 1/2 mile east
of the tornado path.
For the winds above the surface we used the WSR-88d CYS VWP (VAD wind
profile),WSR-88d CYS base velocity as well as the 18 UTC RUC. The wind
just above the moist layer (600mb) was about 120° at 70 kts.
So there was tremendous shear between the surface and 600mb (1.5 to 1.8
km agl). The 500 mb wind was from 140° at 70 kts while the 400mb
wind was from 165 deg at 90 kts. 400 mb is 4.4 to 4.7 km above the
surface, so the shear from the surface to 4.5 km was 90 to 100 kts.
The 0-3 km and 0-6 km shear values were about 65 and 105 kts
respectively.
The MESOWEST stations, 1 cooperative
observer station and wind tower data also helped to assess the shear profile in southeast
Wyoming in Table 6. These stations show a backing in the surface wind around before 19
UTC. Windspeeds are in miles per hour. The windspeed at Virginia Dale
is not given since it was much too low and apparently in error. I
currently do not know how these windspeeds and wind gusts were
calculated and exactly what time the measurements represent. For
example, the 1900 UTC observation could be for the period 1800-1900 UTC.
Mesowest Station
|
14 UTC |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
Lynch (7E of tornado at 19 UTC) |
09021g26 |
09020g31 |
03019g32 |
08020g26 |
08034g35 |
06023g44 |
07044g44 |
08023g44 |
0908g20 |
Buford (7N of tornado at 19 UTC) |
07017g26 |
06023g26 |
05029g32 |
07025g36 |
05033g42 |
03045g45 |
08036g50 |
07045g45 |
07011g23 |
It is important to note that the RUC and NAM/WRF showed no
indication of a northerly wind component. But this has important
implications for windshear and storm relative helicity. The low-level
storm relative flow was apparently much greater than shown by the
models. This shows that added surface observations can help us assess
the near storm environment. The Cheyenne metar (further east) showed a
slight northerly component at 19 UTC (080°).
Hodographs and a
shear analysis were completed by
Dan Bikos of
CIRA.
He varied the surface wind from 040° to 090°. The surface wind
speed was 35 kts and storm motion vector 146° at 42 kts. The 0-3 km
storm
relative helicity(srh) varied from 200 to 682 m²/s²!!
0-1 km srh ranged from 98 to 314 m²/s² depending on surface
wind direction. 0-6 km shear ranged from 90 to 110 kts depending on
surface wind direction. Storm relative inflow varied from 37 to 56 kts
depending on surface wind direction. These have not been finalized and
future tweaks are likely. The wind vectors at various levels were
obtained from the CYS VAD wind profile, base velocity data from CYS WSR-88D, as well
as the various model initializations. However, the models were
apparently underestimating windspeeds at most levels by 10 to 20%. Also,
the winds were too veered in the models from the surface to 3 km.
Note that these hodographs were made
using a surface wind speed of 25 kts and storm motion vector of 150°
at 42 kts. New ones will be generated using the updated wind profile.
040 deg
050 deg
060 deg
070 deg
080 deg
090 deg
This
shear analysis
was made using a surface wind vector of 70° at 35 kts. Again,
the table shows the various shear and storm-relative helicity values
when the surface wind direction is varied from 40° to 90°. The
storm motion vector was 146° at 42 kts.
An updated hodograph for a surface wind vector of 70° at 35 kts and storm motion vector of 146° at 42 kts.
It is clear that srh values depend strongly on the surface wind direction.
One would think that it would be easier to
get sufficient CAPE and shear on the high terrain (7000+ ft) in June
or July than in April or May. But this is not necessarily the case. Strong
synoptic scale systems in spring can have very strong upslope flow associated
with them, whereas systems in late spring and summer tend to be weaker, with
weaker upslope flow. That said, the upslope flow tends to be cooler in April and
May and oftentimes more stable. Upslope flow tends to be located on the cool
side of a surface front or north of a developing surface low. Again, these
airmasses tend to be too cool in April and much of May. This is why significant
tornadoes are rare in the immediate lee of the Laramie Mountains. The upslope
flow in the May 22 case was "cooler", but 700-800+ j/kg CAPEsb values
were still achieved. Elevations from 5000-6000 ft do have more severe weather in
June and July compared to April and May. But further west on the very high
terrain, strong upslope flow is generally required to obtain adequate theta-e
values, low dewpoint depressions and high shear that typically accompany
tornadic storms. By mid-June, strong upper systems become less common so that
very strong upslope flow is rare. In the May 22 case, rich moisture raced
northwestward from north Texas and southern Oklahoma into northern Colorado and
southeast Wyoming in 9 to 12 hours from 00 to 09 UTC. Then during the day of May
22, a very strong upslope flow developed north of a surface front. Very strong
upslope flow is required to keep adequate mixing ratios at the 7000-8000 ft
elevations on the eastern slopes of the Laramie mountains. It is also important
to understand that it is the potential temperature that is important in
achieving higher theta-e values and not the temperature. Even in the presence of
only moderately cool 500-300mb temperatures of -13C, -26C and -40C, surface
temperatures from 7 to 9C were still sufficient to yield moderately high theta-e
values, and hence moderately high CAPE values. When potential temperatures are
high, mixing ratios do not have to be very high to achieve sufficiently high
theta-e values. By later in June and July, surface temperatures become so warm
that cloud bases are typically too high for tornadic storms given the meager
mixing ratios typically found at these elevations.
Freezing levels were very low on the
elevated terrain of southeast Wyoming and ranged from 3900 ft at 8700
ft AGL to 4600 ft at 8700 ft AGL. Wet-bulb zero heights were of course
even lower.
Additional surface charts will be coming soon.
Since terrain is so crucial to this meteorological discussion, I like to plot
the surface observations on top of the terrain. However, this is a very
labor-intensive process, especially since I need to include the mesonet
observations.
Lets compare
the present event with a tornado event on January 24, 1964. The
soundings are similar in that the low levels were nearly saturated and
the mid to high level thermal profile was very similar. Surface based
CAPE values were also very similar. The marginal CAPE at Birmingham was
achieved by high dewpoints despite the cool airmass. The marginal CAPE
at Vedauwoo was achieved by high potential temperatures despite modest
mixing ratios and cool actual temperatures.
Table 5
|
|
|
|
|
|
|
|
|
|
Elev(ft) |
Pres.(mb) |
T(F) |
Td(F) |
MR(g/kg) |
theta(F) |
theta-e(K) |
CAPE(j/kg) |
Vedauwoo 8 SE |
7700 |
747 |
46.4 |
46 |
8.9 |
90.3 |
332.7 |
714 |
Montgomery |
23 |
1000 |
68 |
66 |
13.9 |
68 |
332.7 |
738 |
These
two skewt-Log P diagrams show how Harriman, WY (elev 7450 ft) and
Montgomery, AL (elev 22 ft) have the same theta-e even though the T/TD
are 20F cooler at the high elevation location.
Other Thoughts
Until recently, surface observations
were never taken between Cheyenne and Laramie and southward to
Fort Collins and Akron (except for Sterling, CO for a few years). This
is a shame. Surface observations have always been tied to
aviation in the United States, making one wonder what our observation
network would be like if we never had airflight. Therefore, instead of
surface observations being placed where we need them meteorologically,
we have to settle for widely spaced observations in rural areas and
densely spaced observations around major airports.
The British surface observation network pre-dates aviation and is
superior. A storm in 1859
inspired Robert FitzRoy to establish a surface observation network
composed of 15 land stations that were transmitted via telegraph at
regular intervals. In fact, the British even maintained a nice surface
observation network in south Asia in the 1880s. This surface chart is from
05 UT
C April 7, 1888. A storm developed over
northern Bangladesh and moved south-southeast, killing 118 people in
Dacca and 70 people in the district south of Dacca. Of course, this area
now called Bangladesh was part of the British Empire until the
late 1940s.
Meanwhile, there has been a big push for improving tornado warnings
with better lead time. While the WSR-88d improvements help in this
goal, we need more surface observations so we can assess the near-storm
environments. Mesoscale models do not suffice. Real time storm chaser
reports are great too, but we can't wait until there is a tornado
tearing up a neighborhood before issuing a warning. I have chased
storms since 1992 and I admit that much of the time I am confused about
what storms are doing. Sometimes I don't even know exactly where to look
for a tornado. If the tornado is wrapped in rain, storm chasers might
not even see the tornado. Also, some storm chasers might wait 5 minutes
to call in a tornado, perhaps taking video or still shots first. I
can't say I blame them given the high gas prices and the fact that most
of these people are not paid. Legitimate storm chasers are often looked
down upon and not appreciated anyway.
A few AWOS and mesonet stations have
popped up in recent
years. This is a good start. Some of these data are of low
quality, but certainly much better than nothing. Of course, Ken
Crawford established a
statewide "Oklahoma Mesonet" in 1994 with over 100 stations. This is a
fabulous,
high quality network.
The Departments of Transportation have established
roadway surface observations and other agencies also maintain surface weather sites. These observations are oftentimes poorly
placed and not representative of surrounding areas. The data quality is
often not very good. However, when used with caution, these can be very
useful.
Other weather observing sites are also scattered around the
intermountain west. "Mesowest" surface observations were used in the
meteorological
part of this page. Why were these observations so useful? Well, in
this particular case dense fog was occurring, so only the temperatures
were needed to determine theta-e and CAPE values. Also, Lynch
and Buford showed winds backing to the northeast or east-northeast
around 19 UTC. This helped determine the vertical shear profile and
storm-relative helicity. By a stroke of luck, the cooperative observer
location 7 miles east-northeast of Virginia Dale happened to be well
placed and hourly wind directions from there showed winds from the
east-northeast at 19 UTC. Hourly temperatures were also available for
this COOP site and these
were very helpful in CAPE calculations(corroborated the sfc theta-e
calculation for Harriman and Lynch). I was able
to access these data by email after contacting the observer
(Veta Mitchell) by phone.
